Looptrotter Modular Console
Vorteile
- Fully customizable analog console compatible with almost every 500-series module
- Two 500-series slots per channel for preamps, EQs, or other devices
- Advanced Talkback/Listen section
- Four Aux tracks with routing to LR mix or groups
- Analog summing of signals for top-class mixing
- True Bypass for modules and external inserts
- Individual channel outputs and four additional stereo tracks routable to mix or groups
- Four additional stereo inputs for hardware returns or MIDI instruments
- Each channel with four Aux Send potentiometers, Mute, Solo, and To Tape controls
- Monitor panel with three selectable sources: LR mix, DAW return, EXT input
- Independent volume controls for monitor outputs and headphone output
Beschreibung
Produktinformationen "Looptrotter Modular Console"

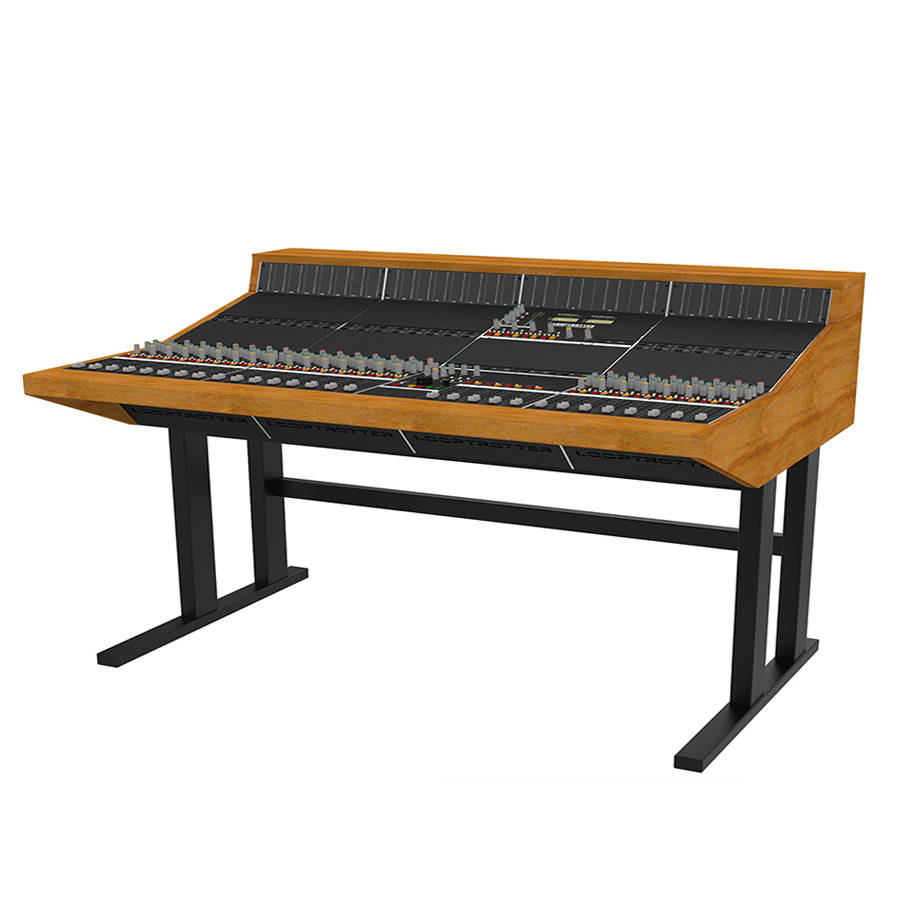

The Looptrotter Modular Console is a fully customizable analog console designed for studios, producers, and engineers using 500-series modules. Each channel features two 500-series slots, allowing users to install preamplifiers, equalizers, or other modules to create any desired sound. The console integrates essential recording and mixing functions, including an advanced Talkback/Listen section, four Aux tracks, analog summing, and True Bypass for modules and external inserts. Individual channel outputs and four additional stereo tracks can be routed to the stereo mix or groups. Additional features include four stereo inputs for hardware returns or MIDI instruments, a versatile monitor panel with three selectable sources, and independent volume controls for speakers and headphones.
Herstellerinformationen
Looptrotter
Den für das Produkt verantwortlichen Wirtschaftsakteur finden Sie
auf dem Produkt, der Verpackung oder in einer dem Produkt beiliegenden
Unterlage.
Alle Produkte im Shop
Tech-Info

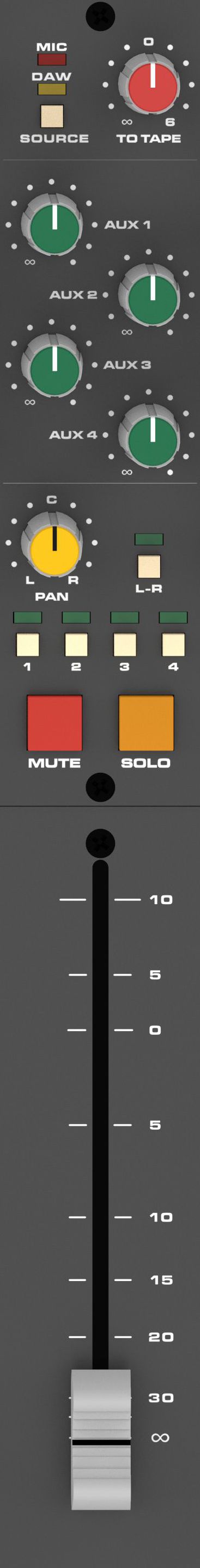

8 Channel Module
- Two selectable work modes (sources): Record (MIC) and Mix (DAW)
- Direct to Tape/DAW output with adjustable level
- Mic/Line input (DB25)
- DAW input (DB25)
- Insert send (DB25)
- Insert return (DB25)
- 100% analog signal path
- Two 500s slots with true bypass
- 4 Auxes per channel, pre/post fader assignable
- Adjustable panning
- Mute track switch
- Solo track switch
- Every channel assignable to 5 different summing buses: 1–4 stereo summing groups, Master, or both
- Fully operational as an empty frame (no 500s modules installed)
- LED meter bridge included
- Alps faders included
Master Module
- 4 Auxes, Pre/Post fader assignable
- Solo Aux switch
- LED meters for Solo level
- 5 stereo assignable summing groups: 1–4 stereo summing groups and Master channel
- Solo switch for each group
- Mute switch for each group
- Two 500s slots on Master Buss (L+R)
- Master Buss 500s module bypass
- Master Buss insert switch
- DAW input adjustable level
- External input adjustable level
- Two 500s slots on each summing group (1–4), 8 in total
- True bypass switch on each 500s module
- Insert switch on each stereo group
- Alps faders
- Four summing group LED meters (Summing group meter bridge)
- Two analog VU Meters for Master Output
- Built-in talkback microphone with adjustable gain
- Listen mic input with adjustable level
- Intuitive talkback with adjustable routing: SLS (Studio Loudspeaker), AUX
- Three talkback modes: stable, moment, auto
- External Talkback microphone input with 48V phantom power and adjustable gain
- Studio listen microphone input with 48V phantom power and adjustable gain
- Talkback footswitch
- Monitor section with A/B/C speaker select with adjustable trim for each speaker set
- Selectable monitor source: External, DAW, L+R
- Adjustable headphones listening level
- Adjustable solo level
- Adjustable dim level
- Monitor mute switch
- Monitor dim switch
- Solo clear switch
Connections
- Monitor A/B/C balanced output (XLR)
- External stereo input (TRS)
- Talkback footswitch (TRS)
- Studio Loudspeaker output (XLR)
- Studio listen input (XLR)
- External talkback input (XLR)
- Stereo input (DB25)
- Group output (DB25)
- External output / AUX output (DB25)
- Main output / insert / DAW input (DB25)
- Insert input (DB25)
- Insert return (DB25)
- Mic/Line input (DB25)
- DAW input (DB25)
- Tape output (DB25)
- Insert send (DB25)
- Insert return (DB25)
