The Wunder Audio CM12 Suprema Multi-Pattern Tube Microphone is a historic replica of the renowned AKG C12 vintage tube microphone, featuring capability of producing 9 different polar patterns. The CM12 S includes a CK12 capsule, a Hiller T14/1 transformer and a 6072a vacuum tube, all built to original specifications and true to the vintage C12. Our CM12 S is designed to reproduce an audio signal with the detail, clarity and character of the original C12.
The C12, AKG’s best-known tube condenser, is regarded by many as one of the finest microphones ever made and our CM12 S lives up to this notion with its principal sound creating components: the capsule, the transformer, the tube, the grille size and the screen mesh.
Grille
Some of the most important sound capturing components of the CM12 S is the grille size and screen mesh. Our CM12 S grille, as well as all the mechanical components in the CM12 S are true to the vintage mic and are made to the exact specs as the original C12, down to the smallest of machine marks. The grille is made like a piece of fine jewelry, as it is hand brazed, polished, and bright nickel-plated.
The grille's open mesh captures the ears of those who were spoilt by the luminescence and transparency of the original C12.
Capsule
The Wunder Audio CM12 Suprema employs a true to vintage CK12 capsule with 6-micron Mylar. It is a side-address, large-diaphragm design based on AKG’s CK12 capsule. The CK12 dual membrane, dual backplate capsule was first Introduced in 1951 as AKG developed this completely new type of complex backplate. It is a 1" membrane that is fully metalized. This freely vibrating membrane will have a lower LF cutoff than any center fixed membrane like the KK47 or KK67. The CK12 also has a unique system of dual, asymmetrical, separated resonant backplates (each backplate is itself a resonant chamber), which is what gives it a very flat midrange and 10-12 kHz peak. The original CK12 capsule is widely considered to be one of the finest condenser microphone capsules in history. In 1953, an Austrian company, AKG revealed the now-legendary CK12 microphone capsule, and became one of the two dominant forces in the manufacture of commercial condenser microphones. This new capsule became be the basis of their bestselling AKG C12 microphone.
Transformer
The CM12 Suprema uses a period correct Hiller T14/1 transformer wound to the Braunbuch specification, using laminations made from the identical nickel alloy mixture as used in the historic Hiller T14 transformer.
Tube
The Wunder Audio CM12 S tubes are hand tested NOS GE 5-star 6072A:
6.3 volts DC filament voltage,
120 volts DC plate voltage
The GE 5 Star 6072A is one of the finest 6072 tubes ever made. In fact, the GE 5 Star 6072A’s are the only 6072 (12AY7 variant) tubes recommended in high-end applications. The primary special purpose of a 6072 is its super low noise and microphonics. That is why these tubes are important in microphones and first stages of high-end audio equipment. These special purpose dual triode tubes are equipped with spiral wound heater filaments to eliminate hum and have to pass rigorous screening for noise levels.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM12 S capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording!
This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design.
The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
For the most reliable pattern switching, the CM12 S PSU uses a military spec Grayhill switch.
Box and Carrying Case
Your Wunder Audio CM12 S is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your swivel mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM12 S microphone, and it is trimmed with top grain leather and fine stitching. The CM12 S case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
Our NEW CM49 JFET S microphone features a unique low-noise profile JFET transistor with tube sound characteristics and optimized to provide low noise at both high and low frequency with beautiful detail and focus.
The CM49 JFET S has an incredibly rich audiophile accuracy and a round tone with smoother clarity throughout the frequency range. The recording will fit beautifully into the mix even without EQ.
Like The CM49 S, the Wunder Audio CM49 JFET S is very true to the vintage Neumann M49.
Grille
The CM49 JFET S has a slanted grille to limit the effect of grille resonance on the response. Because the grille is slanted and presents a continuously varying profile to the capsule, there are fewer standing waves generated.
Capsule
The CM49 JFET S Suprema uses the same Historic Berlin M7 capsule as the CM7 Suprema, and yet because of the completely different housing and the triode electronics, there are few similarities in the sound of these microphones. Both mics are superb vocal mics, though neither was designed for the purpose of close-miking, the CM49 JFET S and CM7 S really shines when placed close up with a loud source and creates a very desirable proximity effect. We recognize that sound, and we love it!
Package includes:
CM49 JFET S, Plush Oak Box, Historical Yoke Mount, Comes standard with the Historic Berlin M7 capsule.
The Wunder Audio CM49 S is very true to the vintage Neumann M49 and is an outstanding microphone due to its unique characteristic of having the ability of switching to three different directions; omni, cardioid and a figure eight pattern. The CM49 S is a pressure-gradient microphone consisting of two equal cardioid condenser capsule systems mounted back to back. Its directional characteristic may be changed continuously by remote control, which permits an easy adaptation to various acoustical environments and enabling it to cope with almost any scenario likely to arise.
The CM49 S has an incredibly rich and round tone that has the ability to make even harsher sounds much more pleasant and warm. It is especially a great choice on female vocals; our CM49 is the go-to mic for Alicia Keys. It has a smoother high-frequency range with more warmth and less of that beautiful grit that our CM7 is known for.
Grille
The CM49 S has a slanted grille to limit the effect of grille resonance on the response. Because the grille is slanted and presents a continuously varying profile to the capsule, there are fewer standing waves generated. This gives the most natural sound obtainable my any microphone, very pure and pleasantly warm. In every way, the Wunder Audio CM49 Suprema grille is true to vintage and identical to the original M49. It has been used as historical replacement parts on the vintage M49s.
The size of the grille forms a larger-volume enclosure giving the capsule more breathing room and contributing to its openness. It has a way of rendering the female vocal with an immediacy and presence not found in any other design.
Tube
Wunder Audio CM49 S uses and original MSC2, which is our preferred tube and an upgrade from the ultra-miniature AC701 that eventually replaced this fine tube in the original M49s due to the demands of the German Broadcasting industry. The original Telefunken GmbH German based company, which no longer exists, made a high-end version of the MSC2, Wunder Audio has secured a supply of the this version which was a superior grade and was originally designed for military use.
Capsule
The CM49 Suprema uses the same M7 capsule as the CM7 Suprema, and yet because of the completely different housing and the triode electronics, there are few similarities in the sound of these microphones. Both mics are superb vocal mics, though neither was designed for the purpose of close-miking, the CM49 S and CM7 S really shine when placed close up with a loud source and creates a very desirable proximity effect. We recognize that sound and we love it!
Connector
The Wunder Audio CM49 Suprema uses a M249 style seven-pin Tuchel connector, introduced by Neumann in 1961, that screws on and holds tighter than a eight-pin bayonet Tuchel connector, improving its performance with superior EMI/RF rejection.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM49 S capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording!
This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design. The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
For the most reliable pattern switching, the CM49 S PSU uses a military spec Grayhill switch.
Box and Carrying Case
Your Wunder Audio CM49 S is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your improved one-piece newly designed yoke mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM49 S microphone, and it is trimmed with top grain leather and fine stitching. The CM49 S case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
The Wunder Audio CM50 FET Suprema microphone is the solid-state version of the CM50 Suprema. It comes with the very same spherical capsule as employed in the successful CM50 Tube Mic.
Grille
The CM50 FET S has a slanted grille to limit the effect of grille resonance on the response. Because the grille is slanted and presents a continuously varying profile to the capsule, there are fewer standing waves generated.
FET Circuitry
Wunder Audio CM50 FET Suprema incorporates an audiophile grade MOSFET circuit. Sonically, the MOSFETs enhance low-level detail retrieval and provide a startling improvement in low noise performance, adding a sense of purity on vocals and strings thought to be impossible in transistor amplification.
Capsule
The CM50 Suprema uses the same M9 capsule as the historic M50. Neumann went through several materials for their diaphragm, starting with PVC which quickly became too brittle, then went to aluminum which was difficult to tension correctly. For a brief period nickel was used and finally, the decision was to use Mylar, as in the KM 83.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While high-fidelity equipment is usually referred to at the end of the chain in recording, we feel that it is equally important all the way through; to be able to listen to the best possible recording, you must be able to record that sound with minimal amounts of noise and distortion and an accurate frequency.
Box and Yoke Mount
Your Wunder Audio CM50FET S is nestled in velvet and softly secured in place in a foam-lined oak-wooden box that is clasped and hinged. This beautiful oak box is also sold separately. Your CM50 S yoke mount is an improved one-piece design for durability.
The Wunder Audio CM50 Suprema tube microphone is true to vintage using an original Neumann style M50 spherical capsule. The Wunder Audio CM50 S has an incredible lineage; its predecessor, the CM50, has been used worldwide in Decca trees for recording the soundtracks for many of the major motion pictures produced today. The Wunder Audio CM50 version is widely used by scoring engineer Shawn Murphy and Tom Steel amongst others at most of the sound stages in Los Angeles including; the Newman Scoring Stage 20th Century Fox, Sony Scoring Stage, Culver City, Newman Scoring Stage for both movies and television. It is favorite of Glee and The Glee Project and other top scoring stages worldwide, including Abbey road! Main left-right usage of the CM50 include: Star Wars: Episode VII - The Force Awakens, the Hobbit film series, Harry Potter and Marvel films. The new CM50 Suprema is one step up from this already perfect mic.
The CM50 S is the best available microphone for orchestral recordings because it has a response that rises slightly and it becomes increasingly more directional at higher frequencies when exposed to direct sound, but it remains flat in a diffused sound field.
In addition to being the perfect microphone for soundtrack recordings, the CM50 Suprema is definitely an important mic when recording drums and capturing the room sound, giving the instrument volume and depth. Once you try this out on drums, you will never want to record without it, as the drums sound flat without the CM50 Suprema.
Grille
The CM50 S has a slanted grille to limit the effect of grille resonance on the response. Because the grille is slanted and presents a continuously varying profile to the capsule, there are fewer standing waves generated. This gives the most natural sound obtainable my any microphone. Very pure and pleasantly warm. The size of the grille forms a larger-volume enclosure giving the capsule more breathing room and contributing to its openness. In every way the Wunder Audio CM50 Suprema grille is true to vintage and identical to the original M50. It has been used as historical replacement parts on the vintage M50s.
Tube
Wunder Audio CM50 S uses and original MSC2, which is our preferred tube and an upgrade from the ultra-miniature AC701 that eventually replaced this fine tube in the original M49s due to the demands of the German Broadcasting industry. The original Telefunken GmbH German based company, which no longer exists, made a high-end version of the MSC2, Wunder Audio has secured a supply of the this version which was a superior grade and was originally designed for military use.
Capsule
The CM50 Suprema uses the same M9 capsule as the historic M50. Neumann went through several materials for their diaphragm, starting with PVC which quickly became too brittle, then went to aluminum which was difficult to tension correctly. For a brief period nickel was used and finally the decision was to use Mylar, as in the KM 83.
We have successfully recreated the small pressure transducer, similar to the capsule for the KM series microphones, embedded in the surface of a 40 mm diameter Lucite sphere. By mounting the miniature capsule in the large Lucite sphere all standing waves larger than 40 mm are eliminated thus canceling out proximity effect. No other microphone set to Omni can achieve the naturalness of the CM50 S sound. The inspiration is classic, the execution is cutting-edge.
Connector
The Wunder Audio CM50 Suprema uses a M250 style seven-pin Tuchel connector, introduced by Neumann in 1961, that screws on and holds tighter than a eight-pin bayonet Tuchel connector, improving its performance with superior EMI/RF rejection.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM50 S capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording!
This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design. The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
Box and Carrying Case
Your Wunder Audio CM50 S is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your one-piece newly designed yoke mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM50 S microphone, and it is trimmed with top grain leather and fine stitching. The CM50 S case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
The Wunder Audio CM67 S is an exceptional microphone for vocals when a smoother sound is desired. The original U67 is prized for its warmth, this is also true for the Wunder Audio CM67 S. It is also excellent for drums (toms, snare, overheads), acoustic guitar and electric guitar. The CM67 S is a serious pro-studio workhorse because it has a very nice top and bottom end, and brings out a natural sound from any source. This mic is true to a vintage U67 with a modern upgrade, we've engineered a switchable cardioid mode relay on the inside of the mic instead of on the outside of the grille. This mode produces a smoother more full-bodied sound. The pattern switch is still on the PSU, but the actual switch point in the circuit is directly below the capsule compartment. At the same time, it retains the eight different polar patterns found in a vintage M49, so it is like having two mics in one!
Capsule
The K67 capsule in the CM67 S includes a two-piece back plate, allowing both diaphragms to be tuned individually and then matched for equivalent response.
There were 6 different versions of the original Neumann K67 capsule. The earlier versions, circa 1960-66, had either brass or fiber diaphragm rings and the later versions, 1966 onwards, were made with white plastic diaphragm rings and these later rings were actually better at isolating the diaphragm from the backplate ground.
We took this approach one step further with a modern upgrade by utilizing a white porcelain ringed K67 in our capsule. Our porcelain has low permeability and elasticity, considerable strength, hardness, resonance, and a high resistance to chemical attack and thermal shock, improving on the white plastic rings used on the original K67; which were prone to discoloring, becoming soaked with impurities over the years and affected its electrical resistance thus creating noise.
Tube
The CM67 Suprema gives you a choice of one of two new old stock EF86 tubes that are excellent in this mic, both are fantastic and both are unique in their own way:
• One is the German made vintage Telefunken EF86, which emphasizes the highs.
• The other is a vintage special select Phillips tube, which lends warmth to the sound.
Transformer
The transformer in the CM67 Suprema is true to vintage and is somewhat unique. It makes use of an elaborate feedback network known as a tertiary winding, which creates negative feedback through the capsule to the tube for High Frequency de-emphasis. It creates a roll-off in the HF response in order to compensate for the natural HF peak due to the original design of the K67 capsule. It takes a very special transformer to accomplish this task while simultaneously achieving such an impressive sound.
Some U67 recreations have a quick fix to simulate the sound of the original, but most of the modifications that attenuate the top end achieve a less than desirable result. This is not exactly a good trade-off.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM67 S capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording!
This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design. The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
For the most reliable pattern switching, the CM67 S PSU uses a military spec Grayhill switch.
Box and Carrying Case
Your Wunder Audio CM67 S is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your shock mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM67 S microphone, and it is trimmed with top grain leather and fine stitching. The CM67 S case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
The Wunder Audio CM7 FET Suprema is a phantom powered version of the original U47. The original goal with a phantom powered mic was to bypass the need for a tube PSU. One shortcoming of the U47 FET was that the design technology of the 1960’s FET transistor was in its infancy and the end result was not always desirable.
The Wunder Audio CM7 FET Suprema has improved this design with modern upgrade that employs an ultra low noise single n-channel transistor with JFET technology coupled with a Neve 1073 style mic pre transformer. The results are stunning and the performance of this mic greatly surpasses the original, yielding better low-lows and highs. This a workhorse studio mic for all sources, especially vocals, making it reminiscent to a 1970’s era U87!
Grille
Employing the exact replica of the original grille is one of the key aspects of achieving the correct performance of this mic. Our Wunder Audio CM7FET S Grille is true to vintage with three gauges of grill mesh at the head grille: an outer large mesh, an inner medium mesh, and a fine mesh that is sandwiched in between.
The Wunder Audio Suprema Grille has acoustic interplay with the capsule, having the electronic properties of a faraday cage. This proper vintage mesh gauge is not the readily available metric gauge and is vastly important for the legendary sound of a U47.
Capsule
The Wunder Audio CM7 FET Suprema K47 capsule includes a one-piece back plate dual Membrane Capsule. The diaphragms are tuned individually and then matched for equivalent response.
There were several different versions of the original Neumann K47 capsule. The earlier versions, circa 1960-66, had either brass or fiber diaphragm rings and the later versions, 1966 onwards, were made with white plastic diaphragm rings, which actually were better at isolating the diaphragm from the backplate ground.
We took this approach one step further with a modern upgrade by utilizing a white porcelain ringed K47 in our capsule. Our porcelain has low permeability and elasticity, considerable strength, hardness, resonance, and a high resistance to chemical attack and thermal shock, improving on the white plastic rings used on the original K47; which were prone to discoloring, becoming soaked with impurities over the years and affected its electrical resistance thus creating noise.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While high-fidelity equipment is usually referred to at the end of the chain in recording, we feel that it is equally important all the way through; to be able to listen to the best possible recording, you must be able to record that sound with minimal amounts of noise and distortion and an accurate frequency. We've enhanced to our true to vintage microphones by changing the value of the capacitors resulting in a lower corner frequency for a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Box and Yoke Mount
Your Wunder Audio CM7 FET S is nestled in velvet and softly secured in place in a foam-lined oak-wooden box that is clasped and hinged. This beautiful oak box is also sold separately. Your CM7 FET S yoke mount is an improved one piece design for durability.
The CM7 G (Glass Tube Switchable) Suprema is the latest evolution of the CM7-GTS. This mic is true to a vintage U47 with a modern upgrade, we've engineered a switchable cardioid mode relay on the inside of the mic instead of on the outside of the grille. This mode produces a smoother more full-bodied sound. The pattern switch is still on the PSU, but the actual switch point in the circuit is directly below the capsule compartment. At the same time, it retains the eight different polar patterns found in a vintage M49, so it is like having two mics in one!
Grille
Our Wunder Audio CM7 GS Grille is true to vintage with three gauges of grill mesh at the head grille: an outer large mesh, an inner medium mesh, and a fine mesh that is sandwiched in between.
The Wunder Audio Suprema Grille has acoustic interplay with the capsule, having the electronic properties of a faraday cage.This proper vintage mesh gauge is not the readily available metric gauge and is vastly important for the legendary sound of a U47.
Capsule
The Wunder Audio CM7 GS Suprema Microphone can be ordered either with K47 or M7 Capsule.
Our diaphragm is stretched and glued to the rim, akin to how a snare drum head is stretched over a rim and never screwed to the backplate.
Our backplate is brass and precision milled by hand in Switzerland to the original rim height 15/10000th inch specification within one-micron tolerance. (1 Micron = 0.0000393701 inch) A modern upgrade to the original M7’s which had up to 0002” tolerance and explains why some brand new U47’s back in the 1950’s sounded better than others.
The CM7 GS has three mounting isolation rims, true to the vintage Berlin M7 and a modern upgrade to the Gefell M7 which has only two; having three rims provides an improved isolation of the ground. Our capsules then sent to Germany, where they have perfected the craft of skinning them in gold.
Tube
The CM7 G Suprema includes a new old stock Telefunken 800 series tube. This tube is modern glass derivative of the VF14M used in the vintage U47. It uses the same system construction but in a package that is less likely to get microphonic.
Transformer
The transformer inside the CM7 G Suprema is a historic recreation of the early transformers used in the exceedingly rare early “Large Badge” U47s. It contains the exact vintage Mu-Metal as these early Berlin U47 transformers and are wound to the original Braunbuch specifications using NOS (new old stock) laminations.
The most important difference in the first several hundred “Large Badge” U47’s was that the transformer bobbin was a full 1/8” larger than the later version of the U47 transformer. The CM7 G Suprema transformer incorporates these highly desired larger bobbin specs.
We've replaced the problematic PVC wire insulation of the original U47 in the CM7 GS, upgrading it to Teflon to ensure 100% reliability Over the decades, the original U47 transformers will begin to decay. The clear PVC coating that was used as an insulation between the layers of the Mu-Metal laminations rubs off by the transformer mounting screws and fuses the lamination layers together causing changes in the lows and high frequencies.
Additionally PVC was used as insulation on the hookup wire emanating from the bobbin and this PVC eventually flakes off the wire causing irrevocable damage to the bobbin windings.
Aging and decay of the transformer and 30 other components in a 66-year-old vintage U47 microphone is the reason for the undesirable sound in many of the older mics.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM7 GS capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording! This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design. The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
For the most reliable pattern switching, the CM7 GS PSU uses a military spec Grayhill switch.
Box and Carrying Case
Your Wunder Audio CM7 GS is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your shock mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM7 GS microphone, and it is trimmed with top grain leather and fine stitching. The CM7 GS case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
The CM7 G (Glass Tube Switchable) Suprema is the latest evolution of the CM7-GTS. This mic is true to a vintage U47 with a modern upgrade, we've engineered a switchable cardioid mode relay on the inside of the mic instead of on the outside of the grille. This mode produces a smoother more full-bodied sound. The pattern switch is still on the PSU, but the actual switch point in the circuit is directly below the capsule compartment. At the same time, it retains the eight different polar patterns found in a vintage M49, so it is like having two mics in one!
Grille
Our Wunder Audio CM7 GS Grille is true to vintage with three gauges of grill mesh at the head grille: an outer large mesh, an inner medium mesh, and a fine mesh that is sandwiched in between.
The Wunder Audio Suprema Grille has acoustic interplay with the capsule, having the electronic properties of a faraday cage.This proper vintage mesh gauge is not the readily available metric gauge and is vastly important for the legendary sound of a U47.
Capsule
The Wunder Audio CM7 GS Suprema Microphone can be ordered either with K47 or M7 Capsule.
Our diaphragm is stretched and glued to the rim, akin to how a snare drum head is stretched over a rim and never screwed to the backplate.
Our backplate is brass and precision milled by hand in Switzerland to the original rim height 15/10000th inch specification within one-micron tolerance. (1 Micron = 0.0000393701 inch) A modern upgrade to the original M7’s which had up to 0002” tolerance and explains why some brand new U47’s back in the 1950’s sounded better than others.
The CM7 GS has three mounting isolation rims, true to the vintage Berlin M7 and a modern upgrade to the Gefell M7 which has only two; having three rims provides an improved isolation of the ground. Our capsules then sent to Germany, where they have perfected the craft of skinning them in gold.
Tube
The CM7 G Suprema includes a new old stock Telefunken 800 series tube. This tube is modern glass derivative of the VF14M used in the vintage U47. It uses the same system construction but in a package that is less likely to get microphonic.
Transformer
The transformer inside the CM7 G Suprema is a historic recreation of the early transformers used in the exceedingly rare early “Large Badge” U47s. It contains the exact vintage Mu-Metal as these early Berlin U47 transformers and are wound to the original Braunbuch specifications using NOS (new old stock) laminations.
The most important difference in the first several hundred “Large Badge” U47’s was that the transformer bobbin was a full 1/8” larger than the later version of the U47 transformer. The CM7 G Suprema transformer incorporates these highly desired larger bobbin specs.
We've replaced the problematic PVC wire insulation of the original U47 in the CM7 GS, upgrading it to Teflon to ensure 100% reliability Over the decades, the original U47 transformers will begin to decay. The clear PVC coating that was used as an insulation between the layers of the Mu-Metal laminations rubs off by the transformer mounting screws and fuses the lamination layers together causing changes in the lows and high frequencies.
Additionally PVC was used as insulation on the hookup wire emanating from the bobbin and this PVC eventually flakes off the wire causing irrevocable damage to the bobbin windings.
Aging and decay of the transformer and 30 other components in a 66-year-old vintage U47 microphone is the reason for the undesirable sound in many of the older mics.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM7 GS capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording!
This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design. The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
For the most reliable pattern switching, the CM7 GS PSU uses a military spec Grayhill switch.
Box and Carrying Case
Your Wunder Audio CM7 GS is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your shock mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM7 GS microphone, and it is trimmed with top grain leather and fine stitching. The CM7 GS case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
The new Wunder Audio CM7 Suprema microphone is one step above our already legendary CM7 model. The standout qualities of the new CM7 Suprema passive electronics are their extraordinarily direct low-end responsiveness and wide high-end plateau. Combine this with an audiophile PSU and you'll hear both the best qualities of a modern microphone and the legendary sound of a vintage microphone. The CM7 S is exceptional as a vocal mic as well a it being an excellent choice for drums, acoustic guitars and piano. The CM7 S is a serious pro-studio workhorse because it has a very nice top and bottom, and brings out a natural sound from any source.
Grille
Our Wunder Audio CM7 S Grille is true to vintage with three gauges of grill mesh at the head grille: an outer large mesh, an inner medium mesh, and a fine mesh that is sandwiched in between.
The Wunder Audio Suprema Grille has acoustic interplay with the capsule, having the electronic properties of a faraday cage. This proper vintage mesh gauge is not the readily available metric gauge and is vastly important for the legendary sound of a U47.
M7 Capsule
The diaphragm in our M7 capsule is stretched and glued to the rim, akin to how a snare drum head is stretched over a rim, and never screwed to the backplate.
Our backplate is brass and precision milled by hand in Switzerland to the original rim height 15/10000th inch specification within one-micron tolerance. (1 Micron = 0.0000393701 inch). Many other modern capsules are CNC milled and cannot meet these tight specifications. The original M7’s had up to .0002” tolerance, this modern upgrade explains why some brand new U47’s back in the 1950’s sounded better than others.
The CM7 S has three mounting isolation rims, true to the vintage Berlin M7 and superior to the Gefell M7 which has only two; having three rims provides an improved isolation of the ground. Our capsules are then sent to Germany, where they have perfected the craft of skinning them in gold.
Tube
We've put a modern upgrade to the original vintage NOS Telefunken EF14 tube to achieve the same specs as the VF14. Our NOS tubes were made in Berlin or Ulm Germany during the same production run as the original VF14’s.
The original U47 had a VF14 metal tube that was made in Germany in the 1950’s by the original Telefunken GmbH company, which no longer exists. NOS VF14 tubes in a sealed box are now totally extinct.
Wunder Audio only selects tubes from the best production years, the year and the location of where the tubes were made can be identified by the date code on the tube. The VF14 and these select EF14 used all the same tooling for the internal and external components. The only difference in these EF14’s from the VF14 is where the filament wire was attached. The VF14 that was used in the Neumann U47 microphone was under heated, and so if you use an EF14 and run a separate filament at 5.0 V, the EF14 will be sonically indistinguishable to the VF14. With passive electronics we slightly modify the filament load to achieve this resulting in identical results to the VF14.
Capacitor
We've optimized our passive components to achieve a true audiophile performance. While audiophile equipment is usually referred to at the end of the chain in recording, we feel that it is most important that the first link in the recording chain, the microphone, be the best attainable. To be able to listen to the best possible recording, you must be able to record the source with minimal amounts of noise and distortion and be able to accurately capture every nuance of the sound. We've enhanced our true to vintage microphones by utilizing the Suprema Silver Gold Oil capacitor which is the highest quality capacitor available today. More importantly, sonically the CM7 S capacitor stands out due to its wonderful natural singing and exceptional micro dynamic. Capacitance: 1uF; Dielectric: Polypropylene Metallization 99.99% silver, 1% gold; Purity of silver: min. 99.97% typ. 99.99%; Purity of gold: min. 99.97% typ. 99.99%".
Sound: At this level we are talking about a really serious capacitor, relative to other exotic types. They are richer and better layered and they seem more open and more spatial. Mundorf Silver Gold Oil really excels in image depth - call it bowling alley depth! A slight hint of top-end air, this probably contributes to the perceived spatiality and micro-detailing. These capacitors are so quiet and really let you look very deep into the recording!
This results in a modern-vintage sound where the spectrum opens up, adding emphasis to the sound staging and creates a greater sense of air and transparency, without the impression of a diminished mid and lower-end response. The outcome is a less grainy and a much more fluid sound. The focus is tighter and sharper.
Transformer
The transformer inside the CM7 Suprema is a historic recreation of the early transformers used in the exceedingly rare early “Large Badge” U47s. It contains the exact vintage Mu-Metal as these early Berlin U47 transformers and are wound to the original Braunbuch specifications using NOS (new old stock) laminations.
The most important difference in the first several hundred “Large Badge” U47’s was that the transformer bobbin was a full 1/8” larger than the later version of the U47 transformer. The CM7 Suprema transformer incorporates these highly desired larger bobbin specs.
The CM7 S replaces the problematic PVC wire insulation, upgrading it to Teflon to ensure 100% reliability. Over the decades, the original U47 transformers will begin to decay. The clear PVC coating that was used as an insulation between the layers of the Mu-Metal laminations rubs off by the transformer mounting screws and fuses the lamination layers together causing changes in the lows and high frequencies.
Additionally PVC was used as insulation on the hookup wire emanating from the bobbin and this PVC eventually flakes off the wire causing irrevocable damage to the bobbin windings.
Aging and decay of the transformer and 30 other components in a 66-year-old vintage U47 microphone is the reason for the undesirable sound in many of the older mics.
Power Supply
The new generation tube Microphone PSU is proprietary to Wunder Audio and is an upgrade from the vintage tube mic PSU’s used for the 1960's era Neumann design. Our upgrade gets a clean and stable DC voltage to the mic and shields the influx of Wi-Fi and RF interference with 100 percent reliability.
We've engineered our PSU to the equivalent of the technology incorporated in top tier audiophile systems, using a duel-pole neutral-fusing design. The PSU can be plugged into any voltage in the world without having to jumper a voltage setting switch.
Inside, we've incorporated extremely accurate 30 turn trim pots so we are able to fine-tune all of the voltages. Most other power supply designs either do not have a voltage trim or use a single turn pot, which is susceptible to drifting.
Box and Carrying Case
Your Wunder Audio CM7 S is nestled in velvet and softly secured in place in a foam-lined quarter sawn oak box that is clasped and hinged. This box then is safely incased in a precision velvet-lined thick foam tweed case that also holds your PSU, your shock mount, and your cables. The tweed carrying case is a work of art in itself; it uses the same Fender tweed found in a vintage fender guitar case which amplifies the vintage period of the vintage-style CM7 S microphone, and it is trimmed with top grain leather and fine stitching. The CM7 S case has a strong leather handle and combination lock to keep your mic secure. This case can be sold separately.
Wunder Audio has entered the 500 Series arena! Introducing the Wunder Cobalt Pre – the 500 Series-ported mic pre taken directly from Wunder's acclaimed PEQ2 module. The sound and quality you love from Wunder now in the portable and convenient 500 Series format.
The Wunder Audio PAFOURplus is the 19" rack mount, four-channel microphone preamplifier version of the PEQ2. We've added new features to every channel of the original PAFOUR to make this new version a definite plus.
PAFOURplus New Features:
NEW Beefy Output Stage added just before Output Transformer.
Upgraded "NICO" transformers (Nickle/Iron/Colbalt).
Discrete Active HP Filter.
Output fader.
Improved Gain switches, over 3 x the gold contact area per switch position.
Light Pipe Pushbuttons replaces small C&K toggle switches.
LED metering with Green signal indicator and Red clip light.
Gain knob has one extra position to achieve -6db less gain (-24dB).
Redesigned Enclosure with thicker gauge metal and
tack welded with better RF protection.
Thicker faceplate.
1% Metal Film resistors for lower noise floor and better matching from channel to channel.
Sturdier amp compensation or RF rejection capacitors
New PCB with revised and optimized component layout with beefier traces.
RF filtering
PEQ2 Single Module 1 NEW output stage added to the tail end, just before output transformer, for greater maximum gain. 2 Upgraded 'NICO' transformers (Nickle/Iron/Colbalt). 3 Improved Gain switches with over 3 x the gold contact area per switch position. 4 Improved EQ switches with over 3 x the gold contact area per switch position. 5 Light pipe pushbuttons, as used in the Wunderbar Console. 6 Discrete, active high pass filter. 7 LED metering with Green signal indicator and Red clip light. 8 Gain knob now has one extra counter clockwise position to achieve -6db less gain (-24dB instead of -18dB like on old units). 9 Totally redesigned enclosure with thicker gauge metal for superior shielding and better RF protection. 10 Thicker faceplate. 11 1% Metal Film resistors for lower noise floor and better matching from channel to channel. 12 Sturdier amp compensation or RF rejection capacitors. 13 New PCB with revised and optimized component layout with beefier traces. 14 RF filtering. Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
PEQ2R - 19' The PEQ2R is the 19' rack mount version of the PEQ2. It has a conductive plastic logarithmic taper output level potentiometer, which acts as an output fader, a 48V phantom power switch and a quarter inch instrument input jack. We've taken the PEQ1R and enhanced it to make it even better! 1 NEW output stage added to the tail end, just before output transformer, for greater maximum gain. 2 Upgraded 'NICO' transformers (Nickle/Iron/Colbalt). 3 Improved Gain switches with over 3 x the gold contact area per switch position. 4 Improved EQ switches with over 3 x the gold contact area per switch position. 5 Light pipe pushbuttons, as used in the Wunderbar Console. 6 Discrete, active high pass filter. 7 LED metering with Green signal indicator and Red clip light. 8 1/4' instrument input is selectable from Active or Classic Input on PEQ2R. 9 Gain knob now has one extra counter clockwise position to achieve 6db less gain (24dB instead of 18dB like on old units). 11 Totally redesigned enclosure with thicker gauge metal for superior shielding and better RF protection. 10 Thicker faceplate on PEQ2R. 12 1% Metal Film resistors for lower noise floor and better matching from channel to channel. 13 Sturdier amp compensation or RF rejection capacitors. 14 New PCB with revised and optimized component layout with beefier traces. .............................................................. 15 RF filtering. Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.

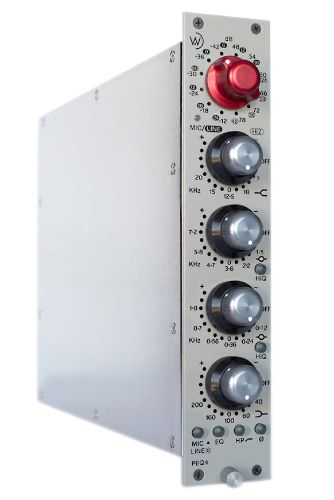

PEQ4 Single Module
Introducing the new PEQ4. Our 4-band Mic-Pre/EQ, with selectable narrow or wide Q, allows you to enhance (boost) and/or minimize (cut) a larger number of selected frequencies. Designed in 2019 for Roger Waters' 48-channel Wunderbar, the PEQ4 has 4 bands: low, low-mid, high-mid, and high. Refined boost and cut amplifiers give better resolution to the boost and cut compared to the PEQ2. New custom-made aluminum gun-metal gray knobs give the module a cool vibe. This new module also boasts silent switching push-buttons. The push-buttons activate a relay so no audio passes through them, making them functionally quiet. The new PEQ4 includes our custom transformers, which give it that thick Wunder Audio sound. The PEQ4 is available as a module in the Wunderbar, a vertical rack mount module, or 19" one-U-high horizontal rack mount unit. While it doesn't replace the PEQ2, the PEQ4 maintains what we love about the PEQ2, while including some extras designed for those who desire a bit more control over the EQ.
Features:
Rear connector that is interchangeable with PEQ2 or a 1073.
Same microphone preamp as PEQ2.
Same Class A output stage as PEQ2, extended on the tail end, just before output transformer, for greater maximum gain.
Same mic in, live in, and output transformers as the PEQ2; Wunder Audio's own "NICO" Western Electric 6186-style transformers (Nickle/Iron/Cobalt).
Same thick gauge mu-metal enclosure for superior shielding and RF protection.
Same high and low shelving EQ.
High quality custom Grayhill gain and EQ switches with exceptional gold contact per switch position.
Global EQ bypass button switches EQ totally out of circuit.
Individual band bypass switch. When EQ is on, each band can be individually by-passed.
Light pipe pushbuttons, as used in the Wunderbar Console.
Discrete, active high pass filter.
Phase switch.
LED metering with Green signal indicator and Red clip light.
78 dB of total gain.
Thick and sturdy faceplate.
1% Metal Film resistors for a low noise floor and better matching from channel to channel.
Sturdy amp compensation / RF rejection capacitors.
Optimized component layout with thick copper traces.
RF filtering
PEQ4 Single Module
Introducing the new PEQ4. Our 4-band Mic-Pre/EQ, with selectable narrow or wide Q, allows you to enhance (boost) and/or minimize (cut) a larger number of selected frequencies. Designed in 2019 for Roger Waters' 48-channel Wunderbar, the PEQ4 has 4 bands: low, low-mid, high-mid, and high. Refined boost and cut amplifiers give better resolution to the boost and cut compared to the PEQ2. New custom-made aluminum gun-metal gray knobs give the module a cool vibe. This new module also boasts silent switching push-buttons. The push-buttons activate a relay so no audio passes through them, making them functionally quiet. The new PEQ4 includes our custom transformers, which give it that thick Wunder Audio sound. The PEQ4 is available as a module in the Wunderbar, a vertical rack mount module, or 19" one-U-high horizontal rack mount unit. While it doesn't replace the PEQ2, the PEQ4 maintains what we love about the PEQ2, while including some extras designed for those who desire a bit more control over the EQ.
Features:
Rear connector that is interchangeable with PEQ2 or a 1073.
Same microphone preamp as PEQ2.
Same Class A output stage as PEQ2, extended on the tail end, just before output transformer, for greater maximum gain.
Same mic in, live in, and output transformers as the PEQ2; Wunder Audio's own "NICO" Western Electric 6186-style transformers (Nickle/Iron/Cobalt).
Same thick gauge mu-metal enclosure for superior shielding and RF protection.
Same high and low shelving EQ.
High quality custom Grayhill gain and EQ switches with exceptional gold contact per switch position.
Global EQ bypass button switches EQ totally out of circuit.
Individual band bypass switch. When EQ is on, each band can be individually by-passed.
Light pipe pushbuttons, as used in the Wunderbar Console.
Discrete, active high pass filter.
Phase switch.
LED metering with Green signal indicator and Red clip light.
78 dB of total gain.
Thick and sturdy faceplate.
1% Metal Film resistors for a low noise floor and better matching from channel to channel.
Sturdy amp compensation / RF rejection capacitors.
Optimized component layout with thick copper traces.
RF filtering

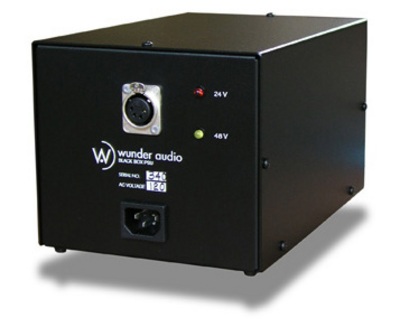

The Wunder Audio Black Box The Wunder Audio Black Box powers up to 12 PEQ2R modules with plenty of head room and up to 4 PAFOURs for up to 16 channels. Separate power indicator LEDs for 24V DC and 48V DC phantom power. (5'x6'x9' and weighs 12 lbs.) Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
The Wunder Audio Blue Box The Wunder Audio Blue Box powers up to 4 PEQ2R modules with plenty of head room and up to 2 PAFOURs for up to 8 channels. Separate power indicator LEDs for 24V DC and 48V DC phantom power. (2' x 3 1/4' x 6 1/2 ' and weighs 3 lbs.) Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
Presenting a brand new benchmark The WUNDERBAR An analog console forged from inspiration, innovation and the bold desire to build the most impressive recording desk in the world. The result is a console so accomplished, it features The Wunderbahn, the worlds first desk to come standard with three vintage stereo bus flavors, and employs a fully symmetrically balanced discrete summing bus system. This unprecedented blend of performance, technology and perfectly crafted build quality is simply the next standard in the pursuit of the perfect recording. Infuse sophistication with extreme audio performance. Hand built by Wunder Audio's master technicians. The three stereo bus flavors are rich with thick discrete audio and transformer thickness, yielding three totally awesome soundstages that can be combined or heard separately. The Wunderbar: Every detail refined viscerally. Design your unique Wunderbar console. Customize your configuration to reflect your engineering style. Choose from a variety of console sizes and master section positions, moving fader automation, internal Patchbay and Apple 23' Cinema HD Display. Here, Wunder Audio continues to cherish the proud tradition of handcrafted excellence, passed down over generations. Over a dozen specialists ply their trade in creating the Wunderbar; cable builders alongside machinist, electronic engineers alongside cabinetmakers. All are world-class craftspeople whose purpose is the realization of the personal vision of the individual Wunder Audio customer. The Console utilizes the PEQ2 Channel Amplifier delivering from 12 to 60 channels. A 'Fully Balanced Bussing Scheme' is the heart of the Wunderbar, buffering the ground out of the equation. This results in significant increase in dynamic range while lowering noise substantially. There are transformer balanced direct outputs and inserts on all channels. The Stereo Buss champions The Wunderbahn and has three Stereo Amplifier choices: Wunder, 1272, and the 312. The Routing Modules The 1046 Routing modules are fully transformer balanced Class-A Discrete. Each channel has a monitor fader that is flip-able with the main channel fader. Also featured are six busses with illuminated switches, four auxes that are switchable pre or post, Pan Defeat, 48V phantom, and 'Opto Silent' mute. If the console is short loaded, the Routing modules will act as a transformer-balanced inputs. The Master Section The Master Section includes a Control Room Monitor for monitoring six stereo sources, including busses. Mono, Dim, Mute, and Solo Clear are on large illuminated switches. Select from 3 sets of speakers or a headphone amp with separate volume control. The internal routing of sub groups to the stereo buss eliminates external patching, sparing monitor faders. The Eight-fader monitor section includes solo, pan, and placement into any of the busses. Talkback into any buss/aux is either latching, momentary, or remote. The master section has a large Illuminated master PFL, AFL Solo switch with Solo level. Other features include: P&G 100mm Conductive Plastic Faders, thick hardwood end-cheeks in an unlimited choice of hardwoods, and full leather armrest.Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
Presenting a brand new benchmark The WUNDERBAR An analog console forged from inspiration, innovation and the bold desire to build the most impressive recording desk in the world. The result is a console so accomplished, it features The Wunderbahn, the worlds first desk to come standard with three vintage stereo bus flavors, and employs a fully symmetrically balanced discrete summing bus system. This unprecedented blend of performance, technology and perfectly crafted build quality is simply the next standard in the pursuit of the perfect recording. Infuse sophistication with extreme audio performance. Hand built by Wunder Audio's master technicians. The three stereo bus flavors are rich with thick discrete audio and transformer thickness, yielding three totally awesome soundstages that can be combined or heard separately. The Wunderbar: Every detail refined viscerally. Design your unique Wunderbar console. Customize your configuration to reflect your engineering style. Choose from a variety of console sizes and master section positions, moving fader automation, internal Patchbay and Apple 23' Cinema HD Display. Here, Wunder Audio continues to cherish the proud tradition of handcrafted excellence, passed down over generations. Over a dozen specialists ply their trade in creating the Wunderbar; cable builders alongside machinist, electronic engineers alongside cabinetmakers. All are world-class craftspeople whose purpose is the realization of the personal vision of the individual Wunder Audio customer. The Console utilizes the PEQ2 Channel Amplifier delivering from 12 to 60 channels. A 'Fully Balanced Bussing Scheme' is the heart of the Wunderbar, buffering the ground out of the equation. This results in significant increase in dynamic range while lowering noise substantially. There are transformer balanced direct outputs and inserts on all channels. The Stereo Buss champions The Wunderbahn and has three Stereo Amplifier choices: Wunder, 1272, and the 312. The Routing Modules The 1046 Routing modules are fully transformer balanced Class-A Discrete. Each channel has a monitor fader that is flip-able with the main channel fader. Also featured are six busses with illuminated switches, four auxes that are switchable pre or post, Pan Defeat, 48V phantom, and 'Opto Silent' mute. If the console is short loaded, the Routing modules will act as a transformer-balanced inputs. The Master Section The Master Section includes a Control Room Monitor for monitoring six stereo sources, including busses. Mono, Dim, Mute, and Solo Clear are on large illuminated switches. Select from 3 sets of speakers or a headphone amp with separate volume control. The internal routing of sub groups to the stereo buss eliminates external patching, sparing monitor faders. The Eight-fader monitor section includes solo, pan, and placement into any of the busses. Talkback into any buss/aux is either latching, momentary, or remote. The master section has a large Illuminated master PFL, AFL Solo switch with Solo level. Other features include: P&G 100mm Conductive Plastic Faders, thick hardwood end-cheeks in an unlimited choice of hardwoods, and full leather armrest.Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
€226,299.00*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
