BiG SiX is designed to enhance your production capabilities at any stage of the process. From the SSL console grade faders to the advanced monitoring section and 18 channels of analogue summing at mix-down, the meticulously selected feature-set found on BiG SiX brings almost limitless creative options and engineering authority from large-format SSL consoles to your desk-top.
Key features
Four SuperAnalogueTM Mic / line / Hi-Z / 48V / HPF and polarity switch
Four SuperAnalogueTM stereo line level inputs with dual mono switching
Built in 16 channel 96 Khz / 24-bit USB interface with advanced routing
Essential version of G-Comp Bus Compressor with 'Auto' release
3 Band SSL LF/MF/HF EQ on every channelClassic SSL channel dynamics processing
Listen Mic Compressor
Dual independent headphone outputs with source matrix
100 mm console grade faders
Professional metering
Comprehensive monitoring section
Two stereo cue feeds
Bus B / Mute switching
Two fully balanced stereo external inputs
Up to 18 inputs at mixdown
Mix Bus inject for cascading additional SiX/BiG SiX
BiG SiX is designed to enhance your production capabilities at any stage of the process. From the SSL console grade faders to the advanced monitoring section and 18 channels of analogue summing at mix-down, the meticulously selected feature-set found on BiG SiX brings almost limitless creative options and engineering authority from large-format SSL consoles to your desk-top.
Key features
Four SuperAnalogueTM Mic / line / Hi-Z / 48V / HPF and polarity switch
Four SuperAnalogueTM stereo line level inputs with dual mono switching
Built in 16 channel 96 Khz / 24-bit USB interface with advanced routing
Essential version of G-Comp Bus Compressor with 'Auto' release
3 Band SSL LF/MF/HF EQ on every channelClassic SSL channel dynamics processing
Listen Mic Compressor
Dual independent headphone outputs with source matrix
100 mm console grade faders
Professional metering
Comprehensive monitoring section
Two stereo cue feeds
Bus B / Mute switching
Two fully balanced stereo external inputs
Up to 18 inputs at mixdown
Mix Bus inject for cascading additional SiX/BiG SiX
New colours from the masters of analogue.
Fusion is an all-analogue 2U stereo outboard processor created for the modern hybrid studio. Fusion introduces five completely new analogue colouration tools designed to bring the perfect combination of added tonal character, weight and space to your mix bus or stereo stems, with the detail, warmth and finesse that only real analogue circuits can provide.
The SSL sonic legacy is built upon a much-emulated collection of analogue audio processing tools that have featured in generations of studio consoles; pristine mic pre’s, classic Channel EQ & Dynamics, the legendary Stereo Bus Compressor, the Listen Mic Compressor, and the unique SSL summing bus. Fusion takes SSL into a new era with the introduction of a suite of new analogue processing tools that offer exceptional tonal character and versatility. Fusion expands the processing palette for hybrid studio owners and is a superb partner for the SSL Stereo Bus Compressor.
Fusion features five analogue processors that can be used discretely or combined:
SSL Fusion Vintage Drive
Vintage Drive - is a unique non-linear harmonic enhancement circuit that brings cohesion and strength to your mix. Drive and Density controls interact to produce harmonic saturation and soft compression derived from overloading an analogue circuit. It can be used lightly for subtle thickening saturation or driven hard for more extreme distortion.
The Violet EQ
The SSL Violet EQ - an all-new minimum phase-shift, two-band shelving EQ. The first new SSL analogue EQ circuit for more than 25 years draws on the SSL legacy of carefully selected frequencies and response curves to create a musical and intuitive EQ designed to quickly dial in low-end weight and high-end sheen. High and Low frequency circuits each offer four switched frequency points and +/-9dB attenuation.
HF Compressor
A new High Frequency Compressor delivers the distinctive sound of high frequency rounding in the analogue domain. A compressor that effects high frequencies only, optimised for smooth and transparent harshness reduction and a tape-like high-frequency roll off – great for taming brittle high frequency fizz.
Stereo Image
A new Stereo Image enhancer provides a true analogue Mid-Side circuit that manipulates the Side signal, allowing for widening and spatial manipulation of the stereo field.
Transformer
A switched, custom-designed SSL Transformer circuit introduces subtle low-frequency saturation, alongside a high-frequency phase-shift. The result is a simultaneous thickening of the low-end and an added sparkle to the high-end.
Expertly designed for today’s hybrid studio
SSL has also always been known for clever connectivity and features that streamline and accelerate production workflow. Fusion fits right in with a collection of workflow enhancing features including: +/-12dB Input and Output Trim controls, an Input overload LED, large peak-hold metering, a front-end 3rd order High Pass Filter with three selectable cut off frequencies, and tri-colour status indicators for the Vintage Drive and HF Comp sections. A set of XLR connections can be used either as a Stereo Insert for stereo mix bus processing or switched to function as a Mid-Side (MS) circuit enabling separate compressors or EQ to be applied to the middle (centre) and sides of a stereo signal. In Stereo Insert mode the insert point can be switched to pre-Violet EQ, when in MS mode the insert can be switched to pre-Stereo Image controls. Input and Output connections are via XLR.
Der SSL UF8 ist ein professioneller DAW-Controller mit einem einzigartigen und innovativen Feature-Mix. Es lassen sich bis zu vier Geräte via USB kaskadieren und als 19“ Einheit oder Desktop Controller benutzen.
UF8 bietet präzise Navigation mit einem Multifunktions-Master-Encoder für DAW-Timeline-Zugriff, Track-Banking und Mausrad-Emulation. Doppelt belegbare Tasten ermöglichen schnelles Abrufen der ausgewählten Funktionen sowie die Solo- und Stummschaltung in Pro Tools und Logic Pro. Neue CHANNEL- und PLUG-IN-Kontrollfunktionen bieten verbesserte Workflows für diejenigen, die UF8 mit Pro Tools verwenden, mit einfachem Zugriff auf Sends und Plug-ins, ohne die Kreativität zu bremsen.
Jeder UF8 ist mit 43 frei belegbaren Tasten ausgestattet, die sich auf 5 konfigurierbare Bänke verteilen, so dass der Benutzer seine wichtigsten Tastenkombinationen und Makros für eine umfangreiche Steuerung der DAW-Session konfigurieren kann. Bis zu vier UF8 können über den THRU-Anschluss miteinander verbunden werden und bilden einen 32-Kanal-Controller, der ideal für große Postproduktions- oder Mischsessions ist.
UF8 lässt sich in alle wichtigen DAWs integrieren und enthält vorgefertigte Templates für Ableton® Live™, Cubase™/Nuendo™, Pro Tools®, Logic Pro®, Studio One®, LUNA™ und Pyramix™. Viele Produzenten und Toningenieure bevorzugen es, ihren Kreativprozess auf mehrere DAWs aufzuteilen. UF8 ist einzigartig flexibel und unterstützt die "Open DAW Policy" von SSL - steuern Sie 3 verschiedene DAWs gleichzeitig und halten Sie Ihren Produktions- und Mixdown-Prozess flexibel.
SSL 360° ist die zentrale Software-Applikation und das Herzstück von UF8. Es handelt sich um eine plattformübergreifende Anwendung für Mac und Windows. Mit SSL 360° können Sie Ihre UF8 für Ihre DAW konfigurieren, die User Keys anpassen und Profile speichern und laden, wobei alle Änderungen auch automatisch gespeichert werden. Außerdem verwaltet SSL 360° Software- und Firmware-Updates für Sie.
Für eine perfekte Aufstellung ist jedes UF8 mit verstellbaren Standfüßen ausgestattet, die sechs verschiedene Neigungswinkel für eine individuelle Positionierung ermöglicht. Um direkt mit dem kreativen Produktionsprozess starten zu können, sind außerdem Software-Lizenzen für die SSL Native Plug-Ins Vocalstrip 2 und Drumstrip enthalten
6-monatige Testversion von SSL Complete enthalten
SSL Complete ist der einfachste Weg, um auf alle SSL-Plug-ins zuzugreifen, wobei ständig neue Premium-Plug-ins hinzugefügt werden. Einschließlich legendärer SSL Konsolen, Kompressoren, Equalizern, Reverbs & Delays, Fusion-Prozessoren und vielem mehr. SSL Complete bietet alles, was Sie brauchen, um großartig klingende Musik zu machen und ein SSL-Studio in Ihrer DAW einzurichten.
DAW-Controller mit flexiblen Montageoptionen – vom 19“- Einbau bis zur mehrfach kaskadierbaren Desktop-Version mit justierbarem Arbeitswinkel
Intuitiver Zugriff und perfekte Übersicht - 8 berührungsempfindliche Fader und Encoder, multifunktionaler Master-Encoder, 43 User Keys, hochauflösende TFT LCD Farbdisplays
Individuelle Skalierung und Konfiguration - verschiedene Sessions, Tastenbelegungen und Setups können bequem für vier Geräte (32 Fader) per Software auf Mac und PC verwaltet werden
Unterstützung aller gängigen Formate und einfache Umschaltung zwischen drei gleichzeitig angeschlossenen DAWs (inkl. erweitertem SSL Funktionsumfang)
12 in 8 USB Audio Interface mit 4 erstklassigen Mikrofonvorverstärkern (62dB Gain Range, 130,5dBu EIN, High Pass Filter)
Hochwertige Verarbeitung mit Neutrik™ Buchsen, Alps™ Reglern und 32-bit/192kHz AD/DA Wandlern
8-kanaliger ADAT Eingang, MIDI Anschlüsse und zwei unabhängig regelbare Kopfhörerausgänge, die auch als Line Out genutzt werden können.
Legacy „4K“ Schalter pro Kanal für Soundfärbungen nach dem Vorbild der legendären SSL 4000er Serie
Die kostenlose SSL 360° Software optimiert deinen Workflow für Tracking, Mixing oder Produktion (incl SSL12 „Cue Mixer“ für nahezu latenzfreie Abhörmischungen)
Umfangreiches Software Lizenzpaket mit SSL Vocalstrip 2 & Drumstrip, IK Multimedia Amplitube 5 SE, Celemony Melodyne Essential, Native Instruments Hybrid Keys & Komplete Start, Ableton Live 11 Lite, AAS Session Bundle, 1.5 GB Loopcloud Samples sowie diversen Testlizenzen von SSL u.a.
Detail Features:
12 In / 8 Out USB Audio Interface
Vier hochwertige Mikrofonvorverstärker (62dB Gain/130,5dBu E.I.N)
Line Eingang +24dBu (Mic/Line Kombi Buchse)
Zwei Instrumenteneingänge +15dBu (Vorderseite, setzt jeweilige Mic/Line Buchse außer Kraft)
8-kanaliger ADAT Eingang
Vier symmetrische Monitor-Ausgänge
Zwei separat regelbare Stereo Kopfhörerausgänge, jeweils auch als Mono- oder Stereo Line Ausgang nutzbar
Integriertes Talkback Mikrofon
Legacy „4K“ Schalter für Soundfärbungen nach dem Vorbild der SSL 4000er Serie
5-stellige Pegelanzeige für jeden Eingang
MIDI Ein-/Ausgang
3 frei belegbare Schalter (CUT/ALT/DIM als Default)
Programmierung über kostenlose SSL 360° Software Applikation
USB-C Anschluss
Stromversorgung via USB mit ON/OFF Schalter
Neutrik™ Buchsen & Alps™ Regler
32-bit/192kHz AD/DA Wandler
SSL Production Pack Software Bundle im Wert von ca. 1000 € (3 Monate Testlizenzen für SSL Complete / Auto-Tune Unlimited / Arcade sowie dauerhafte Lizenzen für SSL Vocalstrip 2 & Drumstrip, IK Multimedia Amplitube 5 SE, Celemony Melodyne Essential, Native Instruments Hybrid Keys & Komplete Start, Ableton Live 11 Lite, AAS Session Bundle, 1.5 GB Loopcloud Samples
UC1 ist ein Hardware-Plug-in-Controller wie kein anderer. Das Layout aus Encodern, Schaltern und Farbgruppierungen bietet eine professionelle SSL-Konsolenergonomie, die nahtlos mit den bisher fortschrittlichsten SSL Channel-Strip- und Bus-Kompressor-Plug-ins integriert ist. Mehrere Parameter können gleichzeitig und präzise gesteuert werden, so dass Sie mit einem Produktionswerkzeug ausgestattet sind, das nicht nur das „Muscle-Memory“ fördert und dabei unübertroffene klangliche Flexibilität bietet, sondern auch das Vertrauen des Mixers in seine Entscheidungen stärkt.
Das Herzstück des UC1-Systems ist der SSL 360° Plug-in-Mixer. Hier können Sie alle Ihre 360°-fähigen Kanalzüge und Bus-Kompressoren an einem Ort sehen und steuern. Der 360°-Plug-in-Mixer bietet eine effiziente Möglichkeit, mit mehreren Plug-ins gleichzeitig zu interagieren und so die Lücke zwischen Konsolen- und In-the-Box-Workflow weiter zu schließen.
UC1 bietet dedizierte Bedienelemente für alle wichtigen 4K B- und Channel Strip 2-Plug-in-Parameter. EQ-, Filter-, Kompressor- und Gate/Expander-Bedienelemente bieten dieselbe Konfiguration und visuelle Rückmeldung wie bei den großen SSL-Konsolen.
Das zentrale Element des UC1 sind die Bus-Kompressor-Regler. Das authentische Layout und die Anzeige vermittelt den Eindruck, als würden Sie einen Hardware-Buskompressor steuern, der in den Center-Bereich einer SSL-Konsole eingebaut ist. Mit einem klassischen Moving Coil Gain Reduction Meter, wie es seit den 1970er Jahren in SSL-Konsolen zu finden ist, stellt es die Zeitkonstanten und Gain Reduction-Charakteristika des Bus Compressors perfekt dar, so dass Produzenten und Toningenieure genau wissen, wie er auf ihre Instrumente, Subgruppen und natürlich den Mix Bus reagiert.
Unbefristete Plug-in-Lizenzen für SSL 4K B, Channel Strip 2 und Bus Compressor 2 Plug-ins sind im Lieferumfang von UC1 enthalten. Das 4K B Plug-in ist eine authentische Emulation des SL 4000 B Channel Strips - voller Klang, Punch und reichhaltigem nicht-linearem analogem Charakter. Channel Strip 2 ist ein voll ausgestatteter Channel Strip, der auf der digitalen Modellierung der EQ- und Dynamics-Kurven der legendären XL 9000 K SuperAnalogue-Konsole basiert. Bus Compressor 2 ist das ultimative SSL Bus Compressor Plug-In mit zusätzlichen Ratio-, Attack- und Release-Optionen und Oversampling.
6-monatige Testversion von SSL Complete enthalten
SSL Complete ist der einfachste Weg, um auf alle SSL-Plug-ins zuzugreifen, wobei ständig neue Premium-Plug-ins hinzugefügt werden. Einschließlich legendärer SSL Konsolen, Kompressoren, Equalizern, Reverbs & Delays, Fusion-Prozessoren und vielem mehr. SSL Complete bietet alles, was Sie brauchen, um großartig klingende Musik zu machen und ein SSL-Studio in Ihrer DAW einzurichten.
Features
Plug-In Controller mit komfortablem Mischpult-Layout und legendärem SSL Workflow
Kostenlose Lizenzen für die SSL Native Plug-Ins „SSL 4k B“, „Channel Strip 2” und „Bus Compressor 2”
Optimale 1:1 Hardware Steuerung für die im Lieferumfang enthaltenen SSL Plug-Ins
Intuitive Reglerbedienung und visuelles Feedback durch LED Ringe an den Drehreglern
Display für die Anzeige des gewählten Kanalzugs und Bus Compressors incl. Parameterwert
Aufruf von Plug-In Presets und Routing für Channel Strips direkt am UC1
Authentische VU-Meter Gain Reduction Anzeige für das “Bus Compressor 2” Plug In
SSL Plug-In Mixer (in der SSL 360° Software) bietet optimale Übersicht und Steuerung aller Channel Strips und Bus Compressoren auf einem Screen
Einfache Umschaltung zwischen bis zu 3 verschiedenen DAWs
Hochwertiges Metallgehäuse mit Brushed-Metal-Look
Hi-Speed USB Verbindung zum Computer
Unterstützt von der SSL 360° Mac und PC Software
Maße: 300 x 266 x 61mm / 440 x 440 x 140mm (ohne / mit Verpackung)
Gewicht: 2,1 / 5 kg (ohne/mit Verpackung)
SSL E-Series 611 Dyn
The new E Series Dynamics Module for 500 Series racks reproduces the legendary sonic signature of an early 80's classic, the SL 4000 E console channel strip, which was featured on countless 1980's recordings. The E Series Dynamics Module features a compressor/limiter and an expander/gate, both of which return faithfully to the circuitry and key components which define the sound of the original SL 611E Series channel strip. A true RMS converter is used in the side chain while the gain element is an all discrete design identical to the Class A VCA chip used in the original unit. The compressor contains additional switching options to defeat the over-easy curve and to use a linear release instead of the more usual logarithmic curve. The result is a compressor with three distinct voices, each with its own musical character.
Key Features:
Immortal SSL 4000 Series circuitry
Class A VCA replication
Expander/Gate
Based on classic 611E console channel strip
Vorverstärker-Steckkarte im API 500-Format
Extrem vielseitiges Aufnahme- und Prozessing-Tool für transparente, detailgetreue SuperAnalogue Aufnahmen oder SSL´s patentierten Variable Harmonics Drive (VHD)
Keine zusätzliche DI Box notwendig - separate Mikrofon- und Instrumenteneingänge mit bis zu 4 verschiedenen Impedanzen
Der schnelle Aufräumer - schaltbarer und regelbarer High Pass Filter (15 Hz bis 500 Hz)
Ultra-Cleaner SSL SuperAnalogue Mikrofon-Vorverstärker
Patentierte VHD Schaltung für harmonische Übersteuerungen 2. und 3. Grades
Schaltbarer LF Filter (von 15Hz bis 500Hz regelbar)
+48V Phantom Power mit Status LED
Pad Schalter für Line Peger Signale
Zusätzlicher Instrumenten-/Klinkeneingang auf der Vorderseite mit 4 Impedanzen
Phasenumkehrschalter

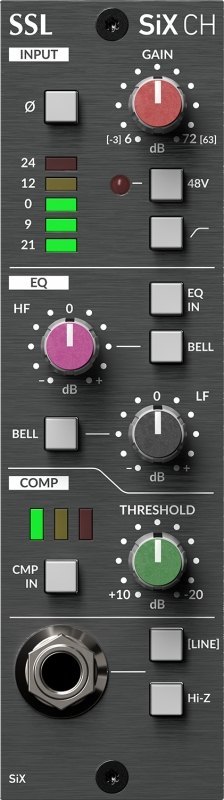

Channel Strip-Steckkarte im API 500-Format
SSL SiX Channel Strip mit SuperAnalogue Mikrofonvorverstärker für ultra-cleane Aufnahmen - incl. 5fach LED Anzeige, +48V-, Phasen- und HPF-Schalter
Keine zusätzliche DI-Box notwendig – der separate Instrumenten/Line Eingang auf der Frontseite besitzt einen 1MΩ Schalter für hohe Impedanzen (z.B. bei passiven Gitarren-Pickups)
Sanft, breit, punktgenau – beim schaltbaren 2-Band EQ besitzen die Bell- und Shelving Charakteristiken jeweils unterschiedliche Ansatzfrequenzen
Effektiv und schnell – der schaltbare “Single Knob Compressor” bietet einen Threshold Regler mit eigener 3fach LED Anzeige
SSL´s SuperAnalogue Vorverstärker (48V, Phase, HPF, 5fach LED)
Vorverstärker Gain: Variabel von +6 bis +72 dB (Mic), -3 bis +63dB (Line)
Instrumenten/Line Eingang auf der Vorderseite (mit 1MΩ Hi-Z Schalter)
Schaltbarer 2 Band EQ mit Bell/Shelving pro Band
Schaltbarer “Single Knob Compressor” mit variablem Threshold & 3fach LED
4-Band Equalizer-Steckkarte im API 500-Format.
Das Profi-Tool für den Master Bus - komfortabler SSL 4-Band Stereo EQ im API 500 Format
“Violet” - aus dem SSL FUSION entliehener “Violet EQ” mit minimalphasigem High- und Low Shelving Filter
“Ultra” - zwei zusätzliche vollparametrische SSL Mittenband-EQs, jeweils mit “Focus Mode” für gezielte Frequenzbearbeitung mit hoher Güte
Der schnelle Aufräumer – schaltbarer High-Pass Filter mit verschiedenen Frequenzen
4-Band Stereo Equalizer
FUSION Violet High and Low Shelving EQ
2 vollparametrische Mittenbänder mit ‘FOCUS’ Modus
Schaltbarer High-Pass Filter (Off, 30, 40, 50Hz)
Trim-Regler für Ausgangspegel
Technische Daten
LF Shelf EQ: +/- 9dB Gain bei 30, 50, 70, 90Hz
HF Shelf EQ: +/- 9dB Gain bei 8k, 12k, 16k und 20kHz.
HMF Parametrik EQ: +/- 9dB Gain bei 400Hz-6kHz
LMF Parametrik EQ: +/- 9dB Gain bei 100Hz-1.1kHz
“FOCUS” Mode: Höhere Filtergüte & Gain Bereich > +/- 9dB
Gain Trim: +/- 12dB
The legendary sound of the SSL Stereo Bus Compressor has been glueing mixes together for 35+ years...it is now available for the 500 format rack. Often imitated but never equalled, the centre section compressor from the 1980's G-Series analogue console is an audio production legend. It is a simple unit with a simple purpose; it makes complete mixes sound bigger, with more power, punch and drive. It brings cohesion and strength to your mix without compromising clarity. To this day it remains a key element of the SSL sound and has featured on countless classic recordings. The availability of the Stereo Bus Compressor in a module for the 500 format makes this essential audio production tool available to users of the popular API 500 format modular rack platform.
Key Features:
Legendary sonic character of SSL Stereo Bus Compression
Six ratio settings ranging from 1.5:1 to 20:1
Five release settings and Auto Release function

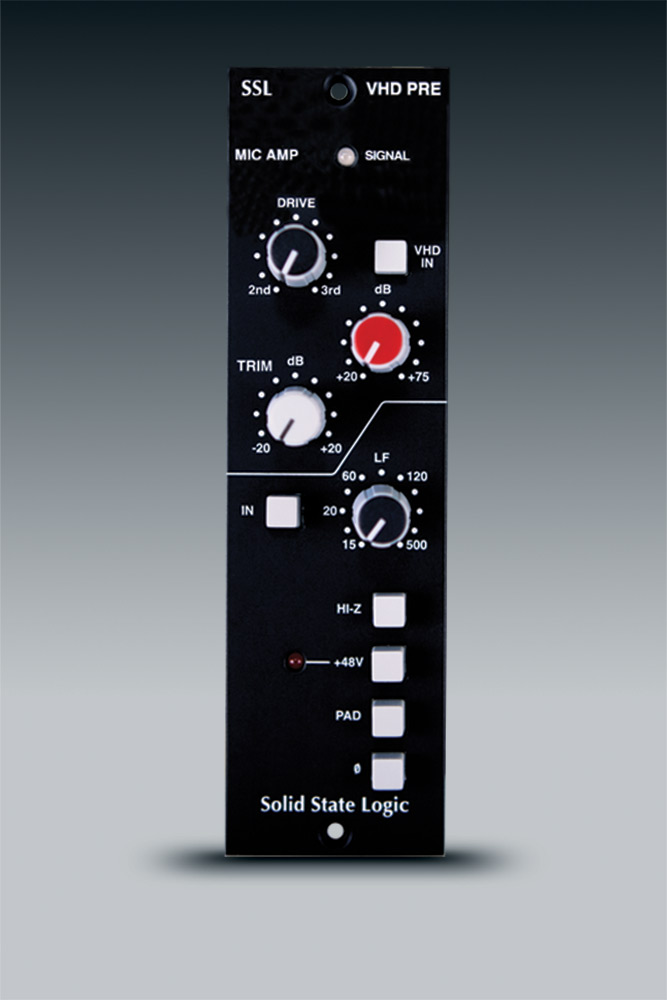

SSL VHD Pre Module 500
Uniquely versatile mic pre and processor delivers everything from ultra-clean to slightly warmed to heavily distorted recordings.
Key Features:
Uniquely versatile recording and processing
Ultra clean SSL SuperAnalogue grade preamp
Switchable VHD system adds controllable 2nd or 3rd harmonic distortion
Switchable LF Filter (15Hz to 500Hz)
Hi-Z switch for high impedance microphone use
+48V Phantom Power with status LED
PAD for use with line level source material
Phase invert switch
The VHD Pre Module for the popular 500 format modular rack platform makes the uniquely versatile VHD based preamp technology from Duality, SSL's industry leading large format studio console, available for studios of all sizes.The VHD Pre is an immensely versatile recording and processing device. It can deliver ultra clean SSL SuperAnalogueTM grade recordings but also features a switchable VHD mode. SSL's patented Variable Harmonic Drive (VHD) system uses a 100% analogue signal path to generate rich harmonic distortion. As you increase VHD input gain, the Variable Harmonic Drive process introduces either 2nd or 3rd harmonic distortion or a blend of the two to your source material. At lower gain settings it adds gentle valve-style warmth or a touch of transistor edge. As the gain is increased the more extreme the distortion becomes until at high gain settings it delivers fierce trashy transistoresque grunge. The VHD Pre gives the user ultimate versatility from a studio grade preamp. Whether it's ultra-clean traditional SSL, subtle warming or totally trashy transistor distortion, VHD will change your expectations of what a preamplifier should deliver.The VHD section of the VHD Pre Module has three rotary controls: a Drive control selects 2nd harmonic or 3rd harmonic distortion or a continuously variable blend of the two. A +20/+75dB gain control sets input level. A -20/+20dB trim control adjusts the output level from the circuit to enable level matching with other devices, because by its nature the VHD circuit can significantly increase signal levels. The VHD Pre Module has a selection of other essential professional preamp features: a signal present LED, a switchable 15Hz to 500Hz LF Filter section, Hi-Z impedance switch for mic impedance matching, +48V phantom power, PAD to enable the VHD system to be used as a line level processing device and a Phase Invert Switch.
Key Features:
Authentische SSl Bus Compressor Schaltung mit High Performance 2181 THAT VCAs
4 Betriebsmodi: Stereo, S/C Stereo, Dual Mono, Mid-Side
Neue Attack & Release Optionen und mehr Flexibilität bei Detaileinstellungen
3 spezifische Kompressions-Charakteristiken zur individuellen oder kombinierten Nutzung (4K – Single VCA mit VHD, LOW THD mit LF Reduktion, F/B Mode)
Herausragende Klangqualität und fein gerasterte Potentiometer für präzise Einstellungen
Integrierter 2-Band Dynamic EQ (D-EQ)
Transient Expander
Konfigurierbares Prozessing (Compressor pre/post D-EQ)
Externe Side Chain Ein-/Ausgänge incl. HPF Regler bis 300Hz (in 10Hz-Stufen)
Mix Control für sofortige Parallel-Kompression
19“/2HE
Gewicht ca. 7 kg
Key Features:
Hochwertiges 360° USB Mikrofon mit 4 Kapseln
Geeignet für Konferenzen, Podcasting, Sprach- und Musikaufnahmen
Prozessing Funktionen mit EQ und Dynamik-Algorithmen aus existierenden SSL Studio- & Broadcast Produkten
Vier Anwender Presets:
Solo (Sprecher/Moderator für Konferenzen, Podcasting, Streaming)
Group (Round Table Diskussionen)
Vocal (Sprach- und Gesangsaufnahmen)
Music (Musikaufnahmen)
Automatic Smart Mixer für bessere Verständlichkeit
High Power 3.5 mm Kopfhörerausgang
Mic Loopback Option für Ambient Monitoring
Touch Control für Kopfhörerlautstärke und Mic Mute
Räuspertaste und ‘Push To Talk’ Funktion
Beleuchtetes RGB Solid State Logic Logo als Statusanzeige für “Mute” und Preset-Modus
1⁄4” Kamera Tripod Gewinde im Gehäuseboden & Gewindeadapter für Mikrofonständer
2 m USB-C Kabel mit separatem USB C / A Adapter
USB Bus Powered
Geeignet für Laptop- und Tablet-Anwendungen
Kompatibel mit Windows and Mac OS
Abmessungen (B x H x T): ca. 9,3 x 4 x 9,3 cm
Gewicht: ca. 0,3 kg
Gewicht mit Verpackung: ca. 0,4 kg
The E-Series EQ Module for 500 Series racks reproduces the legendary sonic signature of an early 80's classic, the Solid State Logic SL 4000 E console channel strip, which has featured on countless classic recordings from the 1980's to the present. The E-Series EQ Module features two different EQ's found on editions of the console produced between 1981 and 1989. Each EQ has unique response curves and tonal character. Historically the type of EQ fitted in an individual console was distinguished by the colors used on the LF knob caps so the two flavors have become known as the 'Brown' and 'Black' EQ's. On the E Series EQ Module you can switch between these two different flavors of EQ that have been loved by generations of professional producers.
Key Features:
Immortal SSL 4000 E Series circuitry
"Black-242" and "Brown-02" twin EQ design
Versatile 4 band channel EQ
Bell curve option on HF and LF
Fully parametric LMF and HMF with Q
Based on classic 611E console channel strip
The 'Brown' EQ, featured on the discontinued SSL E-Signature Channel Strip, is now uniquely available on the E-Series EQ Module.
A little SSL EQ history
Prior to 1987 SSL used the colour of the Low Frequency EQ knob caps to indicate which type of EQ was fitted. All consoles were custom built and could feature different combinations of EQ module. The following colour codes apply:
E-Series BROWN: The original SSL EQ fitted to all consoles prior to the summer of 1985. Despite the rumours these equalisers only came in one version. The EQ card was called the '02'.
E Series ORANGE: The infamous EQP equaliser. This was a variation on the Brown EQ with controls simulating the curves of a valve type EQ. Very few were sold. This card was named the '132'.
E-Series BLACK: The last version of the standard E series EQ. It evolved in the early 1980's from discussions with many top engineers and proved very popular. The EQ card was called the '242'.
G-Series: With the arrival of the G Series console in 1987 the colour coding was abandoned and the classic SSL end cap colour scheme used today was adopted. First introduced in 1987 the original G Series EQ introduced Q characteristics which were proportional to gain settings and had a degree of over shoot when boosting and under shoot when cutting.
The current generation of SuperAnalogue console EQ (featured on Duality, AWS 900 + SE & the X-Rack EQ module) are switchable between EQ characteristics that offer either the E-Series 'Black' EQ or the G Series EQ.
The classic SSL Listen Mic Compressor with an added creative twist
The LMC+ Module brings a new and significantly enhanced version of the classic SSL Listen Mic Compressor to 500 format racks. This famous processor from the legendary SL4000E console was the secret weapon in many producers sonic arsenal of recording techniques. Originally designed to prevent overloading the return feed from a studio communications mic, its fixed attack and release curves were eminently suitable for use on ambient drums mics. This all-new version includes a pair of classic SSL High Pass and Low Pass filters to allow targeting of a specific frequency range, a filters to compressor side chain option and a wet/dry blend control. Two additional superb new tools are added to give the LMC+ a distinctive sonic twist; a 'Scoop' button that phase inverts the wet signal, as well as a unique 'Split' button that engages a bandpass subtraction mode. Used together and separately and in conjunction with the filters and sidechain, the new controls give LMC+ a distinctive tonal edge with a range of creative possibilities.
Key Features:
Enhanced version of the classic SSL Listen Mic Compressor
from the legendary SL4000E console
Fixed attack and release curves ideal for use on ambient drums mics
SSL High Pass and Low Pass filters
Filters to compressor side chain feature
Wet/dry blend control
'Scoop' button that phase inverts the wet signal
'Split'button engages a bandpass subtraction mode
Key Features:
A fully professional condensed console for use in the studio, in post-production, on stage, and for podcasting.
Benchmark SuperAnalogue™ audio performance
Ultra low noise : ultra-low distortion : pristine sound
Stunning Record Path
Two SSL console grade SuperAnalogue mic pre’s
Classic SSL Channel Processing
Essential versions of SSL Channel EQ and Dynamics
The unique Listen Mic Compressor
Nothing slams drums quite like it!
Professional Routing & Monitoring
The hidden versatility of truly professional features
12 Input Summing at Mixdown
12 line level inputs with channel and Master Bus inserts
Legendary Master Bus Compressor
An essential version of the incredible SSL legacy
Completely balanced signal path
Everything except the headphone jack is fully balanced
Features
Transporttasten und gewichtetes Jog/Scrub Wheel
Berührungsempfindlicher 100 mm Motorfader
4 plus 1 hochwertige Drehregler mit Push-Funktion
2 hochauflösende TFT LCD Farb-Displays (4,3“ / 1,77“) für die Anzeige von Track Namen, Parametern, SSL Meter PlugIn Details u.v.m.
Beleuchtete RGB „Soft Feel“ Taster
Hochwertiges Metallgehäuse mit gebürstetem, eloxiertem Top Panel
Steuerung von bis zu 3 verschiedene DAWs gleichzeitig
HUI und MCU DAW Profile für Pro Tools, Logic, Cubase, Studio One, Ableton Live, LUNA, Pyramix)
Multifunktionaler, gerasterter Master Encoder für komfortable DAW Navigation, Track Banking und Mouse-Wheel Emulation
46 individuell belegbare Taster für häufig benutze Shortcuts/Macros
2 Fußschalter-Anschlüsse
Stressfreie Computerverbindung via High Speed USB
Programmierung via SSL 360° Software für Mac und PC (s.u.)
Justierbare Standfüße im Lieferumfang
Software Lizenz für das SSL Meter-Plug-In im Lieferumfang
Abmessungen (BxTxH): 205 x 266 x 62,7 mm
Gewicht: 2,9 kg ohne Verpackung / 5 kg mit Verpackung
Einbaumodul für X-Rack / MynxMic Preamp Modul kombiniert den klassischen SSL Charakter mit dem neuem Variablen Harmonic Drivesymmetrischer XLR-Eingang mit +20dB bis +70dB Gain ControlHi-Z und Pad SchalterXLR Line-EingangClassic Listen Mic CompressorHigh und Low-Pass Filter
€899.00*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
