RTW 1163
Adapter cable, 4 m, up from 25p Sub-D connector eight M-XLR cable connector, for surround 11900, SurroundControl 31900, 31960, touch monitor series ..
Monitor Control RTW StyleFull bass management and support for immersive sound formatsThe Bass Management & ImmersivePlus license adds a full Bass Management section to the Monitor Control and adds support for immersive sound formats like 7.1.4.
Bass Management allows you to operate full range and small speakers in the same system and supports two LFE channels.Bass Management for up to two LFE channels with selectable x-over frequenciesAdd additional speakers for immersive setupsImmersive channel formats: 5.1.2, 5.1.4, 7.1.2, 7.1.4, 9.1.2, 22.2, customThe Bass Management & ImmersivePlus license requires software licenses SW32001 and SW32010 to be active.
The Loudness and SPL Display license expands the basic 4-channel PPM with graphical and numerical instruments for Loudness measurements as described in current guidelines (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM, LEQ(M), TASA, SAWA), and the LRA instrument for the graphical display of the Loudness Range. A customer-specific mode allows the user to modify parameters.In addition, the license provides the SPL display mode with various weighting filters and integration times as well as reference level adjust to calculate an SPL value from an electrical signal. Dialnorm values can be meausred with activated Multichannel Mode license.If you additionally activate the Timecode Reader license, you are able to execute timecode-based loudness measurements and loudness recalculation.
Full implementations of the latest loudness standards and recommendationsBargraphs for summed Loudness with Momentary, Shortterm, Integrated values, and Loudness Range (LRA)Numerical display of all relevant values like M, S, I, LRA, TPmax, Mmax, Smax, ItimePractical UseControl your program according to the requirements resp. the delivery standards and be loudness compliantKeep your eyes on the summed, maximum, and true peak valuesMonitor indivdual program parts, complete programs, or the whole broadcastEvaluate the dynamic of your program in regard to the distribution pathIdentify, if the program needs or has seen processingGet information for normalizing dialog loudness level in film sound mixingRequirementsTouchMonitor TM7, TMR7 or TM9Optional on TM7 or TM9 software license SW20001: Multichannel Mode for the display of more than 4 channels and Dialnorm
The Loudness and SPL Display license expands the basic 4-channel PPM with graphical and numerical instruments for Loudness measurements as described in current guidelines (EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM, LEQ(M), TASA, SAWA), and the LRA instrument for the graphical display of the Loudness Range. A customer-specific mode allows the user to modify parameters.In addition, the license provides the SPL display mode with various weighting filters and integration times as well as reference level adjust to calculate an SPL value from an electrical signal. Dialnorm values can be meausred with activated Multichannel Mode license.If you additionally activate the Timecode Reader license, you are able to execute timecode-based loudness measurements and loudness recalculation.
Full implementations of the latest loudness standards and recommendationsBargraphs for summed Loudness with Momentary, Shortterm, Integrated values, and Loudness Range (LRA)Numerical display of all relevant values like M, S, I, LRA, TPmax, Mmax, Smax, ItimePractical UseControl your program according to the requirements resp. the delivery standards and be loudness compliantKeep your eyes on the summed, maximum, and true peak valuesMonitor indivdual program parts, complete programs, or the whole broadcastEvaluate the dynamic of your program in regard to the distribution pathIdentify, if the program needs or has seen processingGet information for normalizing dialog loudness level in film sound mixingRequirementsTouchControl 5
Pro Feature Metering and Moving CoilExtension with additional scales, advanced settings and moving coil instrumentThe Premium Metering license expands the basic PPM instrument with additional scales, advanced settings and the moving coil instrument.Expands the basic 4-channel PPM with additional scalesAdvanced settings including color setupMoving Coil (VU or British PPM) InstrumentFor signals with more than four channels, software license SW32001 is required.
Professional Loudness, True Peak and PPM metering at an affordable price: TM3 Smart4.3" Desktop TouchMonitor for editorial offices, edit suites, small control roomsFeatures4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 21/50 mm, W x H x D)Flexible display layout with scalable instrumentsSeparate interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)Audio: analog balanced (D-Sub) or unbalanced (RCA), S/PDIF (RCA), 3 x AES3 (D-Sub)2-channel Stereo (analog, digital), multichannel (digital), 5.1 (digital), input sources alternatively selectable, max. 6 channels at a timeUSB 2.0 connector (Mini-B), GPIO connector (RJ-12)Moving Coil instrumentsLoudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specificSingle channel and summing loudness bargraphsLoudness Test Time ControlLoudness range (LRA) with MagicLRALoudness chartTimecode ReaderPPM & True PeakSPL & DialnormCorrelationNumerical displayComprehensive set of presetsPersonalization with Devicer DC1The Device Configurator software for Windows® and Mac OS X® is available in the download area For more Information please visit manufacturers webpage
Professional Loudness, True Peak and PPM metering for 3G-SDI audio: TM3-3G Smart
4.3" Desktop TouchMonitor for metering, deembedding and monitoring of 3G-SDI audio signalsFeatures4.3“ capacitve touch screen for vertical or horizontal use (Dimensions: 82.5 x 138 x 50 mm, W x H x D)Flexible display layout with scalable instrumentsSeparate 3G-SDI interface box with audio I/O, USB, GPIO, low voltage connector (Dimensions: 146 x 27 x 85 mm, W x H x D)Audio: 3G/HD/SD-SDI In/Through (BNC), max. 8 digital channels at a timeUSB 2.0 connector (Mini-B), GPIO connector (RJ-12)2-channel Stereo up to 8-channel level and loudness display, 3G-SDI signals alternatively selectable16-channel 3G-SDI deembedder with 8 x AES3 outMonitoring controller with onscreen level faderAnalog Stereo Line Out and Stereo headphone outMoving Coil instrumentsLoudness: EBU R128, ITU-R BS.1770-4/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer specificFor more Information please visit manufacturers webpage

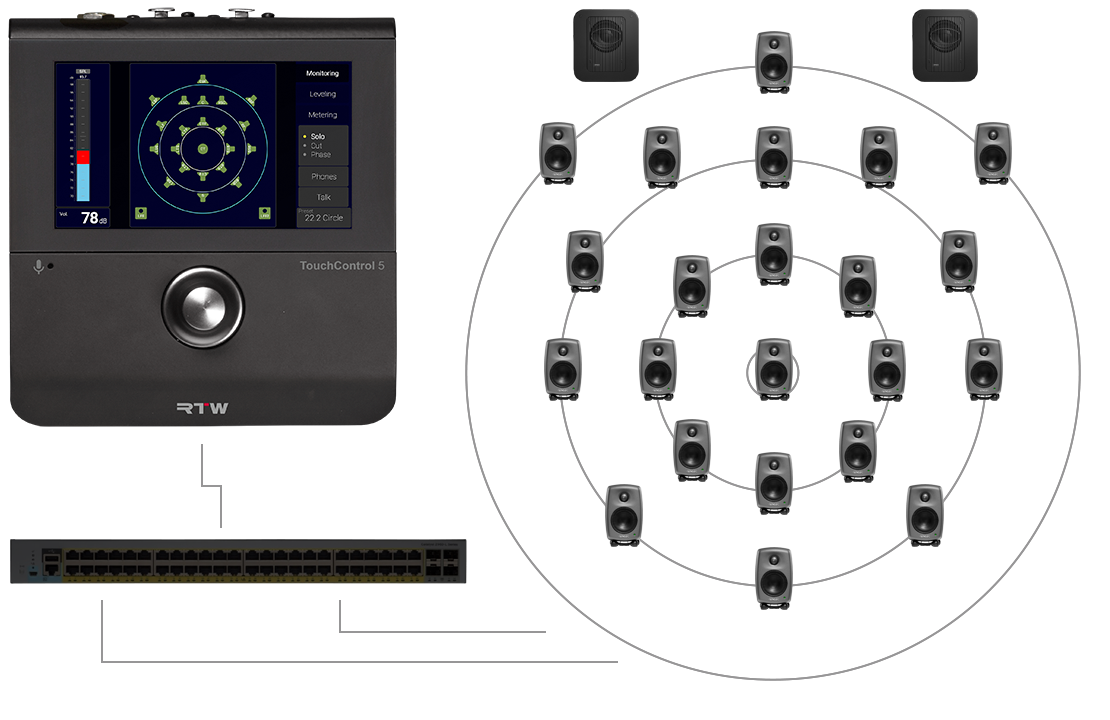

Meet TouchControl 5, our Dante® based immersive monitor controller with metering.
Built on our long and proud legacy of making broadcast-ready monitor controllers, it features a 5” intuitive touchscreen and a small footprint that preserves valuable space at your desktop.
It even features RTW standard precision metering, including SPL, measured using the built-in microphone.Monitor Control for Dante® Audio over IP NetworksIntegrated Microphone for SPL Measurement and TalkbackRTW Metering with Premium PPM, True Peak and VUFeaturesLevel Control of up to 24 (32) Audio Channels.User Configurable 5” Touch Display.Integrated Microphone for Talkback and SPL Measurement.Studio Grade Microphone Input: 48 V Phantom Powered High-quality Microphone Input (XLR).Level Control with User Definable Key Functions: The level control encoder is used to control the level of selected audio channels. It can be pressed for mute or dim.Powerful Headphone Output: 1/4 inch Headphone output with the option of monitoring a user-defined downmix.Analog Speaker Output: 3.5mm speaker output with the option of monitoring a user defined downmix.24 (32) Channels Level Metering: Up to 32 in various configurations channels can be metered.Easy Setup with Web-based Interface.Dante® Audio over IP Networks.Calibrated Monitoring using internal microphone or manual set.Power over Ethernet: One cable for both audio and power (IEEE 802.3af compliant).Supports 16/24/32 bit and 44.1/48/88.2/96 kHz sample rate.License structure that allows for attractive pricing.
Lockable Operation Mode: Fool-proof setup with access only to relevant controls. Prevents unintentional operation during showtime.preconfigured model with Multichannel and Monitoring licenses (order no. 320517ND + SW32001 + SW32010).
Setting New Standards and Space-saving: TouchMonitor TM7
7" Desktop TouchMonitor for Post Production, TV Broadcast and Video EditingFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)3G-SDI interface for audio signals of 3G/HD/SD SDI data streams (depending on hardware version)Models with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channelsFully scalable, modular software approach for flexible configuration and easy on-site upgradesEthernet/LAN, USB, VGA and GPIO ports7" touch screen 16 : 9 TFTTable-top unit, approx. 198 x 138.5 (163) x 46 (95) mm, W x H x D (with table-stand), incl. mains adapterFlush mount versions available (please contact our sales department)Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Other software modules available as optionsFor more Information please visit manufacturers webpage
Setting New Standards: TouchMonitor TM99" Desktop TouchMonitor for Post Production, TV Broadcast and Video EditingFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments16 channel audio interfacing including analog, AES3 and AES3id (depending on hardware version)Optional 3G-SDI interface for audio signals of 3G/HD/SD SDI data streamsModels with Dante™ or Ravenna/AES67 and ST 2110 AoIP connectivity for up to 32 channelsFully scalable, modular software approach for flexible configuration and easy on-site upgradesEthernet/LAN, USB, VGA and GPIO ports9" touch screen 16 : 9 TFTTable-top unit, approx. 245 x 165.5 (185.5) x 46.5 (95) mm, W x H x D (with table-stand), incl. mains adapterFlush mount versions available (please contact our sales department)Standard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Other software modules available as optionsFor more Information please visit manufacturers webpage
Loudness in Radio Broadcasting: TouchMonitor TMR77" Desktop TouchMonitor for Radio ProductionFeaturesEasy and fast touch screen control with comfortable onscreen helpHighly flexible screen layout options with scalable instrumentPowerful DSP platform for parallel display of multiple instruments2 AES3 audio inputs and 2 outputs via XLR (4 channels)Ethernet/LAN, USB, VGA and GPIO ports7" touch screen 16 : 9 TFTFully scalable, modular software approach for flexible configuration and easy on-site upgradesStandard Software (4-ch. PPM, TruePeak meter, correlator, global keyboard, gain reduction)Table-top or panel-mount (OEM) unitOther software modules available as optionsCompletely configured models for direct useFor more Information please visit manufacturers webpage
€3,689.00*
