The PMC6 is packed with innovation and providing the same sonic signature as our renowned larger monitors, it’s ideal for smaller control rooms or for use in larger immersive systems, where its astounding resolution allows critical mix decisions to be made with absolute confidence.With 20mm of excursion, the bespoke 6-inch bass driver is designed specifically to integrate with our latest ATL™ bass-loading and Laminair™ airflow technologies. The combination outperforms most 8-inch monitors, offering unparalleled bass extension, headroom, dynamics, and low distortion at all levels. The high end is courtesy of a one-inch precision-built fabric soft-dome tweeter, with a shallow waveguide that creates wide, tonally consistent dispersion and rock-solid imaging. Both the bass and treble drivers are precisely and individually controlled by a pair of 200W ultra-low-distortion, high-damping-factor Class-D amplifiers.Whether in portrait or landscape placement, the PMC6’s sophisticated DSP engine automatically adjusts the crossover, ensuring optimum tonal accuracy, phase and imaging.The monitor can be calibrated using the rear-panel controls or with PMC’s intuitive browser-accessible SoundAlign™ software.The PMC6 can be upgraded by adding a PMC8 SUB to create a full-range, free-standing PMC6 XBD system. Activating the ‘XBD’ DSP mode ensures the perfect marriage of the two units, creating a clean LF extension down to 25Hz.
Active 2-way nearfield reference monitor with ATL™ bass loading
Frequency response: 39Hz - 25kHz (- 3dB @1m full space, on-axis)
Max. cont. SPL: 106dB @1m (half space value calculated as +3dB from full space measurement.Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
State-of-the-art Class-D amplifiers: HF 200W, LF 200W
Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit 96kHz)
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
Automatic portrait/landscape placement DSP correction

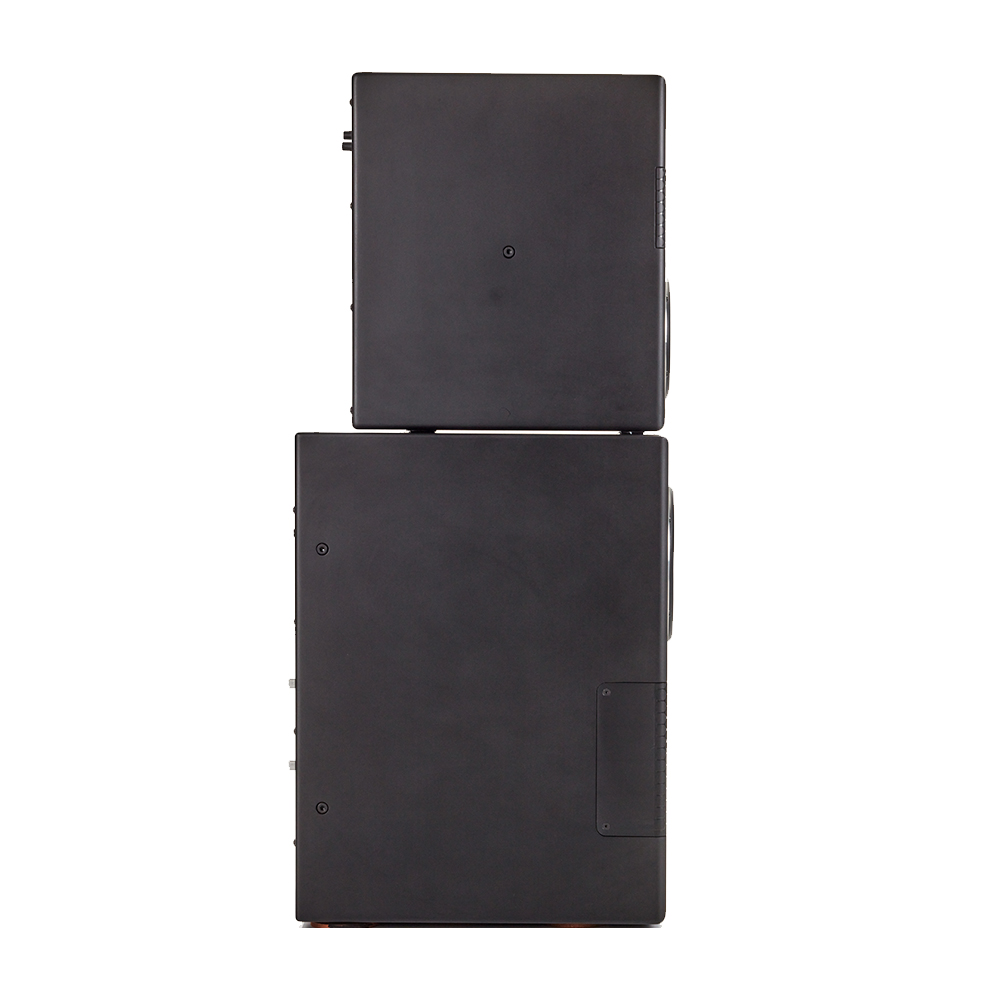

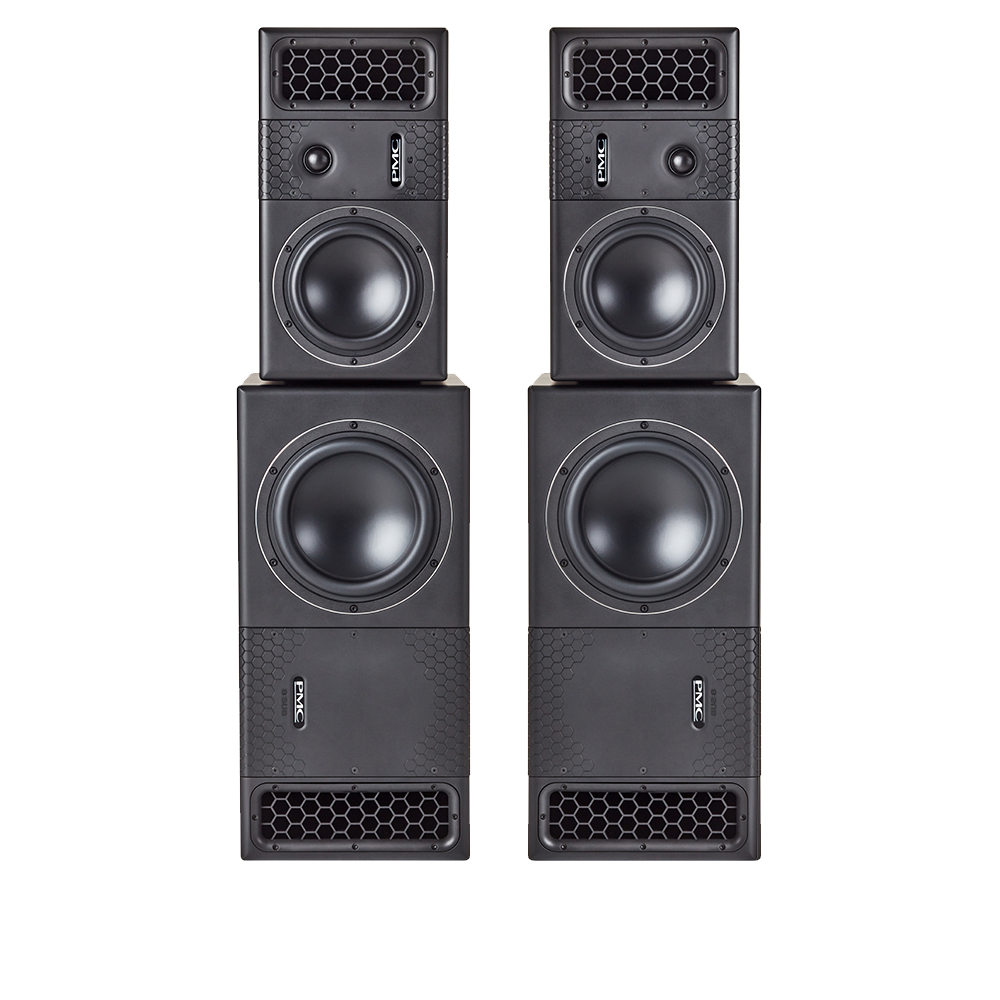

PMC6 + PMC8 SUB creates PMC6 XBD, with LF down to 25Hz
Ceiling-mount yoke allows suspension in multi-channel or immersive systems
The PMC6-2 provides main-monitor scale, depth, and dynamics, and allows mix decisions to be made quickly, with absolute certainty and without fatigue.This 3-way active monitor speaker combines two custom 6-inch ultra-long-throw bass-drivers with our radically engineered PMC55 2-inch soft-dome mid-range unit and a precision-built one-inch soft-dome tweeter. The PMC55’s distinctive ‘N-compass’ waveguide enhances the wide dispersion and remarkable mid-range projection of the driver; in combination with the high performance of the tweeter, the result is an ultra-wide and stable image, with a smooth and natural in-room response. Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated by our sophisticated, highly accurate DSP-based crossovers. As with the PMC6, the monitor is configured using rear-panel controls or the browser-based SoundAlign™ software, with comprehensive boundary and EQ options.The PMC6-2 offers astonishing size-to-performance ratio thanks to its ATL™ bass-loading technology, which results in exceptional LF extension and consistent tonal balance at all listening levels. Our Laminair™ airflow technology, visible in the monitor’s hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency.A simple upgrade path converts the PMC6-2 to a full-range XBD system; just add a PMC8.2 SUB and select XBD mode to perfectly dovetail the two units, extending the response down to 25Hz with additional headroom.
Active 3-way nearfield reference monitor with ATL™ bass loading
Frequency response: 33Hz - 25kHz (- 3dB @1m full space, on-axis)
Max. cont. SPL: 109dB @1m (Half space value calculated as +3dB from full space measurement.Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit 96kHz)
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
PMC6-2 + PMC8-2 SUB = PMC6-2 XBD, with LF down to 25Hz & increased headroom
Ceiling-mount yoke allows suspension in multi-channel or immersive systems
The PMC8 SUB can be used as a compact stand-alone subwoofer within conventional multichannel systems, or as an XBD cabinet, creating a full-range PMC6 XBD midfield monitor. When used in this way, the dedicated ‘XBD’ DSP mode marries the speakers and sub unit together, creating a coherent full-range system. Our subs are also perfectly suited to use in multi-channel and immersive systems, as our ATL™ bass-loading technology provides a gentler low-order LF roll-off than conventional ported cabinets, allowing a smoother, seamless integration between the height and surround channels and the sub.Featuring one custom eight-inch long-throw bass-driver, the PMC8 SUB is powered by a single 300W Class-D amplifier and controlled by the same powerful DSP engine as our other active models. DSP facilities include sophisticated room boundary equalisation options, parametric EQ, time delay, phase inversion, and the unique XBD mode, all configured via the loudspeaker’s rear panel or the browser-based SoundAlign™ software.
Active subwoofer with an 8-inch bass driver and ATL™ bass loading
Frequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Max. cont. SPL: 109dB @1m (quarter space value calculated as +3dB from half space measurement.Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
State-of-the-art Class-D amplifier: 300W
Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit 96kHz)
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP driver protection, EQ, and delay/phase options
Dedicated XBD configuration mode
As with any PMC loudspeaker, thanks to its super-consistent dispersion and tonal balance, the PMC8-2 may be simply and seamlessly combined with smaller PMC speakers to create larger multi-channel or immersive systems.The twin bass drivers are partnered with the same PMC55 mid-range tweeter, DSP system and four channels of 400W Class-D amplification used in the PMC6-2. Again, the speaker is configurable directly via the rear panel or using the browser-based SoundAlign™ software from a computer or tablet.Together with the precisely tuned ATL™ cabinet and hexagonal Laminair™ vents, the PMC8-2 delivers phenomenal performance that approaches that of our Main reference monitors, with smooth and consistent bass response down to 25Hz, a revealing mid-range and wide, stable sound-staging. As with the rest of the range, the PMC8-2’s superb definition, fidelity, dynamics and bass accuracy allow mix decisions to be made quickly with complete confidence, and with no listening fatigue even after long sessions.PMC8-2s can be upgraded through the addition of a PMC8-2 SUB to create an XBD system, enhancing the system’s bass headroom by 6dB. Dedicated short and taller floor-stands are available for the PMC8-2 and PMC8-2 XBD systems which position them on the ideal listening axis.
Active 3-way nearfield reference monitor with ATL™ bass loading
Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)
Max. cont. SPL: 113dB @1m (half space value calculated as +3dB from full space measurement.Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit 96kHz
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options

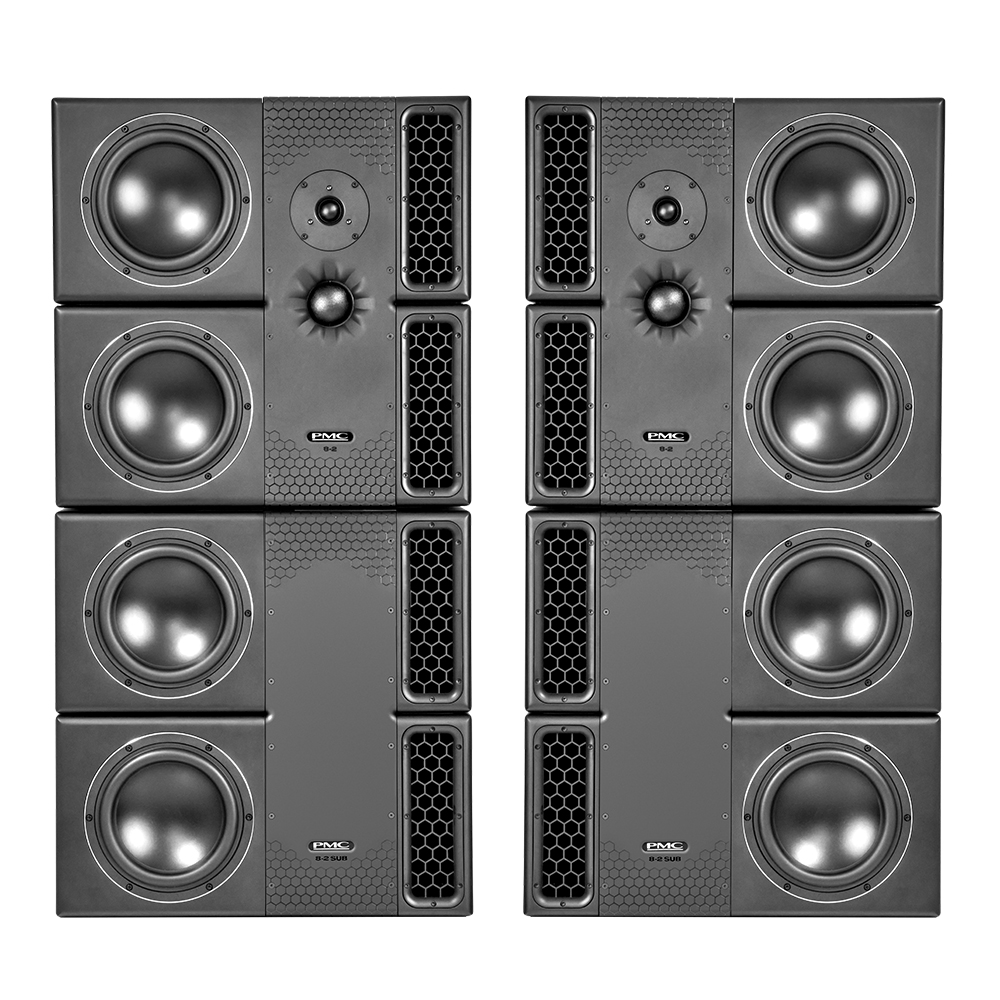

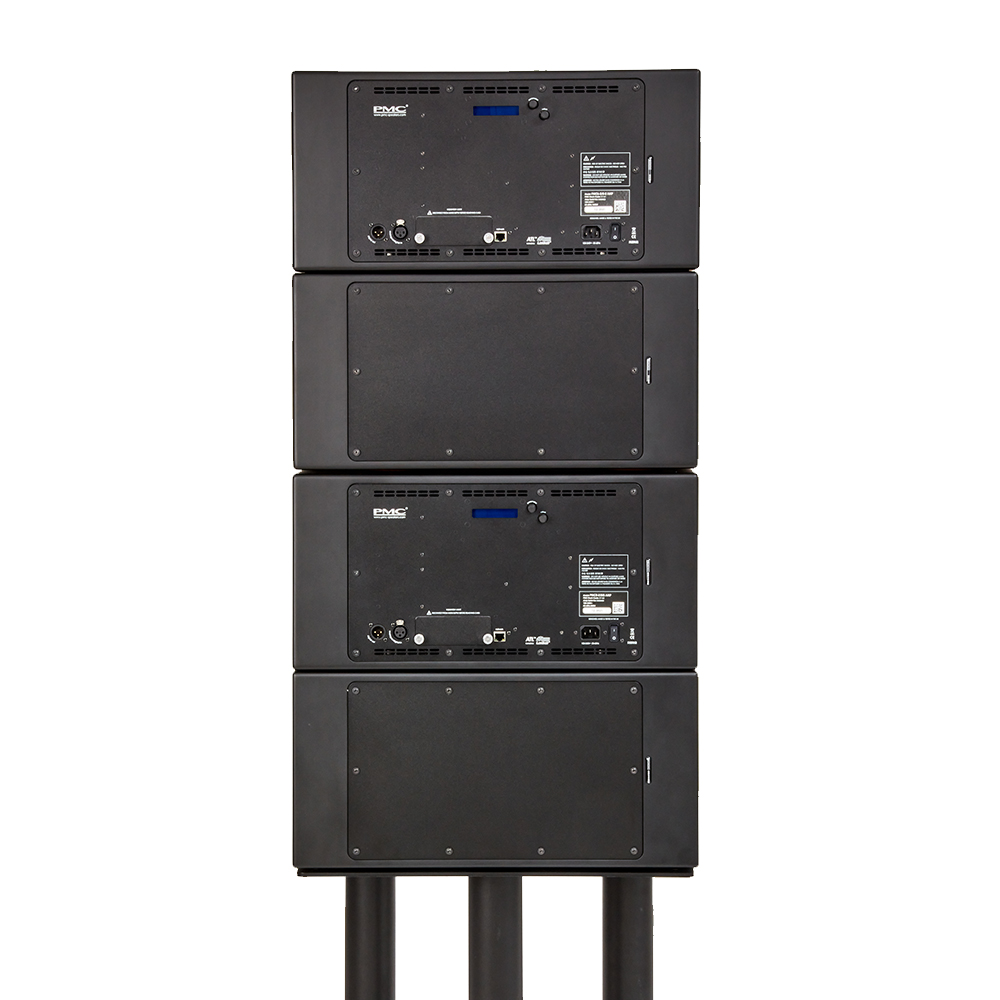

PMC8-2 + PMC8-2 SUB creates PMC8-2 XBD, with up to 6dB of additional headroom
Optional dedicated floor stands for PMC8-2 (40”) and PMC8-2 XBD (19”)
The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz.With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB’s twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker’s rear panel or by using the browser-based SoundAlign™ software via a LAN-connected tablet, smartphone or computer.The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors.
Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
Frequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Max. cont. SPL: 115dB @1m (quarter space value calculated as +3dB from half space measurement.Unweighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
State-of-the-art Class-D amplifier: 2 x 400W
Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit, 96kHz)
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP driver protection, EQ, and delay/phase options
Dedicated XBD configuration mode
The BRKT bracket has been engineered to be a rigid, reliable support and will allow PMC’s compact designs to perform to a supreme level. This bracket provides movement in both vertical and horizontal planes so the cabinets can be angled to the optimum listening axis. A ‘lock off’ bolt guarantees a ‘no droop’ scenario making the chosen position permanent. The BRKT can be used in conjunction with:result6, twotwo5, twotwo6, DB1 Gold, ci30, ci45 & ci65 – this bracket is not suitable to mount a twotwo.8 loudspeaker.

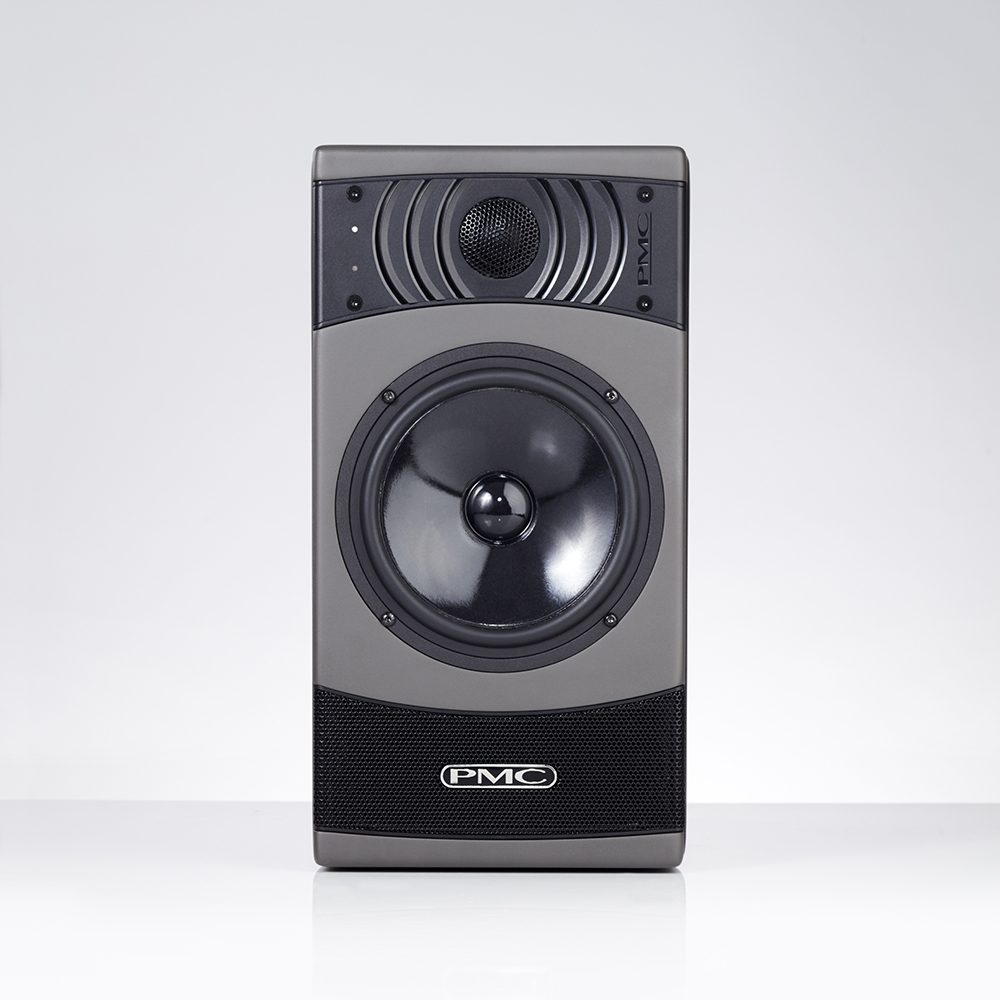

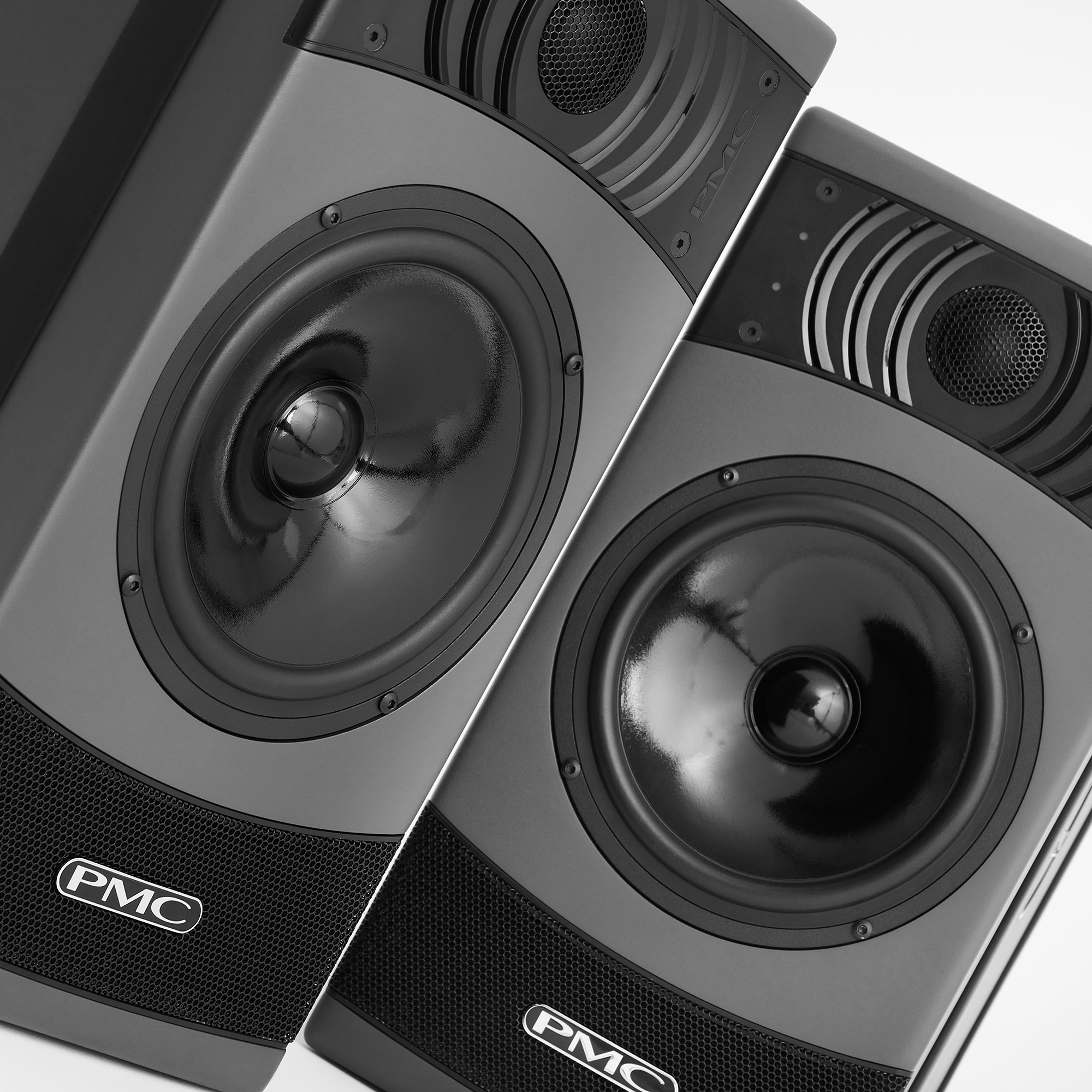

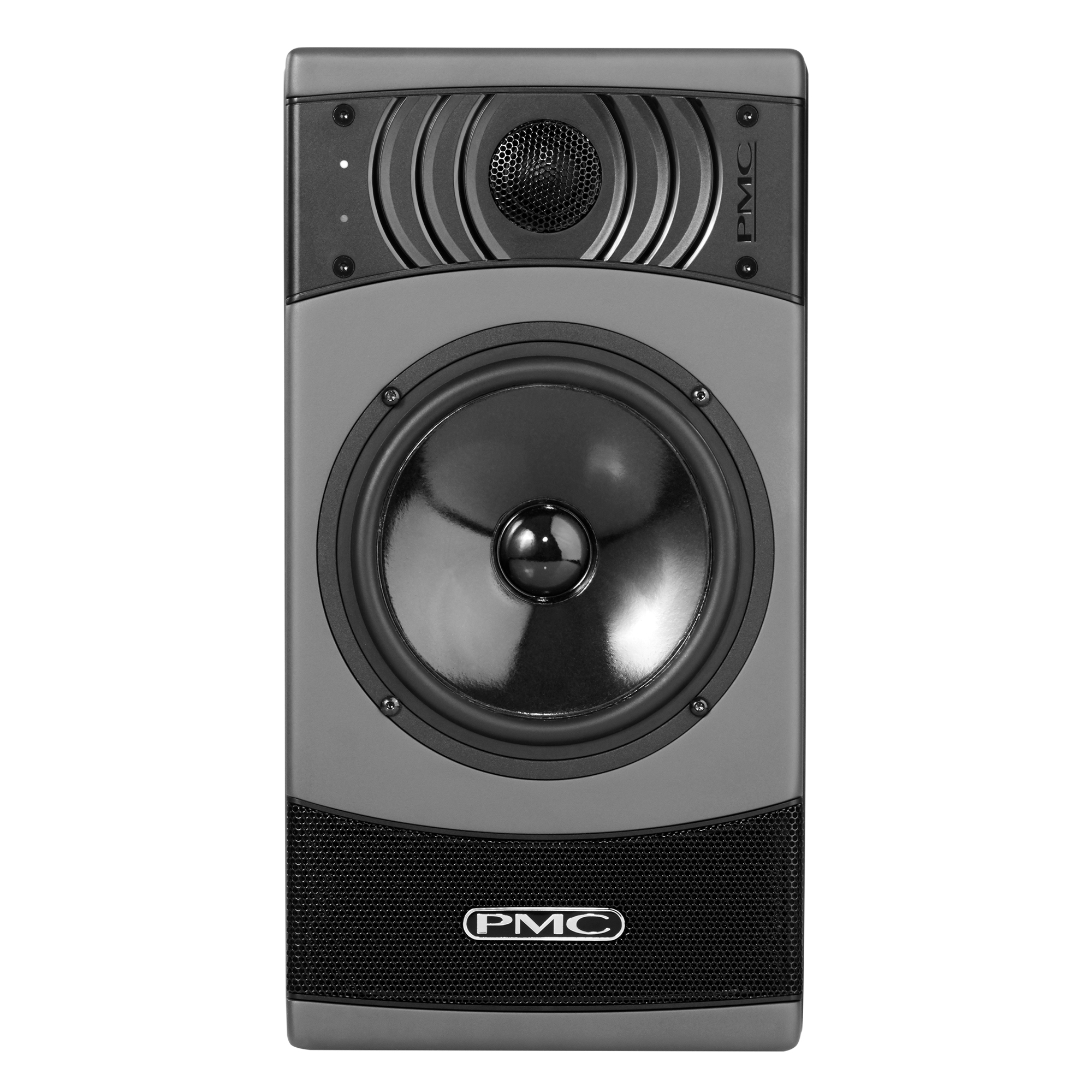

The result6 provides an introduction to PMC and the huge benefits of ATL™ technology, the proprietary bass-loading system at the heart of all our designs. This active two-way reference monitor offers all the attributes for which PMC is world-renowned: high resolution and detail, accurate, extended bass, consistent tonal balance at all levels, and wide dispersion and sweet spot. With an emphasis on elegant simplicity, this is a compact nearfield that allows you to work faster and more confidently. There are no overly complex DSP-based user options or room profiles; instead, the result6 achieves its characteristically neutral, dependable PMC reference sound solely on the strength of its engineering. Honed to the fundamentals of our design philosophy, it’s devoted to getting you the best sounding results in the shortest possible time.The distinctive, finned HF driver surround on the result6 are known as D-Fins and they deliver major sonic benefits by widening the stereo sweet spot . The result is an excellent off axis response over a wider area. The D-Fins also eradicate the cabinet edge effects, ensuring high-frequency sound remains razor-sharp and unsmeared. You can change your listening position as you work without adversely affecting what you hear, and that the frequency response remains flat and natural-sounding. With twin low-distortion, (HF 65W, LF 100W) amps, ATL™ bass loading and a plethora major innovations the result6 lets you achieve exactly what you need, quicker.
The tube104 high mass high performance stand has been engineered to optimise the imaging, dynamics and overall tonal balance of any one of PMC's two way monitors. 104 denotes its height (104cm) which ensures the monitor is positioned above the bridge of most desks. For ultimate rigidity and stability, adjustable self leveling feet are included.Suitable for use with the twotwo.5 in both horizontal or vertical orientation or for use with twotwo.6 & 8 models in both horizontal and vertical orientation when used in conjunction with a twotwo series top plate (for further info. click here)
€1,150.00*
