Microtech Gefell BM 180The BM 180 stage microphone is a compact member of the micon series of studio condenser microphones.A classic 48V phantom powered condenser microphone design, the BM 180 ensures a high degree of intelligibility and clarity for speech, vocals and music, also when used in less favourable acoustic conditions.The design makes it particularly suited to suspension above stages. Sound engineers in Theatre, Opera and Television will be particularly impressed by the visually unobtrusive appearance of the microphone.The BM 190 comprises a BMK 190 microphone capsule and the BMV 190 stage microphone preamplifier. Use of a special capsule with a cardioid characteristic achieves excellent attenuation of undesired acoustic interference in the vicinity. The suspension coupling provides a secure positioning and precise orientation of the microphone.The stage microphone has a balanced frequency response and ensures a neutral capture of sound. The electronic circuitry employed generates a negligible noise level. The low output impedance means that XLR cable extensions can be used where required. The microphone is supplied in a dark bronze finish. A LEMO mini-connector system provides an easy way to exchange the BMK 190 cardioid capsule with a BMK 180 omnidirectional capsul
Capsule system sure
Polar patterns omni
Frequency range / Hz 40 18000
Sensitivity / mV/Pa 7
Equivalent loudness level / dB(A) 20
Max. SPL (0,5%) / dB 147
Power Supply P 48 / XLR
Microtech Gefell BM 190The BM 190 stage microphone is a compact member of the micon series of studio condenser microphones.A classic 48V phantom powered condenser microphone design, the BM 190 ensures a high degree of intelligibility and clarity for speech, vocals and music, also when used in less favourable acoustic conditions.The design makes it particularly suited to suspension above stages. Sound engineers in Theatre, Opera and Television will be particularly impressed by the visually unobtrusive appearance of the microphone.The BM 190 comprises a BMK 190 microphone capsule and the BMV 190 stage microphone preamplifier. Use of a special capsule with a cardioid characteristic achieves excellent attenuation of undesired acoustic interference in the vicinity. The suspension coupling provides a secure positioning and precise orientation of the microphone.The stage microphone has a balanced frequency response and ensures a neutral capture of sound. The electronic circuitry employed generates a negligible noise level. The low output impedance means that XLR cable extensions can be used where required. The microphone is supplied in a dark bronze finish. A LEMO mini-connector system provides an easy way to exchange the BMK 190 cardioid capsule with a BMK 180 omnidirectional capsul
Capsule system Pressure gradien
Polar patterns cardioid
Frequency range / Hz 40 … 16000
Sensitivity / mV/Pa 14
Equivalent loudness level / dB(A) 15
Max. SPL (0,5%) / dB 146
Power Supply P 48 / XLR

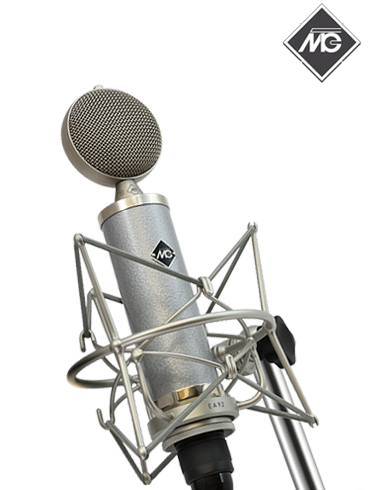

Das CMV 563 - M 7 S ist die originale Wiederauflage des legendären Gefell CMV 563. Es hat den typischen warmen, vollen Klang eines Röhrenmikrofons, der von zahlreichen Sängern und Solisten geschätzt wird.
Der Röhren-Vorverstärker ist mit der EF 86 Pentode aufgebaut, die als Triode betrieben und hinsichtlich ihres Rauschverhaltens speziell ausgesucht wird. Das neue Netzgerät N 61 erzeugt die Versorgungsspannung für die Röhre. Es kann an Netzspannungen von 115 V oder 230 V mit 50 Hz oder 60 Hz betrieben werden. Das N 61 hat einen Netzschalter, einen 7-poligen Tuchel-Steckverbinder zum Anschluss des Mikrofons und einen 3-poligen XLR-Steckverbinder für das Mikrofon-Ausgangssignal.

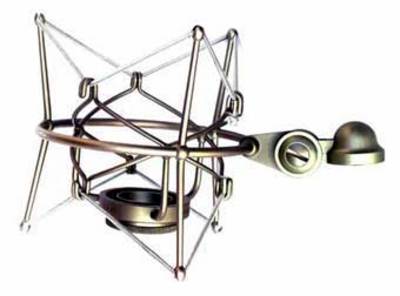

Das CMV 563 - M 7 S wird in einem Aluminiumkoffer ausgeliefert, der auch das Netzgerät N 61, das Anschlusskabel C 563.1, die elastische Mikrofonaufhängung EA 92 und einen G/B-Adapter zum Betrieb der historischen Mikrofonkapseln M 7, M 8 und M 9 mit Bajonettanschluss am CMV 563 beinhaltet.
Technische Daten
Richtcharakteristik
Niere
Akustische Arbeitsweise
Druckgradientenempfänger
Übertragungsbereich
20 Hz bis 20.000 Hz
Empfindlichkeit bei 1 kHz
17 mV/Pa
Nennimpedanz
200 Ohm
Ersatzgeräuschpegel
nach CCIR 468-4
24 dB
nach DIN EN 60268-4
16 dB-A
Geräuschpegelabstand
CCIR-bewertet (bez. auf 1 Pa bei 1 kHz)
70 dB
A-bewertet (bez. auf 1 Pa bei 1 kHz)
78 dB-A
Grenzschalldruckpegel bei 0,5% Klirrfaktor
115 dB
Dynamikumfang
99 dB
Betriebsspannung
120 V -
Anodenstrom
1 mA -
Heizspannung
5,8 V -
Heizstrom
200 mA -
Röhre (rausch- und klingarm)
EF 86
Anschlussarmatur
Mikrofon
7-pol. Tuchel
Netzgerät
XLR3M
Gewicht
540 g
Länge
216 mm
Durchmesser
42 mm

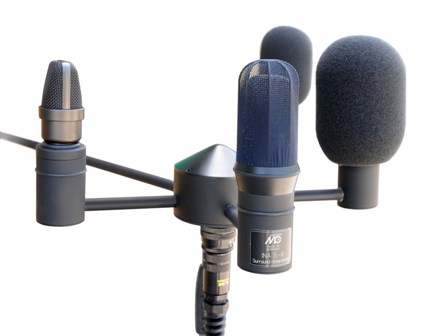

Microtech Gefell INA 5 RThe INA 5 R is an extended version of the INA 5th It has built-in elastic holder and integrated cable management. The surround arrangement can be expanded with a special rain-and wind protection and relays the microphone in and outdoor use.
Technical Data :
Studio Condenser Microphone
M 930
M 940
M 950
Directivity
Kidney
Supercardioid
Wide cardioid
Acoustic Principle
Pressure gradient
Frequency response
40th .. 18000 Hz
Field Sensitivity at 1 kHz
21 mV / Pa
23 mV / Pa
20 mV / Pa
Nominal impedance
100 Ω
100 Ω
100 Ω
Equivalent noise level
CCIR 468-4
13 dB
12 dB
13 dB
DIN EN 60651
7 dB - A
6 dB - A
7 dB - A
Noise ratio
to 1 Pa at 1 kHz
CCIR - Rated
81 dB
82 dB
82 dB
A - Rated
87 dB
88 dB
87 dB
Maximum SPL for THD 0.5%
142 dB
141 dB
142 dB
Maximum output voltage
at RL = 1 k Ω
17 dBu
17 dBu
17 dBu
at RL = 10 k Ω
18 dBu
18 dBu
18 dBu
Dynamic range of the microphone amplifier
135 dB
135 dB
135 dB
Power consumption (P 48, DIN 45596, IEC 268 - 15)
3.6 mA
3.6 mA
3.6 mA
Fittings
XLR connectors, 3 pole
Gold plated
Weight without MH 93.1
210 g
Dimensions (L x Ø)
118 mm x 45 mm
Surface
nickel matte, dark bronze

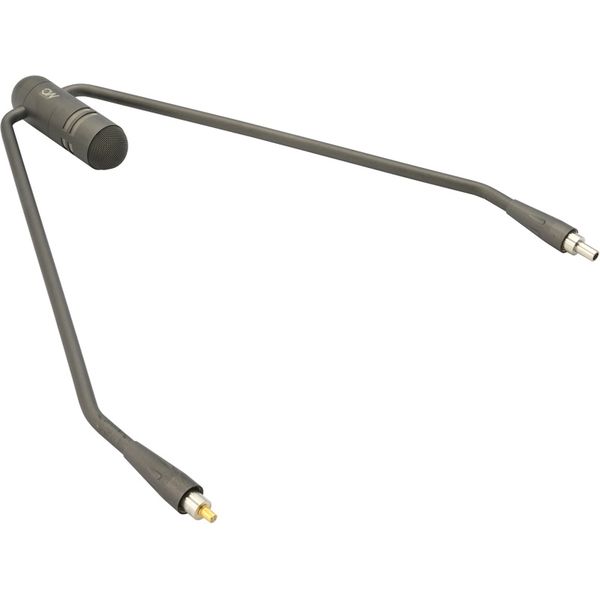

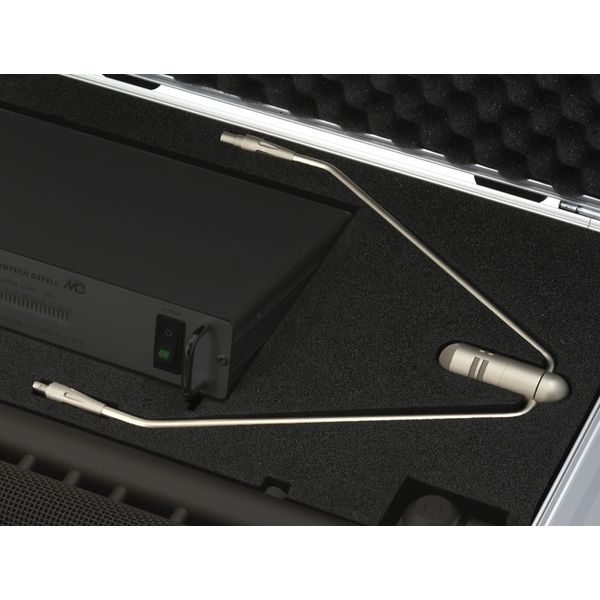

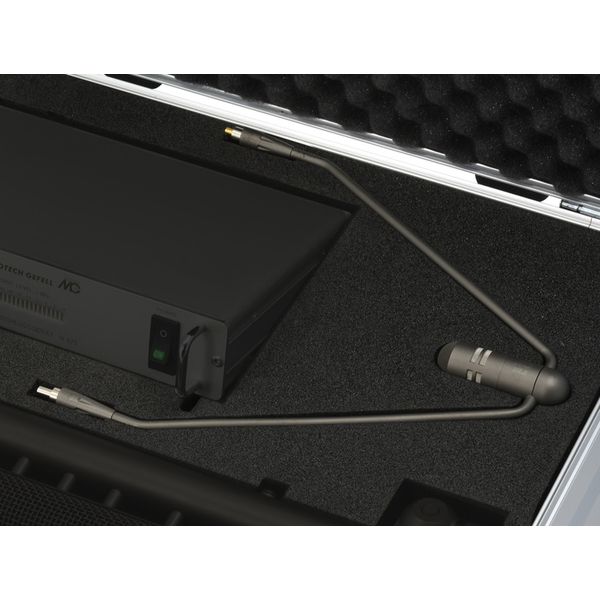

Cardioid Plane Microphone KEM 975 with Delta-Capsule
The Cardioid Plane Microphone KEM 975 is a new design of the patented instantaneous line array microphone principle, which is already in use in the KEM 970. A completely new circuit design has been developed; besides the well-proven ceramic capsules of the M 300 series, Microtech Gefell have developed a low-noise preamplifier system for the KEM 975. Also, the construction of the housing has been completely revised without changing any of the critical dimensions of the Line Array itself; as the capsule positioning and relationship is an integral part of the design. The result of the revision is a shorted overall body length. Compared to the KEM 970, the KEM 975 Cardioid Plane Microphone has an increased dynamic range. There are 5 switch settings covering the entire Line level. Microtech Gefell’s well-proven optical principle to generate the capsule polarisation voltage is also used in the KEM 975 – this eliminates any “nasties” on the power line getting into the audio circuit.
Delta-Capsule
IRT München (Institut für Rundfunktechnik), who originally designed and patented the line-array microphone and licensed Microtech Gefell to manufacture it, have significantly enhanced the directivity at low frequencies by the addition of a patented assembly that adds an extra microphone capsule mounted at the rear. This additional capsule assembly is available as an optional accessory. The advantage of this new construction, coupled with the improvements in lowering the noise floor, mean that the new KEM 975 is also suitable for music recordings as well as sound reinforcement, broadcast and video conferencing applications. By using an optimised filter system, the sound of the rear capsule is summed with the sound of the Microphone Line Array. The output of the complete arrangement is provided at the 3-pin XLR output connector of the N 975 power supply. Signal integration is automatically enabled (“plug and play principle”) when the Delta-Capsule system is connected to the KEM 975 microphone.

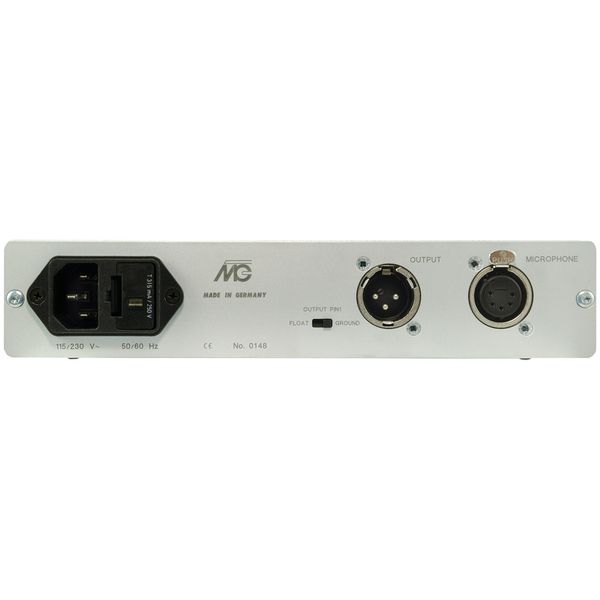

Power supply
The N 975 power supply is connected to the microphone by a 5-pin XLR cable. The new power supply is available either as a half width 19” – 1U rack unit or, alternatively, as table-top variant.

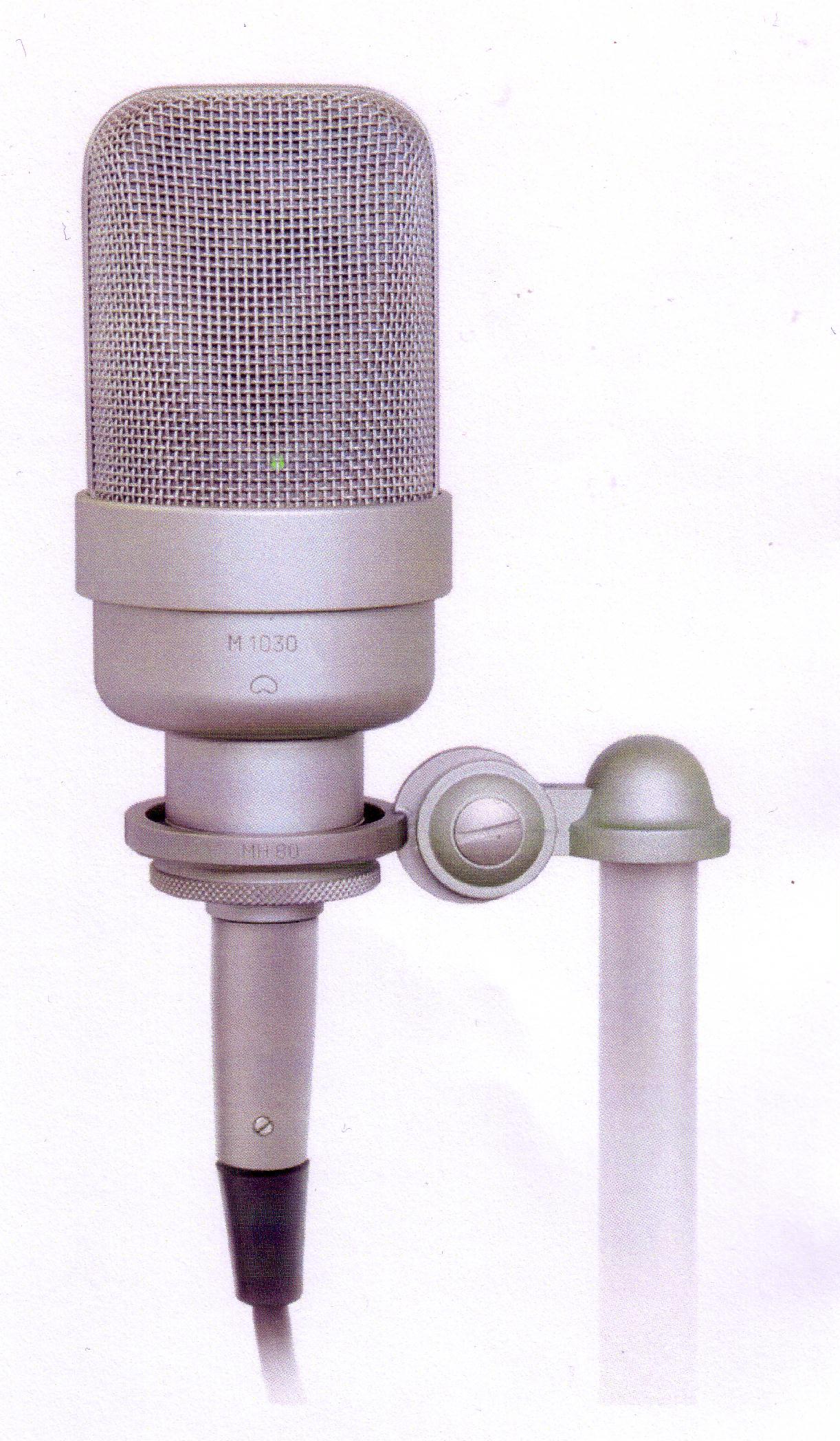

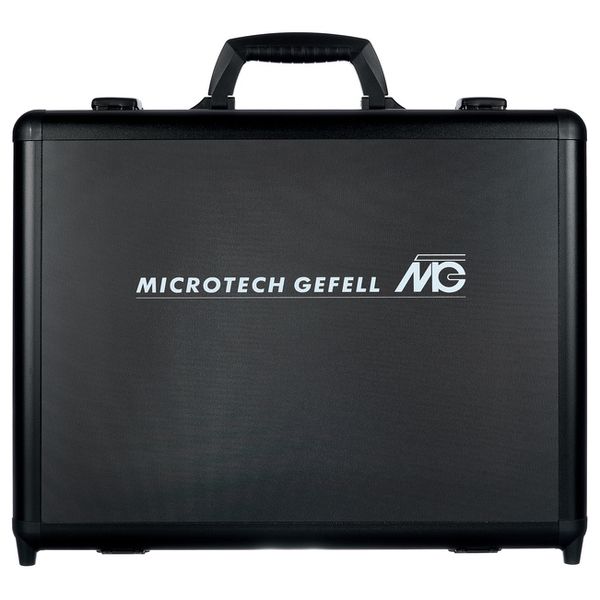

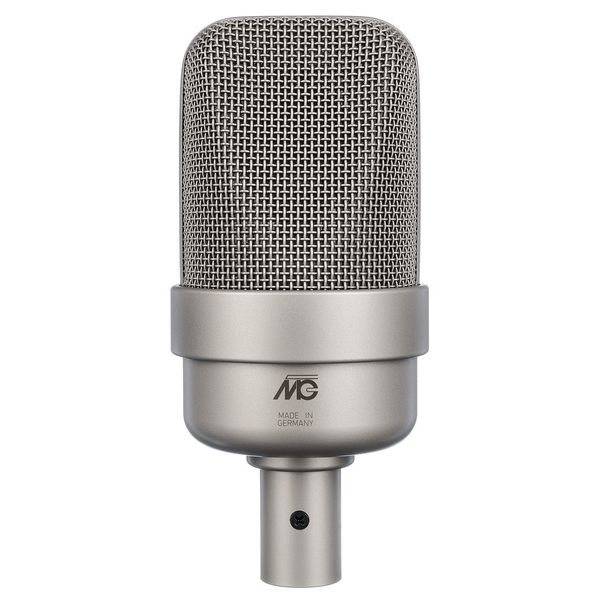

Microtech Gefell M 1030
Extreme dynamic range
Noise floor 7 dB-A
Universal applications
New large diaphragm capsule
Advanced circuit design
Transformerless output
Internal elastic suspension
Optical ready indicator
Es gibt einen wohlwollenden Testbericht in der Sound&Recording, den Sie hier lesen können
Microtech Gefell M 200Modular cardioid condenser capsule M20 & pre-amp module MV200 microphone set for studio and live reinforcement. The MV200 microphone pre-amplifier module is used with the M20, M21, & M27 interchangeable capsules. Features -10dB pad and low-frequency roll-off. Comes with deluxe wood case. Satin nickel finish.Features:
Modular mic system
Choice of 3 patterns
Low noise output stage
16mm gold diaphragm
Specifications:
Pattern: Cardiod
Frequency Response: 40 Hz - 20 kHz
Sensitivity: 13 mV/Pa
Self noise: 16 dB A-weighted
Signal to noise: 80 dB A-weighted
Maximum SPL: 145 dB A-weighted
Dynamic Range: 121 dB
Power requirement: 48V phantom
Microtech Gefell M 210The Gefell M200 cardioid is part of a series of three modular condenser mics that include the M210 hypercardioid and the M270 omnidirectional. Each mic comes complete with capsule head and microphone amplifier and capsules are interchangeable for maximum flexibility. The combined use of ceramics and a hand stretched gold evaporated Mylar (PE) capsule provides a rich, natural tone with universal appeal for studio, broadcast, on-stage and location sound.
Microtech Gefell M 221The condenser microphone M 221 unifies universal small diaphragm capsule technology with a metal diaphragm and a modular preamplifier. The use of a certificated measurement capsule combined with a preamplifier with 48 V phantom powering reaches a constant magnitude and phase response and transmission properties which are long-term stable. Application Because of the small capsule dimensions the M 221 is ideally suited for applications where a low interference with the sound field is demanded. It is usable as a main microphone for recordings which should include a certain amount of the room response. As well the M 221 is suited as a spot microphone for recording instruments very close where the low frequencies should be transmitted in detail and original. Moreover it can be used for multichannel main microphone arrangements like AB stereophony or decca tree. For these applications the microphone is ideal because of its precise and long-time stable transmission properties. The M 221 has an excellent transient response because of the pressure transducer capsule and is really suitable to record instruments with extreme transients. With the both different sized spherical corpuses a high frequency accentuation can be produced in an acoustical way to increase the presence and to compensate the high frequency roll-off in the diffuse sound field.Acoustical Specifications The pick-up pattern is equivalent to the longitudinal direction of the microphone. As sound transducer a condenser capsule with a diameter of 12,5 mm and a very thin metal diaphragm is used. The pressure transducer capsule exhibits an omni-directional polar pattern without proximity effect. Because of the free field equalization the M 221 has a constant frequency response from 3,5 Hz up to 20 kHz (± 2 dB). The static pressure equalization between the capsule interior and the atmosphere goes through a vent to the preamplifier. Therefore the humidity adaptor TA 202 is usable to protect the microphone in application with high air humidity. The use of the M 221 with the spherical corpus KA 3 effects a frequency response accentuation which begins at approximately 1 kHz and goes constant at 3 dB from approximately 4 kHz up to 12 kHz. With the spherical corpus KA 4 the accentuation of the high frequencies starts also at approximately 1 kHz and goes constant at 3 dB between 3 kHz and 12 kHz. Electrical Specifications The transformerless circuit design of the electronic impedance converter with symmetrical output facilitates an output capability for sound pressures from15 dB(A) up to 136 dB with a maximum of 0,5 % THD (total harmonic distortion). The microphone is connected by a standard 3-pin XLR-male plug with gold-plated pins which realizes the powering by an external 48 V phantom supply according to IEC 61938 with a current consumption of 6 mA. Mechanical Specifications The M 221 consists of a microphone capsule and a microphone preamplifier as independent mechanic parts which are connected to a complete microphone through a screw thread. Microphone capsule and microphone preamplifier have an identical overall diameter of 12,7 mm which enlarges to 21 mm over the length of the microphone preamplifier to the connection side of the microphone. The shape of this enlargement is designed for a minimum interference with the sound field. Microphone capsule and microphone preamplifier have together a length of 170,4 mm. On the connection side of the M 221 there are standard microphone holders mountable. To reach a higher attenuation against solid-born sound and impulses there are elastic holders and suspensions usable. The weight of the M 221 is 123 g what allows to use the microphone with stand mountings as well as to hang up the microphone from the ceiling without any problems.Technical Data
Condenser Microphone
M 211
Polar pattern
Omni
Acoustic operating principle
Pressure transducer
Frequency range
20 … 20000 Hz ± 2 dB
Sensitivity at 1 kHz
50 mV / Pa
Output impedance
100 Ω
Noise level
CCIR 468-4
28 dB
DIN EN 60651
15 dB ( A )
Signal-to-noise ratio
A-weighted
79 dB
Max. output level Ri = 1 kΩ 18 dBu
Ri = 100 kΩ 19 dBu
Max. SPL for K < 0,5 %
136 dB
Dynamic range
121 dB
power supply 48 V ± 4 V
Current consumption
5,5 mA
Output connector
XLR3M
Weight
123 g
Dimensions ( L x Ø )
170,4 x 12,7 / 21 mm

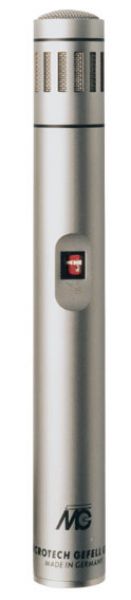

Microtech Gefell M 270The M270 provides the flattest response of the three SMS2000-series mics; it is flat to 3kHz, then rises to +6dB at 10kHz. This deliberate presence peak provides additional clarity and “brilliance” for ambient (“far-field”) recordings.The M270 mic ships in a padded wooden case in either of two finishes

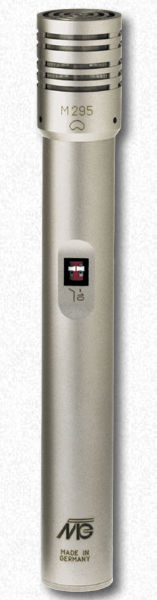

Microtech Gefell M 295The M 295 extens the studio microphone System SMS 2000. The proved microphone capsules M 70 and M 94 form a unit with the modified microphone amplifier MV 200.These microphones are designed for a universal applications in professional recording and sound reinforcement and meet the requirements of modern technics.The newly developed, transformerless circuit design substitutes the previous transformer for a symmetrical output stage. Its intrinsic noise and remarkably output capability emphasize the advantages of the microphone capsules M 70 and M 94. Microphone capsules with an extremly thin metal diaphragm enable brilliant sound transmission.The direction of maximum sensitivity is axial. The studio microphones are equipped with a wide range of accessories for many microphone mounting methods.lt is possible to activate a 10 dB-attenuator pad for handling very high sound pressure levels. A sensitivity reduction for low frequencies can be utilized to suppress the proximity effect. The two switches are into the middle of the preamplifiers.The microphone is equipped with a standard 3-pin XLR connector fitting to a microphone cable, e.g. C70. The operation voltage is provided by 48 V phantom powering, according to the international standards DIN 45596 and IEC 268-15.They are available in a satin nickel or a black matt finish.Both condenser microphone capsules are pressure gradient transducer. The converter elements contain a nickel diaphragm with a thickness of less than 1 µm. The back-plate electrodes are Teflon-coated to increase operational reliability.M295 The frequency response in the upper range is nearly linear while in the Iower frequency band it features a slight roII-off to counteract the bass lift of dose speech (proximity effect). The microphone is thus ideally suited for recordings in close proximity to the sound source.lt is recommended to use a popscreen and to switch on the microphone bass rolI-off for closerange applications.A windscreen can be utilized to enhance life-like recording.
Microtech Gefell M 296The M296 condenser microphone is an addition to the metal diaphragm microphone family which includes the M 294 / M 295. Based on thenearly linear frequency response of the transmission factor up to 20 kHz it guarantees orthophonic recordings in the near and far field as well as recordings of high sound levels.lt is designed for professional applications in radio and television broadcasting, sound studios, concert halls, theatres and for high-quality recordings of all genres.The direction of maximum sensitivity is axial. The stable capsule contains a large diameter metal diaphragm similar to our reliable measuring microphone cartridges regarding its construction as a pressure transducer. Capsule and impedance converter are a single unit.The transformerless microphone preamplifier shows a high output capability and has a symmetrical output stage. A 10 dB preattenuation pad and the bass roll-off extend the application range. The two switches are sunk into the middle of the preamplifier.The microphone is equipped with a standard 3-pin XLR connector fitting to a microphone cable, e.g. C70. The operation voltage is provided by 48 V phantom powering according to the international standards DIN 45596 and IEC 268-15.A special version -the M 296 S- is available for measurement applications. Its frequency response complies with DIN EN 60 651for Class 2 sound level meters.The microphone is available in a satin nickel or a black matt finish.Technical Specifications:Polar pattern:OmniAcoustical operating principle:Pressure transducerFrequency range:20 … 20000 Hz ± 2,5 dBSensitivity at 1 kHz:15 mV / PaSwitch position "reduced bass roll-off" at 90 Hz:-10 dBRated impedance:150 ΩEquivalent loudness level due to inherent noise CCIR 468-4:22 dBDIN EN 60651:14 dB - ASignal-to-noise-ratio(re. 1 Pa at 1 kHz) CCIR-weighted:72 dBA-weighted:80 dBMax. SPL for THD ≤ 0,5 %:134 dBwith preattenuation:144 dBTotal dynamic range:120 dBCurrent consumption (P 48, DIN 45596, IEC 268-15):3 mAOutput connector:3-pin XLR-connector,goldplated contactsWeight:157 gDimensions (L x Ø ):156 x 21/24 mm

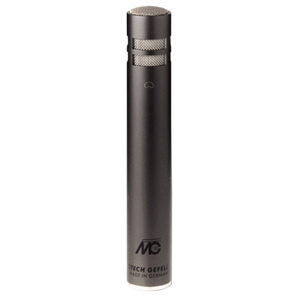

Microtech Gefell M 300The M 300 is a compact condenser microphone in studio quality. The frequency response of the transmission factor is practically linear for a wide range of sound incidence and has a smooth treble boost rising to about 3 dB between 6 and 10 kHz. The miniature microphone is well suited for vocal and instrumental soloists.The M 300 is designed for studio applications in radio, television broadcasting and films for live performance and recording of instruments, vocals and speech and sound reinforcement in the professional and semiprofessional market also under adverse acoustic conditions, e.g. in churches.A new low-noise integrated hybrid circuit and the transformer-less circuit design guarantee an extremely wide dynamic range by a low equivalent loudness level and a high reliability in operation. RFI susceptibility is very low. Technical Specifications: Pattern: Cardioid Response: 40Hz - 18kHz Sensitivity: 12mV/Pa Self Noise: 16dB A-weighted Signal to noise: 78dB A-weighted Maximum SPL: 147dB A-weighted Dynamic Range: 131dB Power Requirement: 48V phantom

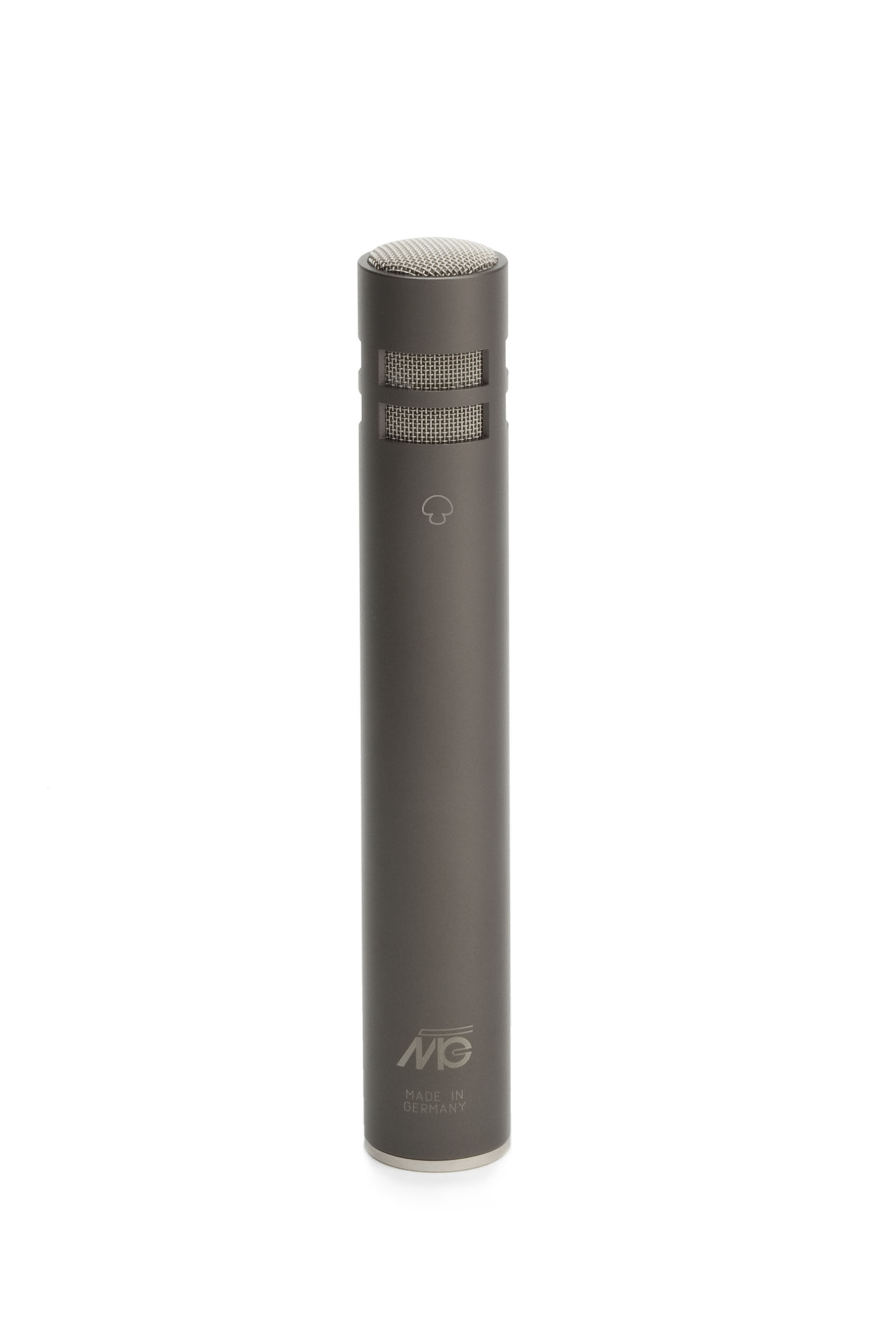

Das M310 ist die neue Supernierenausführung des M300.Das Kleinmikrofon ist somit besonders für Vokal und Instrumentalsolisten geeignet, die bei variierter Einsprechrichtung klangtreu wiedergegeben werden sollen, z.B. Sprecher in Synchronstudios, Redner, Bläser.Das M 310 ist für den Einsatz in Rundfunk-, Fernseh- und Filmstudios für die Übertragung bzw. Aufzeichnung von Musik-instrumenten, Gesang und Sprache sowie für Beschallungs-aufgaben im professionellen und semiprofessionellen Bereich auch unter akustisch ungünstigen Bedingungen, wie z.B. in Kirchen, vorgesehen.Ein neuer rauscharmer, hoch aussteuerbarer lmpedanzwandler in Hybridtechnik und das transformatorlose Schaltungskonzept garantieren eine geringe Ersatzlautstärke und eine hohe Betriebssicherheit.Die EMV-Festigkeit des M 300 liegt deutlich über der herkömmlicher Mikrofone. Der Anschluss des M 310 erfolgt über einen 3-poligen XLR-Stecker mit dem Mikrofonanschlusskabel C 70. Als Stromversorgung dient die 48 V - Phantomspeisung, die als P 48 in DIN 45596 und IEC 268-15 international genormt ist. Eine 2-kanalige Anschaltung ist mit dem Netzanschlussgerät N 200 möglich.Die Oberfläche des Kleinmikrofons ist dunkel bronze. Bei Nahbesprechung wird der Einsatz des Popschutzes W 20 empfohlen.
Microtech Gefell M 900One of the most unique microphones in Mercenary's offerings the M-900 is an absolute powerhouse for guitars, drums and vocals. With its rugged construction and gold sputtered, Mylar® backed diaphragm the M-900 can achieve a depth and presence like few microphones we have ever experienced. Perfect for loud electric guitar recording as well as close mic'ed drum the M-900 is expressiveness personified.The M 900 and M 910 condenser microphones have been developed for recordings of instrumental and vocal soloists in the professional market. Its well balanced frequency response in the free field as well as in the diffuse field and the appropriate distinct characteristics ensure clean and colorless recordings of any sound sources with good selectivity. It is advisable to use the M 910 by soloists because it shows a specially optimized frequency response for this kind application. A distance of less than 8 to 12 inches, which is recommended as minimum distance between lips and microphone, causes a coloration with an emphasis of lower frequencies, the proximity effect.An acoustic filter integrated in the protective basket reduces the pop sensitivity. The direction of maximum sensitivity is axial, i.e. end wise to the microphone. This fact and the ergonomic design make these microphone the right choice for live performance of soloists. Following the modern trend of technique the transducer is equipped with a gold plated polyester membrane. The newly developed transformerless impedance transducer having a balanced output stage guarantees a high output capability and low intrinsic noise. Together with the good qualities of the microphone capsule a high brilliance of the live performance is reached. A 10 dB attenuator is installed to reduce the sensitivity of the microphone when placed near extremely loud sound sources. And a low frequency roll-off switch will reduce the proximity effect when close miking. The two switches are sunk placed in the middle of the amplifier.At the lower end of the amplifier the microphone is equipped with a 3-pin XLR connector fitting to the microphone cable C 70. These microphones use 48 volt phantom powering according to the international standards DIN 45596 and ICE 26815. Technical Specifications: Polar pattern: cardioid Acoustical operating principle: Pressure gradient transducer Frequency range: 40 ... 18000 Hz Sensitivity at 1 kHz: 17 mV/Pa Switch position "reduced bass roll-off" at 90 Hz: -10 dB Rated impedance: 150Ω Equivalent loudness level: CCIR 468-4 21 dB Inherent noise: DIN EN 60 651 13 dB - A Signal-to-noise-ratio: CCIR-weighted: 73 dB (re. 1 Pa at 1 kHz): A-weighted: 81 dB Max. SPL for THD < 0.5%: 143 dB Total dynamic range: 120 dB Current consumption (P 48, DIN 45596, IEC 268-15): 3 mA Output connector: 3-pin XLR connector goldplated contacts Dimensions: 218 mm x 47/28 mm
Microtech Gefell M 910The M 900 and M 910 condenser microphones have been developed for recordings of instrumental and vocal soloists in the professional market. Its well balanced frequency response in the free field as well as in the diffuse field and the appropriate distinct characteristics ensure clean and colorless recordings of any sound sources with good selectivity. It is advisable to use the M 910 by soloists because it shows a specially optimized frequency response for this kind application. A distance of less than 8 to 12 inches, which is recommended as minimum distance between lips and microphone, causes a coloration with an emphasis of lower frequencies, the proximity effect.An acoustic filter integrated in the protective basket reduces the pop sensitivity. The direction of maximum sensitivity is axial, i.e. end wise to the microphone. This fact and the ergonomic design make these microphone the right choice for live performance of soloists. Following the modern trend of technique the transducer is equipped with a gold plated polyester membrane. The newly developed transformerless impedance transducer having a balanced output stage guarantees a high output capability and low intrinsic noise. Together with the good qualities of the microphone capsule a high brilliance of the live performance is reached. A 10 dB attenuator is installed to reduce the sensitivity of the microphone when placed near extremely loud sound sources. And a low frequency roll-off switch will reduce the proximity effect when close miking. The two switches are sunk placed in the middle of the amplifier.At the lower end of the amplifier the microphone is equipped with a 3-pin XLR connector fitting to the microphone cable C 70. These microphones use 48 volt phantom powering according to the international standards DIN 45596 and ICE 26815. Technical Specifications: Polar pattern: cardioid Acoustical operating principle: Pressure gradient transducer Frequency range: 40 ... 18000 Hz Sensitivity at 1 kHz: 17 mV/Pa Switch position "reduced bass roll-off" at 90 Hz: -10 dB Rated impedance: 150Ω Equivalent loudness level: CCIR 468-4 22 dB Inherent noise: DIN EN 60 651 15 dB - A Signal-to-noise-ratio: CCIR-weighted: 72 dB (re. 1 Pa at 1 kHz): A-weighted: 79 dB Max. SPL for THD < 0.5%: 145 dB Total dynamic range: 120 dB Current consumption (P 48, DIN 45596, IEC 268-15): 3 mA Output connector: 3-pin XLR connector goldplated contacts Dimensions: 218 mm x 47/28 mm

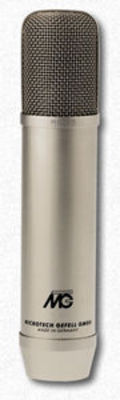

Microtech Gefell M 92.1 SThe fixed cardioid version of the world renowned UM-92.1 Featuring a great signal to noise ratio from it's proprietary tube amplifier and the classic tone known only to microphones with a gold sputtered PVC based capsules the M-92.1s is almost always a sure winner for vocals of all kind.The M 92.1 S is renowned for its high sensitivity and excellent signal-to-noise ratio. It has the typical warm, full-bodied sound of tube microphones that are preferred by vocalists and soloists. The M 92.1 S vacuum tube condenser microphone is suited for difficult radio play recordings as well as a supporting microphone for orchestra recordings.The renowned pressure gradient transducer of the M 92.1 S uses two large diameter gold-plated plastic diaphragms. The vacuum tube preamplifier is equipped with a pentode working as a triode selected for its sonic characteristics. The N 920.1 power supply provides the operating voltage for the vacuum tube condenser microphone. It can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz. For cable lengths over 50 meters it is recommended to have your service provider set the heater voltage of the power supply to 5.8 volts.

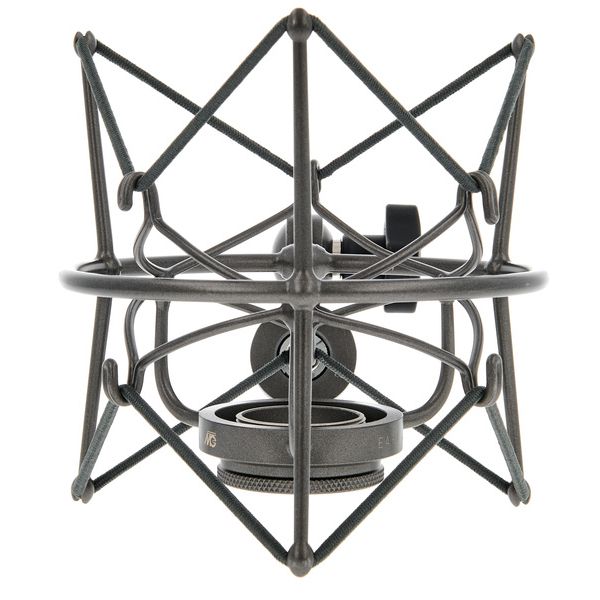

The M 92.1 S is packed in a aluminum attaché style flight case and comes with power supply, connection cable and EA92 elastic suspension mount. Technical Specifications: Polar pattern: Cardioid Acoustical operating principle: Pressure gradient transducer Frequency range: 40Hz 18kHz Sensitivity: 19 mV/Pa Rated impedance: 200Ω Equivalent loudness level: CCIR 468-4 25dB Self Noise: DIN EN 60 651 15dB - A Signal to noise: CCIR-weighted @ 69 dB, A-weighted @ 79 dB Maximum SPL: < 0.5 % THD @ 118 dB Dynamic range: 103 dB Tube: EF 86 Output connector: 7-pin Tuchel C 70/A

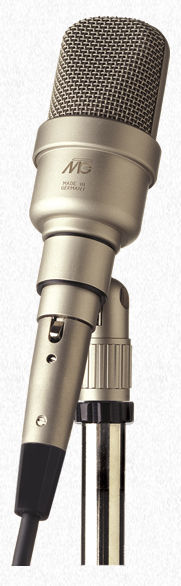

Microtech Gefell M 930The M 930 studio condenser microphones combine modern large diaphragm capsule technology with the latest in semiconductor circuit topology. They are specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Their very favorable pricing also makes them attractive for project studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboard, percussion, wind and string instruments.The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone.The condenser capsules exhibits a smooth frequency response with a slight presence boost in the 7 to 11 kHz range. The polar response exhibits an exceptionally high degree of rejection for sounds impinging from the rear (cardioid) or sides (super-cardioid) of the microphone. The electronic impedance converter uses a newly perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, these microphones have a clean, distortion free sound over an extremely wide dynamic range. RFI susceptibility is very low. The microphone capsule and electronics are elastically suspended inside the compact metal housing. This reduces the sensitivity to mechanical impact and structure born noise. The microphone stand holder MH 93.1 can be exchanged for an elastic suspension EH 93 to further attenuate noise in extreme situations. The M 930, M 940, M 950 connect to the microphone cable with a standard 3-pin XLR plug. Powering must be provided by an external 48 V phantom supply according to DIN 45596 and IEC 268-15.The microphones are finished in either a satin nickel or dark bronze color. Technical Specifications:Polar pattern CardioidAcoustic operating principle Pressure gradient transducerFrequency range 40...18000 HzSensitivity at 1 kHz 21 mV/PaOutput impedance 100 ΩMax. SPL for THD < 0,5% 142 dBDynamic range of electronics 135 dBCurrent consumption (P 48, DIN 45596, IEC 268-15) 3,6 mAOutput connector 3-pin XLR connector goldplated contactsWeight without MH 93.1 210 gDimensions ( L x Ø ) 118 mm x 45 mmFinish satin nickel, dark bronze

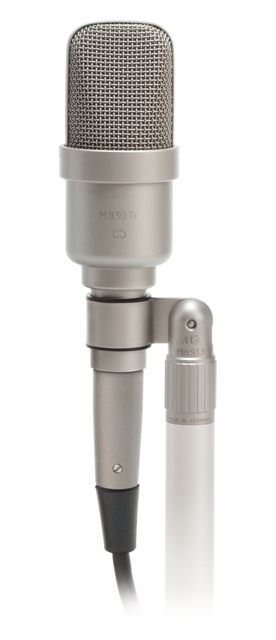

The studio microphone M 930 Ts unifies approved large diaphragm capsule technology with anoptimized output transformer and a new developed circuit design. That attains a signal transmission with negligible distortion combined with a lower low frequency response, a very low noise floor and a high sound pressure level even at high external load. Application Because of the compact dimensions of the M 930 Ts it is ideally suited for applications where an optical inconspicuousness and an absolutely view to manuscripts and monitors is demanded. It can be placed on speaker desks in radio stations as well as for recordings of dialog pickups, audio books and in dubbing studios. Moreover it can be used as main microphone for recordings of solo instruments or vocals, as spot microphone for recording instrumental groups and for setting up multichannel main microphone arrangements. There are accessories for XY-, ORTFand INA 5 arrangements available. Because of the balanced low-impedance transformer output the M 930 Ts can be used for longer cable length with negligible distortion. Acoustical Specifications The pick-up pattern is perpendicular to the direction of the microphone axis (side adressed) and is marked by the model number and the polar pattern symbol. The company logo is at the reverse side of the microphone. A condenser microphone capsule with a diameter of 28 mm and a gold-plated polyester membrane is installed as sound transducer. The polar pattern is cardioid with a very high attenuation of rear sound incidence. The M 930 Ts has a constant frequency response with an accentuation of approximately 2,5 dB between 6 kHz and 12 kHz to raise the speech and high-frequency presence. The change of the low end frequency response caused by the proximity effect is well-balanced without a very strong overemphasis at small microphone distances Electrical Specifications The newly optimized circuit topology of the impedance converter leads in combination with the specially designed output transformer to a very high transmission level range for sound pressure levels from 7 dB(A) to 144 dB with a maximum of 0,5% THD (total harmonic distortion). As a result, the M 930 Ts has a clean, distortion free sound over an extremely wide dynamic range. RFI susceptibility is very low. The microphone is connected by a standard 3-pin XLR-male plug with gold-plated pins which realizes the powering by an external 48 V phantom supply according to IEC 61938 with a current consumption of 6 mA. Mechanical Specifications The capsule is mounted elastically in the compact microphone housing of the M 930 Ts with adiameter of 45 mm and a length of 130 mm for attenuating solid-borne sound and impulses. If a higher attenuation of such influences is required it can be achieved by elastic holders and suspensions which are available as accessories. The weight of the M 930 Ts is 273 g without any holder and suspension. That weight allows the use of the microphone with standard microphone arms, stand mountings and other holders as well as on a microphone tang without any problems.Features:
big output transformer with optimized circuit
low frequency transmission with negligible distortion
lower low frequency response
extreme dynamic range
noise floor 7 dB(A)
highly balanced output
high solid-borne sound attenuation
compact design
Tech Data:
Studio Condenser Microphone M 930 Ts
Polar pattern Cardioid
Acoustic operating principle Pressure gradient transducer
Frequency range 40...18000 Hz
Sensitivity at 1 kHz 23 mV/Pa
Output impedance 40 Ω
Noise level CCIR 468 - 4 18 dB
DIN EN 60651 7 dB - A
Signal-to-noise ratio ( re 1 Pa at 1 kHz ) A - weighted 87 dB
Max. SPL for THD < 0,5% 142 dB
Max. output level RL = 1 k Ω 18 dBu
RL = 10 k Ω 21 dBu
Dynamic range of electronics 135 dB
output symmetry acc. IRT
> 60 dB
power supply 48 V ± 4 V
Current consumption (P 48, DIN 45596, IEC 268-15) 6 mA
Output connector XLR3M
Weight without MH 93.1 273 g
Dimensions ( L x Ø ) 130 mm x 45 mm
Finish satin nickel, dark bronze

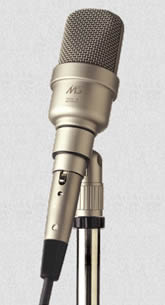

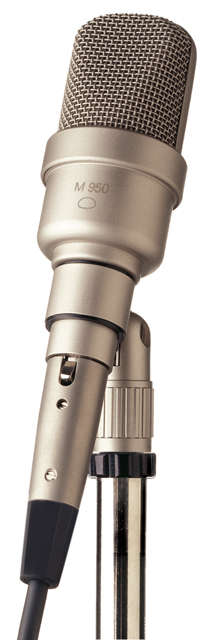

Die Studiomikrofone M 930, M 940, M 950 vereinen moderne Großmembran-Kapseltechnologie mit neuester Halbleiter- Schaltungstechnik.
Sie sind für professionelle und semiprofessionelle Anwender konzipiert, die höchste Ansprüche an ihr Equipment stellen. Die Mikrofone sind für den universellen Einsatz in Rundfunk- und Tonstudios sowie aufgrund des günstigen Preises auch im anspruchsvollen Home-Recording-Bereich besonders geeignet. Mögliche Anwendungen sind: Gesang, Sprecherplätze, Hörspiele und als Stützmikrofon für Aufnahmen von Gitarren, Tasten-, Schlag-, Blas- und Streichinstrumenten.
Richtcharakteristiken: M 930 = Niere M 940 = Superniere
Die Einsprechrichtung ist senkrecht zur Mikrofonachse. An der Vorderseite sind die Typ-Kennzeichnung und das Richtcharakteristik-symbol angeordnet.
Die verwendeten Kondensator-Mikrofonkapseln - Niere, Superniere oder Breitniere - besitzen einen ausgeglichenen Frequenzgang mit einer leichten Höhenpräsenz von 7 bis 11 kHz und eine hohe Auslöschung für rückwärtigen bzw. seitlichen Schalleinfall.
Das neuartige Schaltungsdesign des Impedanzwandlers ermöglicht aufgrund des erweiterten Aussteuerungsbereiches die detailgetreue Übertragung geringer Schallpegel sowie die verzerrungsfreie Abbildung sehr hoher Schalldrücke.
Die EMV-Festigkeit des M 930, M 940, M 950 liegt deutlich über der herkömmlicher Mikrofone.
Im kompakten Mikrofongehäuse ist der Innenaufbau gemeinsam mit der Kapsel elastisch gelagert, um Körperschall und Stöße zu dämpfen. Darüber hinaus ist der am Mikrofon befestigte Mikrofonhalter MH 93.1 im Bedarfsfall gegen eine elastische Mikrofonhalterung EH 93 austauschbar. Die Mikrofone sind mit einem 3-poligen XLR-Stecker für den Anschluss eines Mikrofonkabels, z.B. C 70, ausgestattet. Die Stromversorgung erfolgt in genormter 48 V-Phantomspeisung nach DIN 45596 und IEC 268-15.
Die Mikrofone werden in den Varianten nickel matt und dunkel bronze gefertigt.
Preis für ein M 930 oder M 940 (bitte bei Bestellung angeben) Lieferung im Holzetui inkl. Aufhängung
The M 930, M 940, M 950 studio condenser microphones combine modern large diaphragm capsule technology with the latest in semiconductor circuit topology. They are specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Their very favorable pricing also makes them attractive for project studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboard, percussion, wind and string instruments.The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone.The condenser capsules exhibits a smooth frequency response with a slight presence boost in the 7 to 11 kHz range. The polar response exhibits an exceptionally high degree of rejection for sounds impinging from the rear (cardioid) or sides (super-cardioid) of the microphone. The electronic impedance converter uses a newly perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, these microphones have a clean, distortion free sound over an extremely wide dynamic range. RFI susceptibility is very low. The microphone capsule and electronics are elastically suspended inside the compact metal housing. This reduces the sensitivity to mechanical impact and structure born noise. The microphone stand holder MH 93.1 can be exchanged for an elastic suspension EH 93 to further attenuate noise in extreme situations. The M 930, M 940, M 950 connect to the microphone cable with a standard 3-pin XLR plug. Powering must be provided by an external 48 V phantom supply according to DIN 45596 and IEC 268-15.The microphones are finished in either a satin nickel or dark bronze color.
Features:
extreme dynamic range
noise floor 7dB-A
universal applications
new large diaphragm capsule
advanced circuit design
transformerless output
internal elastic suspension
compact design

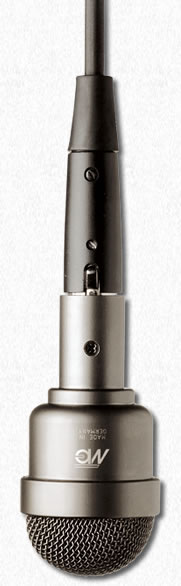

Microtech Gefell M 960The M960 is a large-diaphragm omnidirectional FET condenser, known for Gefell’s low noise, transformerless amplifier circuit. It was designed for ambient recording.The mic’s frequency response is generally flat from 20Hz through 1kHz, with a sizeable on-axis presence peak that rises to +12dB at 10-11kHz. On-axis response is near -1dB at 20kHz. Off-axis response is smoother; the presence peak tops out at +4dB.The M 960 is available in a single finish, dark bronze, and ships in a padded wooden storage case (p/n 211171).Technical Specifications:Pickup Patterns:Omnidirectional (16 mV/Pa; 20 - 20,000 Hz) Capsule Dimensions:Diaphragm diameter: 25mmImpedance:100 Ohms (Low)SPL/Noise:Max SPL: 145 dBWeight:220g (7.76oz)Length: 90mm (3.54'')Max Diameter: 45mm (1.77'')Interface(s):3-pin XLR male (1)Requires phantom powerPhantom voltage: 48v
€1,645.00*
