The The A100 is designed to give you a concise introduction to the key features of the A-Class monitors, including their linearity, pulse fidelity, and overall performance.One of the standout features of the A100 is its use of patented FIRTEC technology. This innovative technology creates a well-defined spatial panorama, which means that you can accurately position individual instruments and events within the music signal. This level of precision allows for an immersive listening experience.The A100 also boasts an 8″ bass-mid chassis that delivers ample amplifier power, even at low listening levels. This ensures that you can enjoy rich and detailed sound reproduction, regardless of the volume. Additionally, the bass-mid chassis is capable of handling large volumes without any issues, providing a dynamic range that is suitable for a variety of musical genres.When it comes to handling frequencies, the A100 is equipped with a high-performance fabric dome that can handle frequencies from 1200Hz. This ensures that all overtones are accurately transmitted, resulting in a faithful reproduction of the original music. The unusually low transition frequency of the fabric dome is a crucial factor in achieving this level of musical reproduction.
To further enhance the listening experience, the A100 features an all-aluminum waveguide for the tweeter. This waveguide offers a defined radiation pattern, which means that the sound is dispersed evenly throughout the room. This provides a wide sweet spot, allowing you to enjoy optimal sound quality regardless of your listening position. Additionally, the waveguide helps to minimize glare from the loudspeaker’s housing edges, ensuring a smooth and uninterrupted listening experience.In terms of customization, the A100 offers a range of options. In addition to the high and low shelving options on the back of the monitor, there are six parametric EQs available. These EQs allow for precise adjustments based on the specific listening position in your studio. This level of control ensures that you can achieve the most accurate and balanced sound reproduction possible.To make adjustments even easier, the A100 can be controlled using the optional KSD-RC. This remote control allows you to adjust parameters such as volume, EQ settings, and delay with ease, providing a convenient and user-friendly experience.Overall, the A100 is a compact yet powerful monitor that delivers exceptional performance in terms of linearity, pulse fidelity, and overall sound quality. Whether you’re a professional musician, producer, or audio enthusiast, the A100 is sure to impress with its precise positioning capabilities, powerful bass-mid chassis, high-performance fabric dome, and customizable EQ options. Version2-way monitorSignal processingin FPGA in 24 Bit ADC/DAC FIRTEC(™)
FunctionsFIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with KSD-Remote)
Tweeter1″ neodymium tweeter
Woofer
8″
Kevlar woofer/midrange driver
AmplificationPower amplifiers 175 W / 175 W
SPLSPL (max) 114 dB Peak
Frequency Response38Hz - 22kHz
Weight13kg (14kg incl. packaging)
Dimensions240mmx370mmx300mm
The The A100 is designed to give you a concise introduction to the key features of the A-Class monitors, including their linearity, pulse fidelity, and overall performance.One of the standout features of the A100 is its use of patented FIRTEC technology. This innovative technology creates a well-defined spatial panorama, which means that you can accurately position individual instruments and events within the music signal. This level of precision allows for an immersive listening experience.The A100 also boasts an 8″ bass-mid chassis that delivers ample amplifier power, even at low listening levels. This ensures that you can enjoy rich and detailed sound reproduction, regardless of the volume. Additionally, the bass-mid chassis is capable of handling large volumes without any issues, providing a dynamic range that is suitable for a variety of musical genres.When it comes to handling frequencies, the A100 is equipped with a high-performance fabric dome that can handle frequencies from 1200Hz. This ensures that all overtones are accurately transmitted, resulting in a faithful reproduction of the original music. The unusually low transition frequency of the fabric dome is a crucial factor in achieving this level of musical reproduction.
To further enhance the listening experience, the A100 features an all-aluminum waveguide for the tweeter. This waveguide offers a defined radiation pattern, which means that the sound is dispersed evenly throughout the room. This provides a wide sweet spot, allowing you to enjoy optimal sound quality regardless of your listening position. Additionally, the waveguide helps to minimize glare from the loudspeaker’s housing edges, ensuring a smooth and uninterrupted listening experience.In terms of customization, the A100 offers a range of options. In addition to the high and low shelving options on the back of the monitor, there are six parametric EQs available. These EQs allow for precise adjustments based on the specific listening position in your studio. This level of control ensures that you can achieve the most accurate and balanced sound reproduction possible.To make adjustments even easier, the A100 can be controlled using the optional KSD-RC. This remote control allows you to adjust parameters such as volume, EQ settings, and delay with ease, providing a convenient and user-friendly experience.Overall, the A100 is a compact yet powerful monitor that delivers exceptional performance in terms of linearity, pulse fidelity, and overall sound quality. Whether you’re a professional musician, producer, or audio enthusiast, the A100 is sure to impress with its precise positioning capabilities, powerful bass-mid chassis, high-performance fabric dome, and customizable EQ options. Version2-way monitorSignal processingin FPGA in 24 Bit ADC/DAC FIRTEC(™)
FunctionsFIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with KSD-Remote)
Tweeter1″ neodymium tweeter
Woofer
8″
Kevlar woofer/midrange driver
AmplificationPower amplifiers 175 W / 175 W
SPLSPL (max) 114 dB Peak
Frequency Response38Hz - 22kHz
Weight13kg (14kg incl. packaging)
Dimensions240mmx370mmx300mm

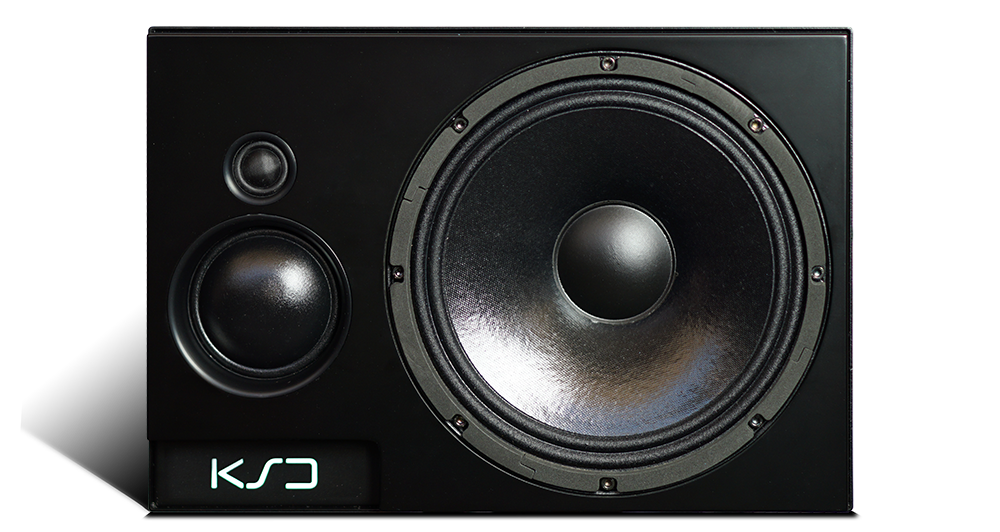

The A200 is a compact 3-way reference monitor that utilizes phase-linear FIRTEC™ technology. This advanced technology ensures that all frequencies are radiated simultaneously, resulting in precise and accurate sound reproduction for sound engineers. The A200mk2’s tonal neutrality and timeliness make it suitable for various professional production processes, including recording, mixing, and mastering.The A200 features a new mid-high-range unit with a 3″ midrange dome and a 1″ tweeter in an aluminum waveguide. This design creates a homogeneous sound field, allowing for seamless operation in both vertical and horizontal orientations. The 10″ high-performance bass driver delivers powerful low-frequency response above 28Hz. The amplifiers and power supplies are meticulously designed to ensure minimal distortion and exceptional clarity. Our patented FIRTEC system filters produce phase-linear and timely reproduction across the entire frequency range. The MT/HT waveguide not only conceals housing edges but also linearizes the frequency response through digital signal processing. The A200 offers XLR inputs for both analog and digital (24 bit / up to 192 KHz) connections.The A200 is equipped with high and low shelving filters on the amp, allowing for quick setup and room adjustment. For additional flexibility, the optional KSD-RC provides additional internal filters. The monitor also allows direct control of the listening volume, ensuring a lossless digital connection from the master output at full-scale level.
One of the A200’s standout features is its converterless connection (DDD) using three PWM power amplifiers, each delivering 250 W RMS power. This direct digital connection eliminates converter losses, resulting in exceptional resolution and authenticity of the program material. Version
3-way monitor
Analog-In +4dbV
Digital-InAES3 32-192KHz fs
Signal Processingin FPGA in 24 Bit ADC/DAC FIRTEC(™)Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ fabric/silk
tweeter
Woofer
3″ Dome Midrange
Driver; 10″ high-performance bass chassis
Amplification
250 W / 250 W / 150 W
SPL
(SPL (max)
116/124 dB cont. /Peak by pairmax) 114 dB Peak
Frequency response
28Hz - 22kHz
Weight
17,2kg (20kg
incl. packaging)
Dimensions
420mmx300mmx310mm
The A200 is a compact 3-way reference monitor that utilizes phase-linear FIRTEC™ technology. This advanced technology ensures that all frequencies are radiated simultaneously, resulting in precise and accurate sound reproduction for sound engineers. The A200mk2’s tonal neutrality and timeliness make it suitable for various professional production processes, including recording, mixing, and mastering.The A200 features a new mid-high-range unit with a 3″ midrange dome and a 1″ tweeter in an aluminum waveguide. This design creates a homogeneous sound field, allowing for seamless operation in both vertical and horizontal orientations. The 10″ high-performance bass driver delivers powerful low-frequency response above 28Hz. The amplifiers and power supplies are meticulously designed to ensure minimal distortion and exceptional clarity. Our patented FIRTEC system filters produce phase-linear and timely reproduction across the entire frequency range. The MT/HT waveguide not only conceals housing edges but also linearizes the frequency response through digital signal processing. The A200 offers XLR inputs for both analog and digital (24 bit / up to 192 KHz) connections.The A200 is equipped with high and low shelving filters on the amp, allowing for quick setup and room adjustment. For additional flexibility, the optional KSD-RC provides additional internal filters. The monitor also allows direct control of the listening volume, ensuring a lossless digital connection from the master output at full-scale level.
One of the A200’s standout features is its converterless connection (DDD) using three PWM power amplifiers, each delivering 250 W RMS power. This direct digital connection eliminates converter losses, resulting in exceptional resolution and authenticity of the program material. Version
3-way monitor
Analog-In +4dbV
Digital-InAES3 32-192KHz fs
Signal Processingin FPGA in 24 Bit ADC/DAC FIRTEC(™)Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ fabric/silk
tweeter
Woofer
3″ Dome Midrange
Driver; 10″ high-performance bass chassis
Amplification
250 W / 250 W / 150 W
SPL
(SPL (max)
116/124 dB cont. /Peak by pairmax) 114 dB Peak
Frequency response
28Hz - 22kHz
Weight
17,2kg (20kg
incl. packaging)
Dimensions
420mmx300mmx310mm
The A200 is a compact 3-way reference monitor that utilizes phase-linear FIRTEC™ technology. This advanced technology ensures that all frequencies are radiated simultaneously, resulting in precise and accurate sound reproduction for sound engineers. The A200mk2’s tonal neutrality and timeliness make it suitable for various professional production processes, including recording, mixing, and mastering.The A200 features a new mid-high-range unit with a 3″ midrange dome and a 1″ tweeter in an aluminum waveguide. This design creates a homogeneous sound field, allowing for seamless operation in both vertical and horizontal orientations. The 10″ high-performance bass driver delivers powerful low-frequency response above 28Hz. The amplifiers and power supplies are meticulously designed to ensure minimal distortion and exceptional clarity. Our patented FIRTEC system filters produce phase-linear and timely reproduction across the entire frequency range. The MT/HT waveguide not only conceals housing edges but also linearizes the frequency response through digital signal processing. The A200 offers XLR inputs for both analog and digital (24 bit / up to 192 KHz) connections.The A200 is equipped with high and low shelving filters on the amp, allowing for quick setup and room adjustment. For additional flexibility, the optional KSD-RC provides additional internal filters. The monitor also allows direct control of the listening volume, ensuring a lossless digital connection from the master output at full-scale level.
One of the A200’s standout features is its converterless connection (DDD) using three PWM power amplifiers, each delivering 250 W RMS power. This direct digital connection eliminates converter losses, resulting in exceptional resolution and authenticity of the program material. Version
3-way monitor
Analog-In +4dbV
Digital-InAES3 32-192KHz fs
Signal Processingin FPGA in 24 Bit ADC/DAC FIRTEC(™)Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ fabric/silk
tweeter
Woofer
3″ Dome Midrange
Driver; 10″ high-performance bass chassis
Amplification
250 W / 250 W / 150 W
SPL
(SPL (max)
116/124 dB cont. /Peak by pairmax) 114 dB Peak
Frequency response
28Hz - 22kHz
Weight
17,2kg (20kg
incl. packaging)
Dimensions
420mmx300mmx310mm
The A200 is a compact 3-way reference monitor that utilizes phase-linear FIRTEC™ technology. This advanced technology ensures that all frequencies are radiated simultaneously, resulting in precise and accurate sound reproduction for sound engineers. The A200mk2’s tonal neutrality and timeliness make it suitable for various professional production processes, including recording, mixing, and mastering.The A200 features a new mid-high-range unit with a 3″ midrange dome and a 1″ tweeter in an aluminum waveguide. This design creates a homogeneous sound field, allowing for seamless operation in both vertical and horizontal orientations. The 10″ high-performance bass driver delivers powerful low-frequency response above 28Hz. The amplifiers and power supplies are meticulously designed to ensure minimal distortion and exceptional clarity. Our patented FIRTEC system filters produce phase-linear and timely reproduction across the entire frequency range. The MT/HT waveguide not only conceals housing edges but also linearizes the frequency response through digital signal processing. The A200 offers XLR inputs for both analog and digital (24 bit / up to 192 KHz) connections.The A200 is equipped with high and low shelving filters on the amp, allowing for quick setup and room adjustment. For additional flexibility, the optional KSD-RC provides additional internal filters. The monitor also allows direct control of the listening volume, ensuring a lossless digital connection from the master output at full-scale level.
One of the A200’s standout features is its converterless connection (DDD) using three PWM power amplifiers, each delivering 250 W RMS power. This direct digital connection eliminates converter losses, resulting in exceptional resolution and authenticity of the program material. Version
3-way monitor
Analog-In +4dbV
Digital-InAES3 32-192KHz fs
Signal Processingin FPGA in 24 Bit ADC/DAC FIRTEC(™)Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ fabric/silk
tweeter
Woofer
3″ Dome Midrange
Driver; 10″ high-performance bass chassis
Amplification
250 W / 250 W / 150 W
SPL
(SPL (max)
116/124 dB cont. /Peak by pairmax) 114 dB Peak
Frequency response
28Hz - 22kHz
Weight
17,2kg (20kg
incl. packaging)
Dimensions
420mmx300mmx310mm
The A500 is the primary monitor in the KSdigital A-Class, featuring a double 10“ bass and a horn-supported tweeter. It functions as a classic 3-way reference monitor, providing high sound pressure and accurate tonal reproduction through KSD’s time-correct sound conversion. The A500 offers an unprecedented level of resolution in the sound image. Our phase-linear FIRTEC(TM) filters create a precise virtual stage in the panoramic image, setting it apart from other monitors in its class. The dedicated 3″ dome midtone driver brings exceptional detail and clarity to the placement of vocals in the mix.Similar to the legendary ADM20, the A500 ensures that all frequencies reach the sound engineer’s ear simultaneously, without any delay. This tonal neutrality and timeliness make it suitable for use in all stages of professional production processes, whether it be recording, as a mixed monitor, or as a final reference in mastering.The two 10″ high-performance bass drivers produce ample bass energy even in larger control rooms, while the patented 1″ compression driver delivers outstanding dynamics and resolution across a wide and deep sweet spot. The 80°x60° horn ensures a linear frequency response, effectively concealing any housing edges and resulting in a remarkably quiet sound.
The design of the amplifiers and power supplies guarantees loud reproduction with minimal distortion. Another notable feature is the converter-free connection of the 3 PWM power amplifiers, each with 250 W RMS power. This direct connection eliminates converter losses and ensures accurate resolution.Whether digitally connected to the workstation via the analog input with a 24 bit / 192 KHz AD converter or losslessly connected to the workstation, the A500 seamlessly integrates into any studio setup.The high and low shelves, conveniently accessible on the amp, allow for quick adjustments to the bass and treble, which can be further refined with the optional KSD-RC Remote using additional (phase linear) filters, including 6 parametric EQs, delay, level control, and more.When digitally connected, the KSD-RC also provides an M/S listening matrix for separate monitoring of mid or side signals, as well as volume control.
Version
3-way monitor
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™) patent:19823110
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ compression
driver on 80°x60° horn for wide sweet spot
Woofer
3″ dome
midrange driver
Double 10″ high performance bass chassis
Amplification
250 W / 250 W / 250 W
Frequency response
28Hz - 22kHz
The A500 is the primary monitor in the KSdigital A-Class, featuring a double 10“ bass and a horn-supported tweeter. It functions as a classic 3-way reference monitor, providing high sound pressure and accurate tonal reproduction through KSD’s time-correct sound conversion. The A500 offers an unprecedented level of resolution in the sound image. Our phase-linear FIRTEC(TM) filters create a precise virtual stage in the panoramic image, setting it apart from other monitors in its class. The dedicated 3″ dome midtone driver brings exceptional detail and clarity to the placement of vocals in the mix.Similar to the legendary ADM20, the A500 ensures that all frequencies reach the sound engineer’s ear simultaneously, without any delay. This tonal neutrality and timeliness make it suitable for use in all stages of professional production processes, whether it be recording, as a mixed monitor, or as a final reference in mastering.The two 10″ high-performance bass drivers produce ample bass energy even in larger control rooms, while the patented 1″ compression driver delivers outstanding dynamics and resolution across a wide and deep sweet spot. The 80°x60° horn ensures a linear frequency response, effectively concealing any housing edges and resulting in a remarkably quiet sound.
The design of the amplifiers and power supplies guarantees loud reproduction with minimal distortion. Another notable feature is the converter-free connection of the 3 PWM power amplifiers, each with 250 W RMS power. This direct connection eliminates converter losses and ensures accurate resolution.Whether digitally connected to the workstation via the analog input with a 24 bit / 192 KHz AD converter or losslessly connected to the workstation, the A500 seamlessly integrates into any studio setup.The high and low shelves, conveniently accessible on the amp, allow for quick adjustments to the bass and treble, which can be further refined with the optional KSD-RC Remote using additional (phase linear) filters, including 6 parametric EQs, delay, level control, and more.When digitally connected, the KSD-RC also provides an M/S listening matrix for separate monitoring of mid or side signals, as well as volume control.
Version
3-way monitor
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™) patent:19823110
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ compression
driver on 80°x60° horn for wide sweet spot
Woofer
3″ dome
midrange driver
Double 10″ high performance bass chassis
Amplification
250 W / 250 W / 250 W
Frequency response
28Hz - 22kHz

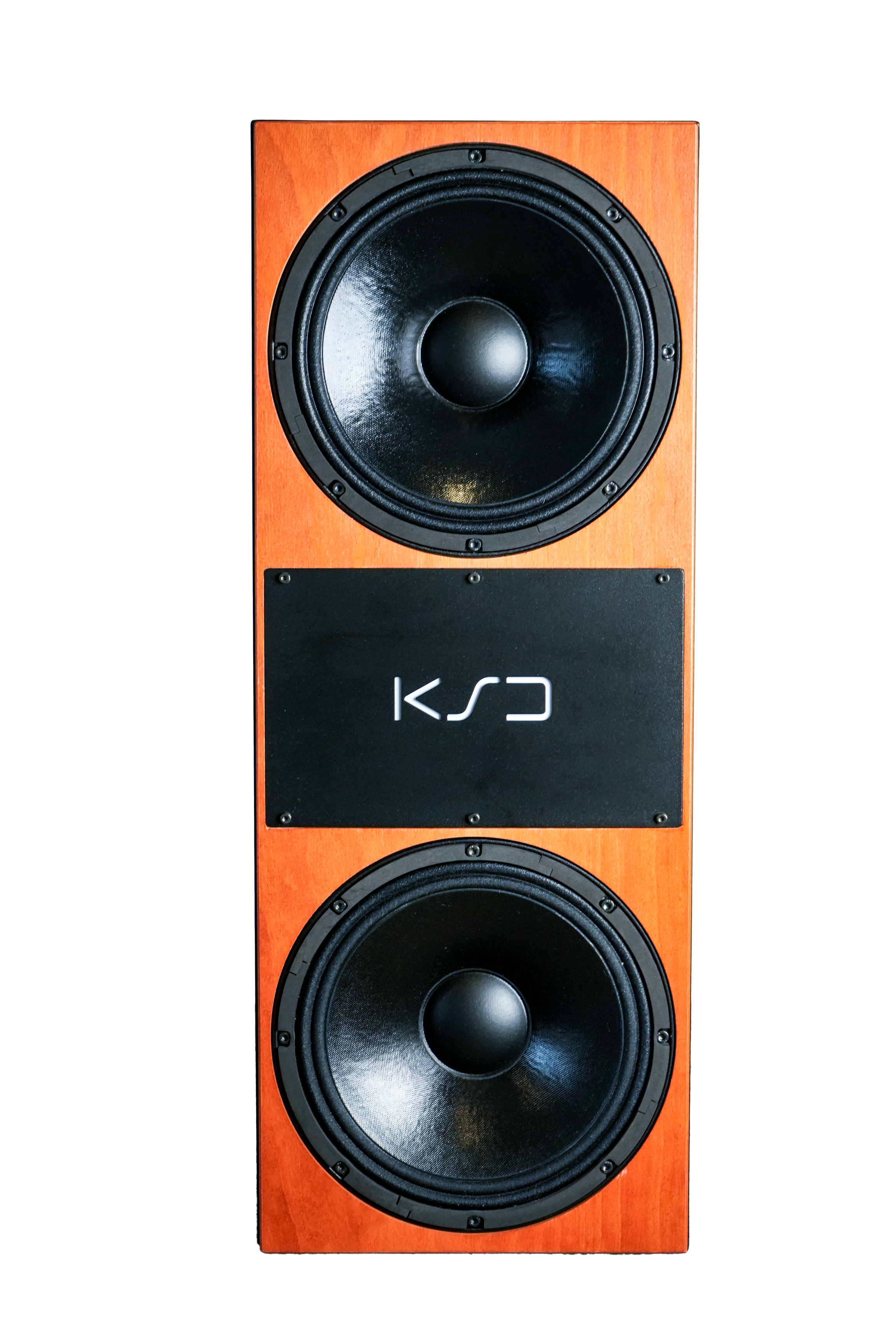

The B500 bass expansion is the ideal partner for expanding the performance of the main monitors A500, A200mk2 or the KSD-C100In combination with the B500, the main monitors experience extreme relief when it comes to reproducing the lower octave. The double ten-inch drives with 1000W amplifier power per pair not only increase the maximum sound power, but also give the entire system a different level of performance. In interaction with the bass chassis of the top parts, the common membrane area multiplies, resulting in an almost planar wave front in the bass. This significantly improves the room illumination in the bass with fewer mode-related room problems.
By controlling the bass expansion from the KSD tops, a complete speaker is built that takes all filter settings, delay, volume, etc. into account as a single unit. (see: Mainmaster)
This creates a high-performance reference monitor with time-correct sound conversion using the patented FIRTEC(TM) technology. The tonal neutrality and exact impulse fidelity allow it to be used in all areas of professional production processes, when recording, as a mixing monitor or in mastering as a final reference. Version
Subwoofer
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
X-Over at 80 Hz bessel filtered – forms a main monitor unit in combination
with Top
Woofer
Double 10″
bass
Amplification
500W (RMS)
SPL
SPL (max) >
132dB Peak/pair (A500)
Frequency response
24Hz - 22kHz
Weight
20kg, incl.
packaging 22kg
Dimensions
480mmx240mmx310mm
The B88-Reference is a compact mono subwoofer designed to enhance the bass performance of the Reference series and third-party monitors.With its integrated digital signal processing and two power amplifiers, this subwoofer takes your existing audio system to the next level. The two 250W PWM power amplifiers work in conjunction with two high-performance eight-inch chassis, providing a controlled and powerful reproduction of deep bass frequencies. Say goodbye to unwanted roar or pumping and enjoy stress-free, detailed sound.
The B88-Reference features two XLR outputs for connecting satellite monitors, delivering a suitably softened signal above 80Hz. The built-in digital signal processor ensures a linear frequency response, while internal filters allow for fine-tuning to match your room and application. You can even adjust the delay directly on the amplifier to compensate for any spatial offset between the B88-Reference and the satellites.Thanks to its specially designed high-performance chassis housed in a flow-optimized steel enclosure, the B88-Reference produces an extremely controlled and „dry“ bass signal, free from typical ventilation noises. Whether you need a mono subbass extension or a third way for your stereo sound setup, the B88-Reference has got you covered. It also excels in transmitting the LFE channel in 5.1 or other 3D audio configurations. Plus, with the optional KSD remote, you can easily make adjustments to gain, phase/delay, and six parametric EQs, giving you complete control over your audio experience.The acoustic advantages of the B88 referenceUniversally applicable with high-pass outputs for active satellite speakersSubwoofer in a flow-optimized steel caseDSP (digital signal processor) for exact crossover and equalization and delayHigh sound power in the bottom octave (from 28 Hz)Satellite outputs with suitably softened signalDelay and level on the subwoofer adjustableVolume and filter adjustable via KSD-RCVersion
Subwoofer
Stereo/mono subwoofer
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
N/A
Woofer
2 x 8″
high-performance woofer
Amplification
2 x 250W
SPL
N/A
Frequency response
28Hz - 80Hz
Weight
Weight
28kg, incl. packaging 29kg
Dimensions
480mmx240mmx310mm
The B88-Reference is a compact mono subwoofer designed to enhance the bass performance of the Reference series and third-party monitors.With its integrated digital signal processing and two power amplifiers, this subwoofer takes your existing audio system to the next level. The two 250W PWM power amplifiers work in conjunction with two high-performance eight-inch chassis, providing a controlled and powerful reproduction of deep bass frequencies. Say goodbye to unwanted roar or pumping and enjoy stress-free, detailed sound.
The B88-Reference features two XLR outputs for connecting satellite monitors, delivering a suitably softened signal above 80Hz. The built-in digital signal processor ensures a linear frequency response, while internal filters allow for fine-tuning to match your room and application. You can even adjust the delay directly on the amplifier to compensate for any spatial offset between the B88-Reference and the satellites.Thanks to its specially designed high-performance chassis housed in a flow-optimized steel enclosure, the B88-Reference produces an extremely controlled and „dry“ bass signal, free from typical ventilation noises. Whether you need a mono subbass extension or a third way for your stereo sound setup, the B88-Reference has got you covered. It also excels in transmitting the LFE channel in 5.1 or other 3D audio configurations. Plus, with the optional KSD remote, you can easily make adjustments to gain, phase/delay, and six parametric EQs, giving you complete control over your audio experience.The acoustic advantages of the B88 referenceUniversally applicable with high-pass outputs for active satellite speakersSubwoofer in a flow-optimized steel caseDSP (digital signal processor) for exact crossover and equalization and delayHigh sound power in the bottom octave (from 28 Hz)Satellite outputs with suitably softened signalDelay and level on the subwoofer adjustableVolume and filter adjustable via KSD-RCVersion
Subwoofer
Stereo/mono subwoofer
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
N/A
Woofer
2 x 8″
high-performance woofer
Amplification
2 x 250W
SPL
N/A
Frequency response
28Hz - 80Hz
Weight
Weight
28kg, incl. packaging 29kg
Dimensions
480mmx240mmx310mm
The C100-Reference is a high-performance coaxial speaker designed for a wide range of professional applications, including, mixing, recording, broadcasting, and immersive use. This versatile monitor is specifically engineered for both stereo and immersive multi-channel operation. Its unique coaxial structure, combined with a conical 70° horn, ensures optimal radiation behavior and creates the perfect sweet spot in any studio environment. Even in acoustically challenging production spaces, the C100-Reference guarantees maximum control over your sound. Our proprietary FIRTEC frequency and phase linearization technology ensures an optimal impulse response, allowing for precise sound source mapping in virtual space.With a power amplifier output of over 200W (peak) per channel, the C100-Reference provides ample power reserves for any studio application. The high efficiency of the bass chassis and compression drivers minimizes distortion, even at higher listening volumes. Additionally, the installed PWM power amplifiers operate with exceptional efficiency, generating minimal waste heat. This means that the C100-Reference performs optimally in any listening station, including on-wall installations.
Version
2-way coaxial
point sound source
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ compression
driver on 70° horn
Woofer
10″
high-performance woofer/midrange driver
Amplification
Power amplifiers
250W / 250 W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
35Hz - 22kHz
Weight
15kg (17kg incl.
packaging)
Dimensions
285mmx350mmx350mm
The C100-Reference is a high-performance coaxial speaker designed for a wide range of professional applications, including, mixing, recording, broadcasting, and immersive use. This versatile monitor is specifically engineered for both stereo and immersive multi-channel operation. Its unique coaxial structure, combined with a conical 70° horn, ensures optimal radiation behavior and creates the perfect sweet spot in any studio environment. Even in acoustically challenging production spaces, the C100-Reference guarantees maximum control over your sound. Our proprietary FIRTEC frequency and phase linearization technology ensures an optimal impulse response, allowing for precise sound source mapping in virtual space.With a power amplifier output of over 200W (peak) per channel, the C100-Reference provides ample power reserves for any studio application. The high efficiency of the bass chassis and compression drivers minimizes distortion, even at higher listening volumes. Additionally, the installed PWM power amplifiers operate with exceptional efficiency, generating minimal waste heat. This means that the C100-Reference performs optimally in any listening station, including on-wall installations.
Version
2-way coaxial
point sound source
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ compression
driver on 70° horn
Woofer
10″
high-performance woofer/midrange driver
Amplification
Power amplifiers
250W / 250 W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
35Hz - 22kHz
Weight
15kg (17kg incl.
packaging)
Dimensions
285mmx350mmx350mm
The C100-Reference is a high-performance coaxial speaker designed for a wide range of professional applications, including, mixing, recording, broadcasting, and immersive use. This versatile monitor is specifically engineered for both stereo and immersive multi-channel operation. Its unique coaxial structure, combined with a conical 70° horn, ensures optimal radiation behavior and creates the perfect sweet spot in any studio environment. Even in acoustically challenging production spaces, the C100-Reference guarantees maximum control over your sound. Our proprietary FIRTEC frequency and phase linearization technology ensures an optimal impulse response, allowing for precise sound source mapping in virtual space.With a power amplifier output of over 200W (peak) per channel, the C100-Reference provides ample power reserves for any studio application. The high efficiency of the bass chassis and compression drivers minimizes distortion, even at higher listening volumes. Additionally, the installed PWM power amplifiers operate with exceptional efficiency, generating minimal waste heat. This means that the C100-Reference performs optimally in any listening station, including on-wall installations.
Version
2-way coaxial
point sound source
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ compression
driver on 70° horn
Woofer
10″
high-performance woofer/midrange driver
Amplification
Power amplifiers
250W / 250 W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
35Hz - 22kHz
Weight
15kg (17kg incl.
packaging)
Dimensions
285mmx350mmx350mm
The C100-Reference is a high-performance coaxial speaker designed for a wide range of professional applications, including, mixing, recording, broadcasting, and immersive use. This versatile monitor is specifically engineered for both stereo and immersive multi-channel operation. Its unique coaxial structure, combined with a conical 70° horn, ensures optimal radiation behavior and creates the perfect sweet spot in any studio environment. Even in acoustically challenging production spaces, the C100-Reference guarantees maximum control over your sound. Our proprietary FIRTEC frequency and phase linearization technology ensures an optimal impulse response, allowing for precise sound source mapping in virtual space.With a power amplifier output of over 200W (peak) per channel, the C100-Reference provides ample power reserves for any studio application. The high efficiency of the bass chassis and compression drivers minimizes distortion, even at higher listening volumes. Additionally, the installed PWM power amplifiers operate with exceptional efficiency, generating minimal waste heat. This means that the C100-Reference performs optimally in any listening station, including on-wall installations.
Version
2-way coaxial
point sound source
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ compression
driver on 70° horn
Woofer
10″
high-performance woofer/midrange driver
Amplification
Power amplifiers
250W / 250 W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
35Hz - 22kHz
Weight
15kg (17kg incl.
packaging)
Dimensions
285mmx350mmx350mm
The recently developed steel housing has been designed to maximize the internal volume of the device, while still maintaining compact external dimensions. This clever design ensures that the device remains stable and steady, providing an optimal listening experience. The result is a sound image that is calm and well-balanced. One of the standout features of this device is the unique shape of the rear-to-back bass reflex port. This innovative design effectively eliminates any audible air turbulence, further enhancing the overall sound quality. You can enjoy your music without any unwanted disturbances or distortions.The C5 reference also boasts a new 6″ coaxial chassis, which delivers exceptional sound performance. With maximum tonal neutrality and minimal distortion, you can immerse yourself in high-quality audio. Every note and every beat will be reproduced with precision and accuracy. To further enhance the listening experience, the C5 reference comes with an included table stand. This stand serves a dual purpose – not only does it provide a stable base for the device, but it also decouples the C5 reference from the installation surface. This decoupling allows for precise angle and alignment adjustments, ensuring that you can customize the device to suit your specific workplace setup. Overall, the C5 reference offers a combination of innovative design elements and high-performance components. With its maximized internal volume, compact external dimensions, and exceptional sound quality, this device is sure to impress even the most discerning audiophiles.Version
2-way coaxial
point sound source
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ neodymium
tweeter
Woofer
6″ Kevlar
woofer/midrange driver
Amplification
Power amplifiers
80 W / 175 W
SPL
SPL (max) 108 dB
peak/pair
Frequency response
48Hz - 22kHz
Weight
8kg (10kg incl.
packaging)
Dimensions
200mmx245mmx220mm
The recently developed steel housing has been designed to maximize the internal volume of the device, while still maintaining compact external dimensions. This clever design ensures that the device remains stable and steady, providing an optimal listening experience. The result is a sound image that is calm and well-balanced. One of the standout features of this device is the unique shape of the rear-to-back bass reflex port. This innovative design effectively eliminates any audible air turbulence, further enhancing the overall sound quality. You can enjoy your music without any unwanted disturbances or distortions.The C5 reference also boasts a new 6″ coaxial chassis, which delivers exceptional sound performance. With maximum tonal neutrality and minimal distortion, you can immerse yourself in high-quality audio. Every note and every beat will be reproduced with precision and accuracy. To further enhance the listening experience, the C5 reference comes with an included table stand. This stand serves a dual purpose – not only does it provide a stable base for the device, but it also decouples the C5 reference from the installation surface. This decoupling allows for precise angle and alignment adjustments, ensuring that you can customize the device to suit your specific workplace setup. Overall, the C5 reference offers a combination of innovative design elements and high-performance components. With its maximized internal volume, compact external dimensions, and exceptional sound quality, this device is sure to impress even the most discerning audiophiles.Version
2-way coaxial
point sound source
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ neodymium
tweeter
Woofer
6″ Kevlar
woofer/midrange driver
Amplification
Power amplifiers
80 W / 175 W
SPL
SPL (max) 108 dB
peak/pair
Frequency response
48Hz - 22kHz
Weight
8kg (10kg incl.
packaging)
Dimensions
200mmx245mmx220mm
The C8-Reference is a remarkable midfield monitor that excels in providing an exceptional listening experience. It offers a versatile listening distance, ranging from 36″ to 10′, allowing users to enjoy its powerful performance regardless of their proximity to the speakers. One notable feature of the C8-Reference is its rear-facing bass reflex port. This port is intelligently designed to minimize audible air turbulence, ensuring clean and precise bass response. The result is a tight and controlled low-frequency reproduction that enhances the overall listening experience. The 8″ coaxial driver of the C8-Reference is equipped with a carbon fiber membrane, which guarantees that there will be no cone breakup at higher frequencies. This ensures that the speaker can accurately reproduce even the most intricate details without any distortion. Additionally, the use of carbon fiber keeps the weight of the driver minimal, contributing to its overall efficiency.To complement the coaxial driver, the C8-Reference features a 1″ tweeter that is manufactured in-house. This tweeter is designed to offer the lowest distortion values and maximum neutrality, resulting in a clear and transparent high-frequency reproduction. The special coaxial design of the driver optimizes the dispersion characteristics, ensuring a wide and consistent soundstage. In summary, the C8-Reference is a top-notch midfield monitor that delivers outstanding performance and versatility. With its powerful capabilities, well-thought-out design, and high-quality components, it serves as an excellent choice for those seeking a full-range main monitoring system for their small to medium control rooms. Version
Designed with
precision, the C8-Reference is specifically crafted to serve as a full-range
main monitoring system for small to medium control rooms. Its well-designed
enclosure volume and high-performance chassis contribute to its ability to
deliver accurate and detailed sound reproduction across the entire frequency
range.
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ neodymium
silk tweeter
Woofer
8″ carbon
woofer/midrange driver
Amplification
Power amplifiers
80 W / 175 W
SPL
SPL (max) 116 dB
peak/pair
Frequency response
38Hz - 22kHz
Weight
11kg (13kg incl.
packaging)
Dimensions
240mmx290mmx310mm
The C8-Reference is a remarkable midfield monitor that excels in providing an exceptional listening experience. It offers a versatile listening distance, ranging from 36″ to 10′, allowing users to enjoy its powerful performance regardless of their proximity to the speakers. One notable feature of the C8-Reference is its rear-facing bass reflex port. This port is intelligently designed to minimize audible air turbulence, ensuring clean and precise bass response. The result is a tight and controlled low-frequency reproduction that enhances the overall listening experience. The 8″ coaxial driver of the C8-Reference is equipped with a carbon fiber membrane, which guarantees that there will be no cone breakup at higher frequencies. This ensures that the speaker can accurately reproduce even the most intricate details without any distortion. Additionally, the use of carbon fiber keeps the weight of the driver minimal, contributing to its overall efficiency.To complement the coaxial driver, the C8-Reference features a 1″ tweeter that is manufactured in-house. This tweeter is designed to offer the lowest distortion values and maximum neutrality, resulting in a clear and transparent high-frequency reproduction. The special coaxial design of the driver optimizes the dispersion characteristics, ensuring a wide and consistent soundstage. In summary, the C8-Reference is a top-notch midfield monitor that delivers outstanding performance and versatility. With its powerful capabilities, well-thought-out design, and high-quality components, it serves as an excellent choice for those seeking a full-range main monitoring system for their small to medium control rooms. Version
Designed with
precision, the C8-Reference is specifically crafted to serve as a full-range
main monitoring system for small to medium control rooms. Its well-designed
enclosure volume and high-performance chassis contribute to its ability to
deliver accurate and detailed sound reproduction across the entire frequency
range.
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ neodymium
silk tweeter
Woofer
8″ carbon
woofer/midrange driver
Amplification
Power amplifiers
80 W / 175 W
SPL
SPL (max) 116 dB
peak/pair
Frequency response
38Hz - 22kHz
Weight
11kg (13kg incl.
packaging)
Dimensions
240mmx290mmx310mm
The C88-Reference is an exceptional compact full-range main monitor that offers outstanding performance. With its unique coaxial structure, it is specifically designed for close listening distances, even as close as 3 feet. This makes it perfect for those who prefer to be in close proximity to their speakers while enjoying their audio experience.One of the standout features of the C88-Reference is its two 8-inch bass drivers. These drivers confidently handle the lower octave frequencies, ensuring a rich and powerful bass response. Additionally, the carbon fiber membrane used in the construction of these drivers ensures distortion-free reproduction of higher frequencies, without adding unnecessary weight to the overall design. In terms of the tweeter, the C88-Reference boasts our own specially designed 1-inch tweeter. This tweeter is engineered to provide exceptional neutrality and minimal distortion, resulting in a clean and accurate sound reproduction. Positioned slightly in front of the bass drivers, the tweeter’s waveguide construction optimizes sound radiation and eliminates any unwanted disturbances. This means that even at higher volumes, the movement of the bass drivers does not interfere with the projection of the treble frequencies, ensuring a seamless and balanced audio experience.The C88-Reference has been put through rigorous testing and has emerged as the top performer in a coax monitor comparison conducted by the highly regarded trade magazine Stereoplay. It has garnered high praise from Klaus Laumann, who commends its ability to create a finely staggered image, deliver a live character, exhibit perfect timing, and offer excellent resolution. These accolades further solidify the C88-Reference as a truly exceptional main monitor that delivers unparalleled performance. Version3-way coaxial main monitor
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ /8″ coaxial
chassis with silk tweeter and carbon bass diaphragm
Woofer
8″ carbon
low/midrange driver
Amplification
80 W / 175 W /
175W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
32Hz - 22kHz
Weight
20kg (22kg. incl.
packaging)
Dimensions
480mmx240mmx310mm
The C88-Reference is an exceptional compact full-range main monitor that offers outstanding performance. With its unique coaxial structure, it is specifically designed for close listening distances, even as close as 3 feet. This makes it perfect for those who prefer to be in close proximity to their speakers while enjoying their audio experience.One of the standout features of the C88-Reference is its two 8-inch bass drivers. These drivers confidently handle the lower octave frequencies, ensuring a rich and powerful bass response. Additionally, the carbon fiber membrane used in the construction of these drivers ensures distortion-free reproduction of higher frequencies, without adding unnecessary weight to the overall design. In terms of the tweeter, the C88-Reference boasts our own specially designed 1-inch tweeter. This tweeter is engineered to provide exceptional neutrality and minimal distortion, resulting in a clean and accurate sound reproduction. Positioned slightly in front of the bass drivers, the tweeter’s waveguide construction optimizes sound radiation and eliminates any unwanted disturbances. This means that even at higher volumes, the movement of the bass drivers does not interfere with the projection of the treble frequencies, ensuring a seamless and balanced audio experience.The C88-Reference has been put through rigorous testing and has emerged as the top performer in a coax monitor comparison conducted by the highly regarded trade magazine Stereoplay. It has garnered high praise from Klaus Laumann, who commends its ability to create a finely staggered image, deliver a live character, exhibit perfect timing, and offer excellent resolution. These accolades further solidify the C88-Reference as a truly exceptional main monitor that delivers unparalleled performance. Version3-way coaxial main monitor
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ /8″ coaxial
chassis with silk tweeter and carbon bass diaphragm
Woofer
8″ carbon
low/midrange driver
Amplification
80 W / 175 W /
175W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
32Hz - 22kHz
Weight
20kg (22kg. incl.
packaging)
Dimensions
480mmx240mmx310mm
The C88-Reference is an exceptional compact full-range main monitor that offers outstanding performance. With its unique coaxial structure, it is specifically designed for close listening distances, even as close as 3 feet. This makes it perfect for those who prefer to be in close proximity to their speakers while enjoying their audio experience.One of the standout features of the C88-Reference is its two 8-inch bass drivers. These drivers confidently handle the lower octave frequencies, ensuring a rich and powerful bass response. Additionally, the carbon fiber membrane used in the construction of these drivers ensures distortion-free reproduction of higher frequencies, without adding unnecessary weight to the overall design. In terms of the tweeter, the C88-Reference boasts our own specially designed 1-inch tweeter. This tweeter is engineered to provide exceptional neutrality and minimal distortion, resulting in a clean and accurate sound reproduction. Positioned slightly in front of the bass drivers, the tweeter’s waveguide construction optimizes sound radiation and eliminates any unwanted disturbances. This means that even at higher volumes, the movement of the bass drivers does not interfere with the projection of the treble frequencies, ensuring a seamless and balanced audio experience.The C88-Reference has been put through rigorous testing and has emerged as the top performer in a coax monitor comparison conducted by the highly regarded trade magazine Stereoplay. It has garnered high praise from Klaus Laumann, who commends its ability to create a finely staggered image, deliver a live character, exhibit perfect timing, and offer excellent resolution. These accolades further solidify the C88-Reference as a truly exceptional main monitor that delivers unparalleled performance. Version3-way coaxial main monitor
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ /8″ coaxial
chassis with silk tweeter and carbon bass diaphragm
Woofer
8″ carbon
low/midrange driver
Amplification
80 W / 175 W /
175W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
32Hz - 22kHz
Weight
20kg (22kg. incl.
packaging)
Dimensions
480mmx240mmx310mm
The C88-Reference is an exceptional compact full-range main monitor that offers outstanding performance. With its unique coaxial structure, it is specifically designed for close listening distances, even as close as 3 feet. This makes it perfect for those who prefer to be in close proximity to their speakers while enjoying their audio experience.One of the standout features of the C88-Reference is its two 8-inch bass drivers. These drivers confidently handle the lower octave frequencies, ensuring a rich and powerful bass response. Additionally, the carbon fiber membrane used in the construction of these drivers ensures distortion-free reproduction of higher frequencies, without adding unnecessary weight to the overall design. In terms of the tweeter, the C88-Reference boasts our own specially designed 1-inch tweeter. This tweeter is engineered to provide exceptional neutrality and minimal distortion, resulting in a clean and accurate sound reproduction. Positioned slightly in front of the bass drivers, the tweeter’s waveguide construction optimizes sound radiation and eliminates any unwanted disturbances. This means that even at higher volumes, the movement of the bass drivers does not interfere with the projection of the treble frequencies, ensuring a seamless and balanced audio experience.The C88-Reference has been put through rigorous testing and has emerged as the top performer in a coax monitor comparison conducted by the highly regarded trade magazine Stereoplay. It has garnered high praise from Klaus Laumann, who commends its ability to create a finely staggered image, deliver a live character, exhibit perfect timing, and offer excellent resolution. These accolades further solidify the C88-Reference as a truly exceptional main monitor that delivers unparalleled performance. Version3-way coaxial main monitor
Signal Processing
in FPGA in 24 Bit
ADC/DAC FIRTEC(™)
Functions
FIR-Xover,
Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (only accessible with
KSD-Remote)
Tweeter
1″ /8″ coaxial
chassis with silk tweeter and carbon bass diaphragm
Woofer
8″ carbon
low/midrange driver
Amplification
80 W / 175 W /
175W
SPL
SPL (max) 118 dB
peak/pair
Frequency response
32Hz - 22kHz
Weight
20kg (22kg. incl.
packaging)
Dimensions
480mmx240mmx310mm
The only linear phase mastering monitor utilizing cylindrical wave technology, worldwide. Developed and designed for use in the most demanding of mastering studios, the LineMaster is an uncompromising Loudspeaker system. The highest possible sound neutrality utilizing the linear phase and value FIRTEC ™ filter. The dynamic membrane control (DMC ™) permits a lively impulsive base, a linear phase and no buildup or decay oscillations of the membrane. Also the controlled sound emission of the near field extension technology in NEXT ™ permits highest control, especially in the mastering area. The oversized power reserves of the output stage with 400W / 200W / 200W ensure that the conversion of the electrical signal occurs with the lowest possible level of distortion. Especially when mastering, one needs the assurance that the reproduction of the music is exact and unadorned, with the complete frequency range from the highest of highs to being able to perceive the deepest rumble of the airconditioning in a symphony orchestra.Technical Specifications: AD / DA converter 24 bit sigma delta, 64x oversampling digital IN, OUT: AES3 format , 32 – 56(110)KHz 192 KHz vorbereitet analog IN, OUT: XLR-symmetric, activ bypass output DSP: 60 MHz 32 bit floatingpoint, 1500 dB dynamic process: FIRTEC equalization 2 difference FIR-crossover speaker timealignment, limiter, 2 FIR-presets, 3 userprogrammable peakfilter with frequence, gain and peakcontrol lowshelving,heighshelving, distance shift, phase reverse, digital mono room equalization: FIRTEC system - equilasation for control room chassis: 1'’ radiator on NE-X-T adapter, four 6.5" midrange carboncone, two 8" DMC carboncone driver amplifier: 350W / 200W / 100W MOSEFET technology SPL: 125dB peak Remote Control: all parameter free controlable hardware or software remote control available dimensions: 170 X 30 X 33 cm 19.7 kg frequency range: 20 - 24000 Hz (+/-3dB) For more information, please visit this products webpage.
€29,999.00*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
