In March 1970 the first 1073 module was launched and became the standard in 80 series consoles. The 1066 was gradually replaced in newly shipped consoles and finally disappeared. The 1073 featured almost the same identical circuitry, being the most relevant differences the hi frequency shelving ( 12Khz instead of 10Khz ) and the equalizer´s mid band, which had one more center frequency, but lacked the constant Q of the 1066 . Vintage module connoisseurs do know how sweet the 1066mid band sounds and, for some, something was lost in the way. Until now...The 6673 module is the answer to an old question among vintage module users. Should I use a 1073 or a 1066 for this specific source material? Should I need to boost at 700 Hz or would it be better to cut at 360 Hz? Should I need 12Khz or would it probably better to add 10Khz instead?These and a lot more questions that have become "classic" in some professional environments have a new answer.Heritage Audio is proud to introduce the 6673 module. A 100% series 80 compatible module featuring the same Class A mic preamplifier found in the classic modules with an added key feature: A 4 BAND EQUALIZER. Better said, THE 4 band equalizer as it features the same exact 3 band equalizer circuit found in the famous 1073 plus the mid band found in the 1066.In addition, we have expanded the 1073 mid band with 3 extra frequency choices, widening the sonic palette.Now you can boost at 700 Hz for "thick as a brick" guitars and cut at 360 Hz to get rid of the mud.
80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
10dB Class A Line Amplifier, Bridging input impedance, balanced and floating.
Class A, single ended, 2N3055 driven high headroom output stage.
High Frequency: +/-16dB selectable frequency shelving at 10, 12 or 16 kHz, Baxandall type.
Low Frequency: +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz ,Baxandall type.
1073 Mid Frequency: +/-18dB peaking, fixed 'Q' , selectable center frequencies of 0.24 Khz, 0.36kHz, 0.53Khz, 0.7kHz, 1.1Khz, 1.6kHz, 3.2kHz, 4.8kHz ,
7.2kHz and 10Khz , dual inductor based.
1066 Constant Q Mid Frequency: +/-18dB peaking, fixed ´Q´, selectable center frequencies of 0.7 Khz, 1.2 Khz, 2.4Khz, 3.6Khz, 7.0Khz, inductor based.
High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz & 300Hz, inductor based. (Although push button switches has been used instead of the classic rotary switch, the circuit is the same exact one found in vintage 1073s, sacrificing only one frequency choice for space issues. Real state is tight on these modules).
EQ Button: Switches the equalizer on or off.
Phase Button: Flips phase 180º.
6673 Module available. 19" Convertible format available Spring 2012.
The 73JRII is the 2021 update to the already classic 73JR, a true 73 style mic preamp in a single 500 series slot with some added features that will cover all the recording needs for engineers and musicians that don´t find the need to track with eq.
Employing only discrete circuitry and conventional components, the 73JRII is a faithful 3 stage all class A 73 preamp. Styroflex and tantalum capacitors have been used throughout. No corners were cut.
The useful all discrete class A hi pass filter has been updated, making it sweepable from 20 to 220 Hz. Now it is even easier to make your low end tighter without affecting desired frequencies.
The Line mode allows for reamping of prerecorded tracks and it´s perfect for adding some class A color to lifeless recordings.
The smart switched DI (automatically switches from MIC to DI mode when inserting a MONO ¼” jack) is an all discrete class A JFET circuit ahead of the MIC transformer, so all the juice is there. Since its introduction in 2013, it has become a classic DI for bass.
Finally, special care has been taken with power handling, implementing internal +24v slow turn on regulation (about 20 seconds to reach full voltage).This makes your 500 series enclosure´s power supply healthier and makes the 73JR independent of the rest of the slots.
WHAT TO LOOK FOR IN A 500 SERIES 73 PREAMP:
There are several compromises usually made when adapting a 73 preamp for the 500 Series, especially the following 3. You won´t find any of these in the 73JRII:
Eliminate one gain stage and run only up to 70dB of gain. A “real deal” 73 mic pre must have 3 gain stages for a total of 80dB of gain. Taking the first gain stage out and maxing out the other 2 allows for up to 70 dB of gain, but noise figure and low end at high gain are seriously compromised. The 73JR II uses the full 3 gain stage circuit for up to 80 dB of gain with noise of -125dBu EIN all over the gain positions.
Use the readily available +- 16v power from the 500 Series protocol. By doing this, the magic distortion of a 73 amp is compromised. The 73JR II uses a true 24volt on board power supply for identical performace and distortion point.
Use of surface mount technology. Although there is no actual drawback in using SMD components, it should be reflected in the price, not merely to enlarge the manufacturer´s profit. No 500 Series 73 mic pre using SMD should cost more than $500. The 73JR II uses only discrete, through hole traditional components and hand labor for that great 70s vibe.
When looking for the ultimate 73 500 Series preamp, always make this fact check.
THE 73JR II TRANSFORMERS:
No 73 preamp is such without the correct transformers. For the 73JR II (and its predecessor the 73JR), Heritage Audio went a step further the competition. The output transformer, the same used all along the Heritage´s line of products, is a Carnhill gapped one made exclusively for us in the St Ives factory. The input one, again exclusive to our company, is made in Carnhill´s Oxord factory, and has a big impact on the extra mojo of the unit. It is the same one found in our higher end 80 Series modules and sets one of the main sonically differences in between the 73JR II and the competitors.
When looking for an exclusive sound, do not settle for non-exclusive transformers.
The 73EQ JR is a fully featured Line Input module for the 500 Series.
It not only shares the 3-band Equalizer with his big brother, the 1073, but also shares the same transformer coupled line preamp and Class A transformer balanced output stage.
These facts make the 73EQ JR unique on its class, being able to capture a full transformer based, Class A sound without relying on external preamps.
The Equalizer features the same Baxandall type High and Low shelf found in the 1073, with the addition of a high frequency selector switch. 4 different frequencies are possible instead of the fixed 12Khz one.
The mid band is the same exact dual inductor 1073 one, thick low and sweet high midrange boosts without being muddy or brittle! The line preamp has a range of +6 to -20dB, allowing heavy eq boosts without overloadingA/D converters.
Finally, special care has been taken with power handling, implementing internal +24v slow turn on regulation (about 20 seconds to reach full voltage ). This makes your 73EQ JR independent of the rest of the slots and makes your lunchbox´s PSU happier.
Features
+6 to -20dB Class A Line preamplifier, bridging input impedance, balanced and floating.
High Frequency: +/- 16dB shelving, selectable at 10, 12, 16 or 20Khz, Baxandall type.
Low Frequency: +/- 16dB shelving, with selectable frequency of 35, 60, 110 or 220 Hz, Baxandall type.
Mid Frequency: +/- 18dB peaking, fixed Q, selectable center frequencies of 0.36, 0.7, 1.6, 3.2, 4.8 and 7.2 Khz, dual inductor based.
EQL button: Turns EQ on.
Class A single ended, 2N3055 driven, high headroom output stage.
Internal Slow Turn-on +24v power supply for lower inrush current, improving lunchbox performance.
Carnhill Transformers.
Marconi style knobs.
When launched in 1972, the 1081 became the most flexible equalizer ever in a mixing console. Its 4 band equalizer allowed sculpting the sound in such a unique way, mainly due to the fact that both mid bands covered almost the whole audio spectrum in 20 steps. Unfortunately, a class A/B output stage was used instead of the class A one used in the 1073, making it a second choice for tracking in favour of the 1073. Being users of the old modules for 20 years, we always came with the "could it be possible to have a 1081 eq with a 1073 preamp in our console?" question. The answer has been NO, until now... We are proud to introduce the 8173 mic pre- 4 band equalizer module. The name says it all. The best of both worlds in an 8 3/4" module package, fully compatible with Series 80 consoles. It could be easily described as a 1073 with the mid bands of the 1081. We´ve decided to keep the 1073 Baxandall shelving lo and hi eq bands as they sound amazing, but have implemented a choice of 3 hi shelving frecuencies, a la 1084. Flexibility and Tone!!!
80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
10dB Class A Line Amplifier, Bridging input impedance, balanced and floating.
Class A, single ended, 2N3055 driven high headroom output stage.
High Frequency: +/-16dB selectable frequency shelving at 10, 12 or 16 kHz, Baxandall type.
Low Frequency: +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz ,Baxandall type.
1081 Upper Mid Frequency: +/-18dB peaking, fixed 'Q' , selectable centre frequencies of 1.5Khz, 1.8kHz, 2.2Khz, 2.7kHz, 3.3Khz, 3.9kHz, 4.7kHz, 5.6kHz , 6.8kHz and 8.2Khz , inductor based.
1081 Lower Mid Frequency: +/-18dB peaking, fixed ´Q´, selectable center frequencies of 220Hz, 270Hz, 330Hz, 390Hz, 470Hz, 560Hz, 680Hz, 820Hz, 1000Hz and 1200Hz, , inductor based.
High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz & 300Hz, inductor based. (Although push button switches has been used instead of the classic rotary switch, the circuit is the same exact one found in vintage 1073s, sacrificing only one frequency choice for space issues .Real state is tight inside these modules).
EQ Button: Switches the equalizer on or off.
Phase Button: Flips phase180º.
8173 Module available. 19" Convertible Series available Spring 2012.
Heritage Audio's Baby RAM is a boutique, passive-circuit monitor controller inspired by classic European console designs. Baby RAM is the ultimate controller for total transparency - a zero-compromise signal path, paired with a simplified control set keeps both your monitors and your ears where you need them.
Baby RAM features a 4 gang, 24 step rotary switch for volume as opposed to cheaper stereo potentiometers, which means the precision of your stereo signal is perfect on every position! Baby RAM also has no insertion loss, meaning that there’s no extra coloration or signal loss at any settings.
Complex design with simplified workflow.Baby RAM might pack a zero-compromise circuit design, but it couldn’t be any easier to use: 2 stereo -pair inputs and outputs — both balanced and ground free (unbalanced compatible) on gold plated TRS jacks, and Mute, Dim, Mono, and Volume monitoring controls make Baby RAM a breeze to work with. And with it’s passive design, it also means you have no concerns with bad power supplies, as no supply is needed!
Baby RAM is built with the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners - all at the Heritage headquarters in Spain.
Features
Classic European console design, inspired by the best master-console-sections
No insertion loss, for the most transparent passive-design that's available
Perfect stereo imaging, thanks to a 24-step rotary switch for a sub-tenth of a dB precision on every single attenuation position
Fully passive, meaning no power supply is needed
Two stereo-pair inputs and outputs, all balanced and ground free (unbalanced compatible) on gold plated TRS Jacks
MUTE, DIM and MONO controls

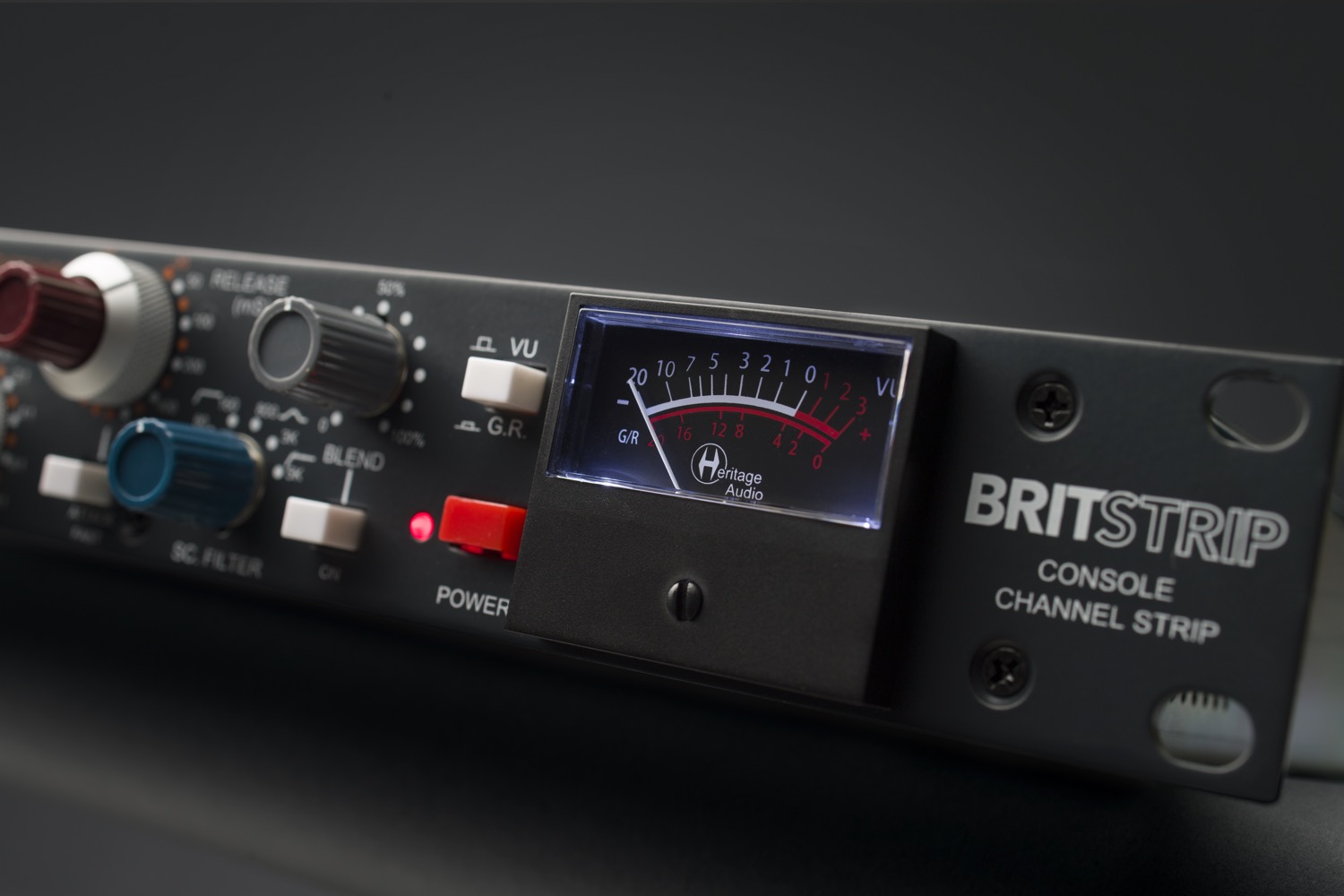

The BritStrip combines a real-deal 73 mic preamplifier, an expanded 73 equalizer, a discrete Class-A DI, and the infamous diode bridge compressor from the Heritage Audio SUCCESSOR. This channel strip culminats 50 years of analog design in a single rack unit. BritStrip nails the sound of yesterday’s iconic recordings for today’s demanding engineers.
The mic preamp that meets the demandsThe BritStrip starts with the same preamp as the Heritage Audio 73JR, with a custom input transformer co-designed with Carnhill and exclusively made in the St Ives factory. The preamp also features a custom Carnhill St Ives output transformer, which completes it’s all discrete, Class-A, 3-gain stage design. The preamp features 80 dB of gain, 20dB pad, phase reversal and an impedance switch for 1200 or 300 ohm input.
The discrete Class-A DIThe DI is also taken from the highly acclaimed design found in the Heritage Audio 73JR, an all-discrete Class-A JFET circuit in front of the microphone transformer, giving a broad range of color and weight. The DI also includes a passive thru output to feed a separate amplifier.
An expanded 73 equalizerThe BritStrip eq features 3 Vinkor pot core inductors in the mid band and high pass filter sections. The impact is hard to believe with extreme boosts being exceptionally musical. The mid band is great for sculpting fat and punchy snare, kick, guitars, vocals. No need to be subtle like you would with most eqs — BritStrip doesn’t sound phasey or loses headroom in extreme settings. The inductor-based low-pass filter, directly taken from the 73 design, lets you control out of range low end — without affecting the quality of your desired frequencies. The high and low shelves have been extended to include a bell mode — making them more versatile than ever before.
A SUCCESSOR -like compressorThe diode bridge bus compressor needs little introduction, as it’s the same compressor found in the multi award-nominated Heritage Audio Successor. Diode bridge compression, a 60 year old patent, took on a whole new life with the expanded features and incredible fast attack/release times of the Successor. With BritStrip, this powerful compressor design is perfect to use for tracking, thanks to it’s blend control and elaborate sidechain filter. This gives you plenty of tracking potential, as you can give instruments that “record-ready” dynamics as performers monitor — giving them a finished “real-time feel” as they perform. The compressor section provides plenty of sidechain flexibility, with 5 frequency options, and an external sidechain input. And if that weren’t enough flexibility, 2 BritStrips can have their compressors linked for the ultimate stereo tracking solution.
Routing flexibility.The BritStrip allows for compression and equalizer routing. Eq’ing pre-compression makes the compression detector more sensitive to the boosted frequencies and less sensitive to those cut. Inversely, eqing post compression makes the detector insensitive to the eq settings.
Features
A high-end, 3 stage 73-style microphone/DI preamplifier with 80dB of British-style gain
An expanded 73-style equalizer
A diode bridge bus compressor, taken from the Heritage Audio Successor
The all-in-one, Heritage Audio value pack.
Custom Carnhill St Ives input and output transformers exclusively made for Heritage Audio.
Linking option for stereo compression with two BritStrips
Technical Specifications
Input/Ouput
Microphone input impedance: HI, 1200 Ohm min., LO, 300 Ohm min., transformer balanced
Line input impedance: 10 kOhms, transformer balanced
DI input impedance: > 2 Megohms, unbalanced.
Output impedance: < 75 Ohms, transformer balanced
Output (max.): > +26dBm into 600 Ohms
Frequency response: 20Hz to 20Khz
Pad: 20 dB
Gain (max.): > 80dB (Mic), 50dB (Line)
EQ
High Frequency: +/-16dB shelving, 10 kHz, 12 kHz, 16 kHz
Low Frequency: +/-16dB shelving, 60Hz, 110Hz, 220Hz
Mid Frequency: +/-18dB peaking, Mid and HI Q, 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz
High Pass Filter: 18dB per octave slope, 50Hz, 80Hz , 160 Hz, 300Hz
Compressor
Threshold: 20 to 20 dBu
Ratio: 1.5:1 to 10:1
Attack: Slow, Fast
Release: 50ms to 400ms, Auto programm dependend
Sidchain filter: off, High-pass: 80, 160, 5000 Hz, Peak, 800Hz, 3kHz
Gain makup: 0 to 20 dB
Features

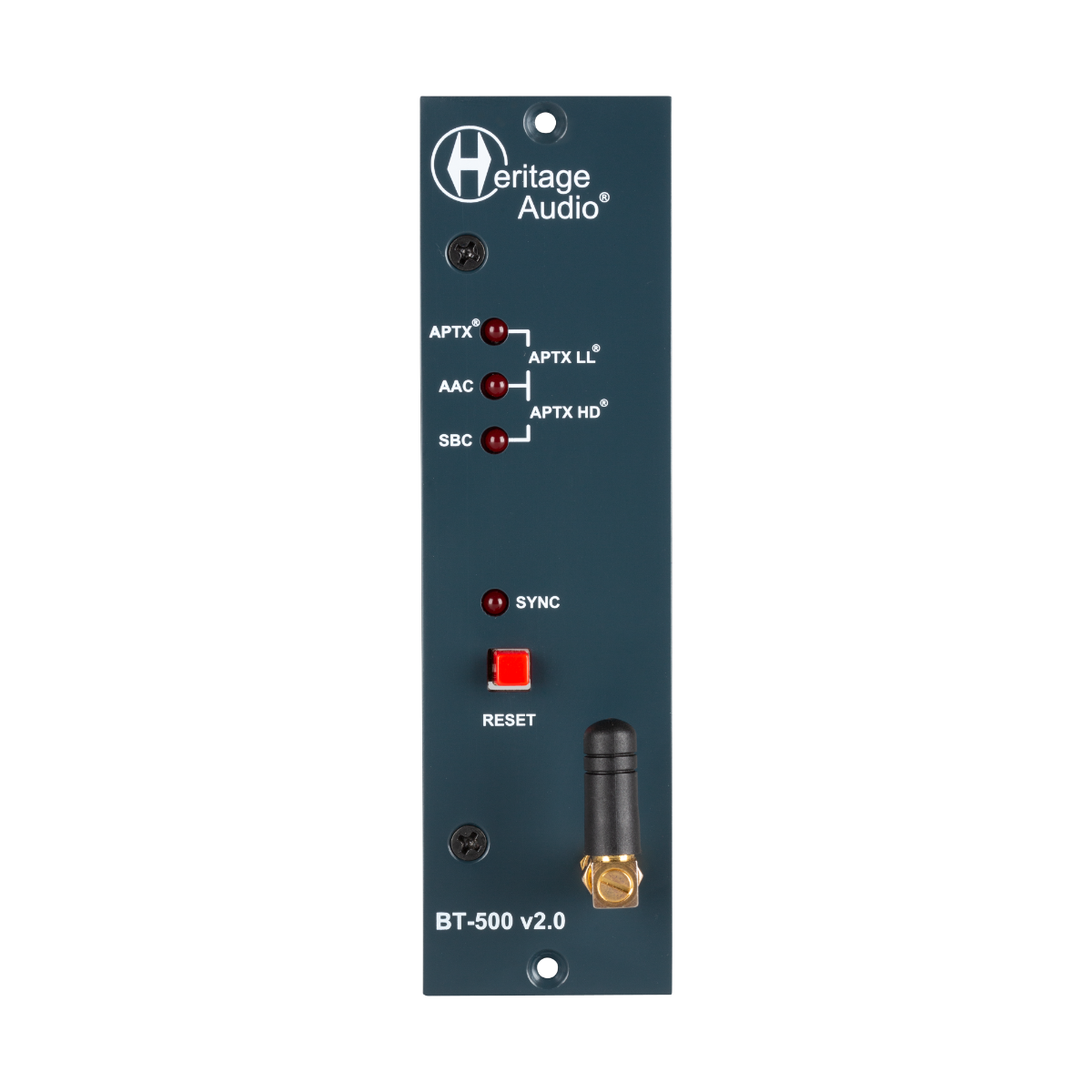

Will automatically choose the best available CODEC for your device
Highest quality output provides +22 dBu fully differential Burr Brown balanced signal able to drive a load of 600 Ohms
Finally eliminate those faulty mini-jacks from the studio
Has an area of coverage greater than 100 meters
80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
50Db Class A Line preamplifier, bridging input impedance, balanced and floating.
All discrete Class A Ultra High Impedance J-Fet Direct Input on a high quality Neutrik Jack. The DI circuit is ahead of the Mic Input transformer, so the transformer is on when in DI mode.
Class A single ended, 2N3055 driven, high headroom output stage.
Individual Neutrik gold plated XLR connectors for microphone and line inputs.
Gold Plated Neutrik XLR output.
PAD: 20dB Mic input attenuation ahead of the input transformer to avoid overloading it.
HI PASS FILTER: Active all discrete Class A 3rd order Bessel, 80Hz Hi Pass Filter. 18dB/octave slope.
OUTPUT control to allow overloading of the preamp.
External linear PSU to avoid electromagnetic radiation into the audio transformers ( a.k.a. hum ).
Carnhill Input and Output transformers.
3 gain stage, genuine B283 gain card modular construction.
Marconi style knobs and vintage style engraved pushbuttons.
Standing for DUAL TABLETOP 73, it is in essence a reformatted DMA73.The DTT-73 brings a new flavor to the Heritage Audio line of outboard gear, widening the range of application to On Stage use, portable systems, hotel rooms, On Location recordings, etc.
Now musicians are able to give 1073-driven line levels to FOH engineers, using the front panel DI inputs. While on the road they are able to record at the same studio quality level from hotel rooms, etc. Stage microphones can be brought up to line level without using long cable runs. These are just some of the possibilities.
Special care has been taken with the internal worldwide power supply and no noise has been introduced.
New to the range of tabletop units is the implementation of DI THRU jacks for simultaneous use of instrument amplifiers. A ground lift switch prevents any ground loops introducing hum in the audio when using these.
The combination of wood and RAF blue grey steel makes the tabletop units aesthetically stand out in any professional recording environment and will bring your semi pro facility the touch of class you´re looking for.
Features
80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
50Db Class A Line preamplifier, bridging input impedance, balanced and floating.
All discrete Class A Ultra High Impedance J-Fet Direct Input on a high quality Neutrik Jack. The DI circuit is ahead of the Mic Input transformer, so the transformer is on when in DI mode.
DI THRU jack with ground lift switch for simultaneous hum free use of instrument amplifiers.
Class A single ended, 2N3055 driven, high headroom output stage.
Individual Neutrik gold plated XLR connectors for microphone and line inputs.
Gold Plated Neutrik XLR output.
PAD: 20dB Mic input attenuation ahead of the input transformer to avoid overloading it.
HI PASS FILTER: Active all discrete Class A 3rd order Bessel, 80Hz Hi Pass Filter. 18dB/octave slope.
OUTPUT control to allow overloading of the preamp.
Internal no noise PSU, accepting worldwide voltages from 100v to 240v
Carnhill Input and Output transformers.
3 gain stage, genuine B283 gain card modular construction.
Marconi styleknobs and vintagestyleengravedpushbuttons.
Our Frame 8 rack is handmade in the EU employing the same exact ISEP mechanical components used in the Series 80 consoles. Aluminium rails, guides, etc. This will ensure your vintage modules, as well as any of the currently made, will fit like a glove.
Every channel has its own output control as well as illuminated phantom switch.
Also, the Frame 8 is ready for linking up to 8 2264 compressors in 2 busses, A or B.
Back panel features Neutrik gold plated XLR connectors for Mic and Line inputs, as well as outputs.
External Power Supply Unit is connected via Neutrik gold plated 4-pin XLRs. It is configurable for 220-240v or 110v. Power supply is included.
Features
Neutrik gold plated XLRs for Mic and Line inputs.
Neutrik gold plated XLRs for outputs.
Illuminated red pushbuttons for Phantom power.
Individual output controls.
Built in Compression Link busses A and B.
Genuine ISEP mechanical construction.
External oversized PSU.
PSU cable included
The GRANDCHILD 670 ist first ever stereo Vari-Mu compressor in a 2 slot 500 series module, based on the renowned Fairchild and Heritage Audio’s own HERCHILD model 670. Heritage Audio has undertaken an unprecedented engineering effort to encapsulate all the charm of the HERCHILD 670 into a more affordable unit.
The GRANDCHILD 670 is a great option for mixing and mastering. With 4 NOS tubes and 3 transformers at its core, the GRANDCHILD 670 adds warmth and punch to any track with virtually no noise or distortion. 5 Attack and Release times make it even more flexible than in the original unit. Progressive DC Threshold, combining control of the ratio and the knee allowing a wide range of dynamic processing, from very smooth transparent compression to hard limiting.
Enjoy the sound that has blessed thousands and thousands of hits over the years. Feel the warmth as it embraces your tracks and makes them proudly stand out from the rest. The GRANDCHILD 670 has the soul of its predecessors, Fairchild and HERCHILD 670, ensuring that the best tube compression that has influenced hundreds and hundreds of classic tunes is now available as a 2 slot 500 series module!
Features- Vari-Mu Stereo Compressor- A true recreation of the classic Fairchild sound in a convenient and affordable 2-slot-unit 500 series module. - Real Vari-Mu compression powered by 2 NOS military grade 6BA6 tubes per channel and 3 custom made transformers at its core. - 5 Attack and Release times have been made even more flexible than in the original unit.- Immediate access to the continuously variable slope.- Clean, intelligent design to guarantee many years of use.

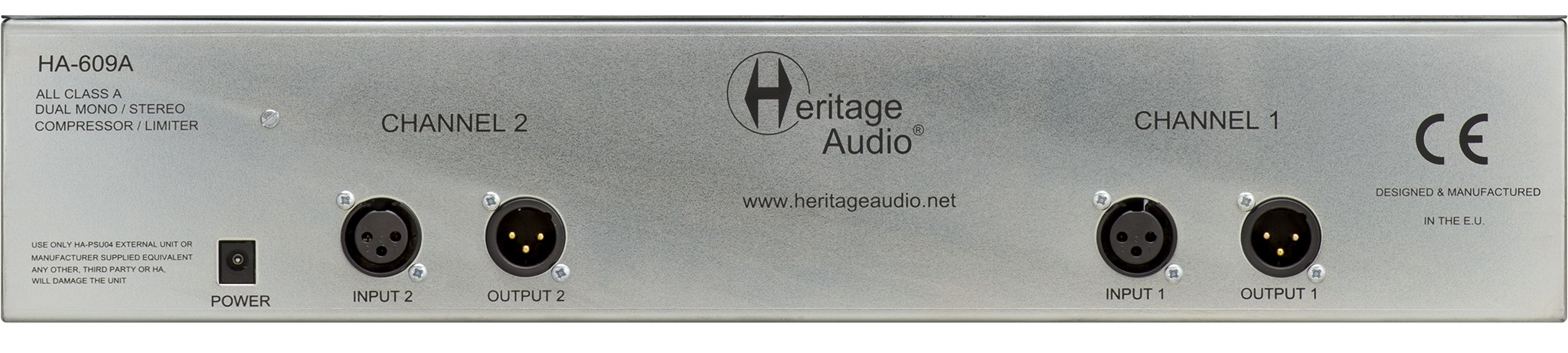

The HA-609A is a boutique two channel compressor and limiter based on classic diode bridge designs. With three transformers per channel (by Carnhill/ St. Ives) and a fully discrete, class A signal path, the HA-609A delivers punch, weight, and just the right amount of color to your mixes, buses, or tracks.
The HA-609A’s compressor section offers control for threshold, ratio, release, and can be bypassed. In addition to the standard fixed attack time (tailored for program material), the compressor also offers a ‘fast’ attack mode — which excels at catching loud transients on drum buses and other challenging dynamic material. The compressor’s makeup gain is a class A amplifier with transformer-coupled output, inspired by the legendary ‘73 preamp.
With an extended threshold range and a new ‘fast attack’ setting, The HA-609A offers classic limiting with an eye towards the modern workflow. The HA609A can perform limiting from subtle peak control to more extreme sculpting, while controlling the fast transients of percussion and program material. The limiter section also features controls for release time, and can be bypassed.
The Heritage HA-609A can be stereo linked, or operate in dual mono, and each channel features a true bypass. It utilizes only rotary switches and precision, stepped potentiometers for perfect recall and channel matching. And like all of the products in their Elite range, the HA-609A is built with the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage headquarters in Spain.
Features
2 channel Brit-Spec Compressor and Limiter
All discrete, class A design featuring three Carnhill/St. Ives transformers per channel.
Unique diode bridge design allows compression curve/response to be precisely matched from channel to channel within hundredths of a dB.
Extended range for both the compressor and limiter threshold increases flexibility for the modern workflow.
Standard and fast attack times allows the HA-609A to work well in recording and on individual tracks, in addition to mixing and mastering duties.
True bypass on each channel in addition to bypass on individual compressor and limiter functions.
All handmade in Spain at the Heritage Audio factory.

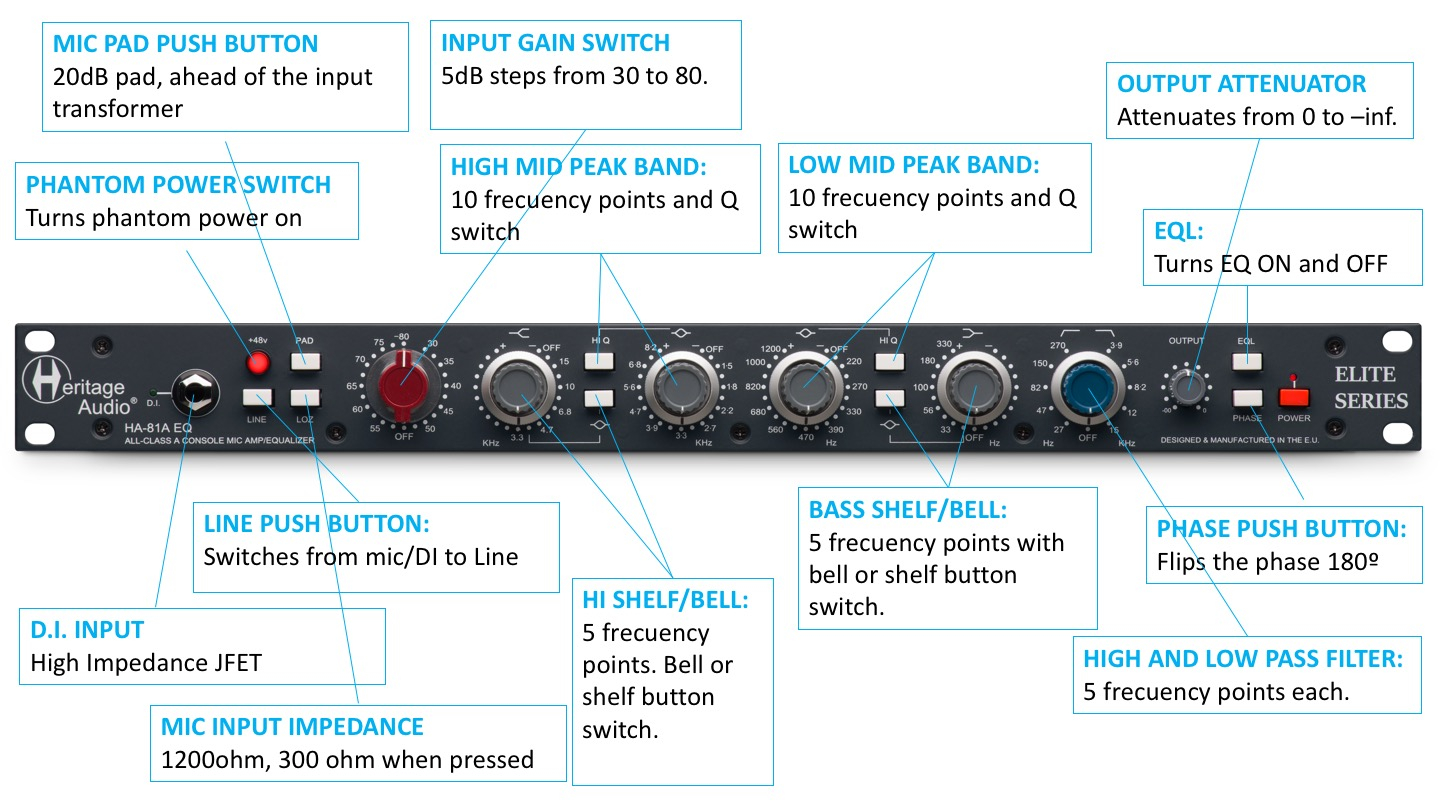

Introducing Heritage Audio’s HA-81A: a new mix of 2 classic console´s circuits.
The HA-81A Elite is a channel strip that combines an all discrete, Class-A 73-style mic preamp with an extremely versatile and musical console style equalizer — arguably the trick for obtaining instant classic sound for all recording engineers.
The mic preamp that meets the demands.The HA-81A’s preamp section is an 80 dB, all discrete Class-A design with Carnhill/St. Ives input and output transformers, exactly the same one found in the other Elite Series modules.
The preamp features gain, output trim, -20db pad, polarity reverse, and +48v phantom power.
The best console´s style equalizer ever made.The HA-81’s equalizer section is an exceptionally musical 4 band, inductor-based equalizer with high and low pass filters. Where 3 band equalizers such as the typical 73-style exceed at musicality but may get short of features, the HA-81A EQ equally excels on both. Extreme control over Shelf or Bell response curves on the high and lows, dual Q on both mid bands, with dedicated high and low mid ones, and a range of 40 frequency selections to choose from.
Hybrid design. Heritage quality.The Heritage HA-81A utilizes only rotary switches and precision, concentric potentiometers. And like all of the products in our Elite range, the HA-81A is built with the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage headquarters in Spain.
HA73 - Single Channel 1073 Mic Preamp
The Heritage Audio ELITE series is a budget-friendly version of the widely respected, hand-wired 73JR and DMA73 preamps. A combination of mass production, lean manufacturing and modern construction techniques makes it possible to offer a zero compromise, high quality yet very affordable series of products.
The HA73 ELITE microphone preamplifier is based on the iconic 1073, amplifying any microphone or instrument with vibrant clarity and punch. On driving the input harder it provides the saturated sound as known from a vintage console. With 80dB of gain the HA73 is suitable for any type of microphone - condenser, dynamic, or ribbon. The hand wounded Carnhill input and output transformers add warmth, girth, and authority to any sound source - mic, line, or even DI instruments. The separate input and output gain controls make it easy to control the transformer color without overloading the output stage. The DI circuit is ahead of the mic input transformer, perfect for adding some character to DI bass signals on the way in.
Features
Single channel 1073-type mic preamp
Made to the same specifications as the acclaimed 73JR and DMA73 models.
Industry standard Carnhill transformers hand wound in St Ives, England.
80dB, 3 stage fully discrete class A mic preamp.
Line input on separate XLR for adding fat and warmth to prerecorded tracks.
20dB PAD on the mic input to avoid overloading the input transformer when desired.
LO-Z, switches the input impedance of the mic transformer from 1200 to 300 ohm.
80 Hz hi pass filter. Fully discrete class A.
Ultra-high impedance, JFET based D.I.
1 Rack unit format.
External universal power supply for worldwide use.
HA73EQ - Mic Preamp with EQ
The Heritage Audio ELITE series is a budget-friendly version of the widely respected, hand-wired 73JR and DMA73 preamps. A combination of mass production, lean manufacturing and modern construction techniques makes it possible to offer a zero compromise, high quality yet very affordable series of products.
The HA73EQ ELITE microphone preamplifier with EQ is based on the iconic 1073, amplifying any microphone or instrument with vibrant clarity and punch. On driving the input harder it provides the saturated sound as known from a vintage console. With 80dB of gain the HA73 is suitable for any type of microphone - condenser, dynamic, or ribbon. The hand wounded Carnhill input and output transformers add warmth, girth, and authority to any sound source - mic, line, or even DI instruments. The separate input and output gain controls make it easy to control the transformer color without overloading the output stage. The DI circuit is ahead of the mic input transformer, perfect for adding some character to DI bass signals on the way in.
The EQ section of the HA73EQ ELITE is based on the classic 1073 circuit topology and provides the same sonics and loved harmonic distortion. It is a three-band design with a fixed HF shelving section, a fixed-Q midband with six selectable center frequencies and a LF shelving section with four selectable frequencies. A high pass filter with four selectable frequencies is perfect for removing unwanted low end.
Features
1073-type mic preamp with EQ
Made to the same specifications as the acclaimed 73JR, 73EQJR and DMA73 models.
Industry standard Carnhill transformers hand wound in St Ives, England.
80dB, 3 stage fully discrete class A mic preamp.
Line input on separate XLR for adding fat and warmth to prerecorded tracks.
20dB PAD on the mic input to avoid overloading the input transformer when desired.
LO-Z, switches the input impedance of the mic transformer from 1200 to 300 ohm.
Ultra high impedance, JFET based D.I.
Fully discrete 3 band classic equalizer with vintage correct inductors.
Hi shelf at 12Khz.
Mid band selectable between 6 different frequencies and OFF.
Lo shelf selectable between 4 different frequencies and OFF
Inductor based High Pass filter, frequency selectable between 4 different frequencies and OFF.
1 Rack unit format.
External universal power supply for worldwide use.
HA73EQX2 - Two Channel Mic Preamp with EQ
The Heritage Audio ELITE series is a budget-friendly version of the widely respected, hand-wired 73JR and DMA73 preamps. A combination of mass production, lean manufacturing and modern construction techniques makes it possible to offer a zero compromise, high quality yet very affordable series of products.
The two channel HA73EQX2 ELITE microphone preamplifier with EQ is based on the iconic 1073, amplifying any microphone or instrument with vibrant clarity and punch. On driving the input harder it provides the saturated sound as known from a vintage console. With 80dB of gain the HA73EQX2 is suitable for any type of microphone - condenser, dynamic, or ribbon. The hand wounded Carnhill input and output transformers add warmth, girth, and authority to any sound source - mic, line, or even DI instruments. The separate input and output gain controls make it easy to control the transformer color without overloading the output stage. The DI circuit is ahead of the mic input transformer, perfect for adding some character to DI bass signals on the way in.
The EQ section of the HA73EQX2 ELITE is based on the classic 1073 circuit topology and provides the same sonics and loved harmonic distortion. It is a three-band design with a fixed HF shelving section, a fixed-Q midband with six selectable center frequencies and a LF shelving section with four selectable frequencies. A high pass filter with four selectable frequencies is perfect for removing unwanted low end.
Features
Two channel 1073-type mic preamp with EQ
Made to the same specifications as the acclaimed 73JR, 73EQJR and DMA73 models.
Industry standard Carnhill transformers hand wound in St Ives, England.
80dB, 3 stage fully discrete class A mic preamps.
Line input on separate XLR for adding fat and warmth to prerecorded tracks.
20dB PAD on the mic inputs to avoid overloading the input transformers when desired.
LO-Z, switches the input impedance of the mic transformer from 1200 to 300 ohm.
Two ultra high impedance, JFET based D.I.
Fully discrete 3 band classic equalizers with vintage correct inductors.
Hi shelf at 12Khz.
Mid band selectable between 6 different frequencies and OFF.
Lo shelf selectable between 4 different frequencies and OFF
Inductor based High Pass filters, frequency selectable between 4 different frequencies and OFF.
2 Rack unit format.
External universal power supply for worldwide use.
The Heritage Audio ELITE series is a budget-friendly version of the widely respected, hand-wired 73JR and DMA73 preamps. A combination of mass production, lean manufacturing and modern construction techniques makes it possible to offer a zero compromise, high quality yet very affordable series of products.
The dual channel HA73X2 ELITE microphone preamplifier is based on the iconic 1073, amplifying any microphone or instrument with vibrant clarity and punch. On driving the input harder it provides the saturated sound as known from a vintage console. With 80dB of gain the HA73X2 is suitable for any type of microphone - condenser, dynamic, or ribbon. The hand wounded Carnhill input and output transformers add warmth, girth, and authority to any sound source - mic, line, or even DI instruments. The separate input and output gain controls make it easy to control the transformer color without overloading the output stage. The DI circuit is ahead of the mic input transformer, perfect for adding some character to DI bass signals on the way in. The HA73X2 offers two channels of classic sound in one rack unit for stereo recordings or two single sources.
Features
Dual channel 1073-type mic preamp
Made to the same specifications as the acclaimed 73JR and DMA73 models.
Industry standard Carnhill transformers hand wound in St Ives, England.
80dB, 3 stage fully discrete class A mic preamp.
Line input on separate XLR for adding fat and warmth to prerecorded tracks.
20dB PAD on the mic input to avoid overloading the input transformer when desired.
LO-Z, switches the input impedance of the mic transformer from 1200 to 300 ohm.
80 Hz hi pass filter. Fully discrete class A.
Ultra-high impedance, JFET based D.I.
1 Rack unit format.
External universal power supply for worldwide use.

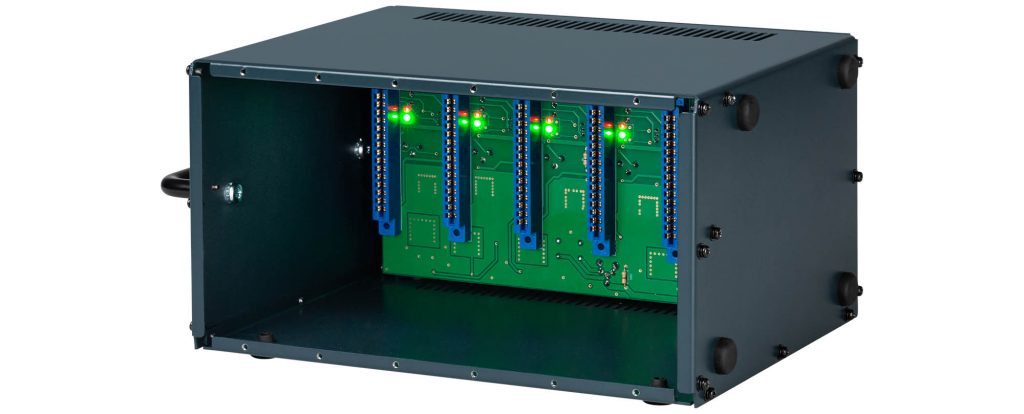

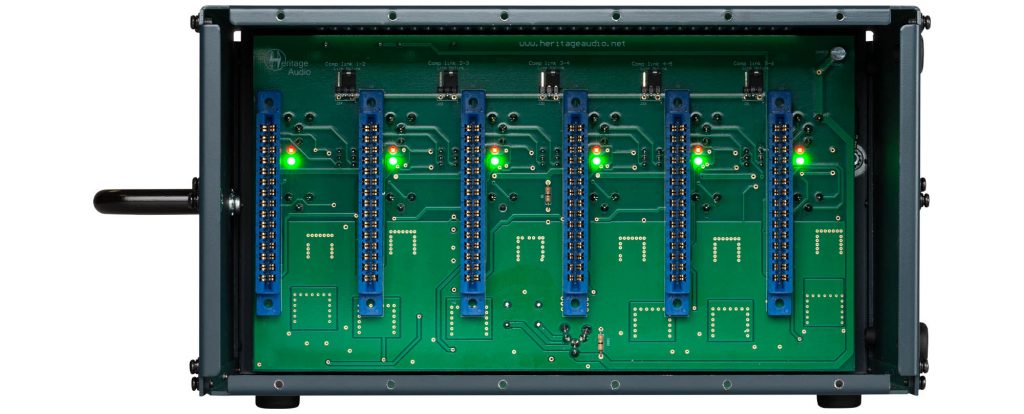

The OST-6 V2.0 500 series enclosure is designed for racking any and all 500-series modules and devices, including ‘double wide’ modules and even the most demanding class-A and vacuum tube designs. The OST-6 V2.0 enclosure features Heritage Audio’s On Slot Technology, providing maximum protection, filtering, and isolation to each channel. While most 500-series enclosures on the market have a relatively simple power supply design essentially feeding every channel in parallel, each channel of the OST-6 V2.0 enclosure has its own power supply, individually regulated and isolated from the rest. This ensures that every 500-series module installed will perform at its peak potential, and that no ‘ power hungry’ or even a faulty module will compromise the performance of another. In addition to reducing interference, many 500-series devices actually exhibit lower self-noise and better performance when racked in the OST-6 V2.0 enclosure, specially mic preamps.
A new and exciting feature in the V2.0 model is the Link feature, allowing each channel to be linked over to the next at the push of a button (via back panel), no patch cables required!
As with all Heritage Audio products; the 500 Series OST-6 V2.0 enclosures are built utilizing the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners.
Features
Six slot, rack-mountable 500 Series enclosure for mobile and project studio recording.
Detachable rack ears and all-metal handle makes the OST-6v2.0 the ultimate portable solution.
Link feature allows each channel to be linked to the next at the push of a button, no patch cables required!
Each channel individually regulated, filtered, and protected for highest performance, lowest noise, and best protection.
Capable of delivering up to 400mA per rail per slot, or 1.8 Amps total ( 2.0 Amps non continuous), whichever is reached first.
Phantom power supply delivers up to 140mA total.
Widest possible range of compatibility with any 500 Series device made, including ‘power hungry’ class A and vacuum tube designs.
Vertical architecture accommodates ‘double wide’ modules.
Heavy gauge steel chassis , rugged finish, proven, durable design.
Features
Fully tube-based compression
Side chain filter for modern day needs
Immediate access to the continuously variable slope
Clean, intelligent design to guarantee many years of use
That legendary sound finally available to everyone
Features
Fully tube-based compression
Side chain filter for modern day needs
Immediate access to the continuously variable slope
LAT/VERT mode makes MID/SIDE processing possible
Clean, intelligent design to guarantee many years of use
That legendary sound finally available to everyone
i73 PRO ONE - 2 x 4 USB-C interface with integrated 73 style preampThe i73® PRO One is the first ever USB-C interface with a built-in pure Class A 73 style preamp. It aims to provide musicians, producers and audio engineers with an easy path to that cherished analog experience that have inspired music creation since the early 70’s. The i73® PRO One incorporates the same Class A transformer-balanced circuitry as the Heritage Audio classic 73 style preamps and provides all that classic mojo and vibe straight from the i73® PRO One to the computer.
As with any of Heritage Audio’s 73 style preamps, a three way input is with true studio quality implemented: A hearty MIC preamp with up to 70dBs of gain, an electric guitar/bass input with a fast, dynamic JFET DI and a clean LINE input.
But a 73 style Class A preamp is only the gate to get to the Full Analog Experience. A low latency monitoring mixing console has been developed from the ground up with an independent configurable mix for speakers and headphones within the Heritage Audio MIXER running inside the i73® PRO One.
An integrated DSP allows realtime processing within Heritage Audio’s MIXER with an ever growing comprehensive set of tools modeled after Heritage Audio’s own outboard and private gear collection. It is also possible to insert third party native plugins via the MIXER’s Aux channels. For later post-processing and maximum flexibility, the WET and DRY signals can be recorded simultaneously in the DAW.
i73® PRO One provides the right tools to monitor audio just like in the Golden Era of recording studios out of the box and capture this sound right into the DAW with the advantage of a modern home studio workflow.
Features2-In / 4-Out USB-C Audio Interface1× Class A 73 style preamp with up to 70dB of gain for true studio-quality recordings. Microphone/line input, on combo XLR jack and a dedicated JFET DI input for Hi-Z instruments.1× Extra line input. Full Analog Experience powered by DSP for real-time tracking processing with imperceptible latency.Direct monitoring with Heritage Audio's MIXER, processed in real-time with imperceptible latency.Analog stereo monitor output over TRS controlled independently by Heritage Audio's MIXER.Stereo headphone output independently controlled by Heritage Audio's MIXER.Including a growing collection of Heritage Audio effects modeled after Heritage Audio's own outboard and Heritage Audio's private gear collection.Able to record both WET and DRY streams from the MIXER to the DAW at the same time.Compatible with MacOS and Windows 10 and 11Recording, mixing and playback at up to 24-bit/192kHz.+48V PHANTOM power, PAD and PHASE.MONO, MUTE and DIM.Class-leading AD/DA conversion.USB-C connection to computer (cable included).Classic attractive European console design.Mini-DIN MIDI IN/OUT connector.Technical SpecificationsPhantom Power: 48 VSample Rate: up to 24-bit/192kHzMIDI in: Mini-DIN connectorSystem requirements: MacOS and Windows 10 and 11Computer Connection: USB-CPower supply: 12 VDC, externalDimensions (W x D X H): 154 x 200 x 90mmWeight: 1.263 kg
i73 PRO 2 - 2 x 4 USB-C interface with 2x integrated 73 style preampThe i73® PRO 2 is the first ever USB-C interface with two built-in pure Class A 73 style preamps. It aims to provide musicians, producers and audio engineers with an easy path to that cherished analog experience that have inspired music creation since the early 70’s. The i73® PRO 2 incorporates the same Class A transformer-balanced circuitry as the Heritage Audio classic 73 style preamps and provides all that classic mojo and vibe straight from the i73® PRO 2 to the computer.
As with any of Heritage Audio’s 73 style preamps, a three way input is with true studio quality implemented: A hearty MIC preamp with up to 70dBs of gain, an electric guitar/bass input with a fast, dynamic JFET DI and a clean LINE input.
But a 73 style Class A preamp is only the gate to get to the Full Analog Experience. A low latency monitoring mixing console has been developed from the ground up with an independent configurable mix for speakers and headphones within the Heritage Audio MIXER running inside the i73® PRO 2.
An integrated DSP allows realtime processing within Heritage Audio’s MIXER with an ever growing comprehensive set of tools modeled after Heritage Audio’s own outboard and private gear collection. It is also possible to insert third party native plugins via the MIXER’s Aux channels. For later post-processing and maximum flexibility, the WET and DRY signals can be recorded simultaneously in the DAW.
i73® PRO 2 provides the right tools to monitor audio just like in the Golden Era of recording studios out of the box and capture this sound right into the DAW with the advantage of a modern home studio workflow.
Features2-In / 4-Out USB-C Audio Interface2× Class A 73 style preamp with up to 70dB of gain for true studio-quality recordings. Microphone/line input, on combo XLR jack and a dedicated JFET DI input for Hi-Z instruments.Full Analog Experience powered by DSP for real-time tracking processing with imperceptible latency.Direct monitoring with Heritage Audio's MIXER, processed in real-time with imperceptible latency.Analog stereo monitor output over TRS independently controlled independently by Heritage Audio's MIXER.Stereo headphone output controlled independently by Heritage Audio's MIXER.Including a growing collection of Heritage Audio effects modeled after Heritage Audio's own outboard and Heritage Audio's private gear collection.Able to record both WET and DRY streams from the MIXER to the DAW at the same time.Compatible with MacOS and Windows 10 and 11Recording, mixing and playback at up to 24-bit/192kHz.+48V PHANTOM power, PAD and PHASE.MONO, MUTE and DIM.Class-leading AD/DA conversion.USB-C connection to computer (cable included).Classic attractive European console design.Mini-DIN MIDI IN/OUT connector.Technical SpecificationsPhantom Power: 48 VSample Rate: up to 24-bit/192kHzMIDI in: Mini-DIN connectorSystem requirements: MacOS and Windows 10 and 11Computer Connection: USB-CPower supply: 12 VDC, externalDimensions (W x D X H): 185 x 200 x 90 mmWeight: 1.61 kg
12 x 16 USB-C interface with 2x integrated 73 style preampThe i73® PRO Edge is the first ever USB-C interface with two built-in pure Class A 73 style preamps. It aims to provide musicians, producers and audio engineers with an easy path to that cherished analog experience that have inspired music creation since the early 70’s. The i73® PRO Edge incorporates the same Class A transformer-balanced circuitry as the Heritage Audio classic 73 style preamps and provides all that classic mojo and vibe straight from the i73® PRO Edge to the computer.
As with any of Heritage Audio’s 73 style preamps, a three way input is with true studio quality implemented: A hearty MIC preamp with up to 70dBs of gain, an electric guitar/bass input with a fast, dynamic JFET DI and a clean LINE input. The i73® PRO Edge provides two additional LINE inputs and allows to connect eight additional analogue channels via ADAT in/out.
But a 73 style Class A preamp is only the gate to get to the Full Analog Experience. A low latency monitoring mixing console has been developed from the ground up with an independent configurable mix for two different speakers set and two headphones cues within the Heritage Audio MIXER running inside the i73® PRO Edge.
An integrated DSP allows realtime processing within Heritage Audio’s MIXER with an ever growing comprehensive set of tools modeled after Heritage Audio’s own outboard and private gear collection. It is also possible to insert third party native plugins via the MIXER’s Aux channels. For later post-processing and maximum flexibility, the WET and DRY signals can be recorded simultaneously in the DAW.
i73® PRO Edge provides the right tools to monitor audio just like in the Golden Era of recording studios out of the box and capture this sound right into the DAW with the advantage of a modern home studio workflow.
Features12-In / 16-Out USB-C Audio Interface2× Class A 73 style preamp with up to 70dB of gain for true studio-quality recordings. Microphone/line input, on combo XLR jack and dedicated JFET DI input for Hi-Z instruments.2× Extra line inputs.Direct monitoring with Heritage Audio's MIXER, processed in real-time with imperceptible latency.2x Analog stereo monitor output over TRS controlled independently by Heritage Audio's MIXER (1 mix per stereo out).2 x Independent stereo headphone outputs with dedicated cue.Recording, mixing and playback at up to 24-bit/192kHz.+48V PHANTOM power, PAD and PHASE.MONO, MUTE and DIM.Classic attractive European console design.Compatible with MacOS and Windows 10 and 11Full Analog Experience powered by DSP for real-time tracking processing with imperceptible latency.Including a growing collection of Heritage Audio effects modeled after Heritage Audio's own outboard and Heritage Audio's private gear collection.Able to record both WET and DRY streams from the MIXER to the DAW at the same time.Class-leading AD/DA conversion.USB-C connection to computer (cable included).Digitally expandable over ADAT (up to 8 channels).Mini-DIN MIDI IN/OUT connector.Technical SpecificationsPhantom Power: 48 VSample Rate: up to 24-bit/192kHzADAT: 2x Toslink (in/out)MIDI in: Mini-DIN connectorSystem requirements: MacOS and Windows 10 and 11Computer Connection: USB-CPower supply: 12 VDC, externalDimensions (W x D X H): 223 x 200 x 90 mm
Der LANG PEQ-2 Program Equalizer war in den letzten 60 Jahren für viele eine echte „Geheimwaffe“ und ist nun dank der Wiedergeburt von LANG Electronics Inc. durch die Übernahme von Heritage Audio wieder für jedermann verfügbar.
Der PEQ-2 ist ein sehr hochwertiger passiver Equalizer mit Übertragern und basiert auf dem gleichen patentierten Western Electric Design wie die allgegenwärtigen Pultec Program Equalizer, aber dank des Solid-State Ausgangsverstärkers bietet der PEQ-2 ein klareres und präziseres Klangbild und ist damit ideal für den Einsatz im Mix-Bus und Mastering Studio. Ein paar wichtige Unterschiede zwischen den beiden Legenden sind: Der PEQ-2 bietet fast doppelt so viele Filterfrequenzen wie der Pultec, 26 im Vergleich zu 14. Der Bassbereich ist viel besser kontrollierbar, da beim LANG-EQ im Gegensatz zum Pultec für das Anheben und Absenken getrennte Frequenzen pro Frequenzband eingestellt werden können. Außerdem steht im Höhenband eine nützliche 20-kHz-Option zur Verfügung, die wirklich hilfreich bei der Kontrolle der Höhen sein kann. Die glücklichen Toningenieure, die den alten PEQ-2 kennen, ziehen deshalb meist den PEQ-2 dem Pultec vor. Sie nutzen ihn als ihre „Geheimwaffe“ und verlassen sich voll und ganz auf ihn, um ihren charakteristischen Sound zu erzielen, darunter Größen wie Allen Sides, Andrew Sheps und Joe Chiccarelli, ….
Obwohl der PEQ-2 ein sehr einfaches und übersichtliches Layout besitzt, ermöglicht er durchaus extremen Bearbeitungen, ohne dabei die Musikalität des Signals zu beeinträchtigen. Mit unabhängigen Reglern für Boost und Droop (Cut) für das Hoch- und Tiefenband ist es möglich, Mischungen und Einzelsignale schnell auf interessante, kreative Art und Weise umzuformen, wie es mit einem Pultec gar nicht möglich ist. Wer dies einmal erlebt hat, wird sich fragen wie so etwas möglich ist.
Der PEQ-2 bietet neben einem Low-Shelf-Boost und -Cut, sowie High-Shelf-Cut, einen High-Peak-Boost mit einer vollständig variablen Q-Einstellung (Bandbreite), die von schmal- bis breitbandig reicht, um alle Anforderungen abzudecken. Darüber hinaus variiert der Boost in Abhängigkeit von der gewählten Bandbreiten-Einstellung und ermöglicht jederzeit eine sehr sanfte und natürliche Klangcharakteristik.
Der „Pultec-Trick“, mit der Möglichkeit, bei gleichen oder ähnlichen Frequenzen zu verstärken und gleichzeitig abzusenken, führt zu sehr interessanten und einzigartigen Frequenzkurven. Dieses leistungsfähige Prinzip ist die Grundlage des PEQ-2 und lässt sich am besten durch Experimentieren erleben. Mit etwas Erfahrung lassen sich dann sehr leicht und schnell beeindruckende Ergebnisse erzielen.
Heritage Audio macht diesen fast verlorenen Schatz nun für alle zugänglich. Nach monatelangem Studium der Originale wurde der PEQ-2 wiedergeboren und ist nun auf vielfachen Wunsch zurück. Wie alle Heritage Audio Produkte ist auch der LANG PEQ-2 mit maßgefertigten Audio-Übertragern im Ein- und Ausgang ausgestattet und liefert ein solides und rauschfreies Signal für moderne Studioumgebungen.
Lang Electronics Inc. war bekannt dafür, sehr hochwertige Geräte zu erschwinglichen Preisen anzubieten, und Heritage Audio führt diese Philosophie fort.
Eigenschaften
Authentische Neuauflage des LANG PEQ-2 Program Equalizers
Patentiertes Western Electric-Design wie der Pultec mit erweiterter Funktionalität und erweiterten Klangbearbeitungsmöglichkeiten
Übertragersymmetrierte Ein- und Ausgänge
Gerasterte Regler für einfachen Recall
High-Peak-Boost mit variabler Bandbreite und 20 kHz-Option
Maßgefertigte Übertrager und Kondensatoren gemäß dem Original
High-Shelf-Cut mit erweiterten Filterfrequenzen
Low-Shelf-Boost und Low-Shelf-Cut jeweils mit eigener Frequenzwahlwahl
€998.00*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
