The most widely recognized and trusted name in AC power conditioning is proud to introduce the AC-210AE compact power conditioner featuring Furman’s revolutionary SMP technology. Furman’s Series Multi-Stage Protection (SMP) circuit features our exclusive Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, the world’s most advanced and comprehensive transient voltage surge suppressor.SMP (Series Multi-Stage Protection Plus)Furman’s SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman’s SMP, damaging transient voltages are safely absorbed, clamped and dissipated - no sacrificed parts, no service calls, no down time.Unique to Furman’s SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of - USA/CIDA’s A-1-1 test. While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), Furman’s SMP clamps at 376VAC peak, 275 VAC RMS even when tested with multiple 6000VAC - 3000 Amp surges! This unprecedented level of protection is only available with Furman’s SMP technology.LiFT (Linear Filtering Technology)Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.E.V.S. (Extreme Voltage Shutdown)Furman’s trusted overvoltage circuitry protects against all too frequent accidental connections to extreme voltage by shutting off the incoming power until the overvoltage condition is corrected.Compact Chassis DesignAt only 1.75'H x 5'W x 8.5'D, and weighing in at only 3 lbs., the AC-210 A E's compact, low-profile design makes it ideal for mounting to the back of a flat-screen television, or anywhere that discretely located, remote power protection and purification are needed.FeaturesFurman's exclusive SMP Technology provides the highest level of surge & spike protection availableLiFT offers linear AC power filtering to ensure clean power for unequaled audio & video clarityAuto-Reset EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditionsLED indicators provide information on power quality and operational status of unit10 amp rating featuring circuit breaker for added protectionZero ground contamination circuitry protects critical video circuitsCompact chassis design easily attaches to any flat screen television mount or any other remote location
Features
Control individual outlets or outlet banks
Monitor your devices and power status
Receive E-mail alerts for power events
Schedule tasks such as power on, off, and reboot
Manage multiple devices across multiple locations
Utilize device-specific features for your compatible product
Description

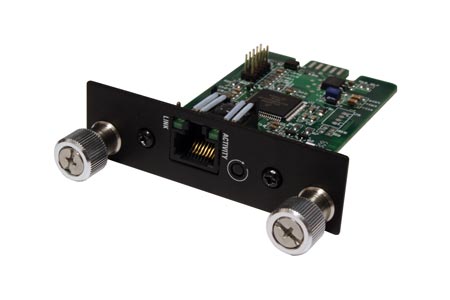

Your Gateway to BlueBOLT The BlueBOLT-CV1 Interface Card plugs in to select Panamax/Furman products and provides access to BlueBOLT™ cloud based remote power management technology. Each BlueBOLT-CV1 card includes a unique MAC address and identification number allowing you to create a BlueBOLT account or add a compatible unit to an existing account.
The BlueBOLT-CV1 is completely plug-and-play – no static IP addresses to set up or ports to configure. Simply plug the card into a compatible device, connect it to the Internet, register the unit, and you’re ready to go!
Look for the BlueBOLT logo The BlueBOLT-CV1 works with any BlueBOLT-Compatible Panamax or Furman product.
Surge ProtectionSeries Multi-Stage Protection (SMP)Technology provides the highest level ofsurge & spike protection available.
Noise FiltrationLinear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
Voltage ProtectionExtreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
SmartSequencing™SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
Diagnostic LightsDiagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
16 Amp Output Current16 amp maximum current capacity with incorporated 16 amp thermal circuit breaker.
Remote Access (RS-232)RS-232 compatibility & command set provide integration with control systems, open source and control programming.
BlueBOLT Compatible®BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.
Nine Total OutletsThe CN-3600 SE contains eight rear panel IEC C13 outlets and one front panel IEC C13 outlet.
CN-3600 SE Description
Designed for Commercial A/V Installations in 220V-240V regions, the CN-3600 SE combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).
The new CN-3600 SE is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.
In addition, the CN-3600 SE offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.
A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-10Lx E in to the top slot of your rack, and the ten switched outlets in the rear panel will power up and protect all your equipment up to a 10-amp load. The M-10Lx E features two slide out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.Specifications
Maximum Output Current: 10 amps
Line Cord: 1.5 meter, removable, IEC C-13 female to Schuko male
Lamps: LED
Operating Voltage: 230VAC 50Hz
Spike Protection Mode: Line to neutral
Energy Dissipation: 305 joules
Peak Impulse Current: 12,000 amps
Maximum Continuous Opterating Voltage: 650 Volts
Noise Attenuation: Transverse mode: Greater than 20dB, 1.5Mhz to 200 Mhz
Dimensions: 1.75” H x 19” W x 7.5” D
Weight: 2.3 kg.
Safety Agency Listing: CE
Warranty: Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-10x E in to the top slot of your rack, and the ten switched outlets in the rear panel will power up and protect all your equipment up to a 10-amp load.
Specifications
Maximum Output Current:
10 amps
Line Cord:
1.5 meter, removable, IEC C-13 female to Schuko male
Operating Voltage:
230VAC 50Hz
Spike Protection Mode:
Line to neutral
Energy Dissipation:
305 joules
Peak Impulse Current:
12,000 amps
Maximum Continuous Opterating Voltage:
650 Volts
Noise Attenuation:
Transverse mode: Greater than 20dB, 1.5Mhz to 200 Mhz
Dimensions:
1.75” H x 19” W x 7.5” D
Weight:
2.3 kg.
Safety Agency Listing:
CE
Warranty:
Merit Series units are protected by a limited three year warranty covering defects in materials and workmanship.
Der 6 Ampere Spannungsregulator P-1400-AR-E sorgt für konstante 230 Volt Stromversorgung, um Ihre Geräte vor Fehlfunktion oder Beschädigung durch Spannungseinbruch oder Unter- und Überspannung zu schützen. Der P-1400-AR-E verarbeitet ankommende Netzversorgung von 188 bis 270 Volt und reguliert diese auf konstante 230 Volt ±10V. Sogar Spannungen weit außerhalb dieses Bereiches werden abhängig von Intervall/Bereich in nutzbare Bereiche stabilisiert. Zusätzlich ist der P-1400 AR E ein vollwertiger Power-Conditioner mit dem höchtsmöglichen Standard an aufwendigen Schutzschaltungen und Filtern gegen Spannungsspitzen/Transienten und Einstreuungen, um die optimale Performance Ihrer Audioanlage zu gewährleisten. Spannungsregulator sorgt für konstante Stromversorgung um Ihre Geräte vor Fehlfunktion oder Beschädigung durch Spannungseinbruch oder Unter und Überspannung zu schützen. Verarbeitet ankommende Netzversorgung von 188 bis 270 Volt und reguliert diese auf konstante 230 Volt ±10V. Gesamtlast 6 Ampere / 1400 Watt. Zusätzlich vollwertiger PowerConditioner mit dem höchtsmöglichen Standard an aufwendigen Schutzschaltungen und Filtern gegen Spannungsspitzen/Transienten und Einstreuungen, um die optimale Performance Ihrer Audioanlage zu gewährleisten. Mit SMP (Series Mode Protection) wartungsfreier Überspannungsschutz, Transienten und Überspannungsspitzen werden innerhalb <1 Nanosekunde erfasst, absorbiert und abgeleitet. Mit LIFT (Linear Filtering Technology) masseschlußfreie Geräuschdämpfung (10 dB @10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz). Mit EVS (Automatic Extreme Voltage Shutdown) für Abschaltung/Trennung bei Überspannung. Bereinigte und abgesicherte Spannungsausgabe über 10 x rück und 1 x frontseitige IEC 320Anschlüsse mit zentralem Schalter vorn. Hinten Sicherungsautomat resetbar. Die Ausgänge sind isoliert zur Minimierung von Interferenzen/Störgeräuschbildung zwischen den angeschlossenen Geräten. Rückseitiger BNCAnschluss mit Schalter für optionale Schwanenhalslampe (12 V/0,5 A). ProtectionOK und ExtremVoltage Anzeigen für Status Funktion/Schutzmodus. 19'/1HE, Einbautiefe 30,5 cm, Gewicht 7 kg. Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.
The 30 Amp P-6900 AR E delivers clean, stable power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages all of which can cause sensitive electronic equipment to malfunction or sustain damage. The P-6900 AR E accepts any input voltage from 188V to 270V and transforms it to a constant output of 230V or 240V (switchable), ±10V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.Additionally, the P-6900 AR E is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman's Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.Specifications
Maximum Current: 30 amps
Line Cord: 30A C-Form connector with female mating connector for termination of custom line cord
Operating Voltage: 174 to 264 VAC
Over-Voltage Shutdown: 275 VAC Nominal
Approximate Input Voltage Capture Range: 174 to 264 VAC
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 375 VAC peak @ 3,000 Amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Dimensions: 482.6mm W x 597mm D x 133.35mm H
Weight: 26 kg.
Power Consumption: 5 watts
The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.FeaturesSurge ProtectionFurman's exclusive SMP technology provides the highest level of surge & spike protection available.Noise FiltrationLiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.Voltage ProtectionAdvanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.Pull-out LightsDual smooth track retractable LED lights illuminate equipment in your rack.Diagnostic LightsLED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.Isolated BanksIsolated outlet banks minimize inter-component interference and noise contamination.10 AMP Rating10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.11 Total Outlets11 total outlets (10 rear panel outlets and one front panel convenience outlet).BNC Lamp ConnectorRear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.FeaturesSurge ProtectionFurman's exclusive SMP technology provides the highest level of surge & spike protection available.Noise FiltrationLiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.Voltage ProtectionAdvanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.Pull-out LightsDual smooth track retractable LED lights illuminate equipment in your rack.Diagnostic LightsLED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.LED VoltmeterSegmented LED voltmeter monitors and displays incoming line voltage.Isolated BanksIsolated outlet banks minimize inter-component interference and noise contamination.10 AMP Rating10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.11 Total Outlets11 total outlets (10 rear panel outlets and one front panel convenience outlet).BNC Lamp ConnectorRear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.Specifications:Maximum Output Current: 10 ampsLine Cord: 3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plugPull-out Lights: Two multi-LED, dimmable lampsBNC Socket w/Switch: Rear rack lamp, 12VAC 500MA maxx (lamp not included)Operating Voltage: 180 to 274 VACSpike Protection Mode: Line to neutral, zero ground leakageSpike Clamping Voltage: 375 VAC peak @ 3,000 AmpsResponse Time: 1 nanosecondMaximum Surge Current: 6,500 AmpsNoise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHzDimensions: 482.6mm W x 266.7mm D x 44.5mm HWeight: 6 kg.Power Consumption: 12 wattsSafety Listing: CE
The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.FeaturesSurge ProtectionFurman's exclusive SMP technology provides the highest level of surge & spike protection available.Noise FiltrationLiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.Voltage ProtectionAdvanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.Pull-out LightsDual smooth track retractable LED lights illuminate equipment in your rack.Diagnostic LightsLED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.USB ChargerFront panel convenience charger allows you to charge most media devices or power a USB lamp.Voltmeter / AmmeterLarge digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.Isolated BanksIsolated outlet banks minimize inter-component interference and noise contamination.16 AMP Rating16 Amp rating featuring a high inrush magnetic circuit breaker for added protection.11 Total Outlets11 total outlets (10 rear panel outlets and one front panel convenience outlet).BNC Lamp ConnectorRear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.Specification:Maximum Output Current: 16 ampsLine Cord: 3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plugPull-out Lights: Two multi-LED, dimmable lampsBNC Socket w/Switch: Rear rack lamp, 12VAC 500MA maxx (lamp not included)Operating Voltage: 180 to 274 VACSpike Protection Mode: Line to neutral, zero ground leakageSpike Clamping Voltage: 375 VAC peak @ 3,000 AmpsResponse Time: 1 nanosecondMaximum Surge Current: 6,500 AmpsNoise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHzDimensions: 482.6mm W x 266.7mm D x 44.5mm HWeight: 6 kg.Power Consumption: 12 wattsSafety Listing: CE
Features
Series Multi-Stage Protection (SMP) for virtually maintenance free protection from surges and spikes. No sacrificed parts, no service calls, no downtime!
Furman's unequaled Linear Filtering Technology (LiFT) rids systems of AC line noise for consistent audio/video clarity
Automatic Extreme Voltage Shutdown (E.V.S.) powers down equipment during a prolonged extreme over-voltage
Six sequenced rear panel outlets (in 3 groups), two switched rear panel outlets, and one front panel switched outlet
Momentary and Maintained sequencing via rear panel terminal block or front panel switch
10 amp rating with circuit breaker
BNC connector on the rear panel allows connection of any standard gooseneck lamp
New Features in the PS-8RE III
All settings and configuration available on rear panel
External delay and remote interface configuration: No need to remove the top cover to adjust potentiometers or jumpers
Lower profile depth: shorter depth chassis provides more flexibility with rack placement and cable management
Improved "Start On/Off Sequence" rocker switch: tactile black switch replaces push-button
Non-illuminated power on/off switch: matte black switch for discreet aesthetics
Description
The most widely recognized and trusted name in AC power conditioning is proud to introduce the PS-8RE III power conditioner / sequencer, featuring Furman's revolutionary SMP technology. Furman's Series Multi-Stage Protection (SMP) circuit also features our exclusive Linear Filter Technology (LiFT) with Extreme Voltage Shutdown (EVS) and a high current TVZ-MOV. Together, these technologies comprise what is, without question, the world's most advanced and comprehensive transient voltage surge suppressor
SMP (Series Multi-Stage Protection)Furman’s SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman’s SMP, damaging transient voltages are safely absorbed, clamped and dissipated - no sacrificed parts, no service calls, no down time.
Unique to Furman’s SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of - USA/CIDA’s A-1-1 test. While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), Furman’s SMP clamps at 376VAC peak, 266 VAC RMS even when tested with multiple 6000VAC - 3000 Amp surges! This unprecedented level of protection is only available with Furman’s SMP technology.
LiFT (Linear Filtering Technology)Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.
E.V.S. (Extreme Voltage Shutdown)Furman’s trusted overvoltage circuitry protects against all too frequent accidental connections to high voltages by shutting off the incoming power until the overvoltage condition is corrected.
Rear Panel BNC ConnectorFor rear panel illumination, a BNC connector is provided for connection of any standard gooseneck lamp, such as the Furman GN-LED or GN-I (sold seperately).
SequencingThe PS-8RE III Power Conditioner/Sequencers is capable of powering up a rack full of equipment in a 3-step delayed sequence. The sequence is reversed for power-down. The sequence can be initiated with either momentary or maintained switches, locally or remotely. A duplex outlet is provided for each delay step. One or more Furman PS-8RE III’s may be installed in remote locations and operated via low-voltage wiring.
€598.00*
