When you’re working with art – whether it’s someone else’s or your own – you need equipment you can trust. A professional producer or engineer is part of the creative process, and his or her ears are the most trustworthy tools they have. They know what sounds good, and they know that a good reference monitor can help them make a good performance great.
Features:
Hand-crafted Designed, developed, tested and made in Denmark.
All the drivers are hand-made at Dynaudio HQ, and each speaker is individually calibrated before it leaves our factory
Advanced DSP Simple to use, but incredibly powerful, it lets you tailor Core 59 for any listening environment Core’s DSP optimises performance for positioning, sound balance and bass extension
Power to spare Each driver has its own dedicated Pascal Class-D amplifier: 500 W each for the woofer and midrange drivers and a 150W amp for the tweeter. That’s some serious headroom
Esotar Pro tweeter Dynaudio’s already legendary high-frequency driver has been redesigned and re-engineered for high-performance professional use
All-new drivers Designed and made in Denmark using our world-class Jupiter measuring facility Tweeter - 1” Midrange - 5” Woofer - 9.5” • Extreme consistency All Core speakers are within 0.2dB of each other for multi-speaker set-ups you can trust
Flexible cabinet placement Use it on all four sides and rotate the mid/tweeter baffle for even more options
Easy to fit Use standard VESA mounts or install in soffit walls to tailor it to your studio
Connectivity Analogue and AES3 digital inputs Maximum 24-bit/192 kHz Depending on input signal
Maximum SPL * 112 dB @ 1 m anechoic, 118 dB half space
Crossover frequency 312.5 Hz (LF/MF) / 5100 Hz (MF/HF) • Frequency response * 36 Hz – 24 kHz - 6 dB 42 Hz – 21 kHz +/- 3 dB
Principle Front-loaded bass reflex * Maximum SPL measured using band-limited pink noise, 6 dB crest factor, 80 Hz – 8 kHz in Jupiter (our state-of-the-art measuring room)

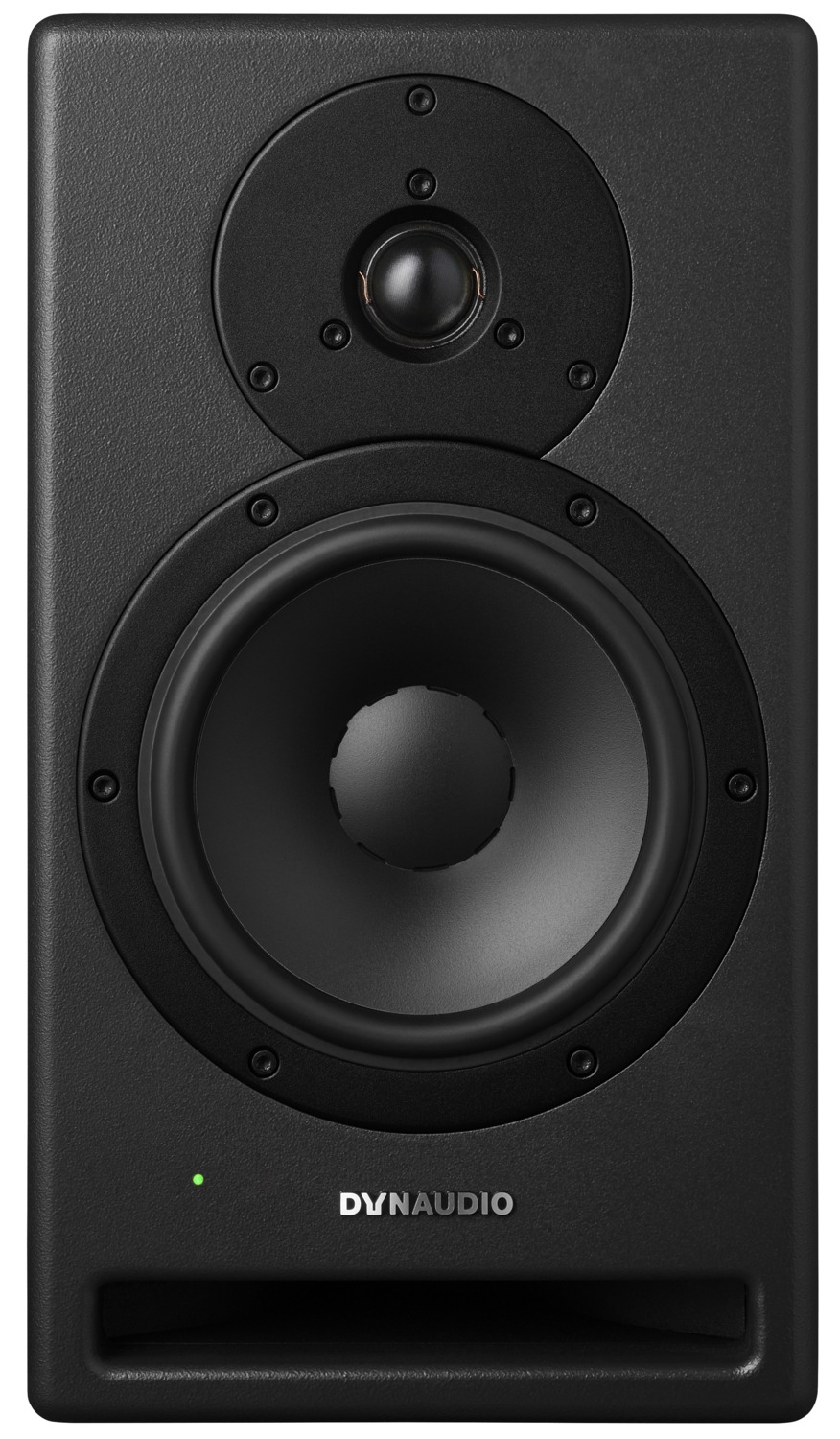

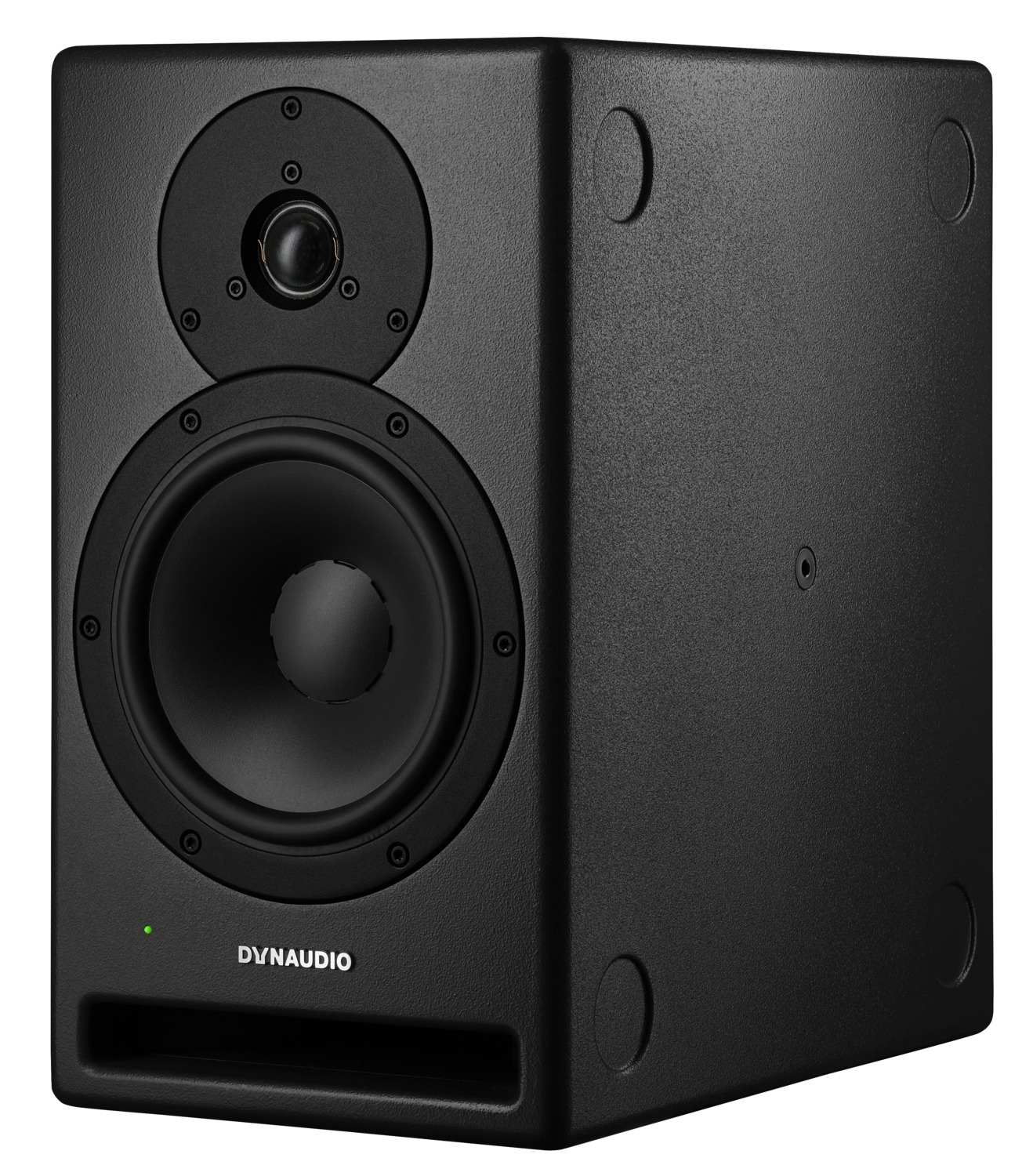

Trust is critical in this business. Whether you’re recording a power-trio or an orchestra, mixing a solo voiceover or video-game soundtrack, or mastering a full immersive audio project (such as a Dolby ATMOS mix), you need to know that your monitors reproduce everything you need to hear – warts and all.
Features
Hand-crafted Designed, developed, tested and made in Denmark. All the drivers are hand-made at Dynaudio HQ and each speaker is individually calibrated before it leaves our factory
Advanced DSP Simple to use, but incredibly powerful, it lets you tailor Core 7 for any listening environment Core’s DSP optimises performance for positioning, sound balance and bass extension
Power to spare Each driver has its own dedicated Pascal Class-D amplifier: 500W for the woofer and 150W for the tweeter.
Esotar Pro tweeter Dynaudio’s already legendary high-frequency driver has been redesigned and re-engineered for high-performance professional use
All-new drivers Designed and made in Denmark using our world-class Jupiter measuring facility Tweeter - 1” Woofer - 7”
Extreme consistency All Core speakers are within 0.2dB of each other for multi-speaker set-ups you can trust • Connectivity Analogue and AES3 digital inputs Maximum 24-bit/192 kHz Depending on input signal
Maximum SPL * 112 dB @ 1 m anechoic, 118 dB half space • Crossover frequency 2300 Hz
Frequency response * 38 Hz – 24 kHz - 6 dB 44 Hz – 21 kHz +/- 3 dB • Principle Front-loaded bass reflex * Maximum SPL measured using band-limited pink noise, 6 dB crest factor, 80 Hz – 8 kHz in Jupiter (our state state-of-the-art measuring room)

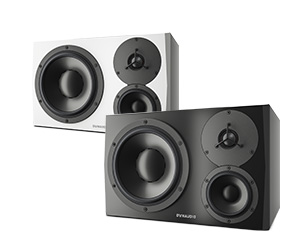

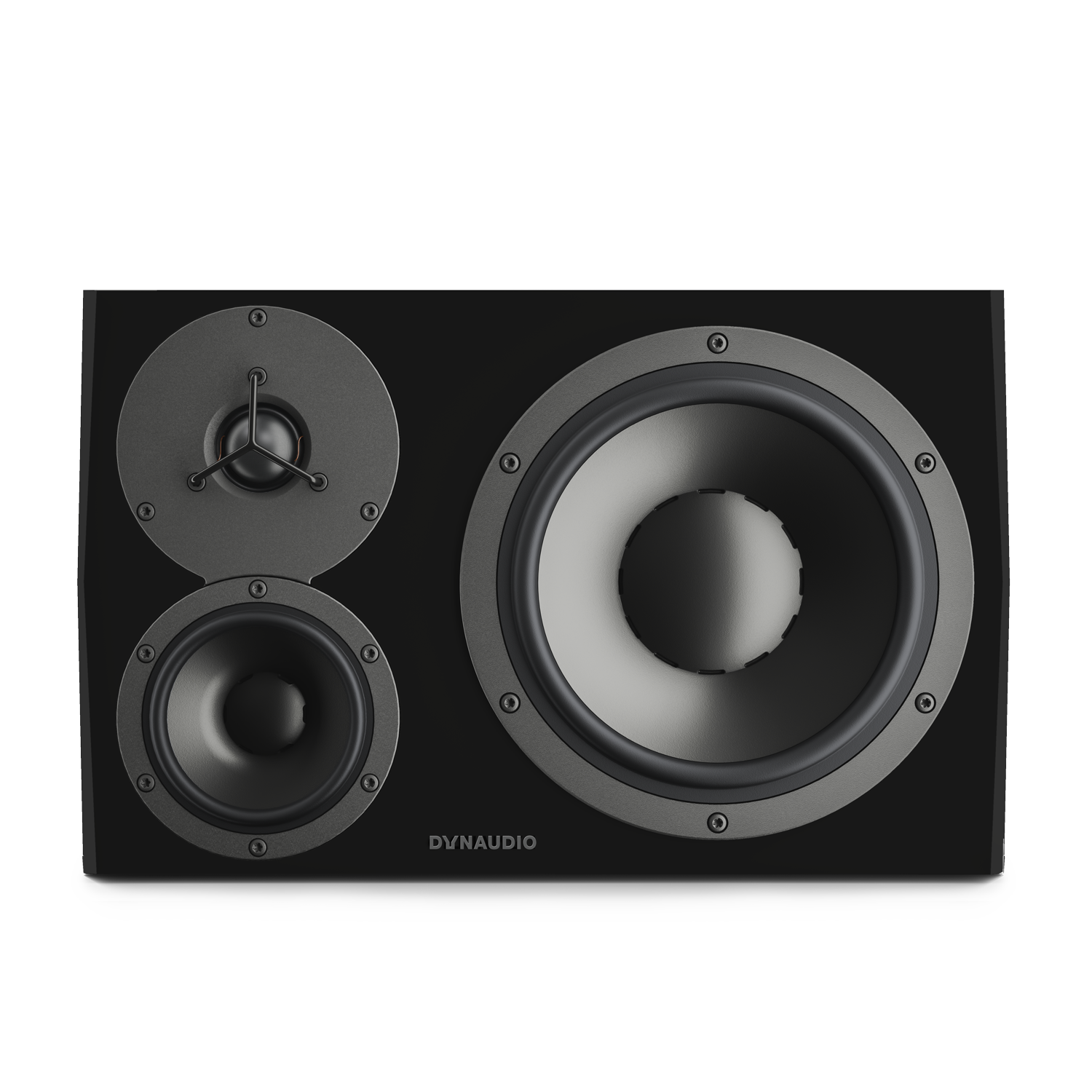

Building on the award-winning and review-topping range of Dynaudio PRO LYD personal reference studio monitors, LYD-48 is a brand new 3-way design that achieves its unerring accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange and woofers. Each of its three hand-made drivers are fuelled by a powerful, state-of-the-art Class-D amplifier and DSP, making the monitors well suited for nearfield as well as midfield monitor applications. The perfect choice for unrivalled accuracy at any volume, LYD 48 brings precision to passion delivering all the power needed and at the right time.
- Handcrafted mid/nearfield reference 4/8” monitors- Tri-amped design with state-of-the-art Class-D amplification- Next generation DSP for tailoring the monitor to the mix-space- Made in Denmark
Power and DSPEach LYD-48 drive unit is tri-powered (50w HF/ 50w MF/ 80w LF) by state-of-the-art Class-D amplifiers that feature a 96kHz/24bit signal path, plus a DSP used in just the right way offers the option to extend or curtail the low frequency response by 10Hz where needed, while both ‘Position’ and ‘Sound Balance’ controls ensure the best possible performance for any mixing or listening environment. (see more below)
Hand-crafted DriversLYD-48 uses Dynaudio’s legendary handcrafted soft-dome silk tweeter with an aluminium voice coil to reproduce upper frequencies in a natural, uncoloured manner. Using aluminium over copper drastically reduces the weight of the voice coil, whilst also improving the thermal behaviour of the driver (less thermal distortion). Also, these type of tweeters don’t give off any shrill high-frequency resonance that can plague some other designs, meaning you can work for long hours without ear-fatigue.
For the mid and lower frequencies, Dynaudio’s trademark handcrafted 4” and 8” drivers are made from Magnesium Silicate Polymer (MSP), which offers the perfect balance between stiffness, weight and dampening. Combined with the better thermal behaviour of aluminium in itself and the die-cast aluminium basket of the LF driver, the overall sonic performance is improved with less thermal distortion. Using lightweight aluminium instead of copper allows for a larger diameter voice coil, which results in increased cooling and enables our flat cone design to give better off axis frequency response and means transient response is blazingly fast.
Powerful Amplification - State-of-the-art Class-DAs with the rest of the LYD family, the LYD 48 features the same new state-of-the-art Class-D amplifier design. LYD 48 is tri-amped with separate 50W amplifiers for the tweeter and midrange and an 80W amplifier for the woofer. The digital amps feature a 96kHz/24bit signal path and the crossover is handled by an Analog Devices DSP. The DSP also processes the Bass Extension, Sound Balance and Position tuning modes. Different input sensitivities can be chosen to account for different types of studio equipment and audio devices. The amplifier also offers a selectable Standby Mode to save energy when the monitor detects silence. An incoming signal will quickly wake the monitor out of standby.

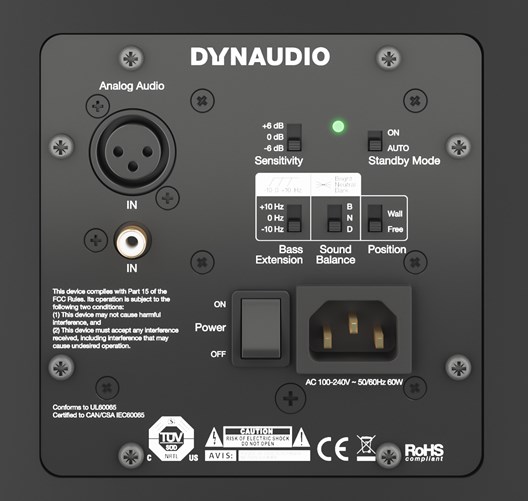

DSP used in just the right wayBass Extension Control Due to the fact that low frequencies need a lot of energy and therefore membrane movement, every monitor design involves a compromise between low frequency reproduction and maximum SPL. By offering presets for the cut–off frequency of the woofer, you can choose to either have the speaker perform as loud as possible (+10Hz/+5dB) or as deep as possible (-10Hz/-5db). The 0Hz setting is our default factory setting. Neither of the three settings will influence the linearity of the frequency response though, so your mix remains pure.
- Extend or reduce the low frequency response by +10 Hz or-10 Hz - Changes the low end response while maintaining a linear frequency response
Position Control Placing a speaker close to a wall can prove to be problematic and this is especially true for bass-ported systems. The issue is primarily audible on low frequencies. Therefore, we created two different tunings, one for when your monitors are free standing (“Free”) and one for when they are placed within 50 cm of a back wall or closer (“Wall”). This will help to provide a more balanced response at whatever your choice of listening position.
- Changes tuning presets - Provides better sound characteristics when used close to a wall
Sound Balance Control Different to simple Shelf-EQs that features on most studio monitors, the Sound Balance control is a so called ‘Tilt-Filter’ that lifts one end of the frequency spectrum, while lowering the other end by the same amount. This can be used to influence the frequency response of the monitor, without affecting the critical phase that EQ can influence on the imaging of your mix. Our tilt filter lifts 20 kHz by 1.5 db, while lowering 20Hz by1.5dB (“Bright”) and the other way around (“Dark”).
- Tunes the speaker by tilting the whole frequency spectrum - Linear phase response
Tech Specs
- Near to Midfield Monitor - Handmade drivers - 1” soft-dome tweeter, 4” midrange and 8” woofer- Max. SPL (1m, pair): 114 dB*- Freq. Response: 40Hz – 21kHz*- Bass Reflex- HF 50W/MF 50W/LF 80W Class-D amplifier with 96kHz/24bit signal path- Adjustable Input Sensitivity- Selectable Auto-Standby Mode- XLR and RCA inputs- Available in Black/White and all Black finishes
* Preliminary information
Building on the award-winning and review-topping range of Dynaudio PRO LYD personal reference studio monitors, LYD-48 is a brand new 3-way design that achieves its unerring accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange and woofers. Each of its three hand-made drivers are fuelled by a powerful, state-of-the-art Class-D amplifier and DSP, making the monitors well suited for nearfield as well as midfield monitor applications. The perfect choice for unrivalled accuracy at any volume, LYD 48 brings precision to passion delivering all the power needed and at the right time.
- Handcrafted mid/nearfield reference 4/8” monitors- Tri-amped design with state-of-the-art Class-D amplification- Next generation DSP for tailoring the monitor to the mix-space- Made in Denmark
Power and DSPEach LYD-48 drive unit is tri-powered (50w HF/ 50w MF/ 80w LF) by state-of-the-art Class-D amplifiers that feature a 96kHz/24bit signal path, plus a DSP used in just the right way offers the option to extend or curtail the low frequency response by 10Hz where needed, while both ‘Position’ and ‘Sound Balance’ controls ensure the best possible performance for any mixing or listening environment. (see more below)
Hand-crafted DriversLYD-48 uses Dynaudio’s legendary handcrafted soft-dome silk tweeter with an aluminium voice coil to reproduce upper frequencies in a natural, uncoloured manner. Using aluminium over copper drastically reduces the weight of the voice coil, whilst also improving the thermal behaviour of the driver (less thermal distortion). Also, these type of tweeters don’t give off any shrill high-frequency resonance that can plague some other designs, meaning you can work for long hours without ear-fatigue.
For the mid and lower frequencies, Dynaudio’s trademark handcrafted 4” and 8” drivers are made from Magnesium Silicate Polymer (MSP), which offers the perfect balance between stiffness, weight and dampening. Combined with the better thermal behaviour of aluminium in itself and the die-cast aluminium basket of the LF driver, the overall sonic performance is improved with less thermal distortion. Using lightweight aluminium instead of copper allows for a larger diameter voice coil, which results in increased cooling and enables our flat cone design to give better off axis frequency response and means transient response is blazingly fast.
Powerful Amplification - State-of-the-art Class-DAs with the rest of the LYD family, the LYD 48 features the same new state-of-the-art Class-D amplifier design. LYD 48 is tri-amped with separate 50W amplifiers for the tweeter and midrange and an 80W amplifier for the woofer. The digital amps feature a 96kHz/24bit signal path and the crossover is handled by an Analog Devices DSP. The DSP also processes the Bass Extension, Sound Balance and Position tuning modes. Different input sensitivities can be chosen to account for different types of studio equipment and audio devices. The amplifier also offers a selectable Standby Mode to save energy when the monitor detects silence. An incoming signal will quickly wake the monitor out of standby.
DSP used in just the right wayBass Extension Control Due to the fact that low frequencies need a lot of energy and therefore membrane movement, every monitor design involves a compromise between low frequency reproduction and maximum SPL. By offering presets for the cut–off frequency of the woofer, you can choose to either have the speaker perform as loud as possible (+10Hz/+5dB) or as deep as possible (-10Hz/-5db). The 0Hz setting is our default factory setting. Neither of the three settings will influence the linearity of the frequency response though, so your mix remains pure.
- Extend or reduce the low frequency response by +10 Hz or-10 Hz - Changes the low end response while maintaining a linear frequency response
Position Control Placing a speaker close to a wall can prove to be problematic and this is especially true for bass-ported systems. The issue is primarily audible on low frequencies. Therefore, we created two different tunings, one for when your monitors are free standing (“Free”) and one for when they are placed within 50 cm of a back wall or closer (“Wall”). This will help to provide a more balanced response at whatever your choice of listening position.
- Changes tuning presets - Provides better sound characteristics when used close to a wall
Sound Balance Control Different to simple Shelf-EQs that features on most studio monitors, the Sound Balance control is a so called ‘Tilt-Filter’ that lifts one end of the frequency spectrum, while lowering the other end by the same amount. This can be used to influence the frequency response of the monitor, without affecting the critical phase that EQ can influence on the imaging of your mix. Our tilt filter lifts 20 kHz by 1.5 db, while lowering 20Hz by1.5dB (“Bright”) and the other way around (“Dark”).
- Tunes the speaker by tilting the whole frequency spectrum - Linear phase response
Tech Specs
- Near to Midfield Monitor - Handmade drivers - 1” soft-dome tweeter, 4” midrange and 8” woofer- Max. SPL (1m, pair): 114 dB*- Freq. Response: 40Hz – 21kHz*- Bass Reflex- HF 50W/MF 50W/LF 80W Class-D amplifier with 96kHz/24bit signal path- Adjustable Input Sensitivity- Selectable Auto-Standby Mode- XLR and RCA inputs- Available in Black/White and all Black finishes
* Preliminary information
Building on the award-winning and review-topping range of Dynaudio PRO LYD personal reference studio monitors, LYD-48 is a brand new 3-way design that achieves its unerring accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange and woofers. Each of its three hand-made drivers are fuelled by a powerful, state-of-the-art Class-D amplifier and DSP, making the monitors well suited for nearfield as well as midfield monitor applications. The perfect choice for unrivalled accuracy at any volume, LYD 48 brings precision to passion delivering all the power needed and at the right time.
- Handcrafted mid/nearfield reference 4/8” monitors- Tri-amped design with state-of-the-art Class-D amplification- Next generation DSP for tailoring the monitor to the mix-space- Made in Denmark
Power and DSPEach LYD-48 drive unit is tri-powered (50w HF/ 50w MF/ 80w LF) by state-of-the-art Class-D amplifiers that feature a 96kHz/24bit signal path, plus a DSP used in just the right way offers the option to extend or curtail the low frequency response by 10Hz where needed, while both ‘Position’ and ‘Sound Balance’ controls ensure the best possible performance for any mixing or listening environment. (see more below)
Hand-crafted DriversLYD-48 uses Dynaudio’s legendary handcrafted soft-dome silk tweeter with an aluminium voice coil to reproduce upper frequencies in a natural, uncoloured manner. Using aluminium over copper drastically reduces the weight of the voice coil, whilst also improving the thermal behaviour of the driver (less thermal distortion). Also, these type of tweeters don’t give off any shrill high-frequency resonance that can plague some other designs, meaning you can work for long hours without ear-fatigue.
For the mid and lower frequencies, Dynaudio’s trademark handcrafted 4” and 8” drivers are made from Magnesium Silicate Polymer (MSP), which offers the perfect balance between stiffness, weight and dampening. Combined with the better thermal behaviour of aluminium in itself and the die-cast aluminium basket of the LF driver, the overall sonic performance is improved with less thermal distortion. Using lightweight aluminium instead of copper allows for a larger diameter voice coil, which results in increased cooling and enables our flat cone design to give better off axis frequency response and means transient response is blazingly fast.
Powerful Amplification - State-of-the-art Class-DAs with the rest of the LYD family, the LYD 48 features the same new state-of-the-art Class-D amplifier design. LYD 48 is tri-amped with separate 50W amplifiers for the tweeter and midrange and an 80W amplifier for the woofer. The digital amps feature a 96kHz/24bit signal path and the crossover is handled by an Analog Devices DSP. The DSP also processes the Bass Extension, Sound Balance and Position tuning modes. Different input sensitivities can be chosen to account for different types of studio equipment and audio devices. The amplifier also offers a selectable Standby Mode to save energy when the monitor detects silence. An incoming signal will quickly wake the monitor out of standby.
DSP used in just the right wayBass Extension Control Due to the fact that low frequencies need a lot of energy and therefore membrane movement, every monitor design involves a compromise between low frequency reproduction and maximum SPL. By offering presets for the cut–off frequency of the woofer, you can choose to either have the speaker perform as loud as possible (+10Hz/+5dB) or as deep as possible (-10Hz/-5db). The 0Hz setting is our default factory setting. Neither of the three settings will influence the linearity of the frequency response though, so your mix remains pure.
- Extend or reduce the low frequency response by +10 Hz or-10 Hz - Changes the low end response while maintaining a linear frequency response
Position Control Placing a speaker close to a wall can prove to be problematic and this is especially true for bass-ported systems. The issue is primarily audible on low frequencies. Therefore, we created two different tunings, one for when your monitors are free standing (“Free”) and one for when they are placed within 50 cm of a back wall or closer (“Wall”). This will help to provide a more balanced response at whatever your choice of listening position.
- Changes tuning presets - Provides better sound characteristics when used close to a wall
Sound Balance Control Different to simple Shelf-EQs that features on most studio monitors, the Sound Balance control is a so called ‘Tilt-Filter’ that lifts one end of the frequency spectrum, while lowering the other end by the same amount. This can be used to influence the frequency response of the monitor, without affecting the critical phase that EQ can influence on the imaging of your mix. Our tilt filter lifts 20 kHz by 1.5 db, while lowering 20Hz by1.5dB (“Bright”) and the other way around (“Dark”).
- Tunes the speaker by tilting the whole frequency spectrum - Linear phase response
Tech Specs
- Near to Midfield Monitor - Handmade drivers - 1” soft-dome tweeter, 4” midrange and 8” woofer- Max. SPL (1m, pair): 114 dB*- Freq. Response: 40Hz – 21kHz*- Bass Reflex- HF 50W/MF 50W/LF 80W Class-D amplifier with 96kHz/24bit signal path- Adjustable Input Sensitivity- Selectable Auto-Standby Mode- XLR and RCA inputs- Available in Black/White and all Black finishes
* Preliminary information
Building on the award-winning and review-topping range of Dynaudio PRO LYD personal reference studio monitors, LYD-48 is a brand new 3-way design that achieves its unerring accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange and woofers. Each of its three hand-made drivers are fuelled by a powerful, state-of-the-art Class-D amplifier and DSP, making the monitors well suited for nearfield as well as midfield monitor applications. The perfect choice for unrivalled accuracy at any volume, LYD 48 brings precision to passion delivering all the power needed and at the right time.
- Handcrafted mid/nearfield reference 4/8” monitors- Tri-amped design with state-of-the-art Class-D amplification- Next generation DSP for tailoring the monitor to the mix-space- Made in Denmark
Power and DSPEach LYD-48 drive unit is tri-powered (50w HF/ 50w MF/ 80w LF) by state-of-the-art Class-D amplifiers that feature a 96kHz/24bit signal path, plus a DSP used in just the right way offers the option to extend or curtail the low frequency response by 10Hz where needed, while both ‘Position’ and ‘Sound Balance’ controls ensure the best possible performance for any mixing or listening environment. (see more below)
Hand-crafted DriversLYD-48 uses Dynaudio’s legendary handcrafted soft-dome silk tweeter with an aluminium voice coil to reproduce upper frequencies in a natural, uncoloured manner. Using aluminium over copper drastically reduces the weight of the voice coil, whilst also improving the thermal behaviour of the driver (less thermal distortion). Also, these type of tweeters don’t give off any shrill high-frequency resonance that can plague some other designs, meaning you can work for long hours without ear-fatigue.
For the mid and lower frequencies, Dynaudio’s trademark handcrafted 4” and 8” drivers are made from Magnesium Silicate Polymer (MSP), which offers the perfect balance between stiffness, weight and dampening. Combined with the better thermal behaviour of aluminium in itself and the die-cast aluminium basket of the LF driver, the overall sonic performance is improved with less thermal distortion. Using lightweight aluminium instead of copper allows for a larger diameter voice coil, which results in increased cooling and enables our flat cone design to give better off axis frequency response and means transient response is blazingly fast.
Powerful Amplification - State-of-the-art Class-DAs with the rest of the LYD family, the LYD 48 features the same new state-of-the-art Class-D amplifier design. LYD 48 is tri-amped with separate 50W amplifiers for the tweeter and midrange and an 80W amplifier for the woofer. The digital amps feature a 96kHz/24bit signal path and the crossover is handled by an Analog Devices DSP. The DSP also processes the Bass Extension, Sound Balance and Position tuning modes. Different input sensitivities can be chosen to account for different types of studio equipment and audio devices. The amplifier also offers a selectable Standby Mode to save energy when the monitor detects silence. An incoming signal will quickly wake the monitor out of standby.
DSP used in just the right wayBass Extension Control Due to the fact that low frequencies need a lot of energy and therefore membrane movement, every monitor design involves a compromise between low frequency reproduction and maximum SPL. By offering presets for the cut–off frequency of the woofer, you can choose to either have the speaker perform as loud as possible (+10Hz/+5dB) or as deep as possible (-10Hz/-5db). The 0Hz setting is our default factory setting. Neither of the three settings will influence the linearity of the frequency response though, so your mix remains pure.
- Extend or reduce the low frequency response by +10 Hz or-10 Hz - Changes the low end response while maintaining a linear frequency response
Position Control Placing a speaker close to a wall can prove to be problematic and this is especially true for bass-ported systems. The issue is primarily audible on low frequencies. Therefore, we created two different tunings, one for when your monitors are free standing (“Free”) and one for when they are placed within 50 cm of a back wall or closer (“Wall”). This will help to provide a more balanced response at whatever your choice of listening position.
- Changes tuning presets - Provides better sound characteristics when used close to a wall
Sound Balance Control Different to simple Shelf-EQs that features on most studio monitors, the Sound Balance control is a so called ‘Tilt-Filter’ that lifts one end of the frequency spectrum, while lowering the other end by the same amount. This can be used to influence the frequency response of the monitor, without affecting the critical phase that EQ can influence on the imaging of your mix. Our tilt filter lifts 20 kHz by 1.5 db, while lowering 20Hz by1.5dB (“Bright”) and the other way around (“Dark”).
- Tunes the speaker by tilting the whole frequency spectrum - Linear phase response
Tech Specs
- Near to Midfield Monitor - Handmade drivers - 1” soft-dome tweeter, 4” midrange and 8” woofer- Max. SPL (1m, pair): 114 dB*- Freq. Response: 40Hz – 21kHz*- Bass Reflex- HF 50W/MF 50W/LF 80W Class-D amplifier with 96kHz/24bit signal path- Adjustable Input Sensitivity- Selectable Auto-Standby Mode- XLR and RCA inputs- Available in Black/White and all Black finishes
* Preliminary information

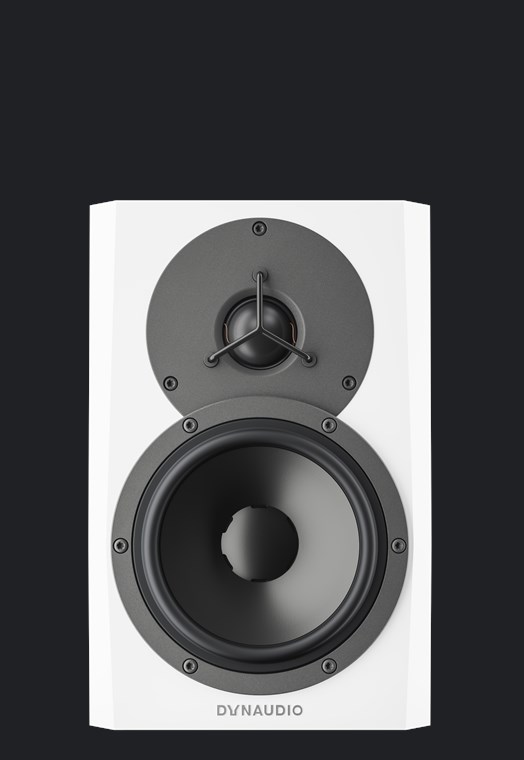

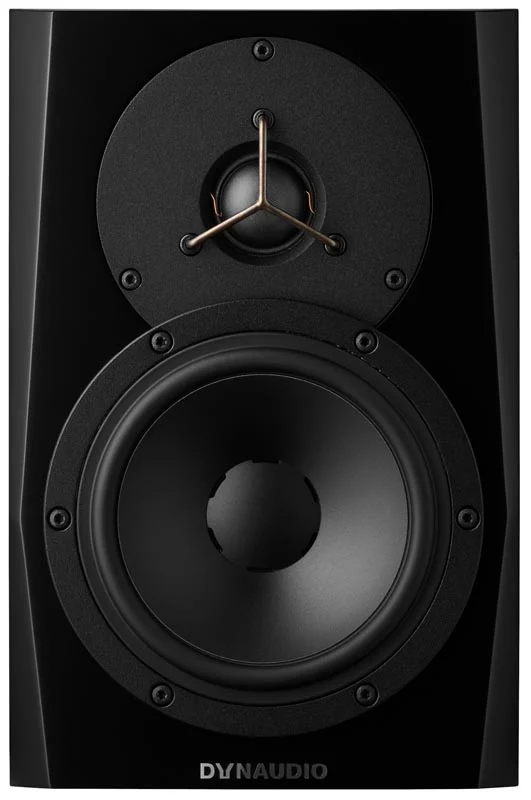

The LYD 5 is our premium small-format near-field monitor. With its low volume precision, LYD is the perfect fit for smaller setups and home studios. LYD uses lightweight aluminium wire and voice coils in its handmade drive units, along with a state-of-the-art Class-D amplifier with a 96 kHz / 24bit signal path and DSP used just right to provide outstanding performance.
The aluminium voice coil and wire are low mass so its transient response is quick and accurate. To ensure the ideal mix between stiffness, weight, and dampening for unrivalled accuracy, we mould the diaphragm and dust cap in one piece with our proprietary Magnesium Silicate Polymer.

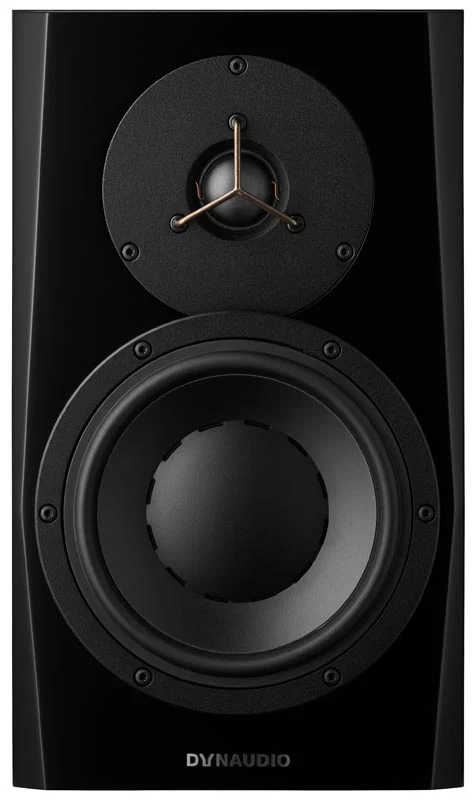

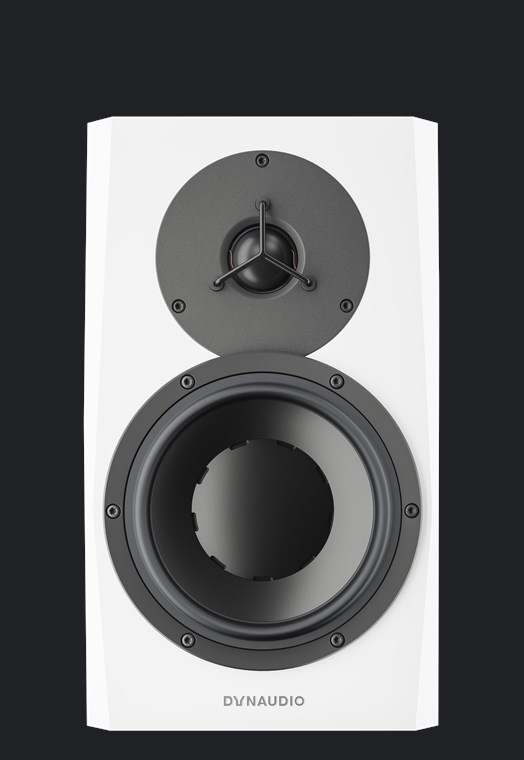

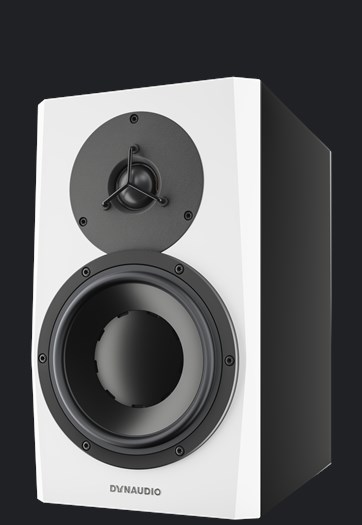

The new LYD 7 uses advanced Digital Signal Processing to extend or curtail the low-frequency response by 10 Hz where need while both Position and Sound Balance ensure better performance in any environment.
Compared to its smaller sized sibling, the LYD 7's larger woofer helps extends bass response.
A ferrit magnet system with vented pole piece for accurate driver control. Large diameter voice coil surrounds the magnet for superior linearity. The aluminium voice coil and wire are low mass so its transient response is quick and accurate. To ensure the ideal mix between stiffness, weight, and dampening for unrivalled accuracy, we mould the diaphragm and dust cap in one piece with our proprietary Magnesium Silicate Polymer.

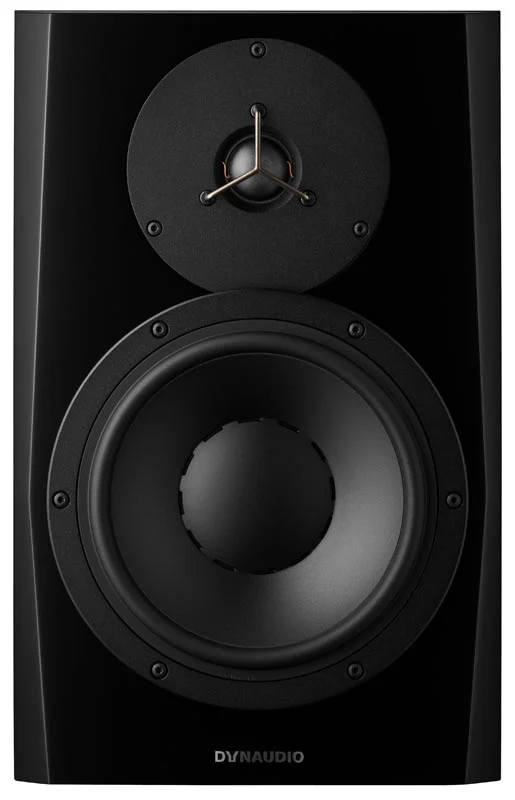

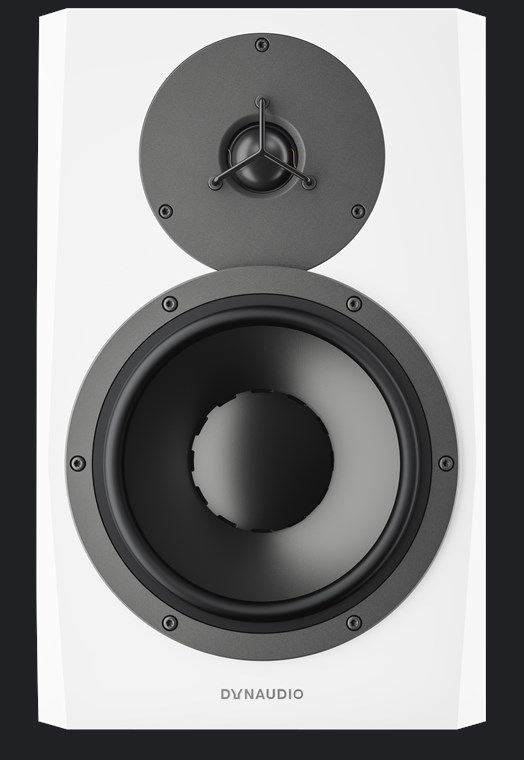

The LYD series is a redefinition of our previous professional products, and LYD 8 is the biggest of them all. With its 8'' MSP woofer and advanced DSP, the LYD 8 provides outstanding performance and a low-end precision you won't believe. Perfect for smaller studios and home setups.
A ferrit magnet system with vented pole piece for accurate driver control. Large diameter voice coil surrounds the magnet for superior linearity. The aluminium voice coil and wire are low mass so its transient response is quick and accurate. To ensure the ideal mix between stiffness, weight, and dampening for unrivalled accuracy, we mould the diaphragm and dust cap in one piece with our proprietary Magnesium Silicate Polymer.

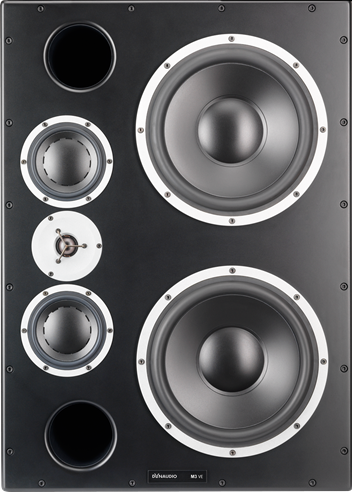

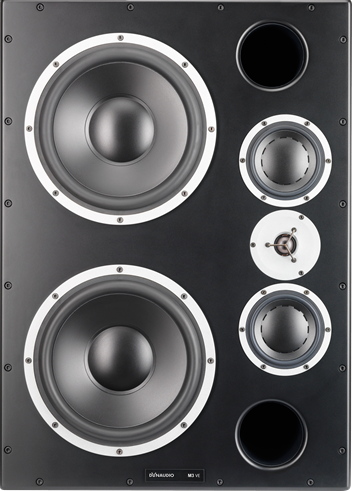

M3VE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake.
The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by the four channel Lab.gruppen PLM10000Q amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.
Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3VE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or sheer power.
Different from its sister monitor M3XE, a set of M3VE's is powered by a single PLM10000Q Lab.gruppen four channel amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.
The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3VE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment.
In short, M3VE surpasses any and all main monitor expectations!
M3VE Monitor Features
Unique linear phase frequency response
Frequency Response: 20Hz - 25kHz
Dual 12" ESOTAR² Woofers, aluminum voice coil
Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil
1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil
Max. SPL (short term peak @ 1m): 133 SPL
Heavy internal damping for minimum cabinet resonance
Dimensions: 555mm (W) x 775mm (H) x 505mm (D)
Weight: 143 lbs./ 65 kg.

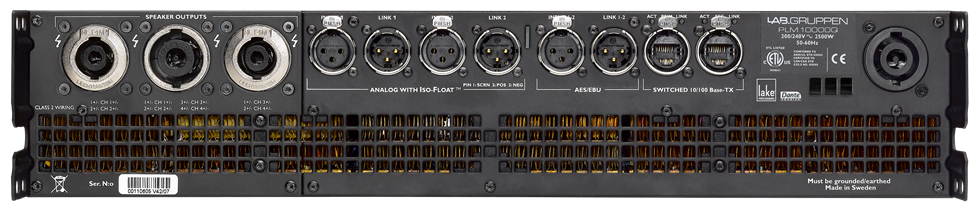

Lab.gruppen PLM 10000Q
The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers. In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.
Lab.gruppen PLM 10000Q main features and specifications
2350 W per channel @ 2 ohms, 2300 W per channel @ 4 ohms, 1300 W per channel @ 8 ohms**
2 unit 19" chassis weighing only 13.5 kg
Input connection: Analog, Digital, Dante
Class TD® output stage
Regulated Switch Mode Power Supply (R.SMPS™)
Copper-finned Intercooler® with transverse-mounted output devices
Full suite of protection and fault monitoring features
Digitally controlled 'amplifier gain' adjustable in 0.1 dB steps from 22 to 44 dB
Digital output attenuation in 0. 25 dB steps from -inf to 0 dB
Digitally implemented, zero-overshoot Inter-Sample Voltage Peak Limiting (ISVPL™) adjustable in 0.1 V steps from 17.8 to 153 V
Power Average Limiter (PAL)
Lake processing
Having the perfect monitors and amplifier is one thing. Making them deliver divine audio quality in any room is another - and this is where unique Lake processing makes all the difference. Lab-gruppen's PLM 10000Q amplifers holds two full-featured Lake Processor modules, each offering precise settings for gain, delay, crossover slope, equalization and limiting that provide you with unparalleled power to correct, shape and optimize your sound in any control room. Exclusive Lake Processing algorithms are included for Raised Cosine Equalization, linear phase crossovers, LimiterMax loudspeaker protection, and Iso-Float ground isolation. Raised Cosine Equalization is the foundation for the Lake Mesa EQ and the Ideal Graphic EQ, the two revolutionary EQ interfaces used by the Dolby Lake Processor. Mesa EQ offers asymmetric filtering to match the asymmetric responses of many loudspeaker systems while the Ideal Graphic EQ offers true sum-to-flat response, so the adjustments provide uniform boost and cut along with greater selectivity.
Lake processing main features and specifications
Raised Cosine Equalization™
Linear phase and classical crossovers
LimiterMax™ - peak and RMS limiters
Iso-Float™ ground isolation
Super Module capability
Integration of third-party frequency measurement and analysis via Lake Analyzer Bridge
M3VE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake.
The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by the four channel Lab.gruppen PLM10000Q amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.
Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3VE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or sheer power.
Different from its sister monitor M3XE, a set of M3VE's is powered by a single PLM10000Q Lab.gruppen four channel amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.
The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3VE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment.
In short, M3VE surpasses any and all main monitor expectations!
M3VE Monitor Features
Unique linear phase frequency response
Frequency Response: 20Hz - 25kHz
Dual 12" ESOTAR² Woofers, aluminum voice coil
Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil
1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil
Max. SPL (short term peak @ 1m): 133 SPL
Heavy internal damping for minimum cabinet resonance
Dimensions: 555mm (W) x 775mm (H) x 505mm (D)
Weight: 143 lbs./ 65 kg.
Lab.gruppen PLM 10000Q
The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers. In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.
Lab.gruppen PLM 10000Q main features and specifications
2350 W per channel @ 2 ohms, 2300 W per channel @ 4 ohms, 1300 W per channel @ 8 ohms**
2 unit 19" chassis weighing only 13.5 kg
Input connection: Analog, Digital, Dante
Class TD® output stage
Regulated Switch Mode Power Supply (R.SMPS™)
Copper-finned Intercooler® with transverse-mounted output devices
Full suite of protection and fault monitoring features
Digitally controlled 'amplifier gain' adjustable in 0.1 dB steps from 22 to 44 dB
Digital output attenuation in 0. 25 dB steps from -inf to 0 dB
Digitally implemented, zero-overshoot Inter-Sample Voltage Peak Limiting (ISVPL™) adjustable in 0.1 V steps from 17.8 to 153 V
Power Average Limiter (PAL)
Lake processing
Having the perfect monitors and amplifier is one thing. Making them deliver divine audio quality in any room is another - and this is where unique Lake processing makes all the difference. Lab-gruppen's PLM 10000Q amplifers holds two full-featured Lake Processor modules, each offering precise settings for gain, delay, crossover slope, equalization and limiting that provide you with unparalleled power to correct, shape and optimize your sound in any control room. Exclusive Lake Processing algorithms are included for Raised Cosine Equalization, linear phase crossovers, LimiterMax loudspeaker protection, and Iso-Float ground isolation. Raised Cosine Equalization is the foundation for the Lake Mesa EQ and the Ideal Graphic EQ, the two revolutionary EQ interfaces used by the Dolby Lake Processor. Mesa EQ offers asymmetric filtering to match the asymmetric responses of many loudspeaker systems while the Ideal Graphic EQ offers true sum-to-flat response, so the adjustments provide uniform boost and cut along with greater selectivity.
Lake processing main features and specifications
Raised Cosine Equalization™
Linear phase and classical crossovers
LimiterMax™ - peak and RMS limiters
Iso-Float™ ground isolation
Super Module capability
Integration of third-party frequency measurement and analysis via Lake Analyzer Bridge

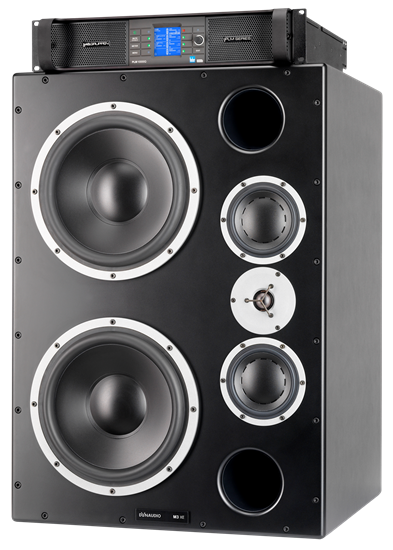

M3XE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake.
The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by two of Lab.gruppen's highly esteemed PLM10000Q amplifiers.
Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power.
Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two PLM10000Q Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the PLM10000Q.
The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3XE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment.
In short, M3XE surpasses any and all main monitor expectations!
M3XE Monitor Features
Unique linear phase frequency response
Frequency Response: 20Hz - 22kHz
Dual 12" ESOTAR Woofers, aluminum voice coil
Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil
1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil
Max. SPL (short term peak @ 1m): 133 SPL
Heavy internal damping for minimum cabinet resonance
Lab.gruppen PLM 10000Q
The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers. In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.
M3XE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake.
The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by two of Lab.gruppen's highly esteemed PLM10000Q amplifiers.
Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power.
Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two PLM10000Q Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the PLM10000Q.
The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3XE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment.
In short, M3XE surpasses any and all main monitor expectations!
M3XE Monitor Features
Unique linear phase frequency response
Frequency Response: 20Hz - 22kHz
Dual 12" ESOTAR Woofers, aluminum voice coil
Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil
1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil
Max. SPL (short term peak @ 1m): 133 SPL
Heavy internal damping for minimum cabinet resonance
Lab.gruppen PLM 10000Q
The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers. In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.
€8,299.00*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
