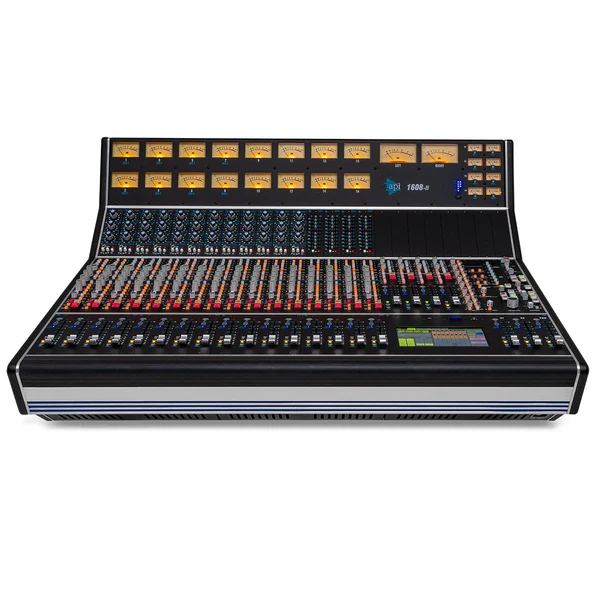

API 1608 II
Following the introduction of the 1608 in 2008, API delivered over 600 consoles and expanders to discerning audio professionals throughout the world. New for 2018 and based on the incredible success of the original, API proudly announces the 1608-II. Equipped with an updated feature set and debuting API's new cross-platform Final Touch Automation® system, the 1608-II continues API's rich legacy of crafting the world's highest-quality analog recording consoles. Adding valuable features for today's Engineers, Producers and Musicians, the 1608-II provides the powerful reliability and the incredible API sound that has characterized API products for nearly 50 years.
1608-II Features:
16, 32, or 48 Input Channel Frame sizes
Each channel equipped with Mic Pre and Equalizer
Accepts API 500 Series Equalizers
8 Multitrack Buses
8 Auxiliary Buses
1 Stereo Bus
4 Stereo Returns, 100mm faders (manual or automated) with Multitrack and Stereo Bus assign
Full Center Section Control
Surround 5.1 Center Section Monitoring
Classic Analog Metering
Global 0dB Fader Bypass
Comprehensive Rear Panel IO Connectivity
Standard fit:
16x 548B Inputs with Mic/Line and Direct Output
12x 550A Equalizers
4x 560 Equalizers
8x Echo Returns
1x Complete Center Facilities Section
16x Manual Faders
1x Stereo Fader

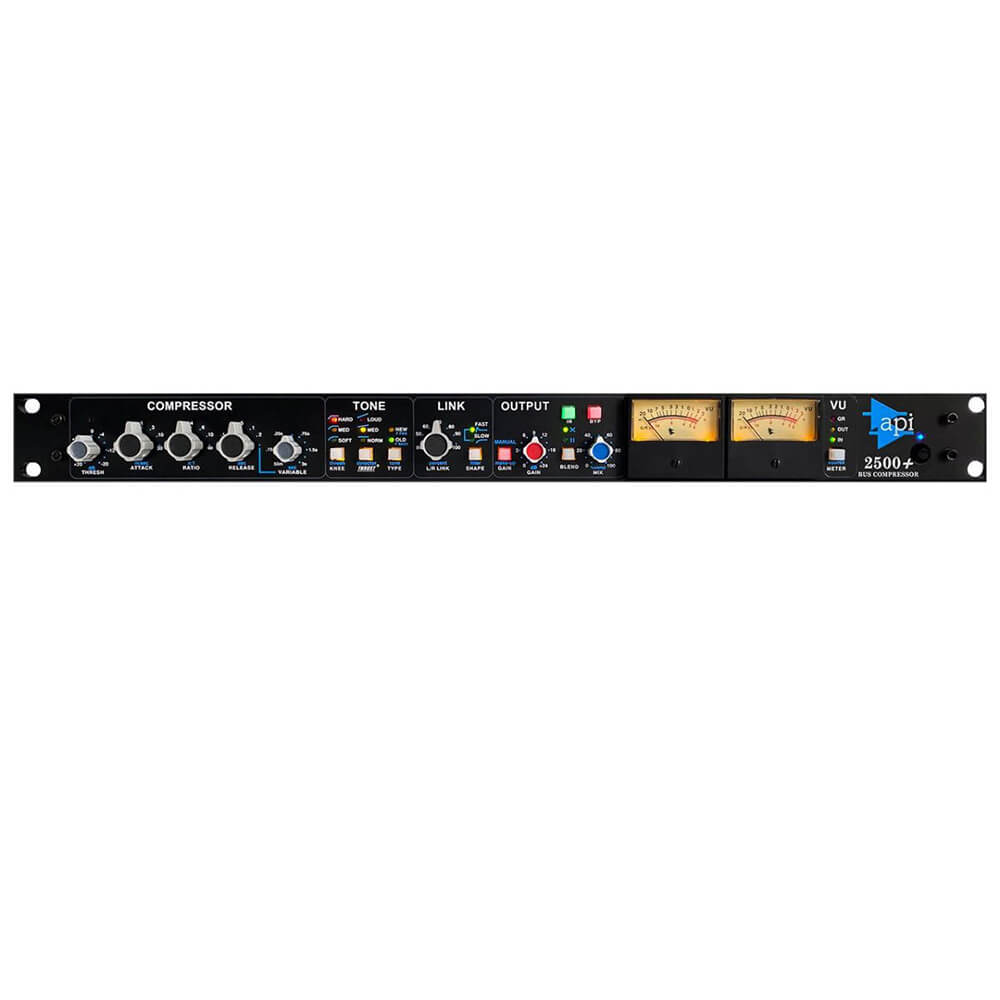

The API 2500+ Stereo Bus Compressor allows adjustment of sonic qualities to alter the punch and tone of the stereo mix. The 19-inch, rack-mountable unit features a dual-channel design that can be configured for stereo compression or for use as two separate units via a single compression setting.
Among the many qualities which make the 2500+'s unique is its use of API's patented THRUST® circuit for a chest-hitting, punchy bottom end. Another distinctive feature of the 2500+ is its selectable "old" or "new" compression, with the old style using the "feed back" type of compression found in the API 525, and the new style using the "feed forward" type in which the compressor side chain is fed directly from the unit input. Additionally, the output stage of the 2500+ offers an auto-makeup gain button that permits the user to vary the threshold or ratio while automatically maintaining a constant output level.
Added to the 2500+ is the Mix/Blend circuit. First featured in the limited production 50th Anniversary Edition, Mix/Blend control provides either cross fader or parallel mixing of the compressed and uncompressed signal. Three different user settings are offered:
OFF - compressed signal only
X (Cross) - allows the MIX control to adjust between 100% uncompressed to 100% compressed - increasing one, while decreasing the other
|| (Parallel) - allows the MIX control to dial in compressed signal to blend into the uncompressed signal, (which remains the same).
The 2500+ ensures fidelity with its fully balanced design and two front panel VU meters showing input, output and gain reduction levels. The 2500+ features API's industry exclusive five-year parts warranty and offers the user the reliability, sonic excellence and long life characteristic of all API products.
Features
API 2520 Op Amps
Expanded variable threshold between -20dBu to +20dBu
Selectable ratio, attack, and release times
Patented THRUST® filter with 3 settings for frequency dependent side chain control
Variable link between left and right channels
Old "feed back" and new "feed forward" compression
Soft, Medium, or Hard knee for easy to sharp compression
Auto or manual gain make up
1/4" balanced side chain inputs
Output clips at +32dBu
New Mix/Blend circuit
"Over Threshold" LED illuminates when input audio crosses the set threshold
Stereo analog meters to show input level, output level, and gain reduction
Full hard-wired relay bypass
Features
API's Classic 312 Microphone Preamp in a 500 Series module
Vintage Style Analog VU Meter
Maximum 69dB of gain
Traditional API fully discrete circuit design with 2520 Op Amp
Proprietary AP2516 Input Transformer
20 dB pad switch
3:1 Output Transformer Tap Selection
Switchable 48V phantom power
Peak LED
Features
Classic API Circuit Design
Uses API 2520 Op Amps
Variable Output Level Control
3:1 Output Transformer Tap Selection
Four XLR Mic Inputs
Four 1/4" Un-Balanced Inputs
Front Panel Polarity Switch
Front Panel 20 dB Pad Switch
Front Panel Mic/Line Switch
Front Panel 48V Power Switch
Features
Classic API Circuit Design
Uses API 2520 Op Amps
Variable Output Level Control
3:1 Output Transformer Tap Selection
Four female XLR mic inputs
Four front panel 1/4" Hi Z instrument inputs
Front panel polarity switches
Front panel -20dB pad switches
Front panel mic/instrument switches
Front panel 48V power switches

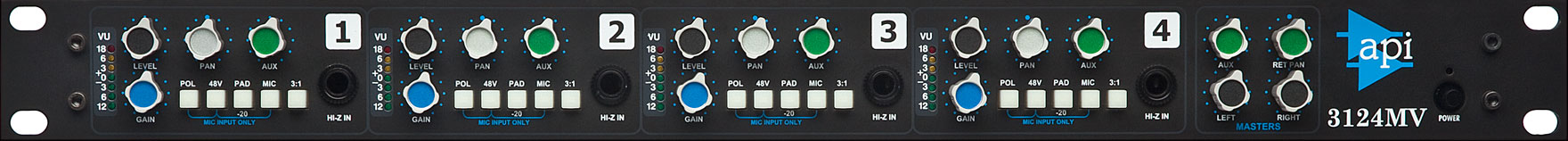

Like the API 3124+, the 3124V is a high quality, compact, 4-channel mic preamp. It is equipped with the RE-115 K mic input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line. Additionally, the 3124V offers Variable Output Level Control and switchable 3:1 output transformer selection. The unit has an internal 48-volt phantom power supply, which is switchable for each channel, as well as -20dB pad switches that affect both the mic and Hi-Z instrument inputs, both located on the front panel.
The 3124V also features up to 65dB of gain. Additionally, the Hi-Z front panel inputs feed directly to the op amps, which allow a low level input such as a guitar or bass to be amplified without a matching transformer or direct box. These Hi-Z inputs can take levels as high as +20dBu, making them perfect for keyboards and other high level devices. The mic preamp outputs are on rear panel male XLR connectors.
Kundenretoure / OVP Beschädigt
Features
Classic API Circuit Design
Uses API 2520 Op Amps
Variable Output Level Control
3:1 Output Transformer Tap Selection
Four female XLR mic inputs
Four front panel 1/4" Hi Z instrument inputs
Front panel polarity switches
Front panel -20dB pad switches
Front panel mic/instrument switches
Front panel 48V power switches
Like the API 3124+, the 3124V is a high quality, compact, 4-channel mic preamp. It is equipped with the RE-115 K mic input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line. Additionally, the 3124V offers Variable Output Level Control and switchable 3:1 output transformer selection. The unit has an internal 48-volt phantom power supply, which is switchable for each channel, as well as -20dB pad switches that affect both the mic and Hi-Z instrument inputs, both located on the front panel.
The 3124V also features up to 65dB of gain. Additionally, the Hi-Z front panel inputs feed directly to the op amps, which allow a low level input such as a guitar or bass to be amplified without a matching transformer or direct box. These Hi-Z inputs can take levels as high as +20dBu, making them perfect for keyboards and other high level devices. The mic preamp outputs are on rear panel male XLR connectors.

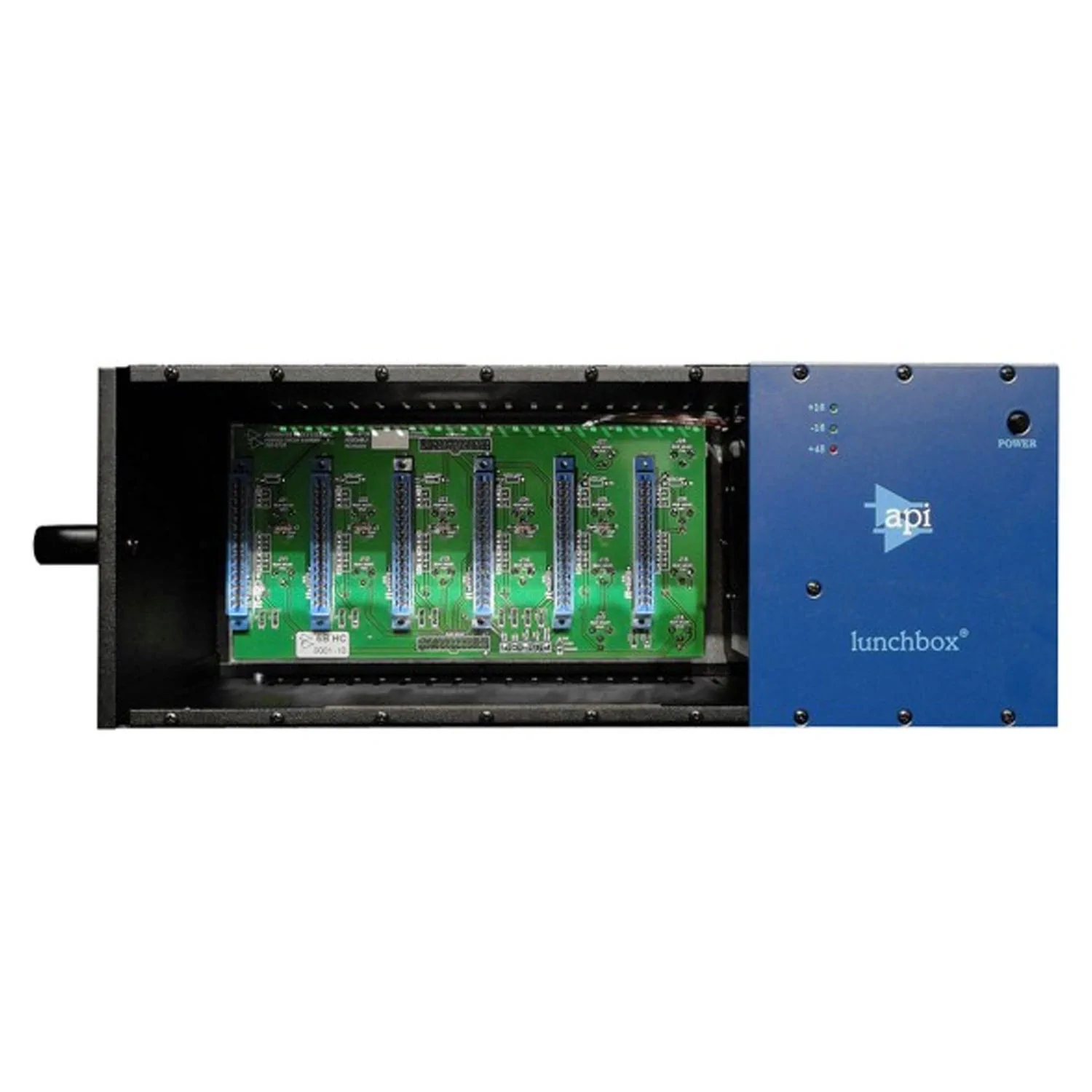

The API 500-6B lunchbox is a 6-slot rack designed to accept all API standard 5.25" X 1.5" modules. This quality allows an engineer the flexibility to bring along specialized EQ effects to any situation: 550A, 550b or 560. The lunchbox is self-powered with a rear panel selected AC voltage switch and a removable power cord. The input/output jacks are XLR. The lunchbox comes standard with a +48 volt internal phantom power supply, bussed to pin 15 for interface with the API 512c Mic Preamplifier.API makes several modules for the 500-6B, including the 512c Mic Preamplifier, the 525 Compressor, the 527 Compressor, the 550A 3-band EQ, the 550b 4-band EQ and the 560 Graphic EQ. Combinations of these modules make perfect stereo recording packages (two 512cs and two 550bs) or vocalist's box (one 512c, two EQs and one 527).Other uses for the versatile lunchbox include: Multi-track recording of acoustic and electronic audio sources Sound reinforcement systems and recording to multi-track formats Multiple facility projects where portability is a plus Broadcast and audio for video production Custom channel input strips Features: Holds 6 API standard modules 215mA per slot DB-25 connectors for easy input and output connection XLRs to access channels 7 and 8 of the multipins Power rail LED indication Self-Powered, 100 to 250 Volts switchable, 47 to 63 Hz Rubber feet & carrying handle for portability Rugged steel chassis Perfect for remote recording of Vocalist and InstrumentsSpecifications:Power Consumption, Quiescent: .66 WattsSize: 15.5" X 5.5" X 7.5" DeepSize (Boxed for Shipping): 20.25" X 9.75" X 12"Actual Weight: 10.22 lbs.Shipping Weight: 12.65 lbs.
10 slot Rack with Power SupplyThe API Model 500VPR is powered externally by a tri-polar power supply and is designed to accept API standard format 5.25" X 1.5" modules. The 500VPR is internally wired for PIN 2 hot, and comes with the API L200PS. The input/output jacks are both XLRs. The 500VPR can hold up to ten API modules. API makes several modules to fit this rack, including the 550A, 550b, 560, 525, and 512c. Like all API products, the 500VPR rack enjoys API's standard 5 year warranty.Specifications:Size: 19" X 5.5" X 7.5" DeepSize (Boxed for Shipping): 22" X 10.5" X 16"Actual Weight: 7.62 lbs.Shipping Weight: 10.86 lbs.
API 505 DI Direct Input
Like the console-based API 205L, the 505-DI is specifically designed to accept a guitar, bass or keyboard direct input while minimizing any loading effect on Hi-Z instrument pickups. Additionally, the 505-DI's Gain Control is used to normalize an instrument's input level, up to a +4 dBu output level. API's unique TONE control reduces potential low end "mud" in the signal, while turning on the BRIGHT switch adds additional clarity if desired. The various combinations of TONE and BRIGHT controls can eliminate the need for any EQ on the instrument while recording, keeping the signal path short and pure.
This minimal signal path eliminates the need to use a standard direct box, which many times still requires a mic input, equalizer, and a fader to get the signal to a recordable level. The 505-DI is capable of boosting any instrument to a hefty line level without additional amplifiers. Use of the 100K / 400K LOAD switch allows the tone of the pickup to be altered slightly, alternately brightening or darkening the high frequency content. When inserting an instrument with an internal preamp or a line level instrument such as a sampler or a keyboard, the 505-DI offers a 20 dB PAD switch to drop the level without loading, thereby retaining the integrity of the incoming signal.
Features
Wide Range Gain Control with 55dB of gain
Front Panel Hi-Z Input
Front Panel Thru routing
TONE Control helps customize your sound
BRIGHT Switch boosts clarity and presence
10 segment LED VU meter for monitoring output level
Peak Output LED Indicator
20 dB pad switch, applies to mic/line/instrument
100K / 400K Switchable Load
Traditional API fully discrete circuit design
Uses the famous API 2520 and 2510 Op-Amps
The API 512c is a mic / line / instrument preamp designed to provide a low noise, unusually good sounding front end for all types of audio systems. Sonically, it offers the distinct API sound at an extremely affordable price. Offering low noise (-129 EIN) and 65 dB of gain, the 512c includes phantom power, and switchable polarity, -20 dB pad and Mic/Line or Instrument selector. Front panel XLR and 1/4 inch connectors combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or an API console.The API 512c remains faithful to the circuit designs of API's founder, Saul Walker. Fully featured and still hand assembled, the 512c carefully preserves the original sound character that made it so much a part of the early days of recording. Offering high headroom and a wide variety of inputs and input access points, it is equally at home in the commercial recording studio as it is in the home project studio.The 512c Mic/Line Preamp makes use of the 2510 and 2520 op-amps and therefore exhibits the reliability, long life, and uniformity which are characteristic of all API products. Features:Mic Preamp with 65 dB of gainFront and Back Panel Mic Input AccessLine/Instrument Preamp with 50 dB of gainFront and Back Panel Line/Instrument InputLED VU meter for monitoring output level20 dB pad switch, applies to mic/line/instrument48v Phantom switchable powerTraditional API fully discrete circuit designUses the famous API 2520 Op-AmpTechnical Specifications:Rear Connector: Output on edge connector, MIC Input on edge connector, can be defeatedFront Connectors: XLR MIC Input, HI-Z 1/4" Unbal InputGain Range: MIC, 10 dB min, 65 dB max. Unbal HI-Z Input, 14 dB min, 50 dB maxMaximum Input Levels: MIC, +8 dBu, Unbal HI-Z Input, +36 dBuInput Impedance: MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input, 20 K OhmsOutput Impedance: Less than 75 Ohms, Transformer BalancedClipping Level: +30 dBuFrequency Response: +0, -.3, 30 to 20 kHzNoise: Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBuDistortion: Less than .05% @ +4 Out, Less than .1% @ +28 OutSize: 1.50" X 5.25" X 6" DeepShipping Weight/Actual Weight: 2 lbs./1 lb. 7 oz.Power Consumption: ±12/18 Volts/DC, @40 ma.
Features
Mic Preamp with 65 dB of gain
Variable Output Level Control
3:1 Output Transformer Tap Selection
Front and Back Panel Mic Input Access
Line/Instrument Preamp with 45 dB of gain
Front Panel Combo-style XLR + 1/4 inch Line/Instrument Input
LED VU meter for Gain Level indication
20 dB pad switch, applies to mic/line/instrument
48v Phantom switchable power
Traditional API fully discrete circuit design with 2520 Op Amp
Features API's unique Five Year Warranty
The API 512v is a mic / line / instrument preamp, world famous for its ability to provide a low noise (-129 EIN) and unusually good sounding front end for all types of audio applications. Sonically, it delivers the instantly recognizable API sound at an affordable price, and in the scalable API 500 Series format. Offering an impressive 65 dB of gain, the 512v includes front panel Variable Output control, switchable 3:1 output transformer selection, phantom power, switchable polarity, -20 dB pad, and Mic or Instrument/Line selector. The front panel Combo-style XLR and 1/4 inch connector combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or into an API console.
The API 512v remains faithful to the circuit designs of API's founder Saul Walker. Artfully combining those circuits with API's proprietary transformers and the incomparable 2520 op-amp, the 512v is a highly musical and rich-sounding analog mic pre, equally at home in commercial recording spaces as it is in smaller home studios. Fully featured and still hand assembled, the 512v exhibits the reliability, long life, and uniformity which are characteristic of all API products.
Originally released in the 70's, the API 525 is a "feedback" type compressor. An input (threshold) control and output (make-up gain) control are provided, along with an additional "Ceiling" fine-tune function which can increase gain reduction (lower threshold) while simultaneously raising output level to match, so the user can alter dynamics "on the fly" without level changes. A compression/limit switch sets ratio at either 2:1 or 20:1. Attack time is as fast as 15u/s. Four auto release modes are offered via two switches, 0.1s, 0.5s, 1.5s, & 2.0s. A De-Ess function inserts an inverse vocal energy curve filter in the detector for effective sibilance/pop reduction. The 525 design has been taken from the original blue prints and spec control drawings from the API archives.Release times vary with frequency, with high frequency / full bandwidth content released faster than lower frequencies for natural envelope tracking. Attack time is fixed, chosen to catch the fastest peaks, without "pumping". Equally useful as a tracking, mixdown or program compressor/limiter, the 525 utilizes "vintage" dynamics control and an easy to use multi-function control set. The 525 has a hard-wire bypass switch, a balanced input, and a pinout that is the same as all the other 500 series modules. Two or more 525s can be linked for multi-channel compression.The API 525 Compressor makes use of the 2510 and 2520 op-amps and exhibits the reliability, long life, and uniformity which are characteristic of all API products. Features:Exact reissue of API's original 525 from the early 70'sPeak detecting "feedback" compressor/limiterVariable Threshold and Output levelsUnique "Ceiling" control combines key functionsAnalog VU meter for monitoring gain reduction4 Switchable release modesDe-Ess functionTraditional API fully discrete circuit designActive Balanced Input/OutputHardwire bypass Technical Specifications:Input Impedance: > 30 K Ohms, BalancedOutput Impedance: 100 Ohms, Transformer coupled, BalancedOperating Levels: -15 dBu to +20 dBuMaximum Gain Reduction: 25 dBNoise: 98 dB below +10 dBu output, at 10 dB of CompressionHarmonic Distortion: 0.5% Max, 30 to 20 kHzAttack Time: 15 micro secondsRelease Times: .1, .5, 2.0, 2.5 secondsDe-essing: Inversion of the Voice Energy CurveSlopes: Compression, 2:1, Limit, 20:1Metering: Compression or Limiting-Illuminated Analog dB meter, shows Gain ReductionFrequency Response: ±.5 dB, 30 to 20 kHzPower Requirements: ±12/18 Volts/DC, @80 ma.
Features
Feed-forward or feed-back compression
Hard or soft knee compression
Patented THRUST® switch for frequency-dependent sidechain control
Continuously variable, 31 position detented THRESHOLD control
Continuously variable, 31 position detented RATIO control
Continuously variable, 31 position detented ATTACK and RELEASE controls
Continuously variable, 31 position detented OUT (output) level control
10-segment gain reduction/VU meter (GR/Output)
Overload LED
IN switch with soft and hard relay bypass
Audio circuit uses the 2510 and 2520 discrete op-amps
The API 527A Compressor/Limiter takes its place alongside the family of API VCA based compressors, including the 225L compressor and 529, 2500, and 2500+ stereo bus compressors. Anyone familiar with these units will immediately be at home with the 527A.
Features common to the line include "feed forward" (NEW) and "feed-back" (OLD) gain reduction methods selectable on the front panel, provide a choice of "that old way" or "the new way" of compression, for the highest level of flexibility in signal gain control. The "old way" or feed-back method is what most of the classic compressors used for the gain control circuit. The "new way" gain reduction is more typical of the newer VCA type compressors that rely on RMS detectors for the gain control voltage.
There is a "SOFT"/"HARD" knee switch for an "over-easy" type compression resulting in a very natural, uncompressed sound or a typical sharp knee type that lends itself to a much more severe limiting effect.
The patented THRUST® function can be switched in and out via the front panel as well, applying a filter before the RMS detector circuit that preserves that punchy bottom end.
Two or more 527A Compressor/Limiters can be linked together via a DC link allowing multiple units to be combined for stereo and multichannel applications.
The output level remains fairly constant regardless of the threshold or ratio control, much like the "more/less" Ceiling control on the API 525 Compressor. This allows for live adjustments without any noticeable gain changes in the program level.
The 527A Compressor/Limiter makes use of the 2510 and 2520 discrete op-amps and exhibits the reliability, long life, and signature sound which are characteristic of API products.
Features
Continuously variable detented Gain, Threshold, Attack, Ratio and Release controls
10 segment LED meters show Gain Reduction and selectable Input or Output Level
Over Threshold LED
Patented THRUST® Switch for frequency dependent side chain control
3 selectable compressor curve Knee settings
Selectable New or Old switch for feed-forward or feed-back operation
Selectable variable or auto compressor make-up gain
Three way In/Out including full hard relay bypass
Audio circuit uses 2520 and 2510 Discrete Op Amps with transformer output
The new 529 Stereo Compressor combines the unmistakable sound of API's compression technology with the convenience and popularity of the API 500 Series format. Carefully designed to deliver a wide range of compression options, the 529 delivers warmth, clarity and punch, whether used for subtle adjustments or heavy compression effects.
Based on the unprecedented success of the 2500, the 529 takes many of the features and controls from API's famous stereo compressor and puts them into the first dual slot 500 series module from API. This stereo compressor features API's patented THRUST® circuitry for a punchy low end, along with an Old/New switch that lets you choose between classic and modern compression characteristics: Old for vintage-style feedback compression and New for today's more common feed-forward compression. The Auto-makeup Gain button lets you adjust ratio and threshold controls without affecting the output level. Using API's discrete op-amps and transformer technology, the 529 delivers the legendary analog sound of API. The 529 is backed by API's unique 5 year warranty.
535-LA Line AmplifierFeatures:
Continuously variable detented input level trim
Polarity button
20dB Input Pad
Calibrated Level mode
Output Ratio selector
Clip LED indicator
Continuously variable Output Gain
Traditional API fully discrete circuit design
Audio circuit uses the famous 2510 and 2520 Op-Amps
Traditional API fully discrete circuit design
Modeled after API's highly prized console-based 325 booster cards, the 535 can both amplify and attenuate incoming and outgoing signals for ultimate flexibility—all while providing API's trademark warmth and tone.The 535 excels at adding warmth to a variety of signals. Recommended uses include:
Warm up digital signals of all kinds
Add Tone to Keyboard rigs
Add warmth to any mix
Audio playback devices, mic preamps, or audio processing devices that do not have their own level control will also benefit from the added tone and control of the 535-LA.The 535-LA also includes a balanced input, a polarity switch, a 20dB pad for incoming signal attenuation and a three position toggle switch, which allows for different output gain levels from the transformer. This is designed to drive long balanced lines with low distortion just as the 325 booster card does. Output gain range is from 6dB to 45dB. The 535 utilizes the discrete 2510 and 2520 Op-Amps along with API's proprietary transformers to create the unique, warm and reliable sound that API users expect. Like all API products, the 535-LA features API's unique 5 year warranty.
The beginnings of the 5500 circuit can be traced back to the original 550 equalizer designed by Saul Walker, the founder of Automated Processes Inc. The 550 was designed as a console equalizer, which uses an unbalanced input due to the architecture of the recording console. Because the ergonomics of a console dictate that the controls take up little space, sometimes the number of included functions can be limited. The 5500 is specifically designed to address these limitations; it has a balanced input, a true straight-wire bypass, an integrated power supply with noiseless muting and a range control that expands its versatility to mastering applications.The 5500's input XLR is connected to an active balanced circuit. The unit's output XLR is driven from a transformer coupled output and can drive any load from 600 ohms or more to full output capability. There is no change from input to output in the unit's polarity, so it is suitable in studios using either pin 2 or pin 3 as the "hot" connection. Additionally, the 5500 has a 1/4 inch input connector that interrupts any present signal on the input XLR. It is balanced and can be driven from either balanced or unbalanced sources. A positive signal on the tip will deliver a positive signal on pin 2 of the output XLR. Using the 1/4 inch input does not bypass any internal circuitry and does not change the gain or operating levels.Features: Classic 550b Equalizer design Two range switches to individually alter gain steps Useable as a 550b, 550D or 550M Peak/shelf switch on Hi and Lo bands True hardwire bypass Balanced In and Out on XLR Unbalanced input on 1/4" EQ In/Out switchTechnical Specifications: Power Consumption, Quiescent: .66 Watts Size: 19" X 1.75" (1U) X 11.25" Deep Size (Boxed for Shipping): 23.25" X 6.5" X 16" Actual Weight: 9.68 lbs. Shipping Weight: 13.51 lbs.
API 550aDiscrete 3 Band EQFew equalizers enjoy the respect and admiration of the coveted API 550A. Designed by the now-legendary Saul Walker in the late '60s, the discrete 550A was first used as a modular OEM equalizer. As the industry rapidly embraced the sonic quality of the 550A, it quickly found its way into many custom console designs by Frank DeMedio and other leading engineers. Many of these consoles are still in use today.The 550A provides reciprocal equalization at 21 points in 7 steps of boost to a maximum of 12dB of gain at each point. The fifteen equalization points are divided into three overlapping ranges. The high and low frequency ranges are individually selectable as either peaking or shelving, and a band-pass filter may be inserted independently of all other selected equalization settings. Frequency ranges and boost/cut are selected by three dual-concentric switches, and a pushbutton "in" switch allows the EQ to be silently introduced to the signal path. A small toggle switch is used to insert the band-pass filter into the 550A.The combination of Walker's incomparable 2520 op amp and his "Proportional Q" circuitry gives the 550A user an uncomplicated way to generate acoustically superior equalization. Features: 3 bands of classic API equalization Each band offers 7 API selected frequency centers Reciprocal and repeatable filtering Maximum 12 dB of boost/cut per band EQ Band 1 and 3 offer shelf/peak switching "Proportional Q" narrows filter Q at extremes Traditional API fully discrete circuit design High headroom +30 dB clip levelTechnical Specifications: Input Impedance: 66 kΩ high level, 17 kΩ low level Output Impedance: Less than 85Ω (transformer isolated) Nominal Operating Level: –15 dBm to +12 dBm Insertion Loss: None (bridging) Frequency Response, Unequalized: ±0.5 dB 30 Hz to 20 kHz Noise: Unequalized, output noise of –90 dBm, high level strapping and, –98 dBm, low level strapping, 20 Hz to 20 kHz unweighted Distortion: .05% THD max, 30 Hz to 20 kHz @ +4 dBm, .07% THD max, 30 Hz to 20 kHz @ +18 dBm Clipping Level (3% THD): +30 dBm Power Requirement: ±15 volts to ±18 volts @ 70 ma Toggle Switch:50 Hz to 15 kHz band-pass filter In or out Push Button: LF range Peak or Shelf Push Button: HF range Peak or Shelf Push Button: Equalization In or Out Tally light when In Connector: 30 pin PC connector supplied Size: 1.5" X 5.25" X 7.75" Deep Size (Boxed for Shipping): 4.5" X 6.25" X 10.25" Actual Weight: 2 lbs. Shipping Weight: 2.53 lbs.
Based on API's original 550 from the late '60s, the API 550b is a continuation of the EQ that played a major role in the history of music recording, but with an additional filter band and several new frequencies. Incorporating API's exclusive circuitry and proprietary components (such as the legendary API 2520 Op Amp), the 550b artfully blends the past with the present. So many hit records still depend on the unique 550 sound that engineers around the world find it to be an invaluable tool. In fact, the 550b design has been taken from the original blue prints and spec control drawings from the API archives. It is unlike any other EQ you will ever use.Rather than offer a huge assortment of complex features, the API 550b provides exactly the right number of controls. Its four EQ bands are overlapped significantly to aid in dual roles as problem solver and sweetening device with each band offering seven switchable filter frequencies that span four-to-five octaves. These frequencies, purposely selected to be musical rather than numeric, were selected by an experienced "who's who" list of the industry's most proficient engineers.Making use of API's "Proportional Q," an innovation designed by Saul Walker in the '60s, the 550b intuitively widens the filter bandwidth at minimal settings and narrows it at higher settings without the need for additional bandwidth controls. This unique feature minimizes the "phase-shift" sound found in many equalizers. In addition, the reciprocal nature of the 550b enables the user to "undo" what has been done previously with exact precision.The benefits of the API 550b are most obvious to those who work with EQ on a continuous basis. If major tonal restructuring is required, the extraordinary headroom made possible with API's 2520 Op Amp offers the predictable and warm analog performance, even under duress. With a surprisingly wide range of tonal variations, the 500b is an invaluable and professional audio tool with great flexibility and excellent sonic ability. Features:Four bands of our famous sounding equalizationEach band offers seven API selected frequency centersReciprocal and repeatable filtering12 dB of boost/cut per bandEQ band 1 and 4 offer shelf/peak switching"Proportional Q" narrows filter Q at extremesTraditional API fully discrete circuit designHigh headroom +30 dB clip levelRe-issue of 1967 API 550 EQ with an extra bandTechnical Specifications:Number of Bands: FourFilter Type: "Low" and "High" bands are Peak/Shelf switchable. Low-Mid and Mid-High are peaking typeFilter Frequency Centers: Low: 30, 40, 50, 100, 200, 300, 400HzLow-Mid: 75, 150, 180, 240, 500, 700, 1KhzMid-High: 800, 1.5K, 3K, 5K, 8K, 10K, 12.5KHigh: 2.5K, 5K, 7K, 10K, 12.5K, 15K, 20KFilter Boost/Cut: ±12 dBFilter Slope: 12 dB per OctaveInput Impedance: 18.5 K +4 in, 7.5 K -2 inOutput Impedance: Less than 75 OhmsNominal Levels: -15 to +15 dBuClipping Level: +30 dBu @ ±16 VFrequency Response: +0, -.3, 30 to 20 kHzNoise: Actual, unw noise, <-98 dBu, 20-20 kHzDistortion: .07% max, @ +18 dBu OutputConnectors: 15 position .156sp edge connectorSize: 1.5" X 5.25" X 6" DeepShipping Weight/Actual Weight: 3 lbs./2.5 lbsPower Consumption: ±12/18 Volts/DC,@ 40 ma.
Originally conceived for use in API consoles of the '60s and '70s, the 560 is a unique device designed to accomplish tasks that no other EQ can. Extremely fast to set and reset using accurate zero detents, the curve shaping potential of the 560 remains unmatched. With a wide range of 500 mounting options, from racks to consoles, the 560 proves an invaluable asset to all critical performance applications. Based on API's original 560 EQ, the current production 560 has improved resolution in the ±4 dB area and possesses our exclusive circuitry and proprietary components, including the API 2520 Op Amp.The extraordinary headroom made possible with the 2520 offers consistent analog performance even when using radical EQ curves. Of course, the 2520's ability to drive low impedance loads is key when it is paired with API's custom output transformers. The results are quite audible with better low frequency reproduction and tighter imaging, which gives you that legendary API "punch in your gut" sound.The 10 precision EQ bands make the 560 ideal for signal sweetening and room tuning. A great companion to a parametric EQ, the 560 utilizes API's unique "Proportional Q" design introduced during the '60s. This design intuitively widens the filter bandwidth at lower boost/cut levels and narrows it at higher settings. Additionally, boost and cut characteristics are identical, allowing previous actions to be undone if desired.Reliable, durable and uniform, the API 560 EQ delivers that "one-of-a-kind API sound" with precision easy set filtering and high headroom in a compact package. If you want the sound of classic American music in an easy-to-set graphic EQ package, you want the API 560. Features:10 bands of API proprietary equalizationFamiliar graphics operation on one octave centers12 dB of boost/cut per band"Proportional Q" narrows filter Q at extremesAdditional resolution within the ±4 regionCenter detent for reliable resetSilent bypass buttonBased on the original 1969 API 560 EQTechnical Specifications:Number of Bands: 10Filter Type: Proportional Q, Octave entered, Continuously Adjustable LevelFilter Frequency Centers: 31, 63, 125, 250, 500, 1kHz, 2kHz, 4kHz, 8kHz, 16kHzFilter Boost/Cut: +/- 12 dBFilter Slope: 12 dB per Octave at full boost or cutInput Impedance: 20k Resistive, BalancedOutput Impedance: Less than 85 OhmsNominal Levels: -15 to +15 dBuClipping Level: Better than +28 dBuFrequency Response: +0, -.25, 30 Hz to 20kHzNoise: -95 dBu EQ Out, -90 dBu EQ In, Unweighted 20 to 20kHzDistortion: .05% max, @ +20 dBu OutputConnectors: 15 position .156 sp edge connectorSize: 1.50" X 5.25" X 6" DeepShipping/Actual Weight: 2 Lbs/1.5 LbsPower Requirements: ± 12/18 Volts/DC @ 60 ma.Rack Frame and Power Supply Options: Fits 500V (10 slot rack, requires API 200PS Power Supply, 500H (2 slot rack, internal power supply), 500b "lunchbox®" (4 slot portable rack with internal power supply), API Legacy Consoles and vintage API Classic Consoles.
Features
sweepable low-pass filter (500Hz to 20kHz, -6 or -12dB slope)
sweepable high-pass filter (20Hz to 400Hz, -12 or -18dB slope)
variable notch filter (fully sweepable between 20Hz and 20kHz)
The 565 Filter Bank module has circuits that are true to the musical filters of the famed 215 module found in large format API consoles.
Features
8 Slots with 250 mA of current per slot
Full compatibility with API 500 Series and VPR-approved modules
DB25 connectivity on the rear panel
Phantom Power
Optional Rack Ears available for rack mounting
Toggle switches for channel linking
Rubber feet & carrying handle for portability
Rugged steel chassis
Perfect for remote recording of Vocalist and Instruments
The new 8-slot lunchbox includes all of the features that have made the 6-slot lunchbox (500-6B) so well regarded in the industry, including DB-25 (D-Sub) connectors for easy I/O, universal power supply (100 or 250V, 47 to 63Hz), phantom power, and easy rack-mounting with optional rack-ear kit. Built for robust performance, with new toggle switches for channel linking.
The lunchbox gives an engineer the flexibility to bring along specialized EQ effects to any situation: 550A, 550b or 560. The lunchbox utilizes an external power supply. API makes several modules for the lunchbox, including the 512c Mic Preamplifier, the 525 Compressor, the 527 Compressor, the 550A 3-band EQ, the 550b 4-band EQ and the 560 Graphic EQ. Combinations of these modules make perfect stereo recording packages (two 512cs and two 550bs) or vocalist's box (one 512c, two EQs and one 527).
Other uses for the versatile lunchbox include:
Multi-track recording of acoustic and electronic audio sources
Sound reinforcement systems and recording to multi-track formats
Multiple facility projects where portability is a plus
Broadcast and audio for video production
Custom channel input strips
NOTE: The older 560A equalizer may use pin 15 for a "direct output" and must be disabled on the 560A circuit board edge connector by cutting a trace. This will eliminate 48 volts from damaging the 560A series equalizers.
Building on its rich heritage of manufacturing the highest quality mixing and recording consoles, API proudly introduces the new MC531 Monitor Controller. Featuring the same level of craftsmanship found throughout API’s entire product line, the MC531 offers a stand-alone version of the monitoring functionality built into the center section of API’s legendary analog consoles. Specifically designed to include fully-featured monitor control for DAW workflows, the MC531 can integrate seamlessly into any audio production environment where functionality, ease of use and an accurate reference of each audio source is required.
“In our ongoing mission to provide audio professionals with products suited to their evolving workflow, the company decided that a monitor controller would be a natural next step in product design,” commented API’s Director of Engineering Todd Humora. “We’ve certainly had many requests for a unit like this over the years. The MC531 provides users with the exact same circuitry they would find in an API console, plus a few extra features that many people will find useful.”
Drawing inspiration from the monitor control modules of all API consoles, the MC531 features a Main and two Alternate stereo outputs, the latter having individual trims for speaker level matching. Programmable subwoofer integration allows the user to link the Sub with the Main and/or either of the Alternate outputs. With a total of seven selectable stereo input sources (three analog line-level inputs, AES, USB, plus 3.5mm and Bluetooth), the MC531 can meet the monitoring needs of almost any studio setup. Two independent Headphone outputs and a built-in Talkback mic complement the feature set. Of course, the classic API 41-detent Control Room Knob is right at your fingertips.
“API has always strived to engineer products that the audio community needs and wants,” said API President Larry Droppa. “In the case of the MC531, we’re offering a truly professional monitoring solution that’s equally at home in a commercial studio as it is in a smaller, personal creative space. Anyone familiar with an API console will immediately recognize the layout, functionality and the tradition that’s built into this incredible sounding monitor controller.”
Features
Patented THRUST® circuit
Variable Threshold, Ratio, and Make-up gain controls
Classic analog VU meters
Switchable metering of output level and gain reduction
Peak threshold LED indication
Switchable Hard of Soft Knee compression
Linkable for stereo operation with true RMS power summing
Fully balanced XLR and 1/4" inputs and outputs
The SR22 Dual Channel Compressor features two channels of API's patented award-winning compressor circuit in a rackmount unit with internal power supply. This same compressor circuit was originally designed into the legendary ATI Paragon analog live mixing console. Each channel includes the patented THRUST® circuit, which protects the sensitive high frequency content of the audio signal, even under the most vigorous of compression ratios. The perfect companion to the new SR24 Dual Channel EQ, the SR22 provides comprehensive, easy-to-use control along with classic analog VU meters for monitoring output and gain reduction. The two channels can also be linked for use as a stereo compressor with true RMS power summing of the left and right signals.
