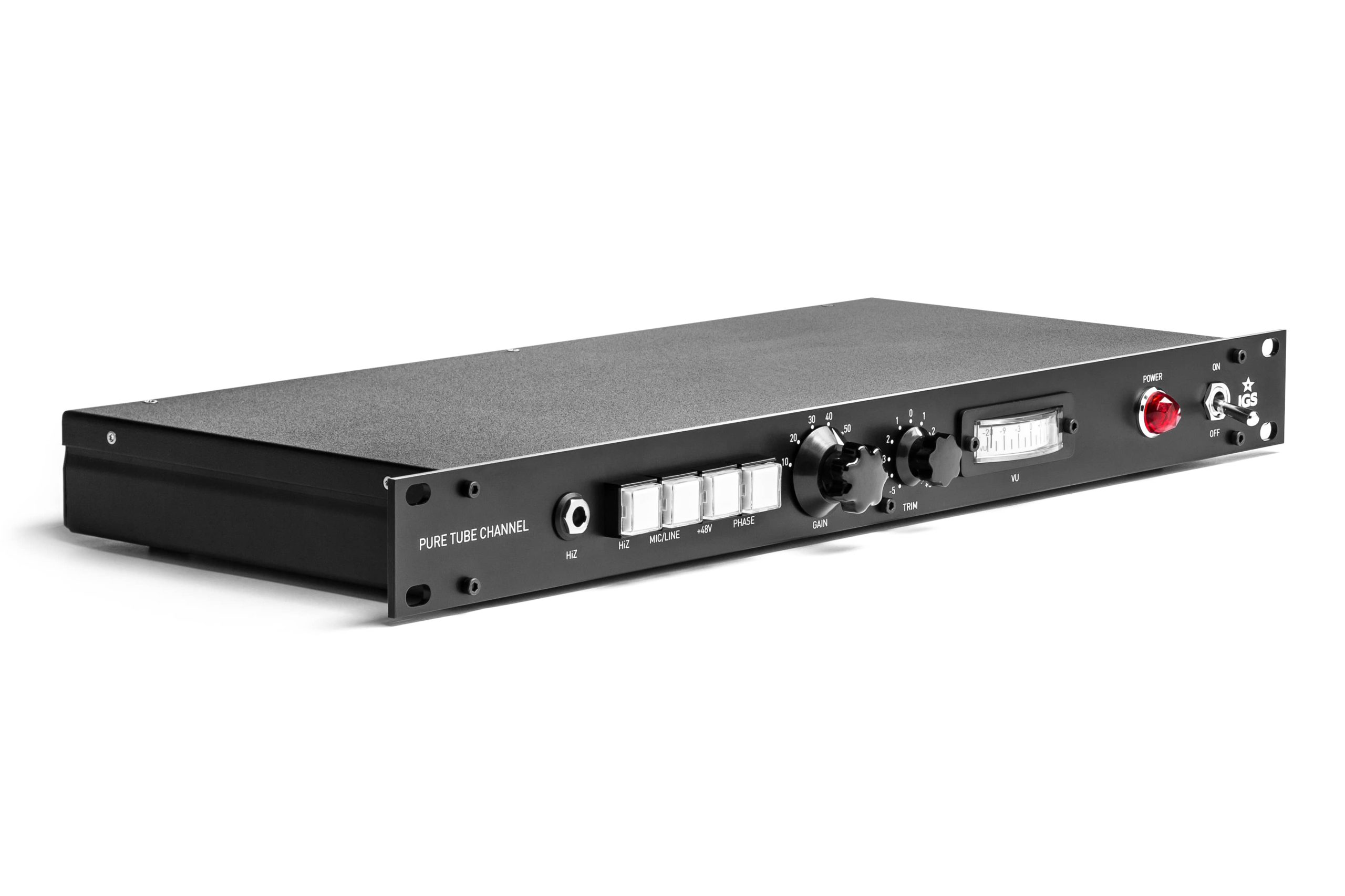

IGS Audio Pure Tube Channel
- Classic Class A tube signal path with minimal passive parts
- IGS Custom input and output transformers for authentic tube tone
- Two military-grade tubes (6N2P-EW and 6N1P-EW) for long life and reliability
- Only two Mundorf capacitors in the signal path for maximum purity
- High-impedance instrument input fed directly to the tube grid
- Ideal for direct recording of guitar, bass, and synths with tube coloration
- Galvanic isolation on input and output for lowest noise and superior CMRR

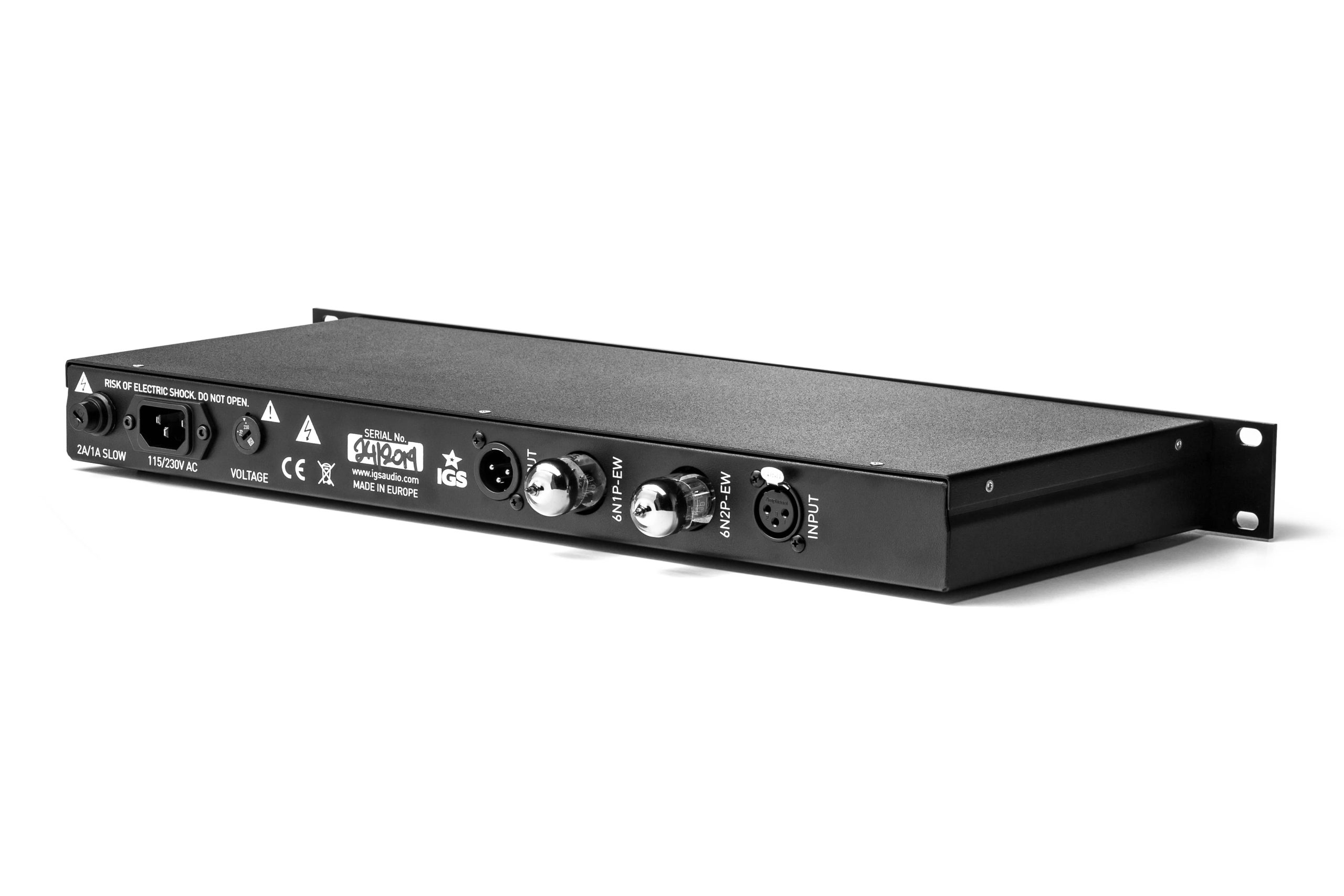

- Rear panel with dual XLRs and easy-access tube sockets
Produktinformationen "IGS Audio Pure Tube Channel"
The IGS Audio PTC is a classic pure tube microphone preamp built with a minimalistic approach and only the highest-quality passive components. Featuring an IGS Custom input transformer, two military-grade tubes (6N2P-EW and 6N1P-EW) operating in Class A, and an IGS Custom output transformer, the signal path is as short as possible, using only two Mundorf capacitors for maximum tube character with minimal non-harmonic distortion. A high-impedance instrument input feeds directly to the tube grid, making it ideal for recording guitar, bass, or sound modules with authentic tube warmth. The combination of input and output transformers provides galvanic isolation, superior CMRR, and rich musical harmonics. Rear-panel connectivity includes dual XLRs and easily accessible tube sockets for effortless maintenance.
- Basic Features
- Controls: All stepped
- Gain: 6 steps / 41 clicks Trim
- Engineer’s custom tube set: Yes, 6N2P, 6N1P, 6B23P, 6BC8, 6BZ8
- Input & Output
- Input impedance (balanced): 300/1200 Ohm, Carnhill transformer or 1M Ohm for Hi-Z instrument input
- Input Pad: -20 dB
- Output impedance (balanced): 600 Ohm
- Phantom Power: +48V
- Levels
- Operating level: +4 dBu
- Max input level: +18 dBu
- Max output level: +22 dBu
- Max. gain: +65 dB
- Noise level: -110 dB
- Bandwidth
- Frequency response: 20 Hz – 20 kHz ±0.2 dB
- Distortion (20 Hz – 20 kHz): THD+N <0.1 %
- Power
- Voltage: 115V/230V, 50–60 Hz
- Power consumption: 24 W
- Power supply: Internal, linear
- Packing box
- Shipping weight: 6 kg

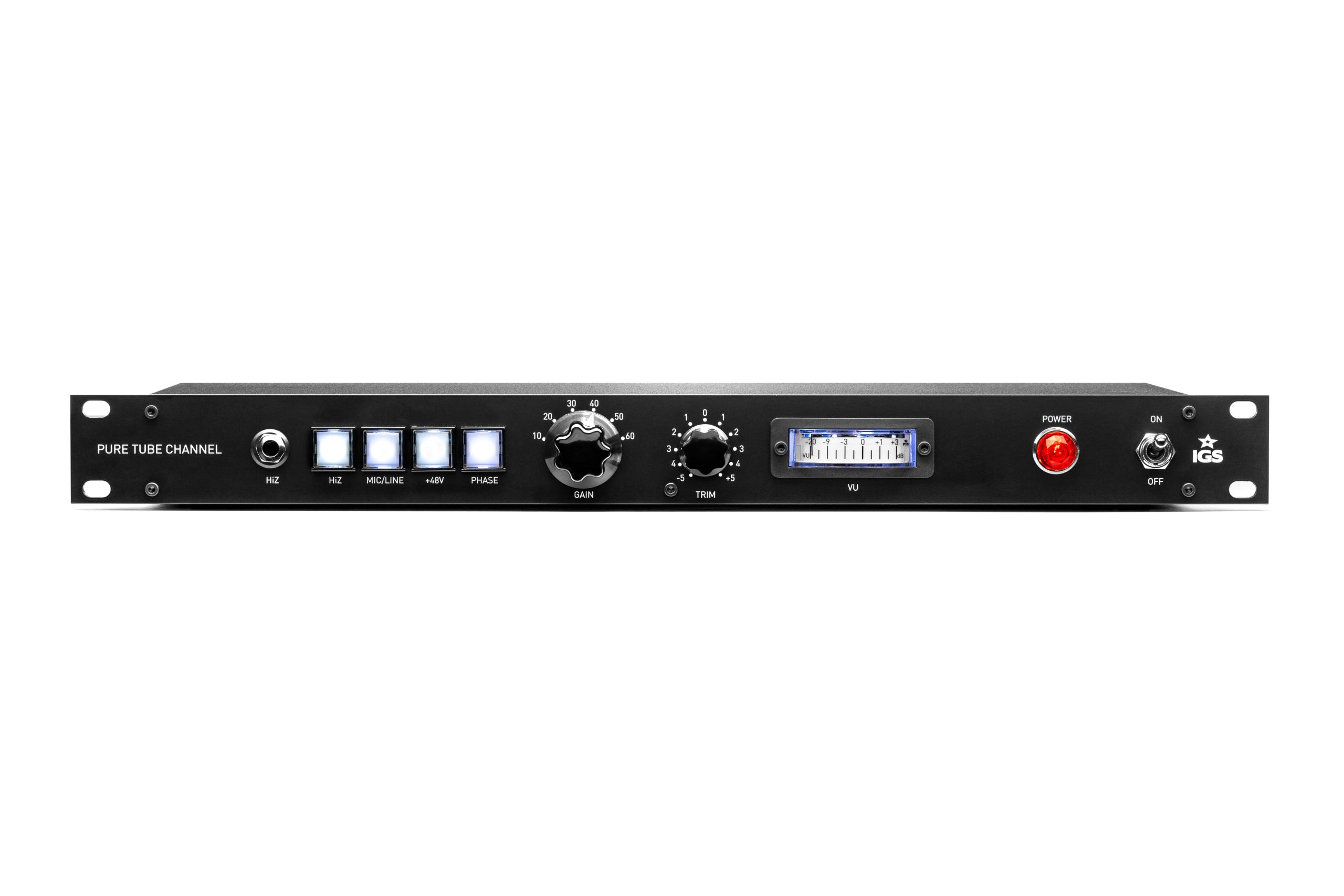

- Front Panel

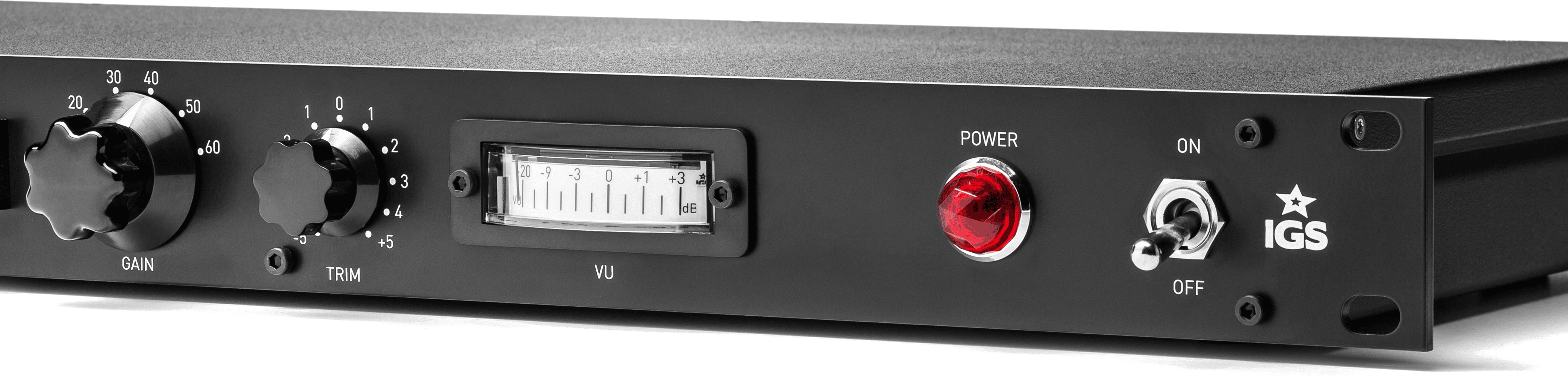

- VU Meters: Yes, Output Level
