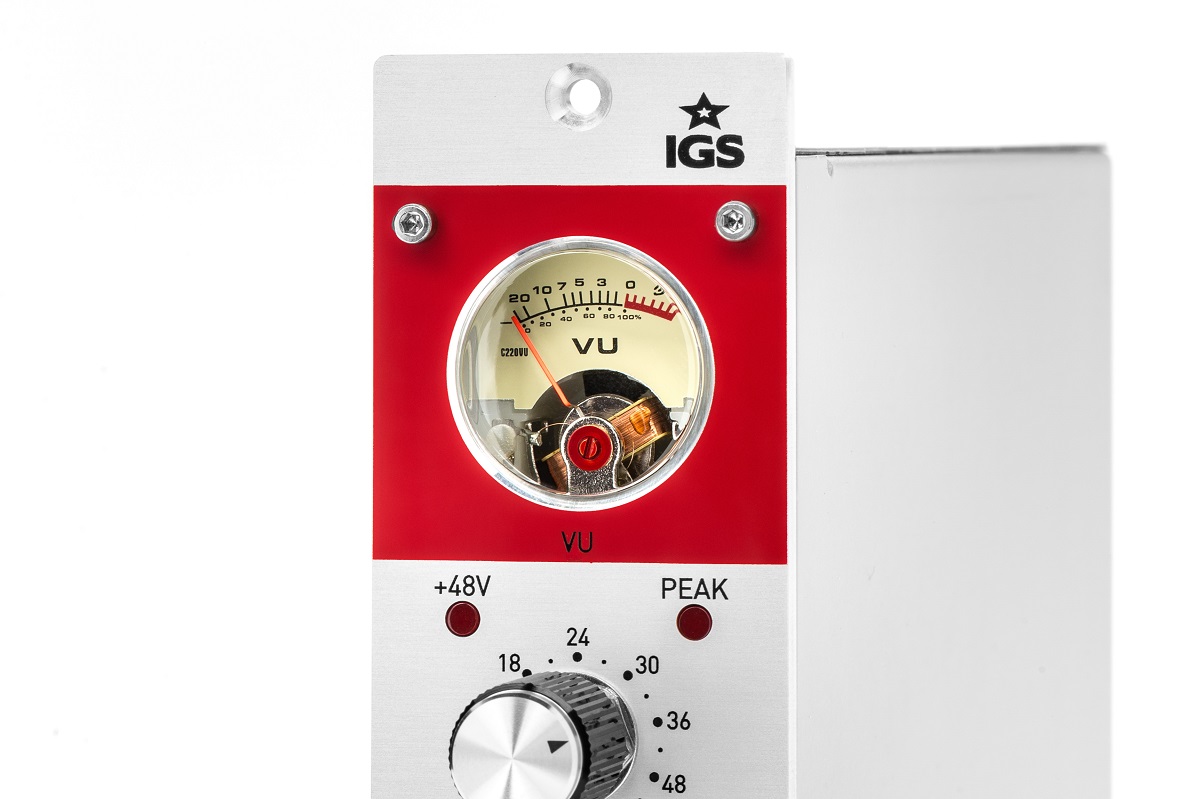

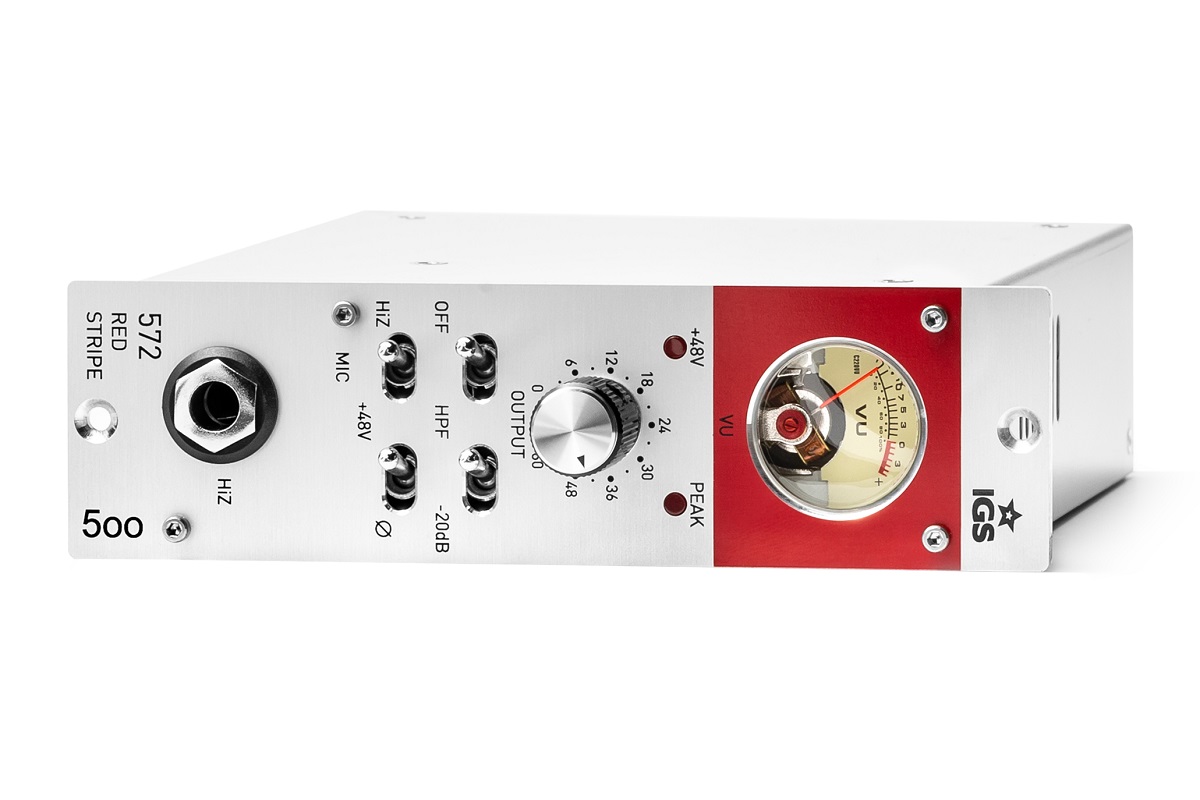

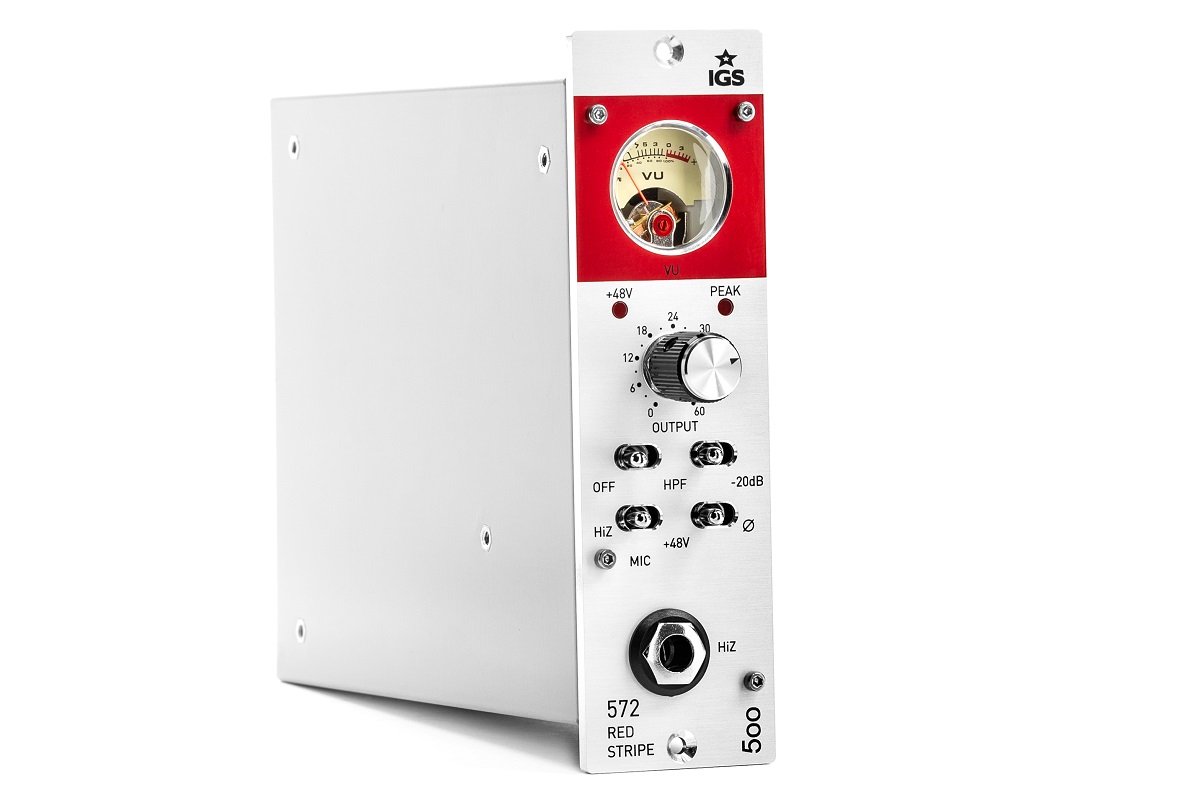

IGS Audio 572 Red Stripe Tube Preamp
Vorteile
- Versatile preamp for microphones (dynamic, condenser, ribbon), line signals, and instruments via front-panel Hi-Z input
- Transformer-balanced input and output using Sowter and Edcor transformers for rich, musical character
- 41-step gain control for precise level setting and creative drive without overloading the next stage
- Second-stage overload adds harmonics and unique tonal flavor
- 500-series format with stepped front-panel controls for accuracy and convenience
Beschreibung
Produktinformationen "IGS Audio 572 Red Stripe Tube Preamp"
The 572 Red Stripe is a mic/instrument preamp built to the 500-series standard, offering transformer-balanced input and output with premium Sowter and Edcor transformers. All front-panel controls use stepped switches for precise recall and consistency. Versatile and musical, it excels with microphones, line signals, guitars, or keyboards, while the Hi-Z input on the front makes it easy to integrate into any recording setup.
Herstellerinformationen
Tech-Info
- Basic Features
- High Pass Filter (HPF): OFF, 50 Hz (6 dB/oct)
- Number of slots: 1
- Input & Output
- Audio transformers: Sowter / Edcor
- Input impedance (balanced): >600 Ohm, Sowter transformer
- Input Pad: -20 dB
- Output impedance (balanced): 600 Ohm, Edcor USA transformer
- Phantom Power: Yes
- Levels
- Operating level: +4 dBu
- Max input level: +16 dBu
- Max output level: +28 dBu
- Dynamic range: 117 dB
- Max. gain: 64 dB
- Noise level: -100 dBA
- Bandwidth
- Frequency response: 20 Hz – 20 kHz, -1 dB
- Distortion (20 Hz – 20 kHz): THD+N max 0.5 %
- Power
- Voltage: Anode: 250 VDC
- Power consumption: +/- 16 V DC
- Power supply: 6.5 W
- Packing box
- Dimensions: 78 × 166 × 229 mm
- Shipping weight: 2 kg
- Others
- Tube set: ECC81, ECC81
- Used for: Any kind of one channel studio recordings
